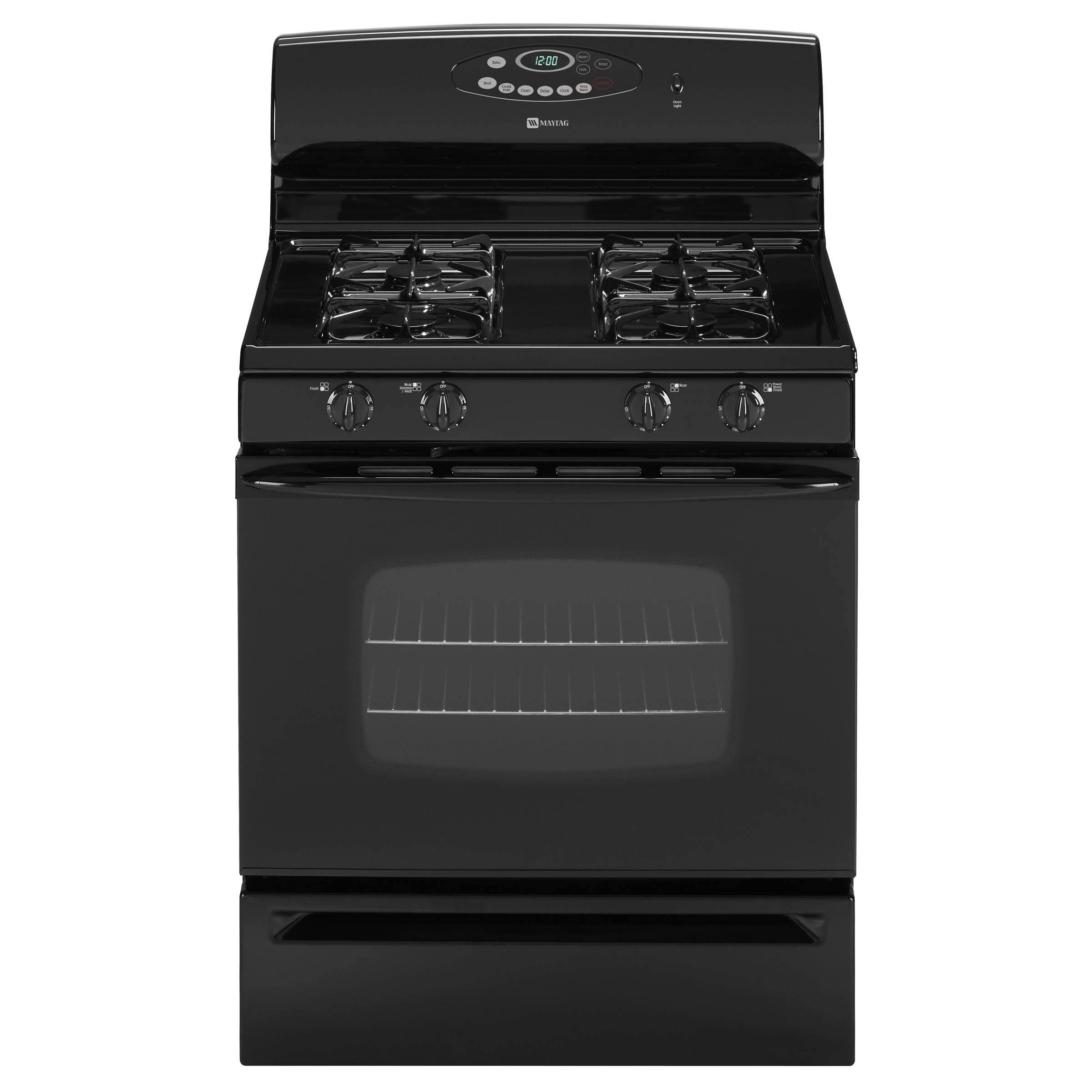

Maytag MGR5752BDQ gas freestanding range Parts
Here are the diagrams and repair parts for Maytag MGR5752BDQ gas freestanding range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for MGR5752BDQ Ranges

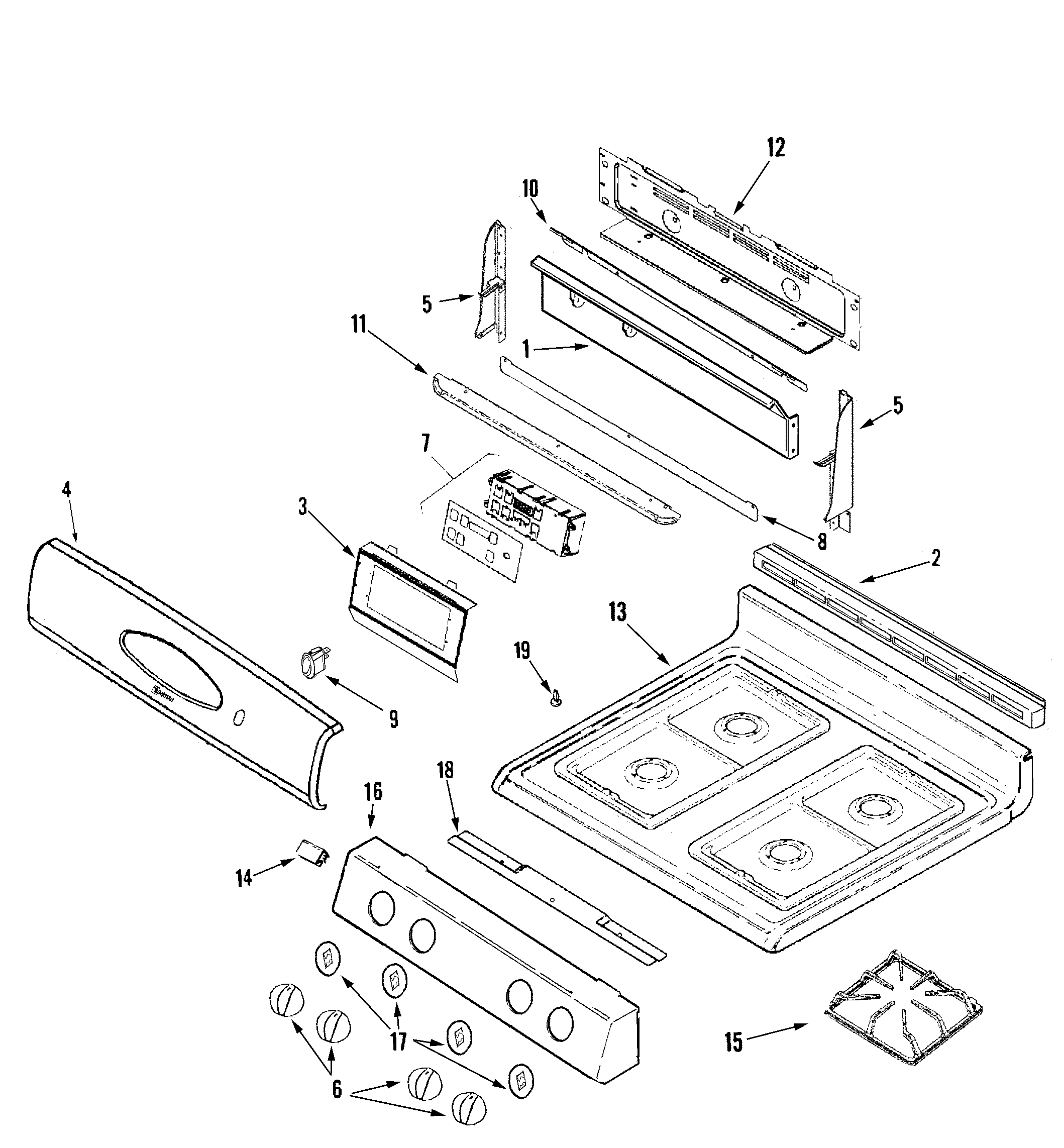

Control panel/top assembly diagram
Clock W/over
Part #74009778Replaced by #5701M754-60
Manufacturer substitutionThis part replaces 74009778. Substitute parts can look different from the original.In Stock$234.775% OFF Phone Price : $246.77
Qty
Range Storage Drawer Roller
Part #74004078Replaced by #WP74004078

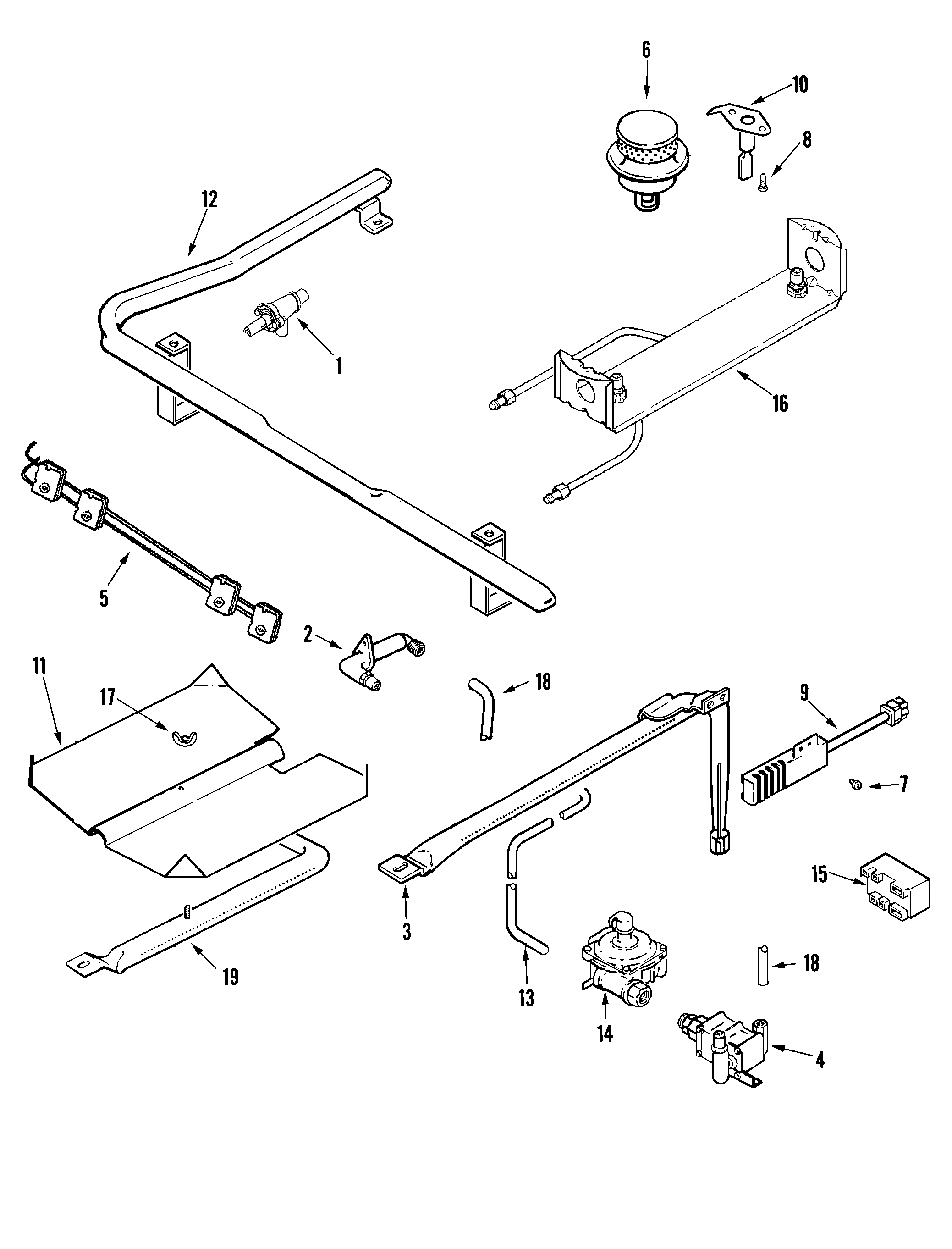

Manufacturer substitutionThis part replaces 74004078. Substitute parts can look different from the original.In Stock$10.3516% OFF Phone Price : $12.35QtyGas controls diagram
Orifice
Part #74010793
The manufacturer no longer makes this part, and there's no substitute part

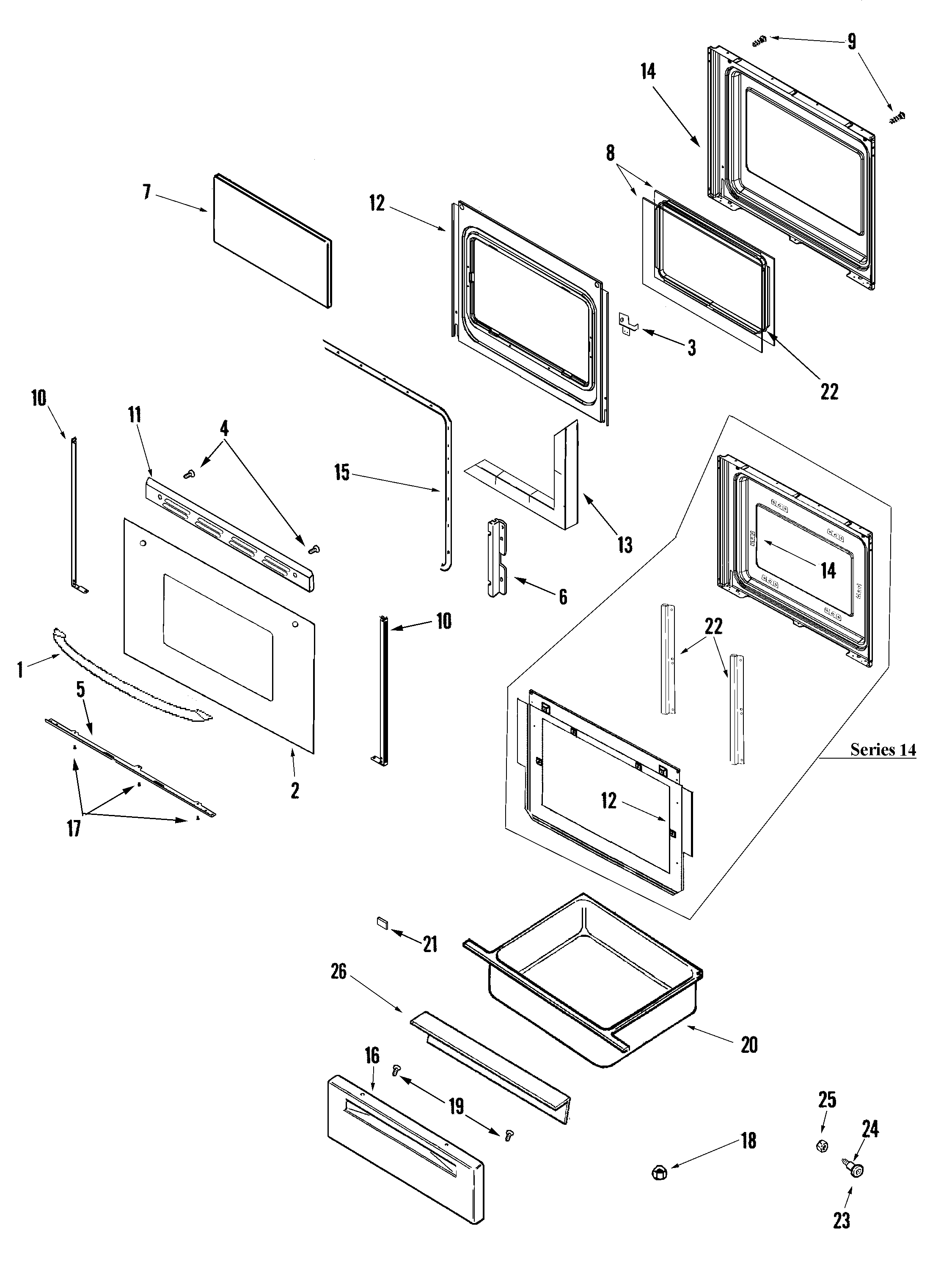

Door/drawer diagram
Screw
Part #7101P356-60Replaced by #WP7101P126-60
Manufacturer substitutionThis part replaces 7101P356-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9517% OFF Phone Price : $5.95QtyControl panel/top assembly diagram
Clock W/over
Part #74009777Replaced by #5701M754-60
Manufacturer substitutionThis part replaces 74009777. Substitute parts can look different from the original.In Stock$234.775% OFF Phone Price : $246.77QtyGas controls diagram
Cooktop Burner Seal
Part #74004425Replaced by #WP3412D021-09

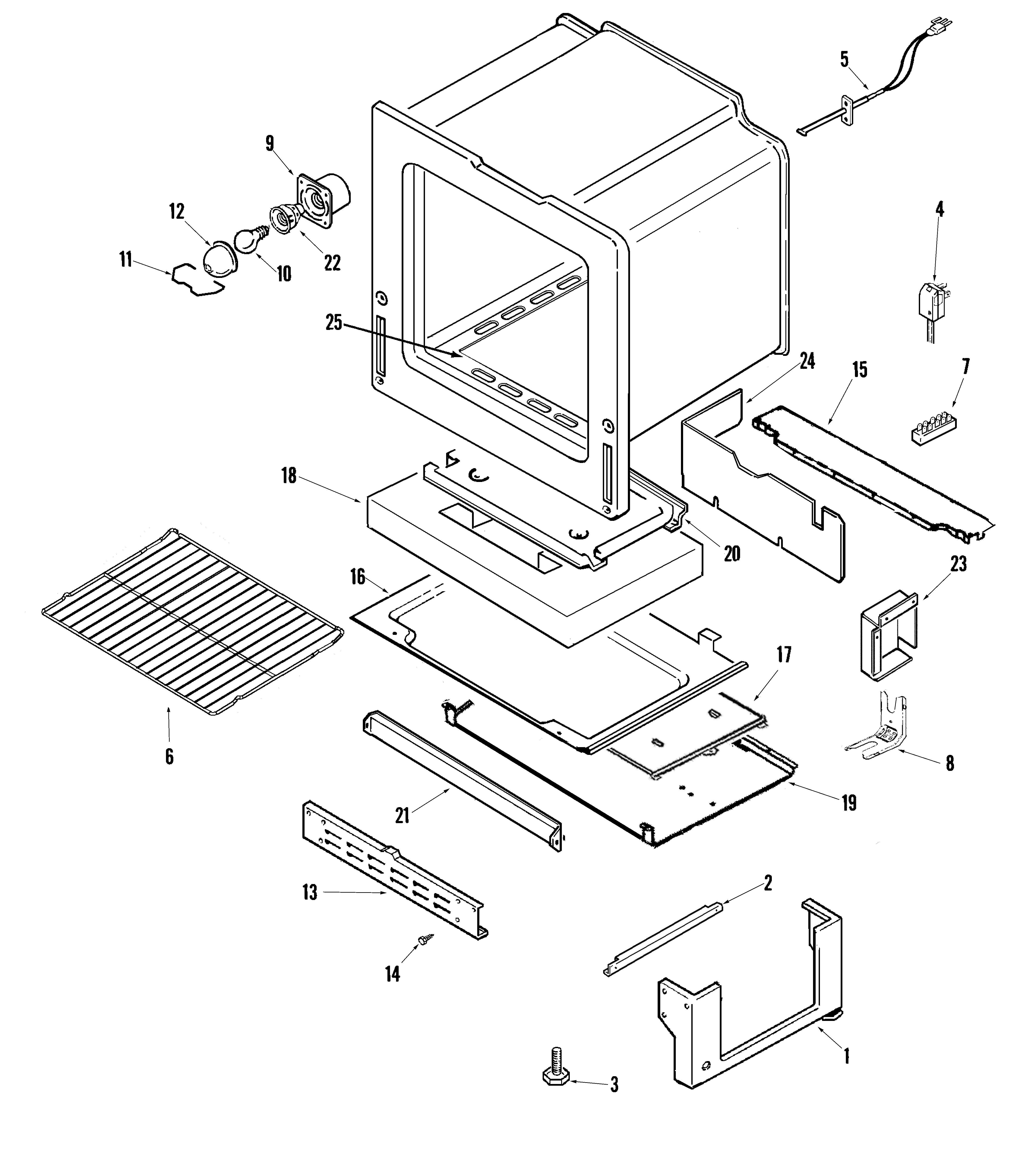

Manufacturer substitutionThis part replaces 74004425. Substitute parts can look different from the original.In Stock$122.8923% OFF Was : $158.62QtyOven/base diagram
Screw
Part #7101P352-60Replaced by #WP7101P485-60
Manufacturer substitutionThis part replaces 7101P352-60. Substitute parts can look different from the original.In Stock$28.2618% OFF Phone Price : $34.26QtyControl panel/top assembly diagram
Main Glide
Part #74004558Replaced by #W11189172
Manufacturer substitutionThis part replaces 74004558. Substitute parts can look different from the original.In Stock$13.1913% OFF Phone Price : $15.19QtyDoor/drawer diagram
Inner Bracket
Part #74011458Replaced by #3801F886-51
Manufacturer substitutionThis part replaces 74011458. Substitute parts can look different from the original.In Stock$27.9818% OFF Phone Price : $33.98QtyGas controls diagram
Cooktop Burner Seal
Part #74004426Replaced by #WP3412D021-26
Manufacturer substitutionThis part replaces 74004426. Substitute parts can look different from the original.In Stock$133.4326% OFF Was : $180.22Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Range Lp Conversion Kit
Part #12002440
This item is not returnable
In Stock
$36.18
14% OFF Phone Price : $42.18
Qty
