KitchenAid KUIC15NRTS2 freestanding ice maker Parts
Here are the diagrams and repair parts for KitchenAid KUIC15NRTS2 freestanding ice maker, as well as links to manuals and error code tables, if available.
Owner’s manual
By Schematic
By Part
SELECT DIAGRAM

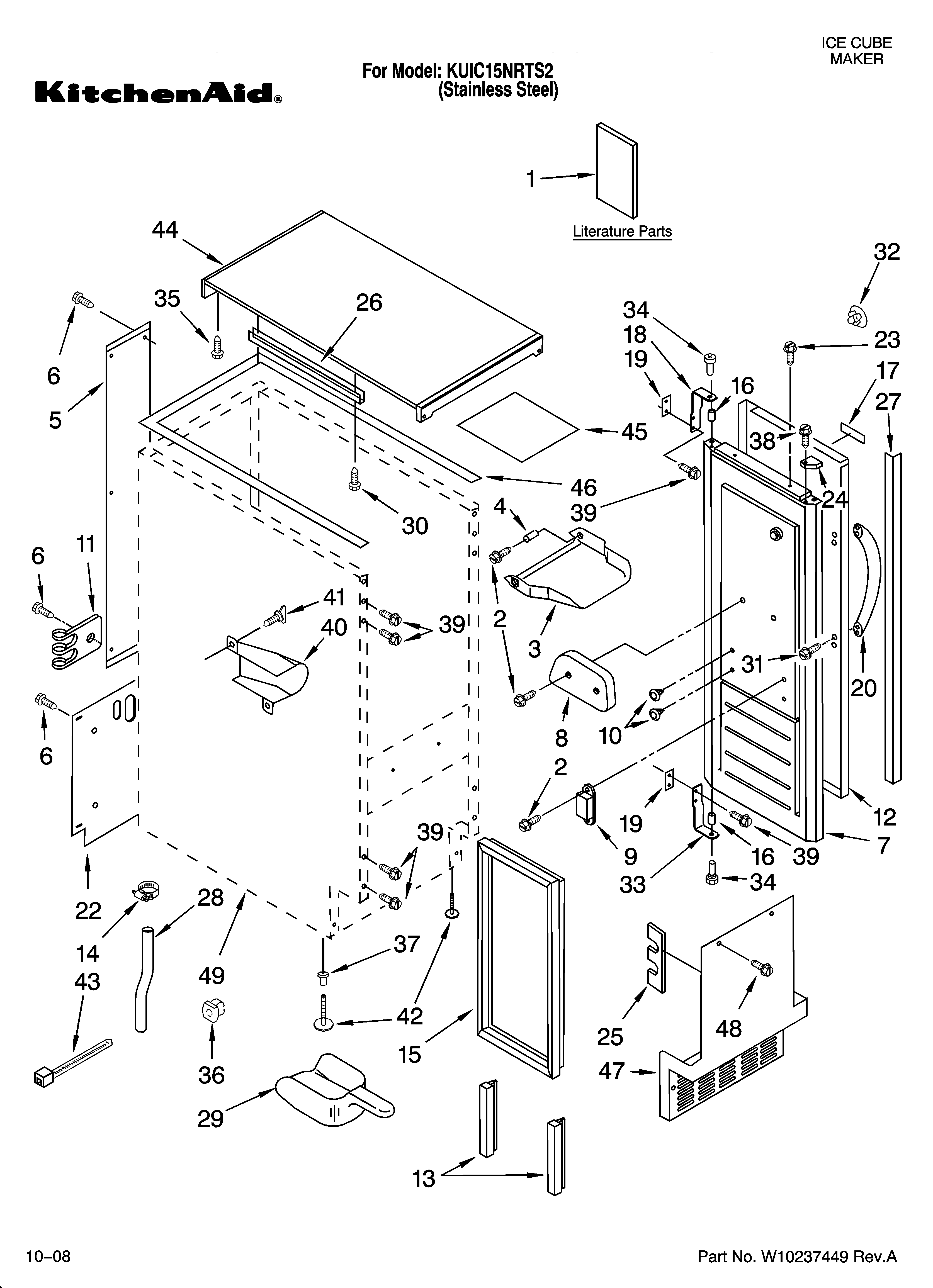

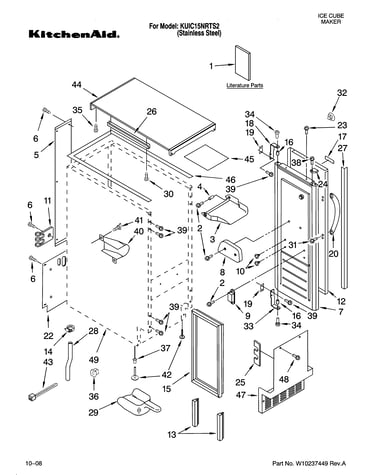

Browse Parts for KUIC15NRTS2 Freestanding Ice Maker

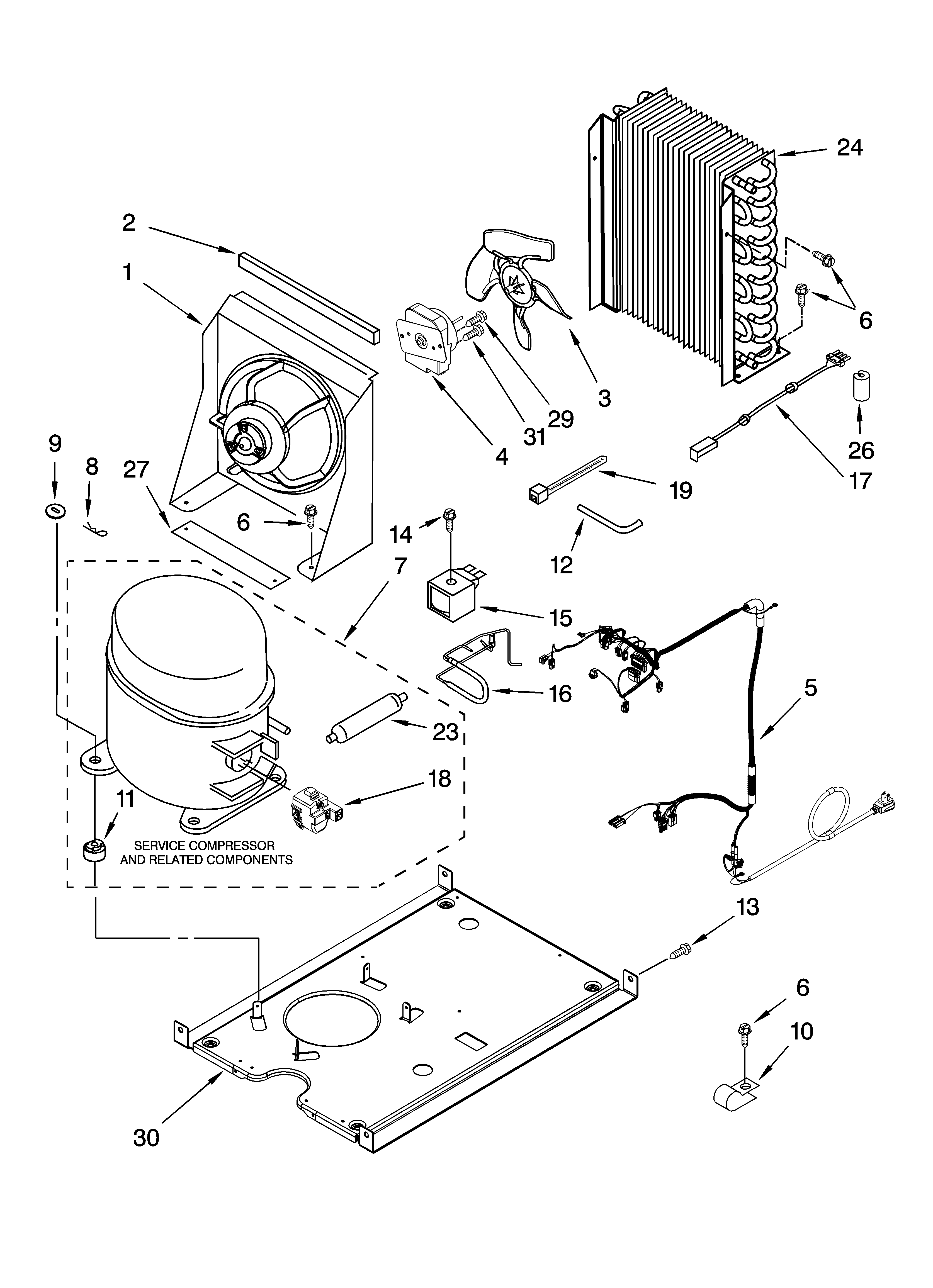

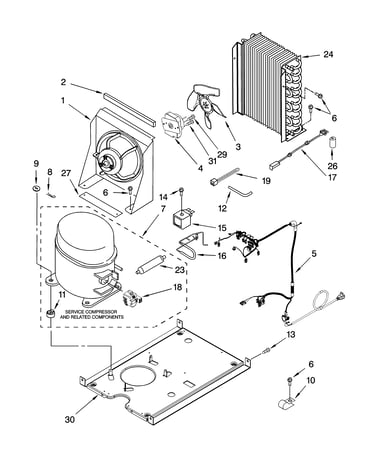

Unit parts, optional parts (not included) diagram
Drier Tube
Part #2319826Replaced by #W10843121
Manufacturer substitutionThis part replaces 2319826. Substitute parts can look different from the original.In Stock$34.5715% OFF Phone Price : $40.57
Qty
Unit parts, optional parts (not included) diagram
Refrigerator Dryer Tube
Part #4387019Replaced by #W10843121
Manufacturer substitutionThis part replaces 4387019. Substitute parts can look different from the original.In Stock$34.5715% OFF Phone Price : $40.57QtyEvaporator, ice cutter grid and water parts diagram
Water Tube
Part #2172593Replaced by #W10823511
Manufacturer substitutionThis part replaces 2172593. Substitute parts can look different from the original.In Stock$37.4814% OFF Phone Price : $43.48QtyUnit parts, optional parts (not included) diagram
Condenser Motor
Part #2315558Replaced by #W10124096

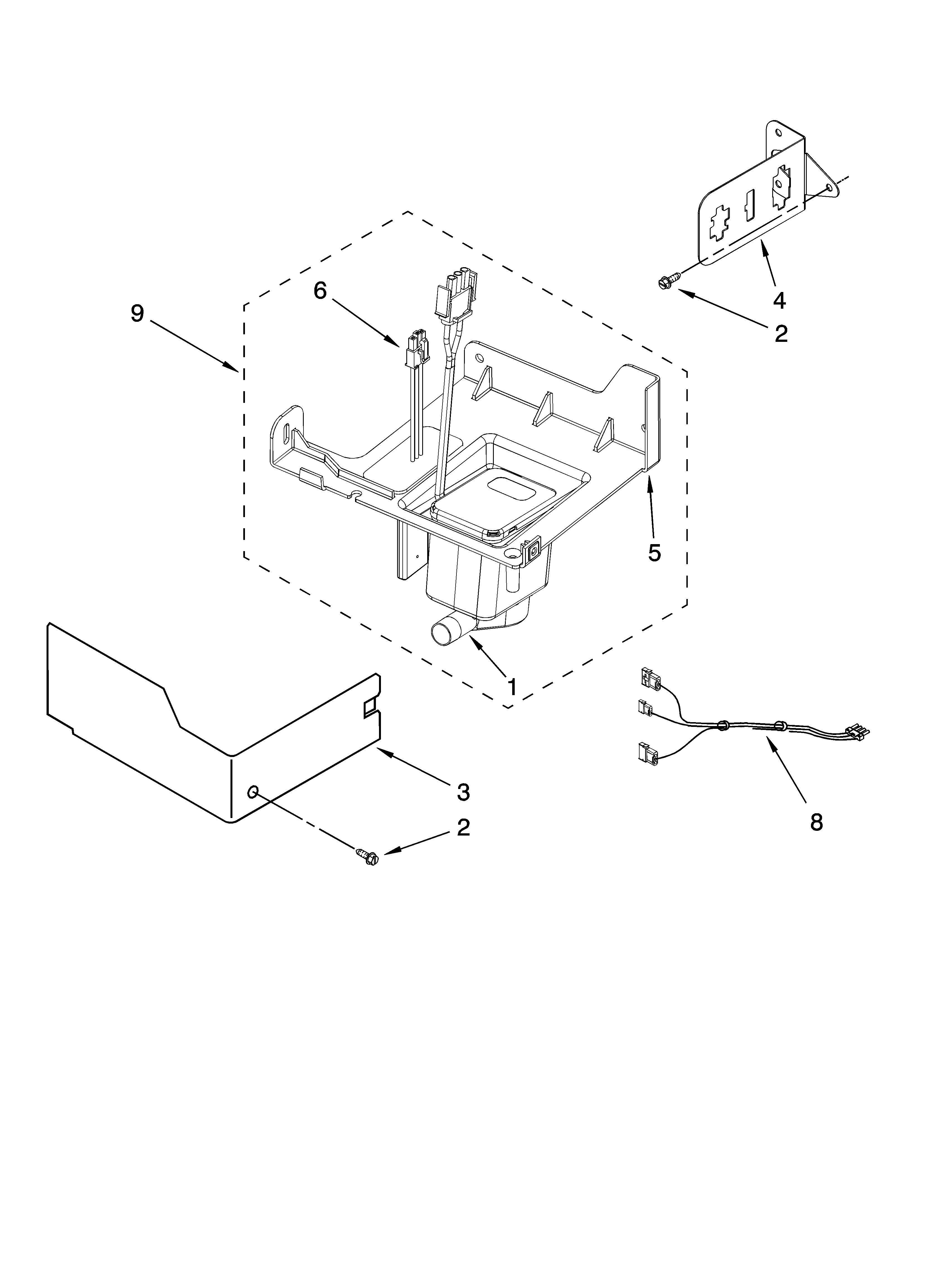

Manufacturer substitutionThis part replaces 2315558. Substitute parts can look different from the original.In Stock$83.727% OFF Phone Price : $89.72QtyPump parts diagram
Freestanding Ice Maker Recirculation Pump
Part #2313628Replaced by #W11566405

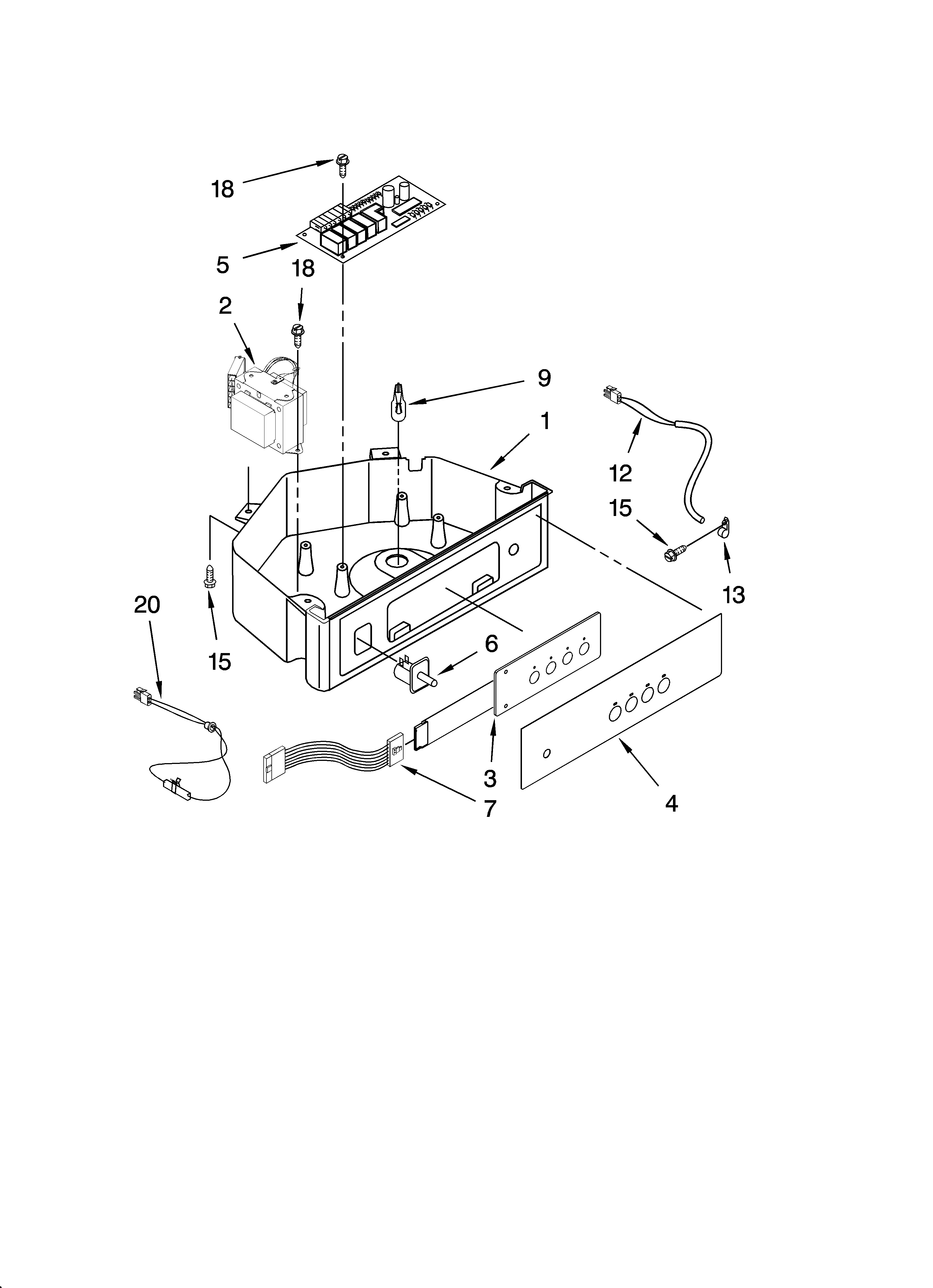

Manufacturer substitutionThis part replaces 2313628. Substitute parts can look different from the original.In Stock$84.197% OFF Phone Price : $90.19QtyControl panel parts diagram
Ice Maker Bin Thermostat
Part #2313633Replaced by #WPW10503764

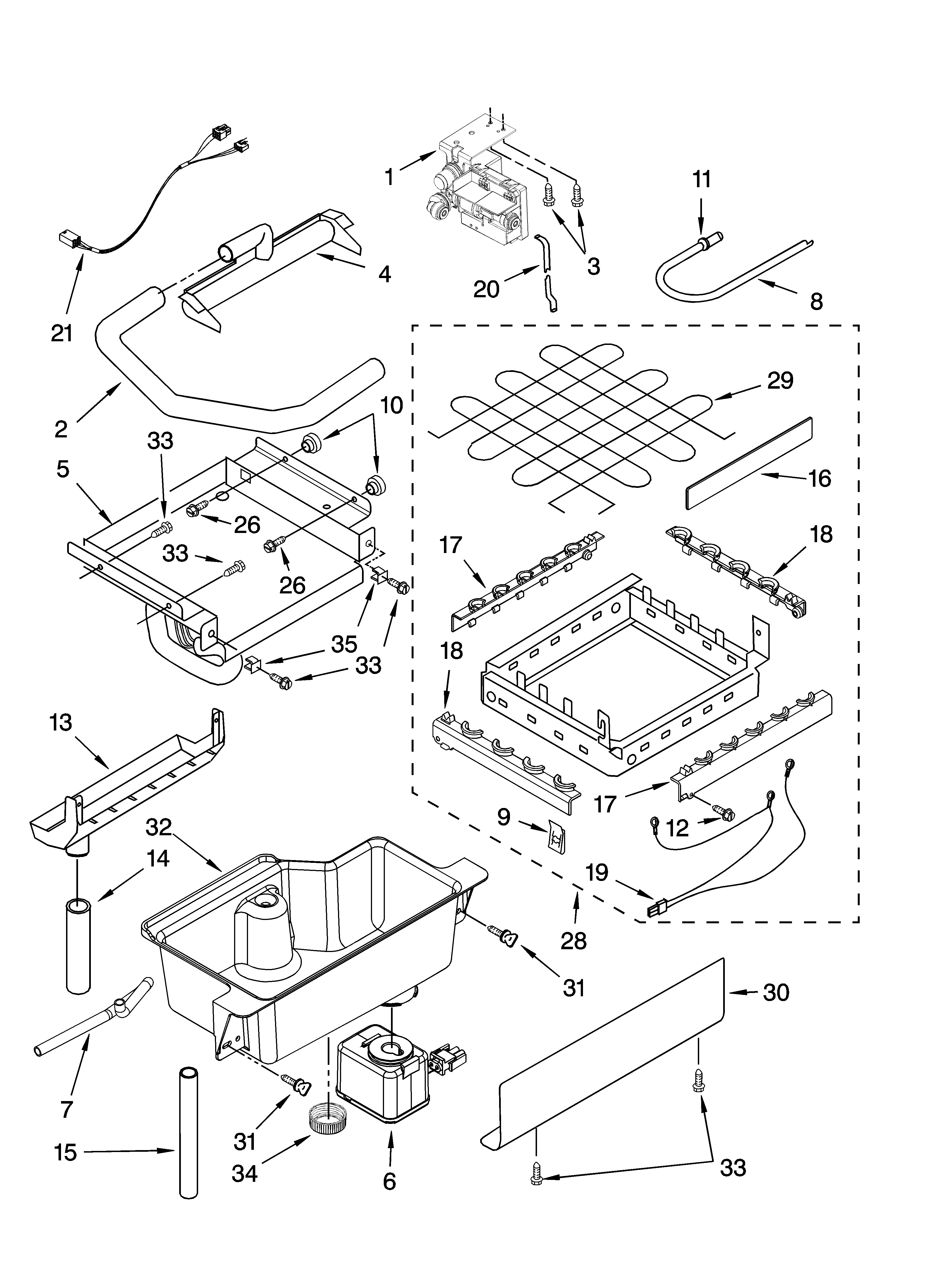

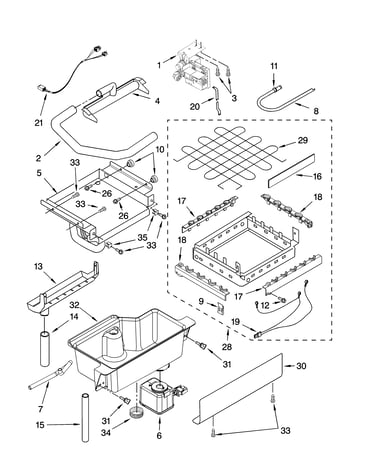

Manufacturer substitutionThis part replaces 2313633. Substitute parts can look different from the original.In Stock$72.088% OFF Phone Price : $78.08QtyEvaporator, ice cutter grid and water parts diagram
Ice Maker Evaporator
Part #W10218037Replaced by #WPW10218037
Manufacturer substitutionThis part replaces W10218037. Substitute parts can look different from the original.In Stock$477.70$12.00 OFF Phone Price : $489.70QtyEvaporator, ice cutter grid and water parts diagram
Ice Maker Cutter Grid
Part #2313637Replaced by #WP2313637
Manufacturer substitutionThis part replaces 2313637. Substitute parts can look different from the original.In Stock$208.385% OFF Phone Price : $220.38QtyScrew
Part #8281265Replaced by #WP489464
Manufacturer substitutionThis part replaces 8281265. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67QtyUnit parts, optional parts (not included) diagram
Insulation
Part #479976Replaced by #876370
Manufacturer substitutionThis part replaces 479976. Substitute parts can look different from the original.In Stock$130.138% OFF Phone Price : $142.13Qty
