Model #GTS12BBPBRWW GE refrigerator - p series

Here are the repair parts and diagrams for your GE GTS12BBPBRWW refrigerator - p series.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 106 parts

Appliance Light Bulb, 40-watt

#57

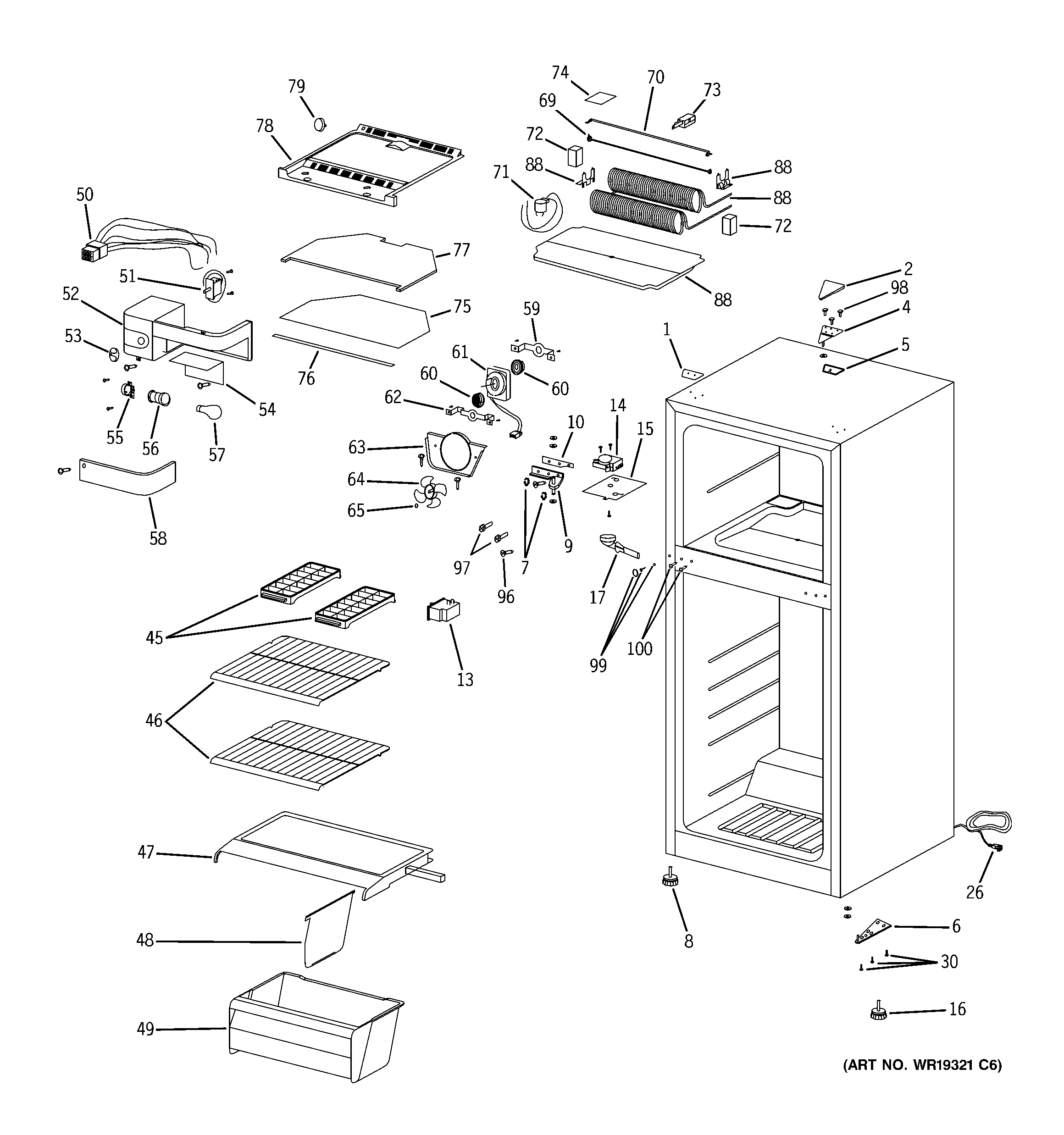

Cabinet Diagram

Appliance light bulb, 40-watt

Part #40A15
This item is not returnable

$2.16

In Stock

Refrigerator Compressor Start Relay

#84

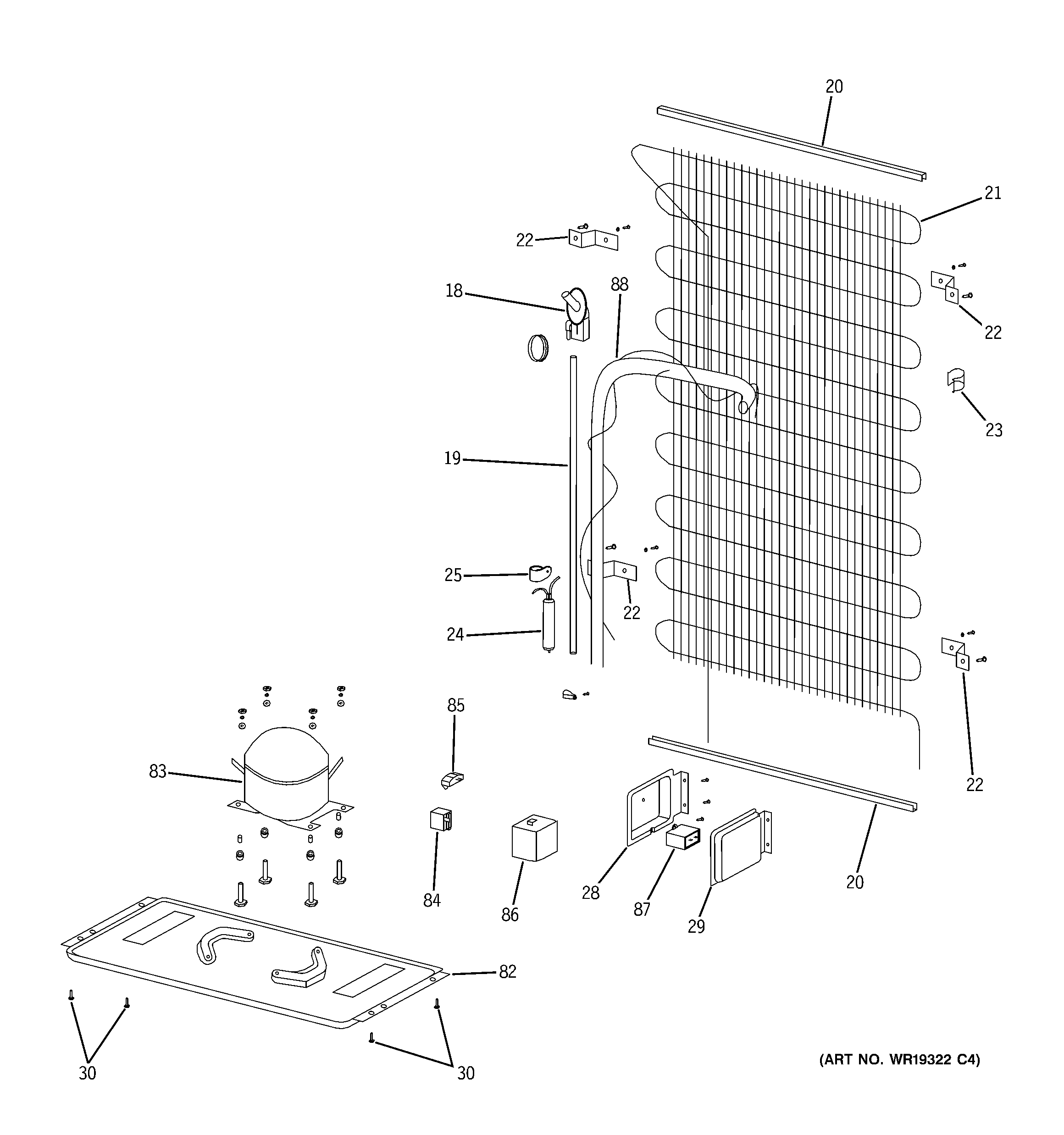

Unit parts Diagram

$48.49

In Stock

Refrigerator Starter Relay

#84

Unit parts Diagram

$32.49

In Stock

Refrigerator Defrost Timer

#14

Cabinet Diagram

Refrigerator defrost timer

Part #WR9X483
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  WR09X10101
This part replaces WR09X10101

$19.33

In Stock

Refrigerator Filter Dryer

#24

Unit parts Diagram

Refrigerator filter dryer

Part #WR86X25269
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  WR86X0096
This part replaces WR86X0096

$32.99

In Stock

Refrigerator Compressor Kit

#83

Unit parts Diagram

Refrigerator compressor kit

Part #WR87X10224
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  WR87X10141
This part replaces WR87X10141

$332.59

In Stock

Refrigerator Light Switch

#13

Cabinet Diagram

Refrigerator light switch

Part #WR23X10725
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  WR23X10320
This part replaces WR23X10320
This item is not returnable

$4.78

In Stock

Refrigerator Ice Cube Tray

#45

Cabinet Diagram

Refrigerator ice cube tray

Part #WR30X311
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  WR30X0311
This part replaces WR30X0311
This item is not returnable

$4.55

In Stock

Refrigerator Drain Tube Connector

#18

Unit parts Diagram

Refrigerator drain tube connector

Part #WR02X11553

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Dairy Door

#43

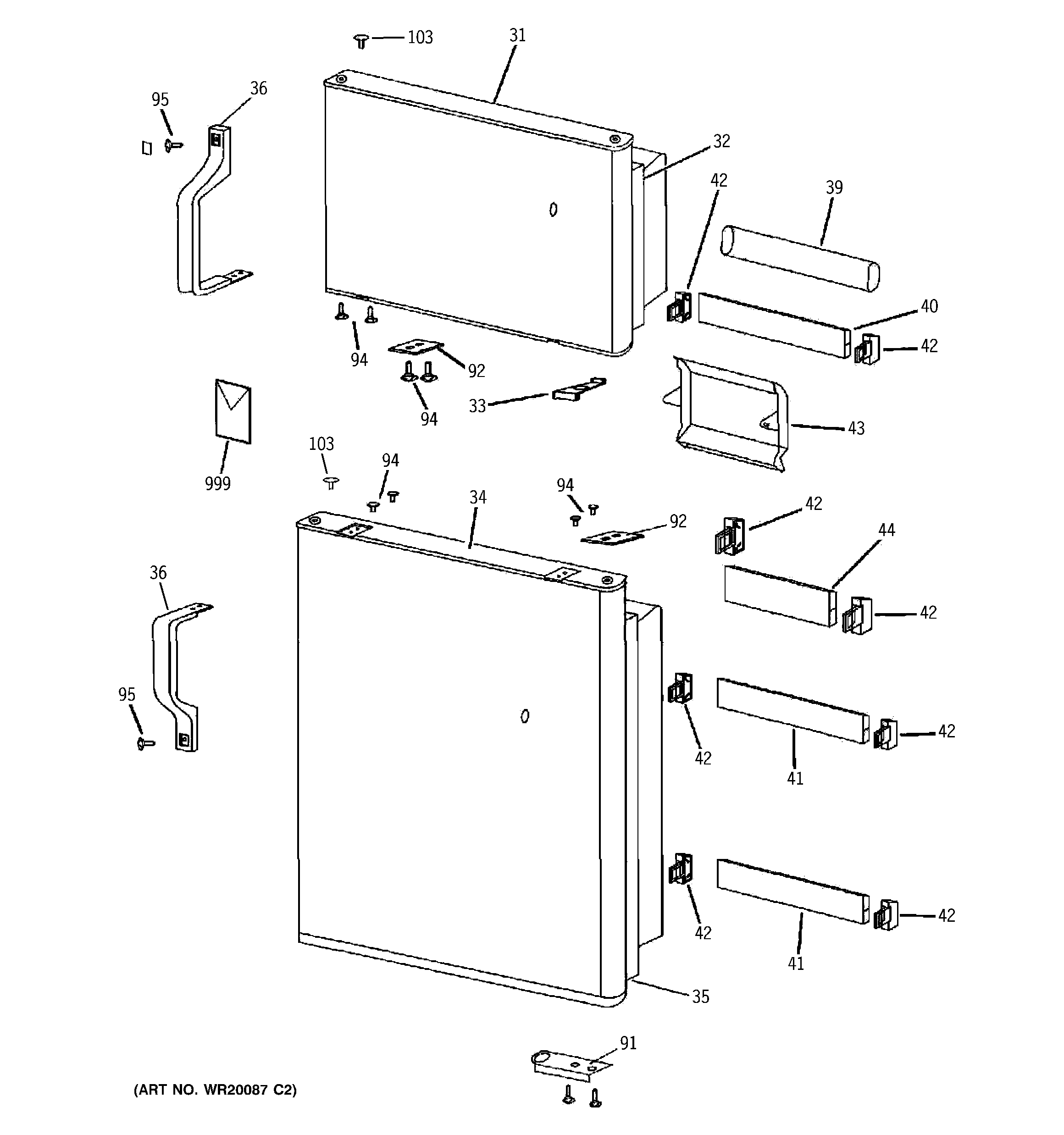

Doors Diagram

Refrigerator dairy door

Part #WR22X10056

The manufacturer no longer makes this part, and there's no substitute part
