Model #GA8340 Maytag washer/dryer

Here are the diagrams and repair parts for Maytag GA8340 washer/dryer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

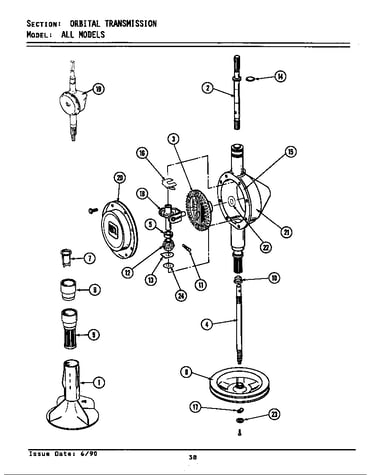

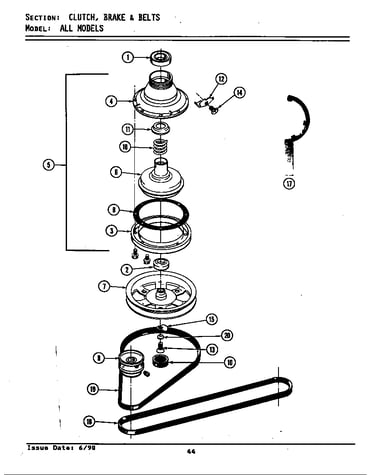

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 234 parts

|

Washer Damper Pad Kit

#8

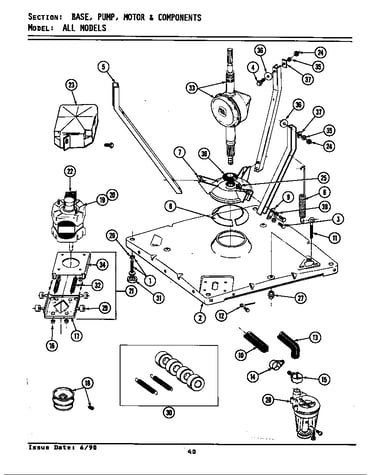

Base, pump, motor & components Diagram

$27.70

In Stock

Washer Moter Mount Roller and Spring Kit

#30

Base, pump, motor & components Diagram

$23.47 |
29% OFF MSRP:$33.28

In Stock

Washer Siphon Break

#20A

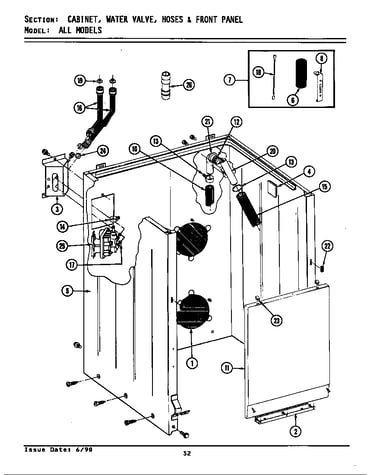

Cabinet, water valve, hoses & frnt panel Diagram

Washer siphon break

Part #206638
$28.98 |
12% OFF MSRP:$33.00

In Stock

Timer Knob

#17

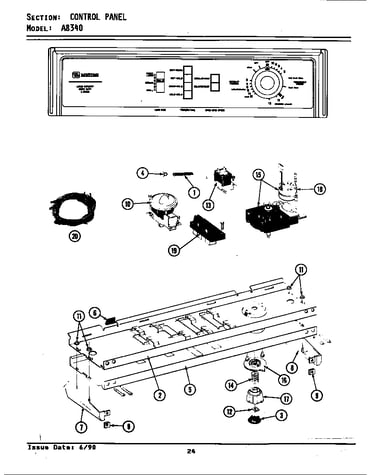

Control panel Diagram

Timer knob

Part #215828
$10.99

In Stock

Washer Water Inlet Valve

#25

Cabinet, water valve, hoses & frnt panel Diagram

$74.86

In Stock

Washer Tub Cover Clamp

#9

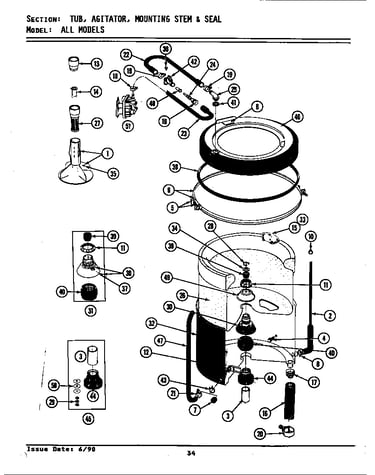

Tub, agitator, mounting stem & seal Diagram

$43.93 |
19% OFF MSRP:$54.00

In Stock

Cabinet Screw

#5D

Cabinet, water valve, hoses & frnt panel Diagram

Cabinet screw

Part #213007
$10.19

In Stock

Washer Fuse Holder

#3

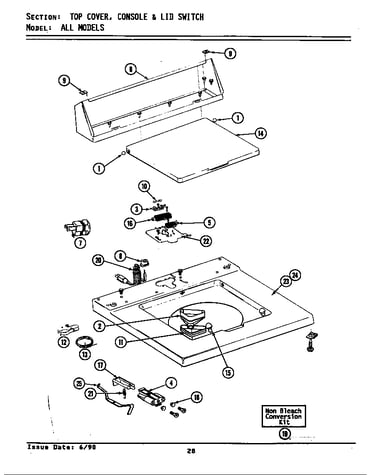

Top cover, console & lid switch Diagram

Washer fuse holder

Part #207167
$25.55 |
5% OFF MSRP:$27.00

In Stock

Nut & Bolt K

#5

Tub, agitator, mounting stem & seal Diagram

Nut & bolt k

Part #205529
This item is not returnable
$4.78

In Stock

Washer Fill Hose, 5-ft

#16C

Cabinet, water valve, hoses & frnt panel Diagram

$32.29

In Stock

Showing 10 of 234 parts

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
