Hotpoint
Top-Mount Refrigerator

Model #HTJ18GCT2RSA Hotpoint refrigerator - t series

Here are the diagrams and repair parts for Hotpoint HTJ18GCT2RSA refrigerator - t series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 136 parts

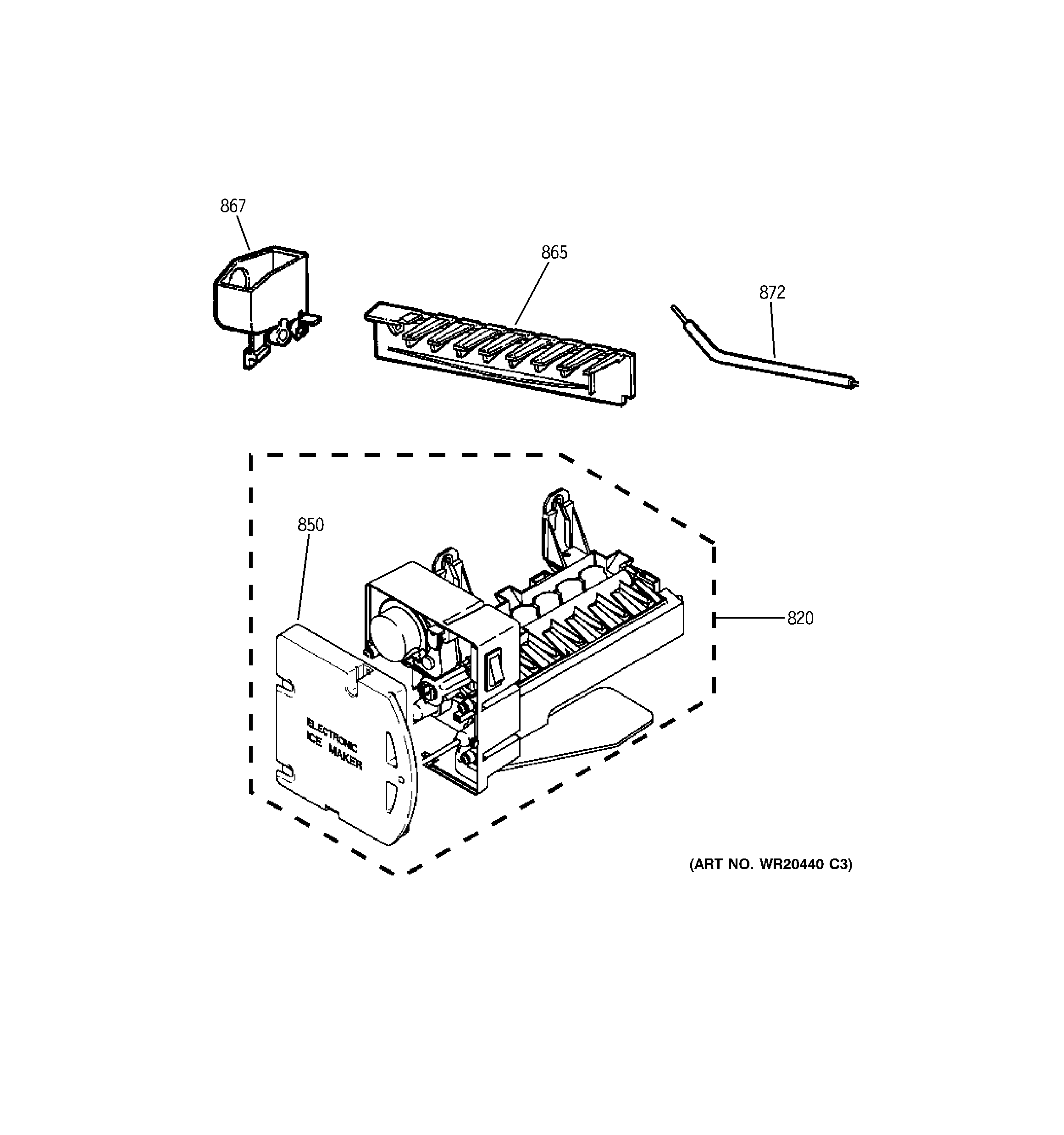

    Refrigerator Ice Maker Kit

    See All Related Diagrams

    Refrigerator ice maker assembly

    Part #WR30X10109
    Replaced by #WR30X10093
    ?
    Manufacturer substitution
    This part replaces WR30X10109. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $190.49
    Appliance Light Bulb, 40-watt#435

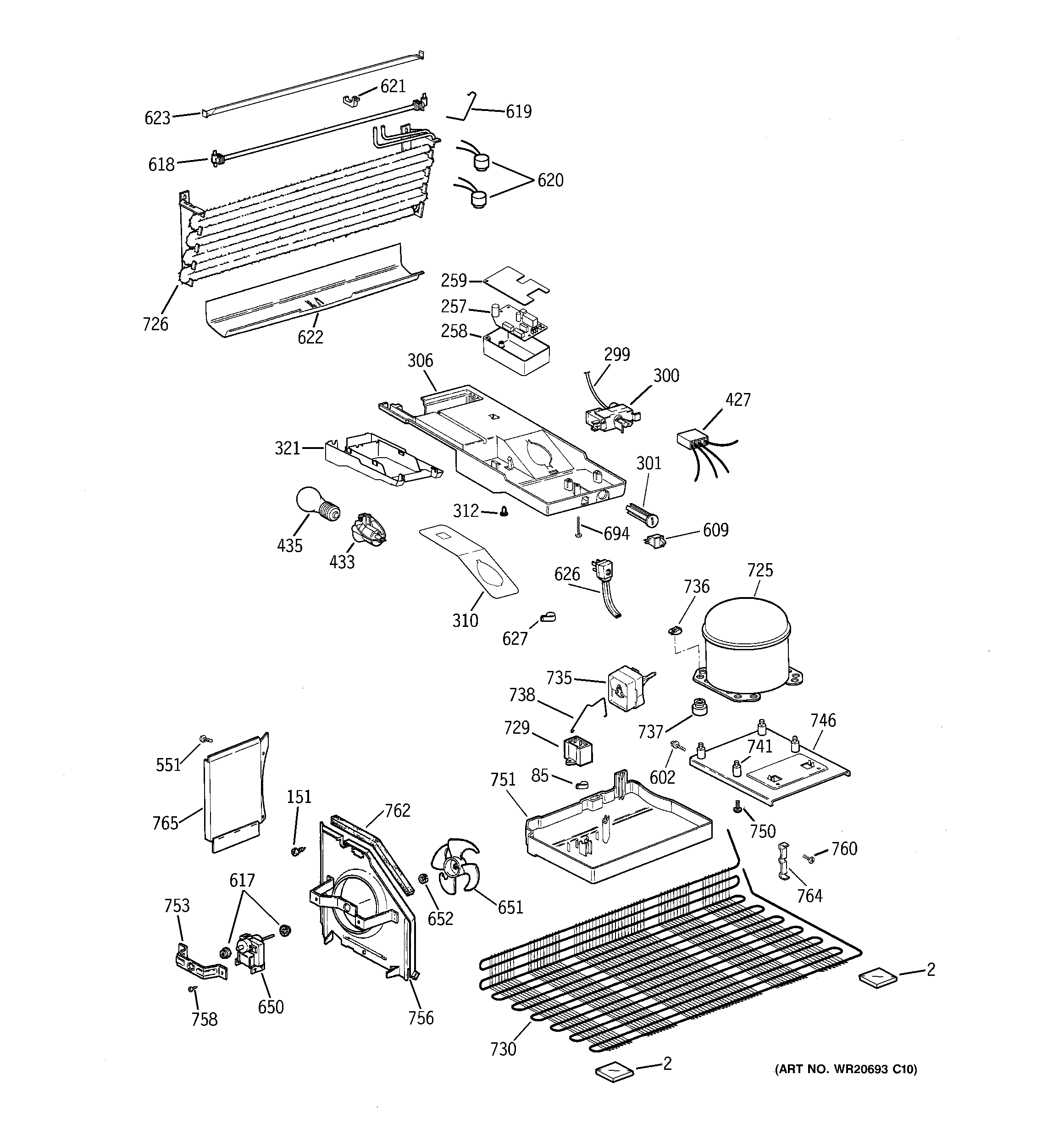

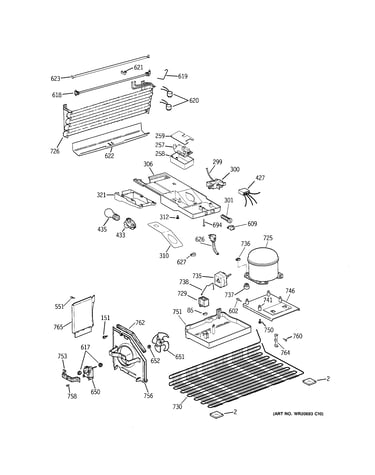

    Unit parts Diagram

    Appliance light bulb, 40-watt

    Part #40A15
    BEST SELLER
    This item is not returnable
    In Stock
    $6.50
    Refrigerator Drawer Cover#243

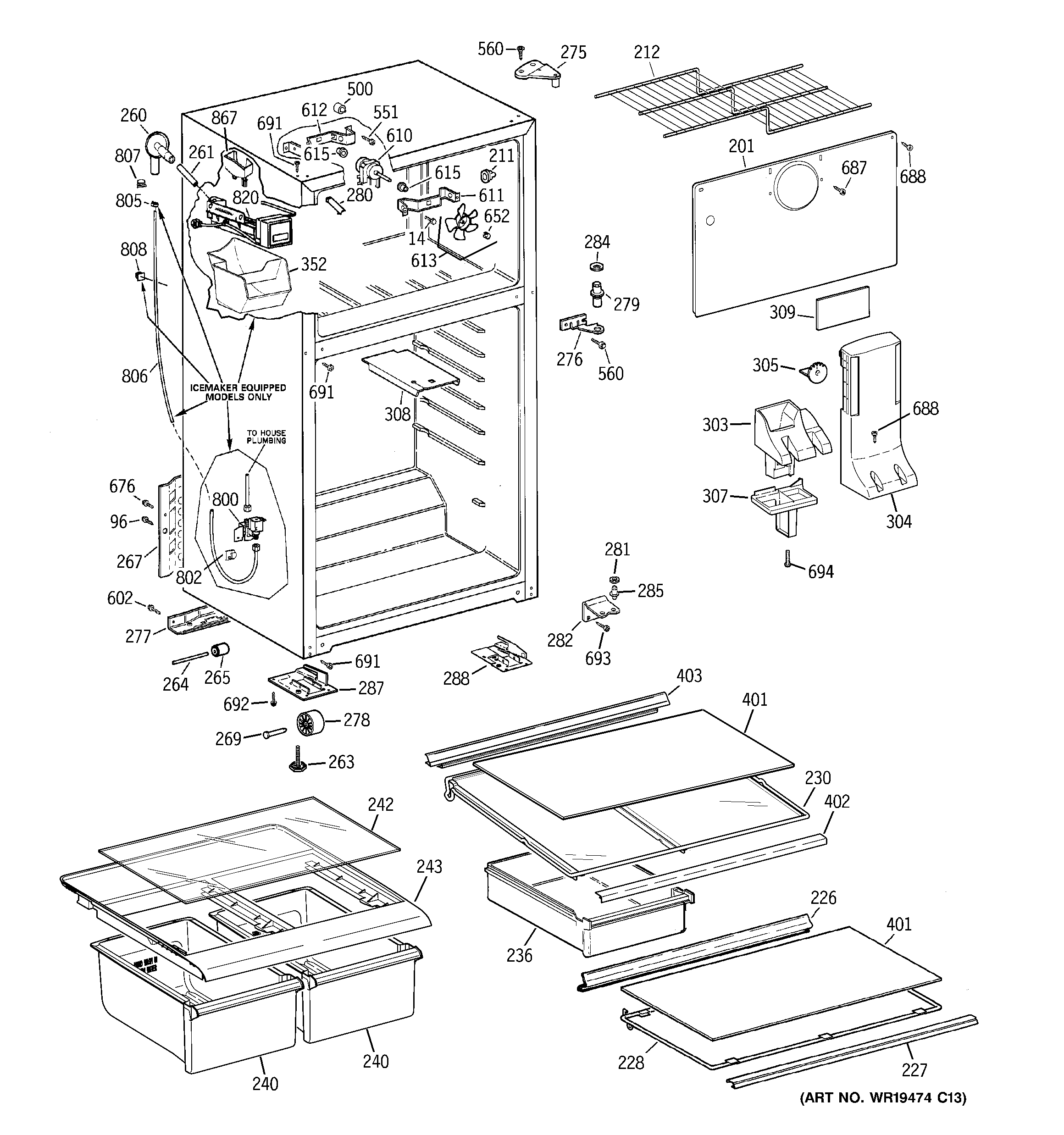

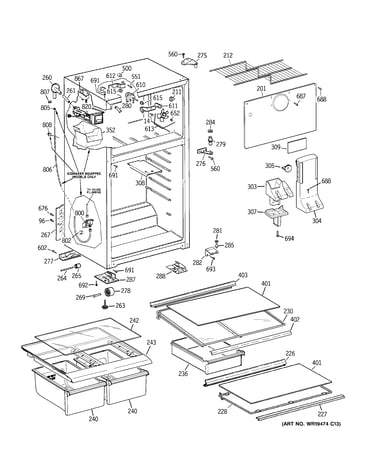

    Cabinet Diagram

    Refrigerator drawer cover

    Part #WR17X11662
    BEST SELLER
    In Stock
    $59.99
    Refrigerator Run Capacitor#729

    Unit parts Diagram

    Capacitor

    Part #WR62X0079
    Replaced by #WR55X30629
    ?
    Manufacturer substitution
    This part replaces WR62X0079. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $22.71
    Refrigerator Evaporator Fan Motor Grommet#617

    Unit parts Diagram

    Refrigerator evaporator fan motor grommet

    Part #WR02X10098
    BEST SELLER
    This item is not returnable
    In Stock
    $4.89
    Refrigerator Water Inlet Valve Assembly#800

    Cabinet Diagram

    Refrigerator water valve

    Part #WR57X10034
    Replaced by #WR57X10033
    ?
    Manufacturer substitution
    This part replaces WR57X10034. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $52.79
    Refrigerator Evaporator Fan Blade#613

    Cabinet Diagram

    Refrigerator evaporator fan blade

    Part #WR60X10204
    BEST SELLER
    In Stock
    $14.79
    Refrigerator Fan Blade Retainer Ring

    See All Related Diagrams

    Refrigerator fan blade retainer ring

    Part #WR02X12149
    BEST SELLER
    This item is not returnable
    In Stock
    $7.71
    Refrigerator Door Hinge Nylon Washer#281

    Cabinet Diagram

    Refrigerator door hinge nylon washer

    Part #WR01X10146
    Replaced by #WR01X27364
    ?
    Manufacturer substitution
    This part replaces WR01X10146. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.71
    Refrigerator Glass Shelf#242

    Cabinet Diagram

    Refrigerator glass shelf

    Part #WR32X10581
    In Stock
    $24.99

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
