Frigidaire LGUI1849LF2 refrigerator Parts

In a Frigidaire top-mount refrigerator like model LGUI1849LF2, the upper section is typically called the freezer compartment. It’s the colder area designed to keep foods frozen, and it often houses the ice maker components when equipped.

What you’ll find in the upper (freezer) compartment

In most top-mount refrigerators, the freezer section includes the parts that create and circulate cold air for both compartments.

• Freezer shelves and door bins for frozen food storage
• The ice maker area (if installed) and its shutoff arm or switch
• Air vents that send cold air down to the fresh food section
• The evaporator fan system that moves air through the freezer
• The freezer door gasket that seals the door to prevent warm air leaks

Common related terms (so you know you’re looking at the right area)

These names are often used in manuals and parts diagrams for LGUI1849LF2-STYLE refrigerators.

Term you may see	What it means	Where it is
Freezer compartment	Upper cold storage area	Top section
Freezer section	Same as freezer compartment	Top section
Freezer door	Door that opens to the freezer	Upper door
Freezer control	Temperature setting for freezer performance	Control area (varies)

Why it matters

When troubleshooting cooling, frost buildup, or ice maker issues, we start with the freezer compartment because that’s where the refrigerator’s cold air is produced and circulated. Door sealing and airflow in the freezer directly affect fresh food temperatures.

Helpful model-specific references

• For control settings and normal operation guidance, use the LGUI1849LF2 owner‚Äôs manual.

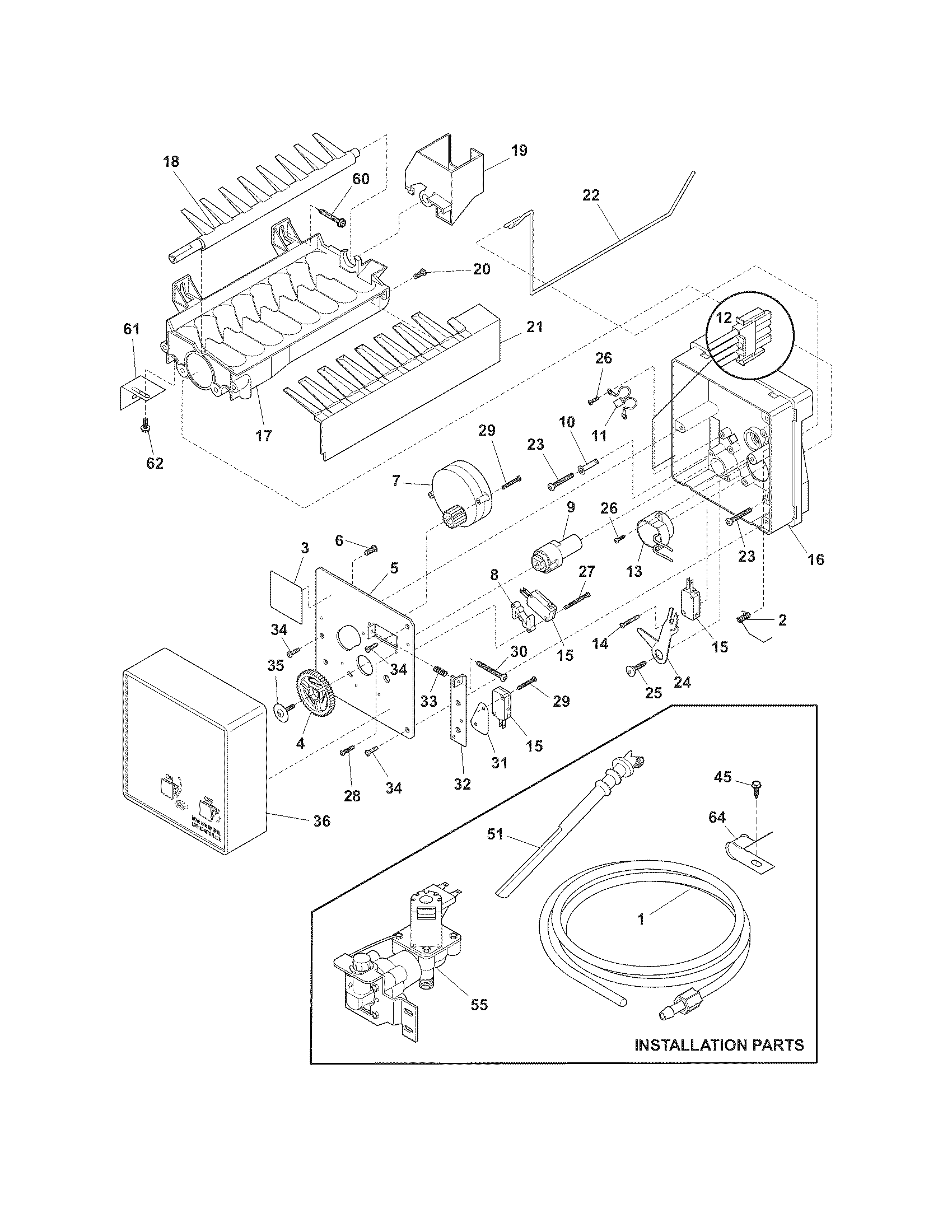

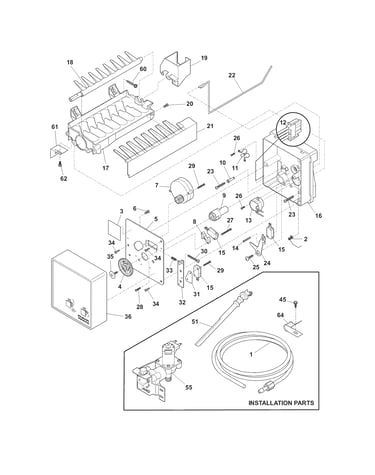

• If you‚Äôre diagnosing ice production issues, the ice maker system commonly relates to parts like the ice maker mold 241798231.

Last updated: January 2026

The most common problem we see on Frigidaire refrigerators like model LGUI1849LF2 is poor cooling, usually caused by restricted airflow (dirty condenser coils, blocked vents, or a weak fan) or warm air leaking in through a door seal. Ice maker water-supply issues are also very common.

Most common symptoms and what they usually mean

• Refrigerator warm, freezer OK: evaporator airflow problem (fan, frost buildup, blocked vents)
• Freezer warm, refrigerator warm: condenser airflow problem (dirty coils, condenser fan issue) or sealed-system issue
• Frost on back wall of freezer: defrost system problem or door not sealing
• Ice maker not making ice: water supply not connected, low water pressure, valve issue, or ice maker turned off
• Doors not sealing: cabinet not level, gasket warped, or door alignment issue

Quick checks we recommend first (fast, no parts)

1. Confirm the controls are set and give changes time: after adjusting temperature controls, wait 24 hours before making more changes (normal operating range is often mid-scale on models with an LED display). See the LGUI1849LF2 installation guide.
2. Verify the refrigerator is level: the cabinet should be level side-to-side and tilted about 1/4 inch (6 mm) front-to-back so doors close reliably. See the LGUI1849LF2 installation guide.
3. Check door sealing: close a dollar bill in several spots; steady resistance indicates a good seal.
4. Listen for fans: you should typically hear a fan running when the compressor is running.

Common causes and typical fixes (at-a-glance)

Problem area	What you notice	Typical fix
Airflow and coils	Warm temps, long run times	Clean coils, clear vents, confirm fans run
Door seal/alignment	Moisture, frost, warm spots	Level unit, adjust doors, replace gasket if needed
Ice maker water supply	No ice, small cubes	Confirm water supply, purge air, test inlet valve
Temperature control	Temps swing or won’t hold	Check sensor/control components

Parts that often solve these problems

If troubleshooting points to a failed component on LGUI1849LF2, these are common repair items:

• Evaporator fan motor: refrigerator evaporator motor 242077705
• Condenser fan motor: refrigerator condenser fan motor 242018301
• Water supply to ice maker: refrigerator water inlet valve assembly 242252603

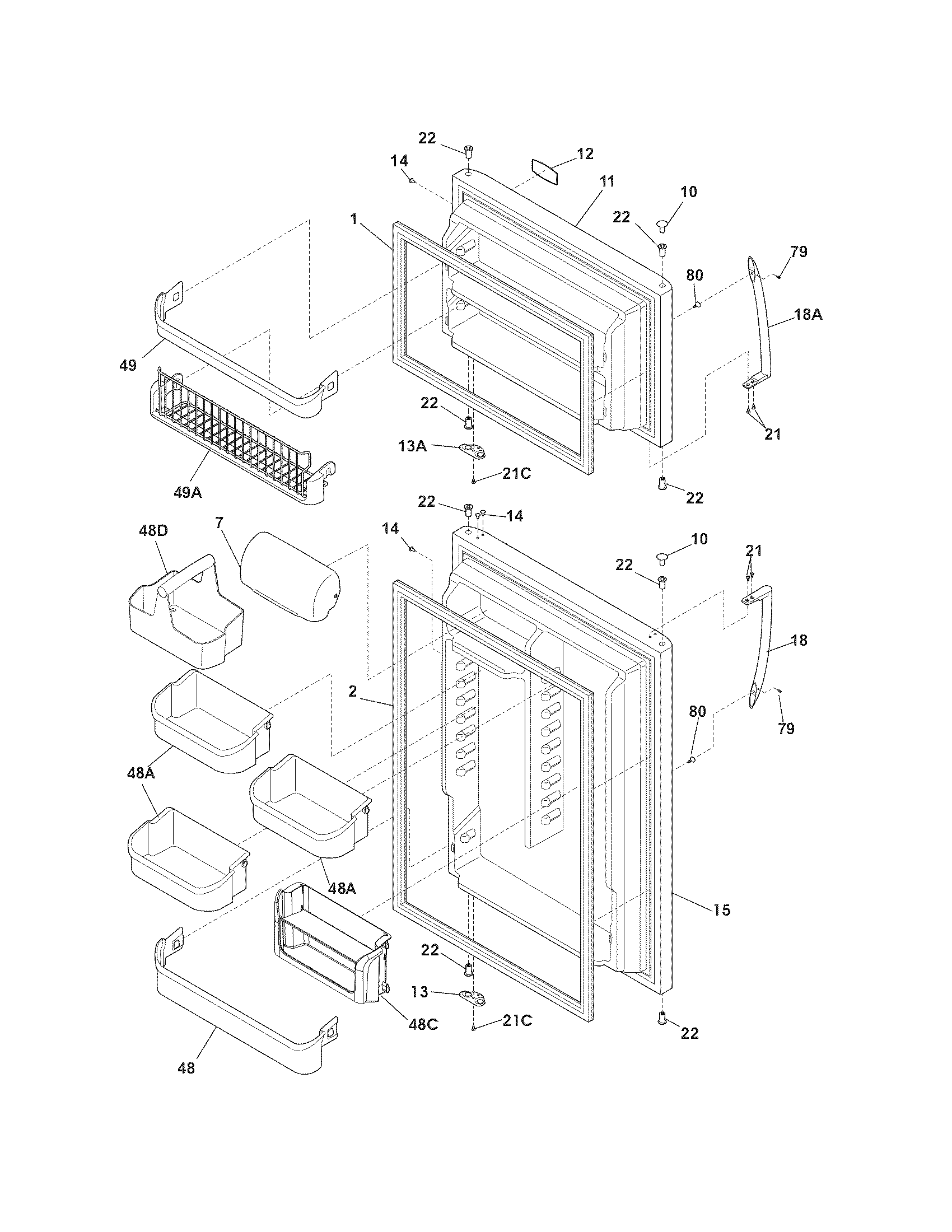

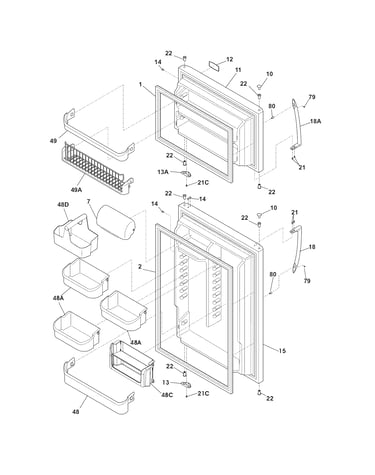

• Door sealing: Frigidaire refrigerator door gasket (black) 241872512

Why it matters

Cooling and ice maker complaints often start with airflow, leveling, and door sealing. Fixing those basics first prevents food spoilage, reduces frost buildup, and helps the compressor run less.

Last updated: January 2026

A top-mount refrigerator like the Frigidaire LGUI1849LF2 gives you a classic layout with the freezer on top and fresh food below. In most kitchens, this design delivers strong value, straightforward maintenance access, and efficient use of interior space for everyday groceries.

Key advantages you will notice day to day

• More usable fresh-food space: Top-mount designs typically dedicate more of the cabinet to the refrigerator section, which is where most families store the most items.
• Easy access to frozen foods: The freezer sits higher, so many frozen items are closer to eye level.
• Simple, proven design: Fewer complex door mechanisms than many French door models, which often means easier troubleshooting.
• Good energy efficiency for the price: Many top-mount units deliver solid efficiency without premium features.
• Easier installation planning: The installation checklist focuses on basics like leveling, door sealing, and clearances, which are straightforward on this style (see the LGUI1849LF2 installation guide).

Setup details that protect performance (and why top-mount helps)

A top-mount refrigerator depends heavily on good airflow and tight door seals. During installation, we recommend confirming:

• The cabinet is level and slightly tilted back (about 1/4 inch) so doors close reliably
• Door gaskets seal fully on all sides
• Recommended clearances are maintained (typically 3/8 inch at sides and top, 1 inch at the back)

Quick checklist

What to check	What “good” looks like	Why it matters
Leveling	Solid on all corners, slight tilt back	Better door closing, fewer warm spots
Door seal	No gaps, no curling gasket	Prevents frost and temperature swings
Air clearance	Space at sides/top/back	Helps cooling system run efficiently

Why it matters

Top-mount refrigerators are popular because they balance capacity, cost, and reliability. When the unit is level and the door seals are tight, the cooling system cycles normally, food stays at safe temperatures, and you avoid common issues like frost buildup and warm shelves.

For model-specific operating tips (controls, normal sounds, door removal guidance), use the LGUI1849LF2 owner’s manual.

Last updated: January 2026

On the Frigidaire LGUI1849LF2 refrigerator, the SY EF code indicates the freezer evaporator fan is not moving air correctly. We fix it by resetting power, clearing any ice or airflow blockage, and checking the evaporator fan blade, motor, and wiring so cold air circulates normally.

Quick steps that solve most SY EF errors

• Unplug the refrigerator for 5 to 10 minutes, then plug it back in.
• Make sure freezer vents and the rear panel area are not blocked by food.
• Check the freezer door closes fully and the gasket seals all the way around.
• If you see heavy frost on the freezer back wall, do a full manual defrost (unplug and leave doors open) until ice is gone.
• After changing temperature settings, wait 24 hours before adjusting again.

What to check if the code returns

Evaporator fan and airflow

The evaporator fan should run when the compressor is running and the door switch is closed.

Helpful parts for this model:

• Refrigerator evaporator motor 242077705
• Refrigerator evaporator fan blade 5308000010

Wiring and connectors

With power disconnected, inspect the fan wiring and harness plugs for loose connections or pinched wires, especially after moving the refrigerator or removing doors.

SY EF troubleshooting at a glance

Symptom	Likely cause	Next step
No fan sound, freezer warming	Fan motor not running	Replace evaporator fan motor
Rubbing/clicking noise	Blade hitting ice or warped	Clear ice, replace fan blade
Frosted back wall	Airflow restricted, defrost issue	Defrost fully, then diagnose

Why it matters

The evaporator fan distributes cold air from the freezer to the fresh food section. When airflow drops, temperatures rise and frost can build up, which can lead to poor cooling.

For installation checks like clearances, leveling, and control adjustment timing, use the LGUI1849LF2 installation guide.

Last updated: January 2026
