Frigidaire FFHT1831QQ1 refrigerator Parts

Cooling problems are the most common issue we see with Frigidaire refrigerators, including the Frigidaire FFHT1831QQ1. Typical symptoms are the freezer staying cold while the fresh food section warms up, frost or ice buildup from defrost trouble, or weak airflow caused by a fan or dirty condenser coils.

Most common symptoms customers notice

• Freezer is cold but refrigerator section is warm
• Frost or a sheet of ice on the freezer back wall
• Food freezing in the refrigerator section (temperature regulation issue)
• Refrigerator runs a lot or seems louder than normal
• Water leaks or puddles after ice buildup melts

Quick checks you can do first (no tools)

Use these steps to narrow the cause before replacing parts:

• Confirm the temperature control is not set to “0” or “OFF” (the manual notes this will stop cooling).
• If the unit is not running, allow 20 minutes in case it is in a normal defrost cycle.
• Make sure vents inside the refrigerator and freezer are not blocked by food packages.
• Clean dust from the condenser area (restricted airflow commonly causes warm temperatures).
• Check door sealing and closing; a poor seal drives frost buildup and temperature swings.

Common causes and what they usually affect

Likely cause	What you’ll notice	Typical next step
Dirty condenser coils	Warm temps, long run times	Clean coils and recheck temps after 24 hours
Evaporator fan problem	Weak airflow, warm fridge section	Inspect fan area; repair fan issue
Defrost system issue	Frost/ice buildup, reduced cooling	Defrost and diagnose heater/controls
Door gasket leak	Frost, moisture, temp swings	Adjust door, clean gasket, replace if torn

Model-specific resources we recommend

• Follow the temperature and “common occurrences” troubleshooting in the FFHT1831QQ1 owner’s manual.
• If you’re seeing a temperature-related fault or display issue, use our Frigidaire refrigerator error codes reference to match symptoms to likely causes.

Why it matters

Most “not cooling” complaints are airflow or heat-transfer problems, not sealed-system failures. Catching a dirty coil, fan airflow issue, or defrost ice buildup early helps protect food temperatures and reduces compressor run time.

Last updated: February 2026

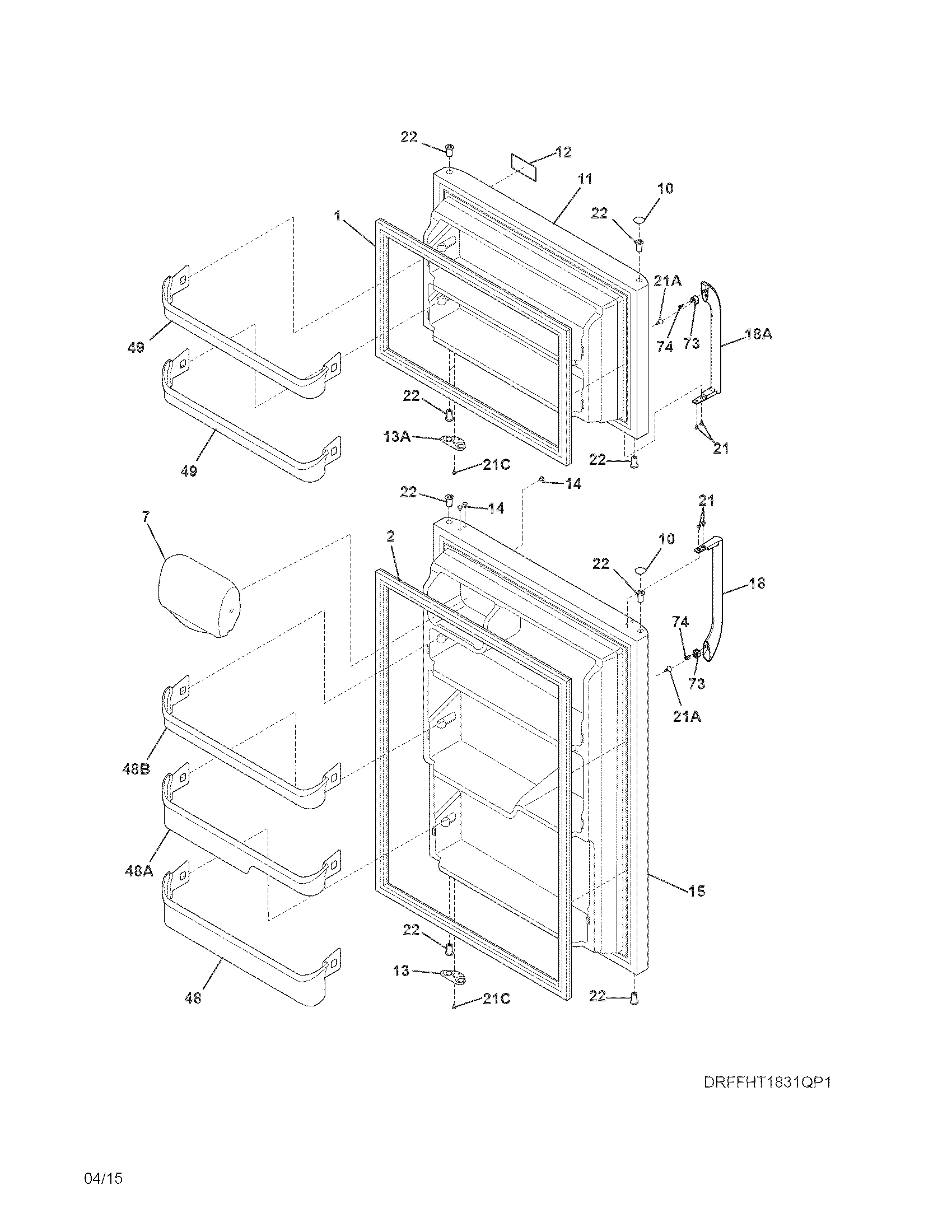

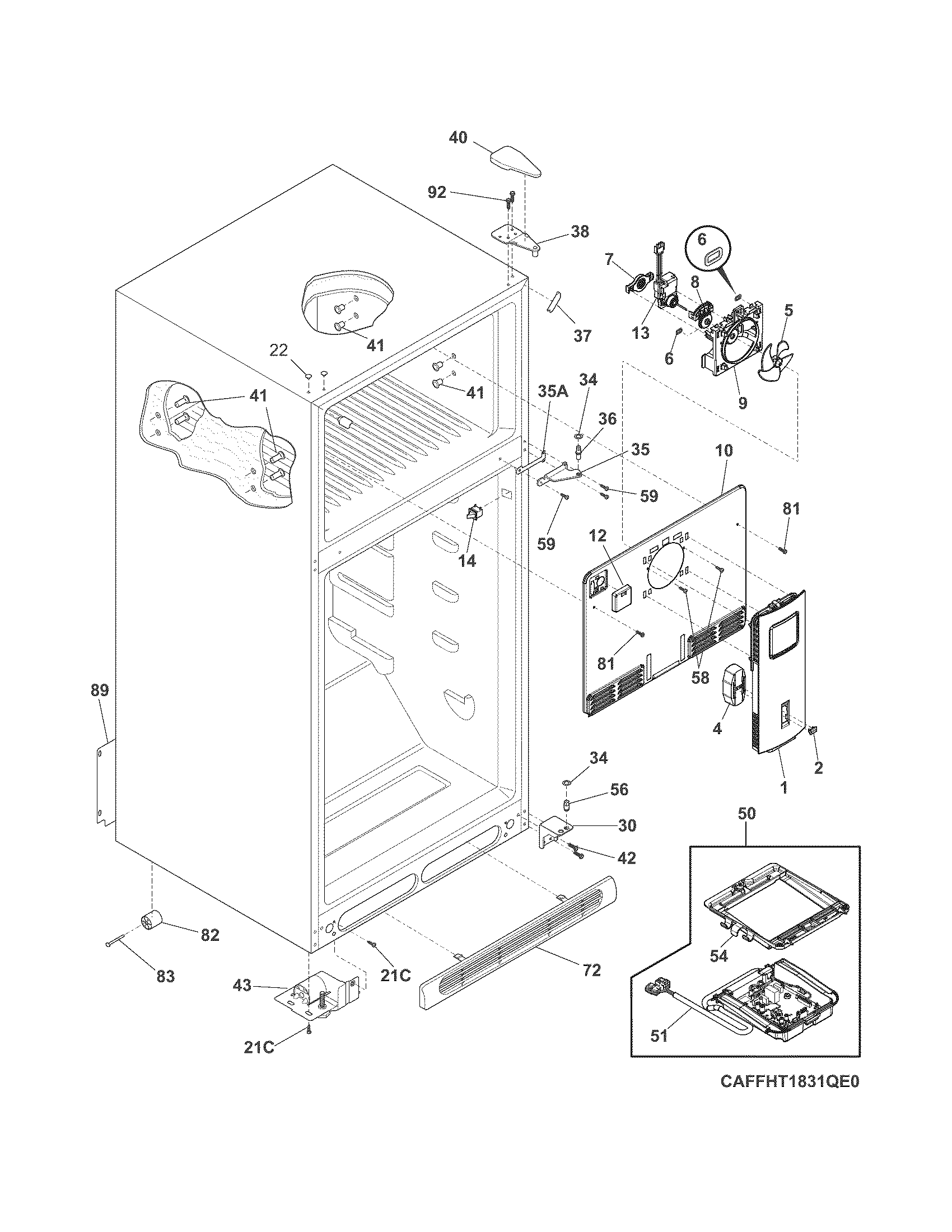

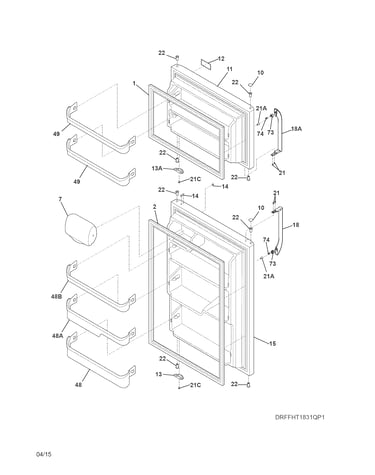

On the Frigidaire FFHT1831QQ1 top-mount refrigerator, door alignment is corrected by leveling the cabinet first, then adjusting the front rollers and leveling screws so the refrigerator tilts slightly back (about 1/4 inch) to help the doors close and seal evenly. Use the steps in the FFHT1831QQ1 installation guide for the exact adjustment points.

Step-by-step: level the cabinet so the doors line up

1. Remove the toe grille.
2. Raise or lower the front rollers using a flat-blade screwdriver or a 3/8-inch socket.
3. Turn the leveling screws clockwise until they firmly contact the floor.
4. Set the final stance:

• All four corners rest firmly on the floor.
• Cabinet is level front-to-rear and side-to-side.
• Sides tilt about 1/4 inch (6 mm) from front to back so doors close freely.

Quick checks that usually fix “crooked door” complaints

• Confirm the refrigerator is not rocking on the floor.
• Make sure the doors close freely when opened halfway.
• Verify the gasket is sealing all the way around (no gaps at the top corner).
• Recheck alignment after the unit has been loaded with food (weight can change leveling slightly).

If the doors still look uneven: hinge alignment basics

If the cabinet is level but the doors still don’t align, we follow the hinge guidance in the FFHT1831QQ1 owner’s manual. Common corrections include reseating the door on the hinge pin and tightening hinge screws evenly.

Symptom	Most common cause	What we adjust first
Door tops don’t line up	Cabinet not tilted back	Front rollers and leveling screws
Door won’t stay shut	Front too low, poor seal	Raise front slightly
Door rubs or binds	Door not seated on hinge pin	Hinge seating and screw tightness

Why it matters

Proper door alignment prevents warm air leaks that cause frost, temperature swings, and longer compressor run times. A small leveling correction often restores a tight seal and steadier cooling.

Last updated: February 2026

On the Frigidaire FFHT1831QQ1 refrigerator, “5b” is almost always a misread display for “Sb”, which means Sabbath mode is turned on. When Sabbath mode is active, some normal functions and display behavior change until you turn the mode off.

How to turn Sabbath mode off (and back on)

Use the control panel key combination shown in your FFHT1831QQ1 owner’s manual. A common method on many Frigidaire top-mount models is holding a temperature key combination for about 5 seconds until “Sb” toggles.

• Press and hold the temperature keys as directed in the manual
• Hold for about 5 seconds
• Watch for “Sb” to appear or disappear
• After exiting, allow a few minutes for normal display behavior to return

What changes when Sabbath mode is on

Sabbath mode is designed to reduce certain user interface actions. Depending on the control style, you may notice:

• The display may look different or be less responsive
• Interior lights may not operate normally
• Audible tones may be disabled
• Some automatic features may be limited

Quick checks if you still see “5b”

If the display still looks like “5b” after toggling Sabbath mode, these steps help confirm what you are seeing:

What you see	What it usually means	What to do
“Sb” (or looks like “5b”)	Sabbath mode is on	Toggle Sabbath mode using the manual steps
Random segments or partial letters	Display segment issue or power glitch	Unplug for 5 minutes, then restore power
Cooling seems off after changes	Settings recently adjusted	Set temps, then wait 24 hours for stabilization

Why it matters

If Sabbath mode is on, the refrigerator can appear “not working right” even though cooling is normal. Turning it off restores typical control and display behavior so you can troubleshoot temperature, lights, and alarms accurately.

Last updated: February 2026

Yes. You can buy replacement parts for a Frigidaire refrigerator, and for model FFHT1831QQ1 we offer model-matched parts such as door bins, crisper drawers, gaskets, fan motors, and defrost components. Use the FFHT1831QQ1 owner's manual to confirm the correct part location and safe service steps before you start.

Common replacement parts customers buy for FFHT1831QQ1

These are some of the most frequently replaced items for this top-mount refrigerator:

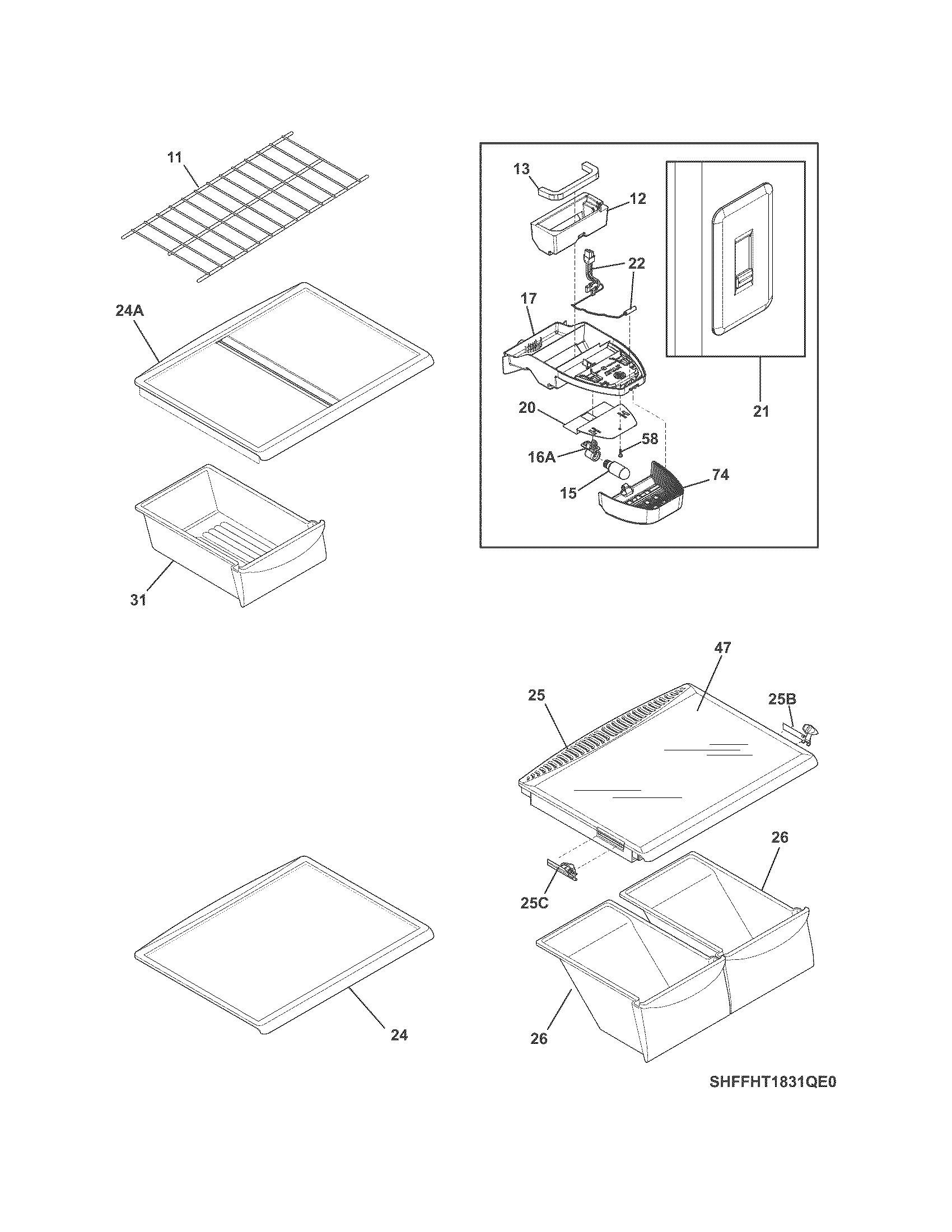

• Storage parts: crisper drawer 240337103, door bins, shelves, dairy bin covers
• Door sealing parts: door gasket (helps prevent warm air leaks and frost)

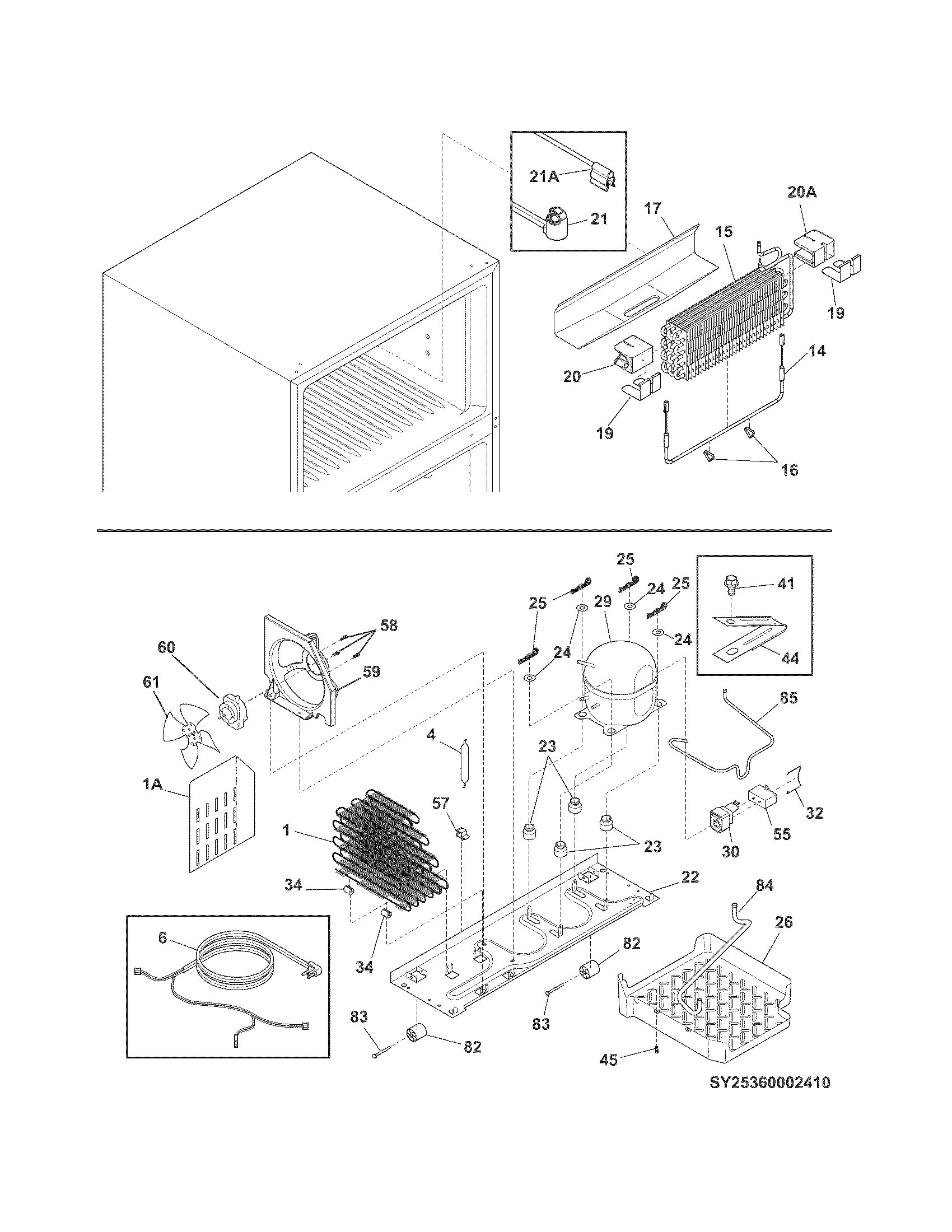

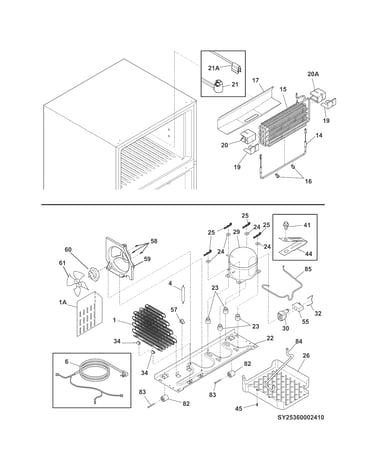

• Cooling airflow parts: evaporator fan motor and fan blade
• Defrost parts: defrost heater
• Electrical start parts: start relay, run capacitor

How to make sure you order the right part

We recommend matching by model first, then verifying the part’s position in the diagrams.

• Confirm the model number on the rating plate is FFHT1831QQ1
• Compare the part name and ID to the diagram callouts
• Check color and side (left/right) for door and bin parts
• If you are replacing a cooling part, note symptoms (warm fridge, noisy fan, frost buildup)
• Review safety notes and access steps in the FFHT1831QQ1 installation guide

Quick guide: which part to shop based on the symptom

Symptom	Most likely area	Example part types
Door won’t seal, moisture or frost	Door seal/alignment	Door gasket, hinge/bushing
Warm fridge but freezer cold	Airflow/evaporator area	Evaporator fan motor, fan blade
Heavy frost on freezer back panel	Defrost system	Defrost heater
Clicking, won’t start cooling	Compressor start circuit	Start relay, run capacitor
Broken drawer or bin	Storage components	Crisper drawer, door bin

Why it matters

Using model-specific parts helps restore proper temperatures, airflow, and door sealing. That protects food, reduces frost and odors, and helps the refrigerator run efficiently.

Last updated: February 2026

On the Frigidaire FFHT1831QQ1 top-mount refrigerator, the upper compartment is the freezer. It is designed to keep foods frozen and, on some setups, it can also support an automatic ice maker when the refrigerator is connected to a water supply.

What you will typically find in the upper (freezer) section

• Freezer door and door seal (helps prevent warm air leaks)
• Freezer shelves or bins (varies by configuration)
• Temperature control settings (often shared with the fresh food section)
• Airflow vents that circulate cold air between compartments

Related “upper area” terms you may see in Frigidaire documentation

Sometimes customers mean different things by “upper part.” Here is a quick guide:

What you are describing	Common name	Where it is
The top compartment where food freezes	Freezer compartment	Upper section on a top-mount refrigerator
A drawer directly under the freezer (some models)	Store-More drawer	Top of the refrigerator cabinet under the freezer
The front grille at the bottom of the unit	Toe grille	Lower front of the refrigerator

For model-specific layout and features, use the FFHT1831QQ1 owner's manual.

Why it matters

Using the right term helps you order the correct Frigidaire parts and troubleshoot faster. For example, “freezer not cold” points us toward airflow, door sealing, or defrost system checks, while “upper drawer” could refer to a storage drawer under the freezer on some models.

Last updated: February 2026

Yes. Looking up parts by model number is the most accurate way to get compatible replacement parts for your Frigidaire refrigerator, including model FFHT1831QQ1, because it filters results to the exact door bins, shelves, gaskets, and cooling components used on that unit.

How to find the correct model number

Use the complete model number from the refrigerator’s data tag, then match it exactly (letters and numbers matter).

• Check inside the fresh food compartment on the side wall
• Check near the crisper area or on an interior frame edge
• Write down the full model number and any revision characters
• Use the model number to confirm fit before ordering parts

What you can look up once you have the model number

When you search by FFHT1831QQ1, you can narrow to the exact part diagrams and common replacements for that model.

What you need	Why it helps	Example for this model
Model number	Ensures compatibility	FFHT1831QQ1
Part name	Helps you choose the right section	Door bin, gasket, fan motor
Part ID	Confirms the exact listing	240337103, 242193206

Common part examples for FFHT1831QQ1

These are examples of model-matched parts customers often replace due to wear, cracking, or poor sealing.

• Crisper drawer - refrigerator storage component by Frigidaire 240337103 (drawer cracked or won’t slide smoothly)
• Frigidaire refrigerator door gasket (white) 242193206 (warm spots, moisture, or air leaks)
• Frigidaire refrigerator door gallon bin 240338001 (bin broken or won’t stay seated)

Why it matters

Refrigerator parts are highly model-specific. Searching by model number helps prevent ordering a similar-looking shelf, door bin, or gasket that does not align with your liner slots, hinge side, or door seal profile. For model-specific operating and identification details, use the FFHT1831QQ1 owner’s manual.

Last updated: February 2026
