Model #WCSR4170DCWW GE washer

Here are the diagrams and repair parts for GE WCSR4170DCWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 135 parts

    Washer Tub Mounting Hub

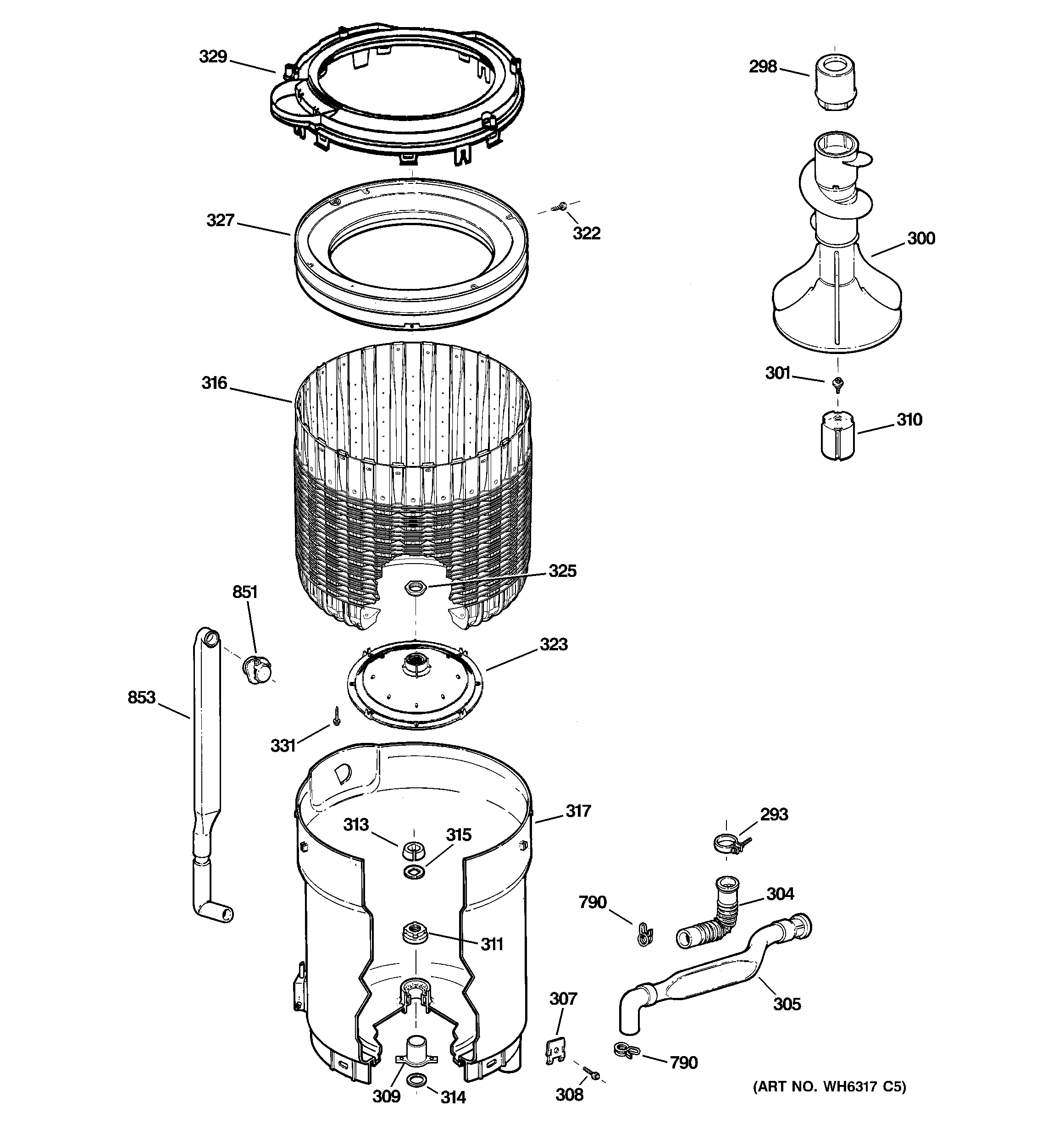

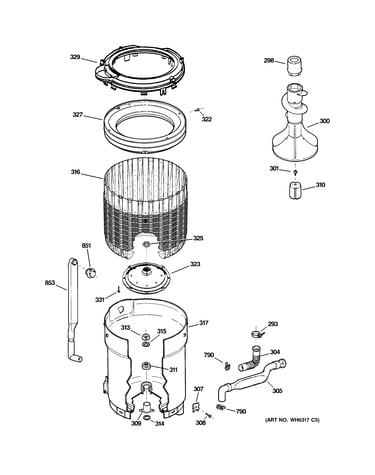

    Tub, basket & agitator Diagram

    Washer tub mounting hub

    Part #WH45X10027

    In Stock

    Washer Lid Switch Assembly

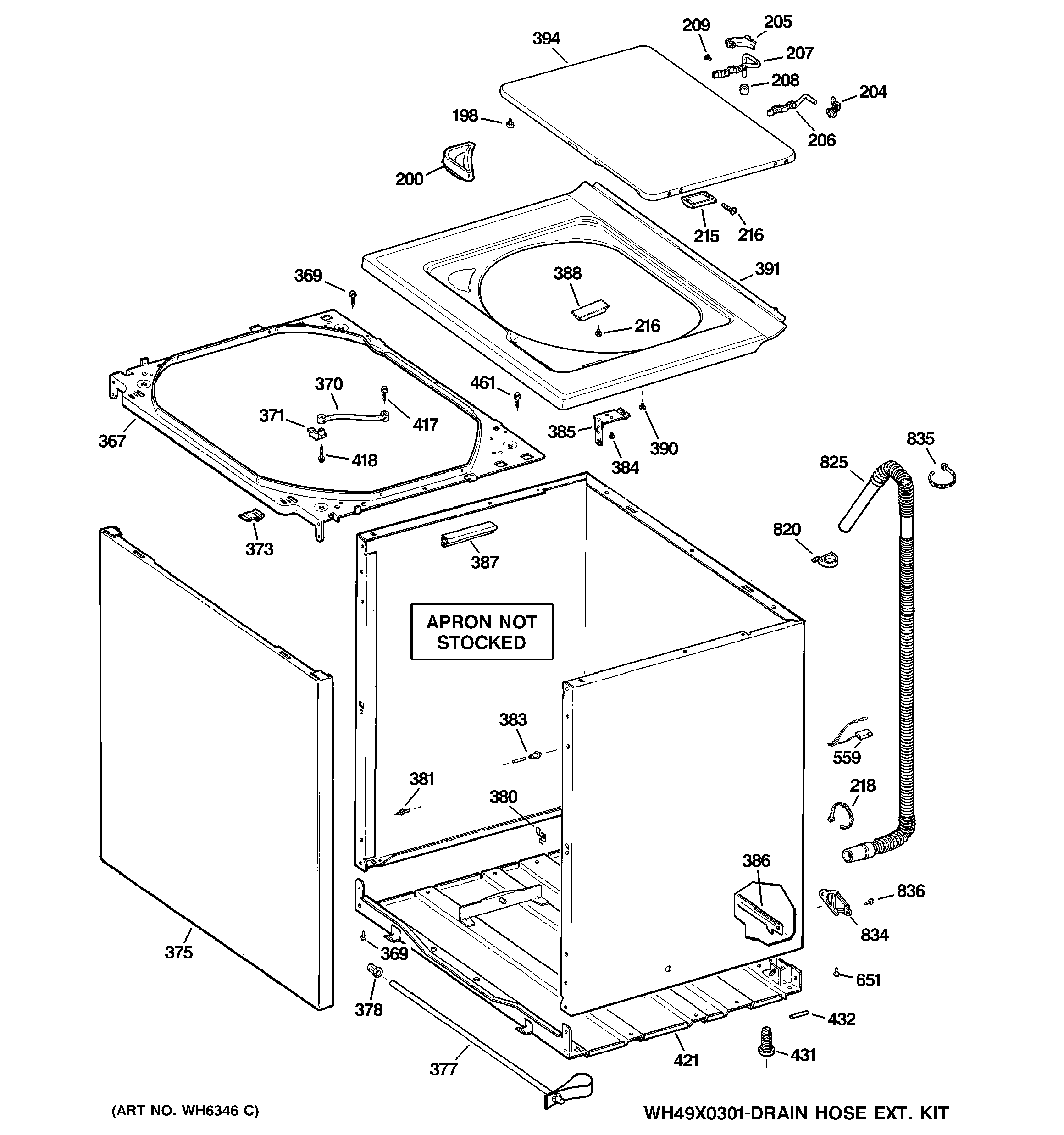

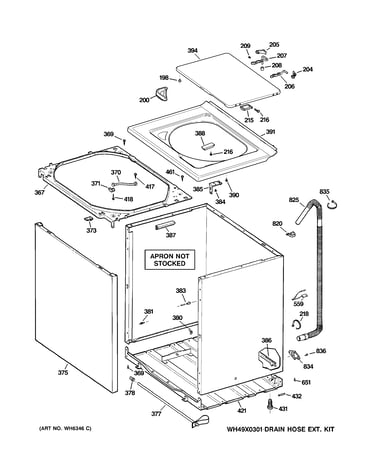

    Cabinet, cover & front panel Diagram


    In Stock

    Washer Control Knob Clip

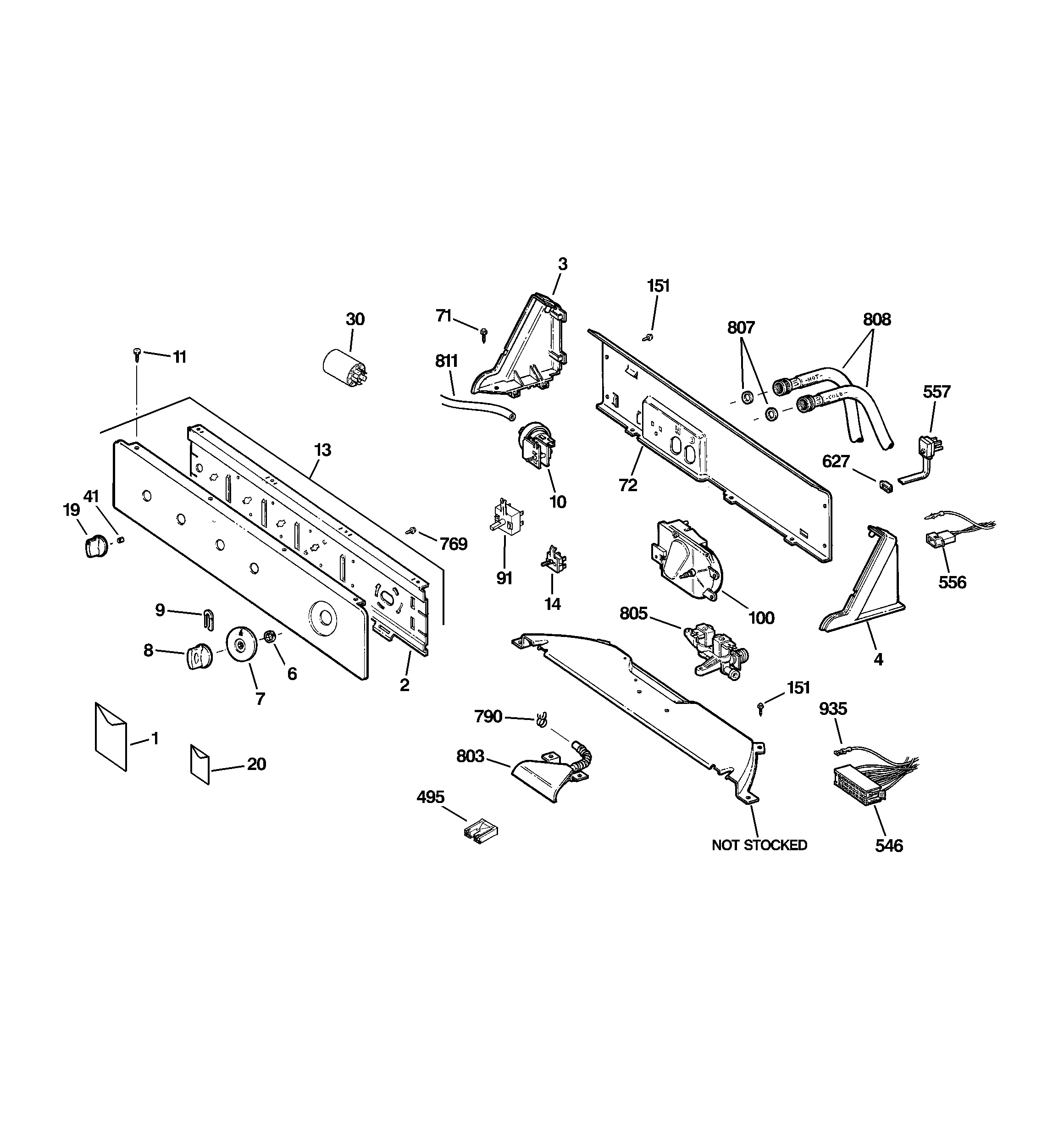

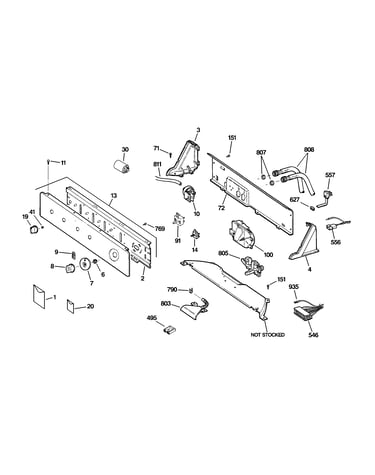

    Controls & backsplash Diagram

    Washer control knob clip

    Part #WH01X10106
    This item is not returnable

    In Stock

    Washer Hose Clamp


    Controls & backsplash Diagram

    Washer hose clamp

    Part #WH02X10093

    In Stock

    Washer Control Knob


    Controls & backsplash Diagram

    Washer control knob

    Part #WH01X10061

    In Stock

    Washer Drive Belt Installation Tool

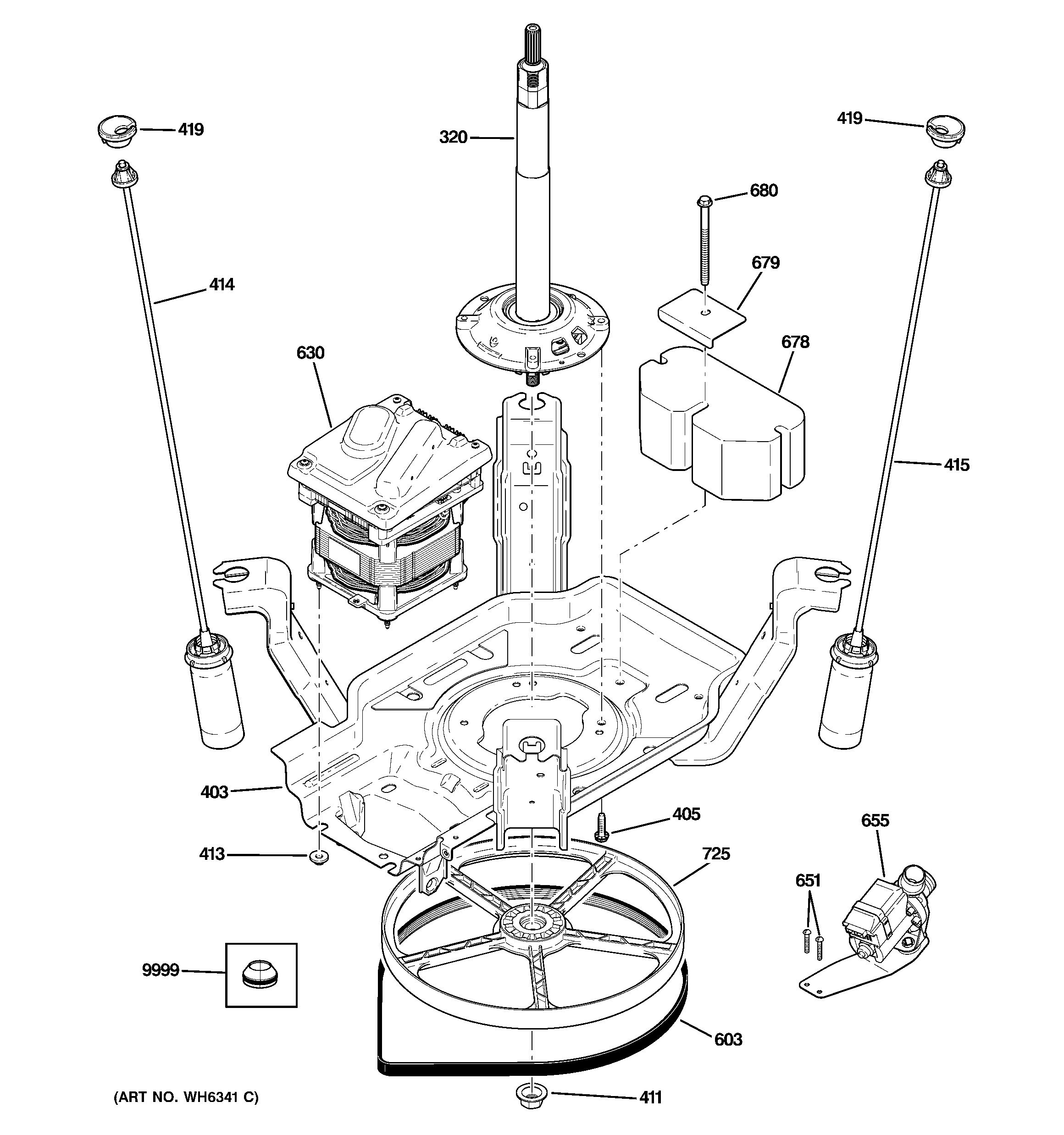

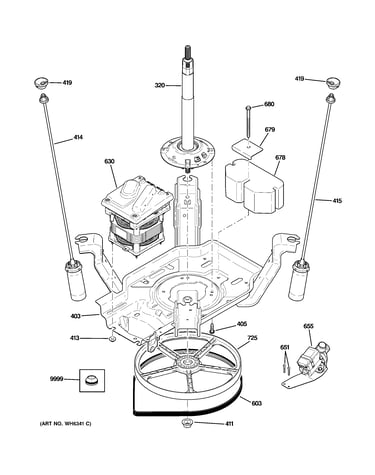

    Suspension, pump & drive components Diagram


    In Stock

    Washer Timer Dial


    Controls & backsplash Diagram

    Washer timer dial

    Part #WH11X10033

    In Stock

    Washer Tub Fill Nozzle


    Controls & backsplash Diagram

    Washer tub fill nozzle

    Part #WH41X10077

    In Stock

    Washer Suspension Rod Socket


    Suspension, pump & drive components Diagram

    Washer suspension rod socket

    Part #WH01X10001
    This item is not returnable

    In Stock

    Washer Drive Pulley


    Suspension, pump & drive components Diagram

    Washer drive pulley

    Part #WH07X10019

    In Stock

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
