Amana ART6110W/P1143447NW electric range Parts
Here are the diagrams and repair parts for Amana ART6110W/P1143447NW electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

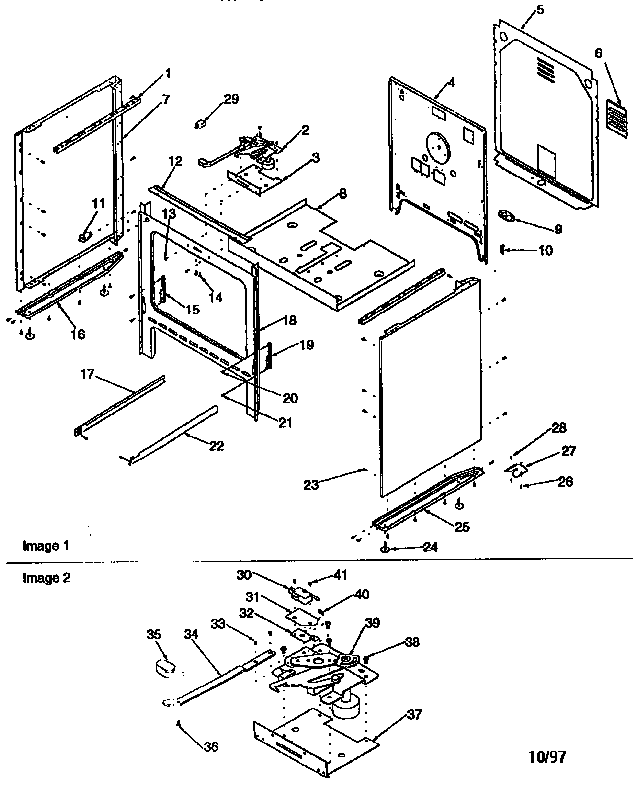

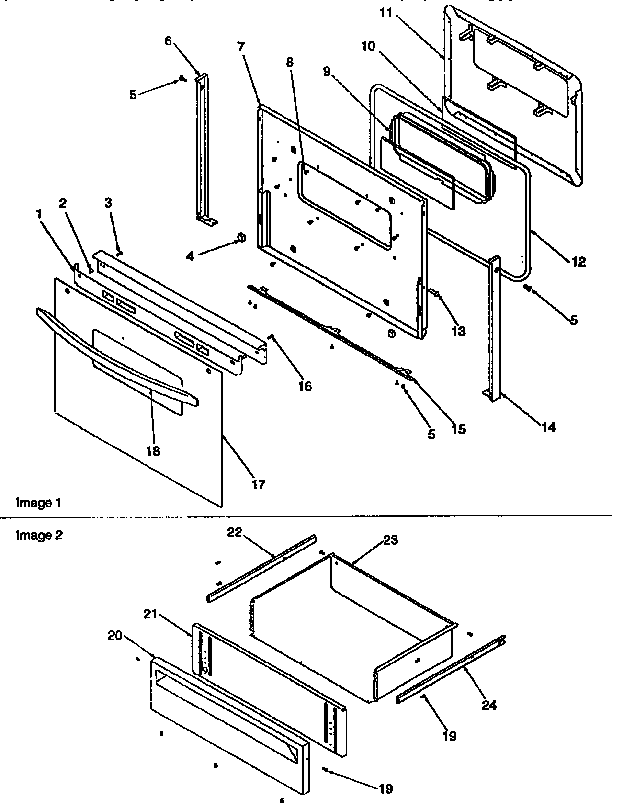

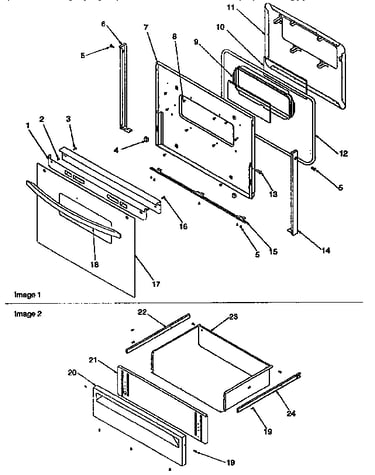

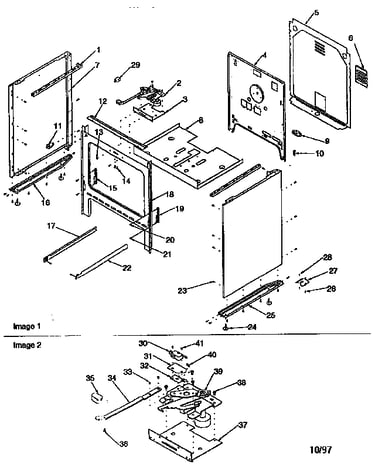

Browse Parts for ART6110W/P1143447NW Ranges

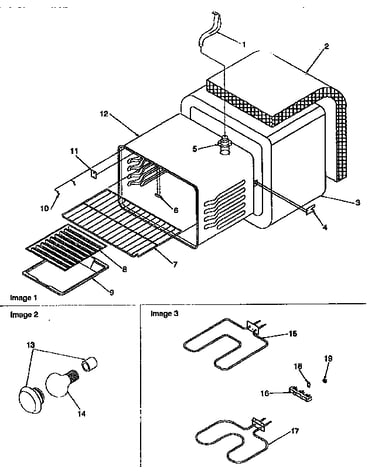

Cavity diagram
Cover,backgd
Part #0306379Replaced by #WPW10245259
Manufacturer substitutionThis part replaces 0306379. Substitute parts can look different from the original.In Stock$27.9118% OFF Phone Price : $33.91
Qty
Screw
Part #0309016Replaced by #WP693995
Manufacturer substitutionThis part replaces 0309016. Substitute parts can look different from the original.In Stock$38.58QtyCavity diagram
Element-blk
Part #0059552
The manufacturer no longer makes this part, and there's no substitute part

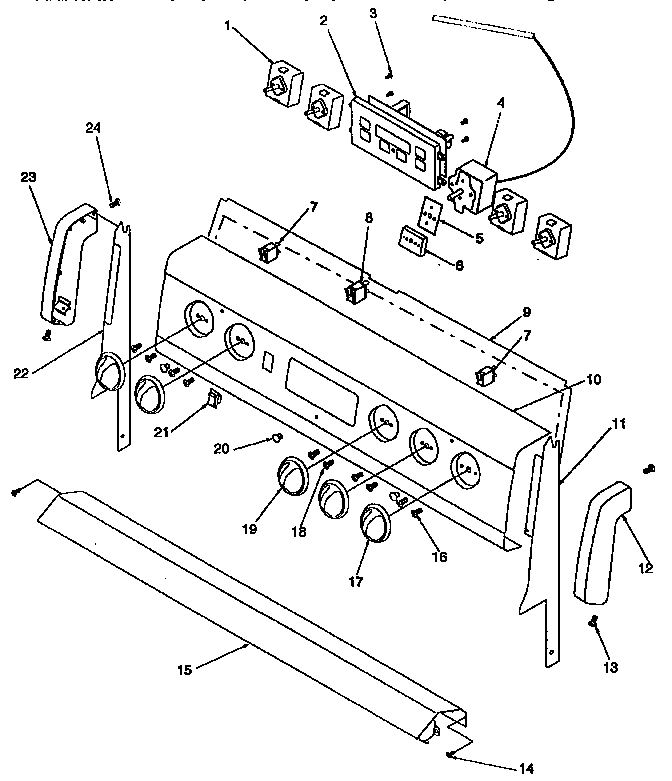

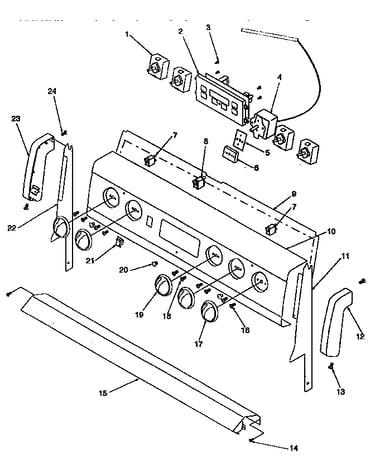

Backguard diagram
Infinite Switch
Part #0315563
The manufacturer no longer makes this part, and there's no substitute part
Cavity diagram
Oven Light
Part #0314842
The manufacturer no longer makes this part, and there's no substitute part
Backguard diagram
End Cap
Part #315841BReplaced by #WP315841B
Manufacturer substitutionThis part replaces 315841B. Substitute parts can look different from the original.In Stock$110.06QtyCavity diagram
Terminal Block
Part #0306378Replaced by #WP8203546
Manufacturer substitutionThis part replaces 0306378. Substitute parts can look different from the original.This item is not returnableIn Stock$20.9322% OFF Phone Price : $26.93QtyScrew
Part #31750701Replaced by #W11245710
Manufacturer substitutionThis part replaces 31750701. Substitute parts can look different from the original.This item is not returnableIn Stock$18.6110% OFF Phone Price : $20.61QtyCavity diagram
Broiler Pan
Part #314175CGReplaced by #4396923

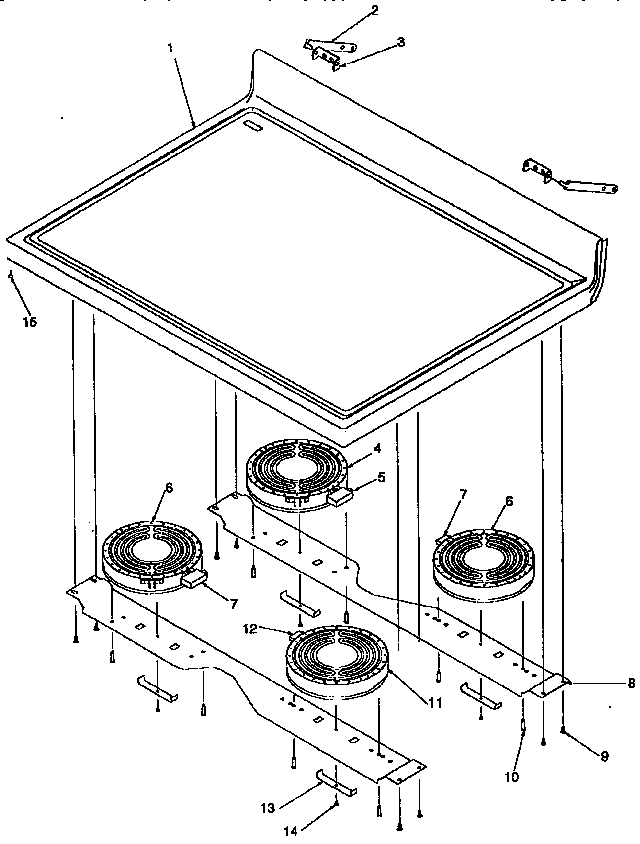

Manufacturer substitutionThis part replaces 314175CG. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyMain top diagram
Screw
Part #0059445Replaced by #W11245710
Manufacturer substitutionThis part replaces 0059445. Substitute parts can look different from the original.This item is not returnableIn Stock$18.6110% OFF Phone Price : $20.61Qty
