Model #79094149313 Official Kenmore electric range
Here are the diagrams and repair parts for Kenmore 79094149313 electric range, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

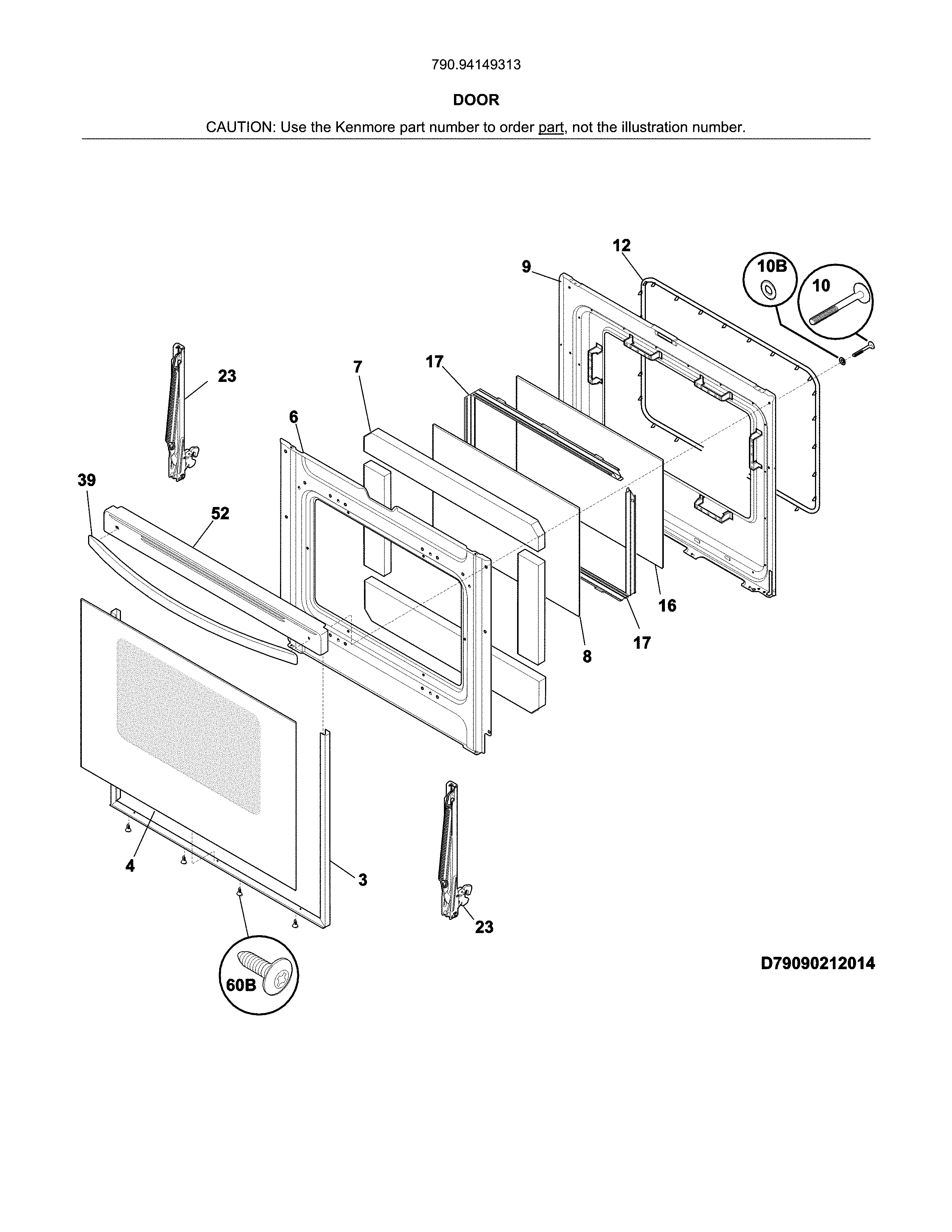

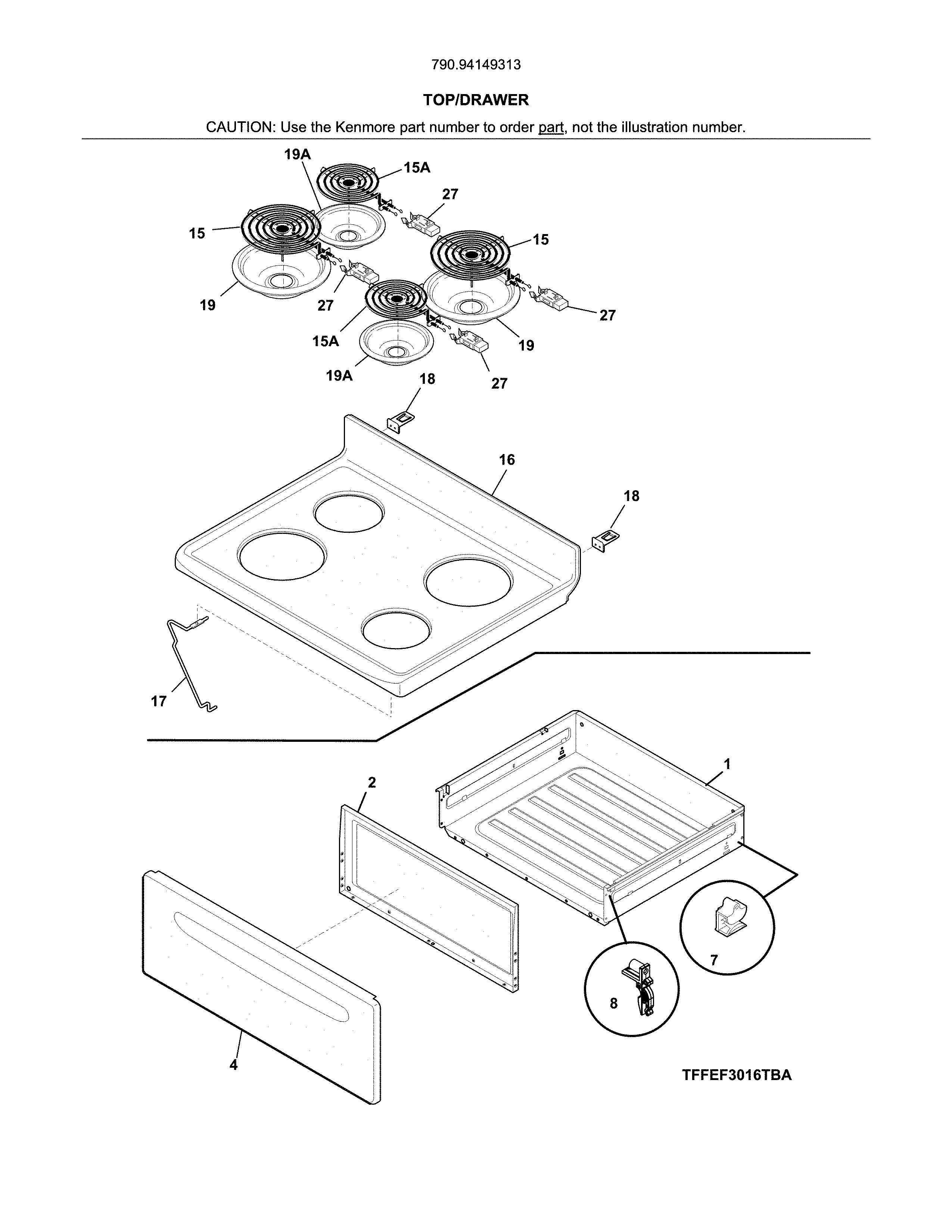

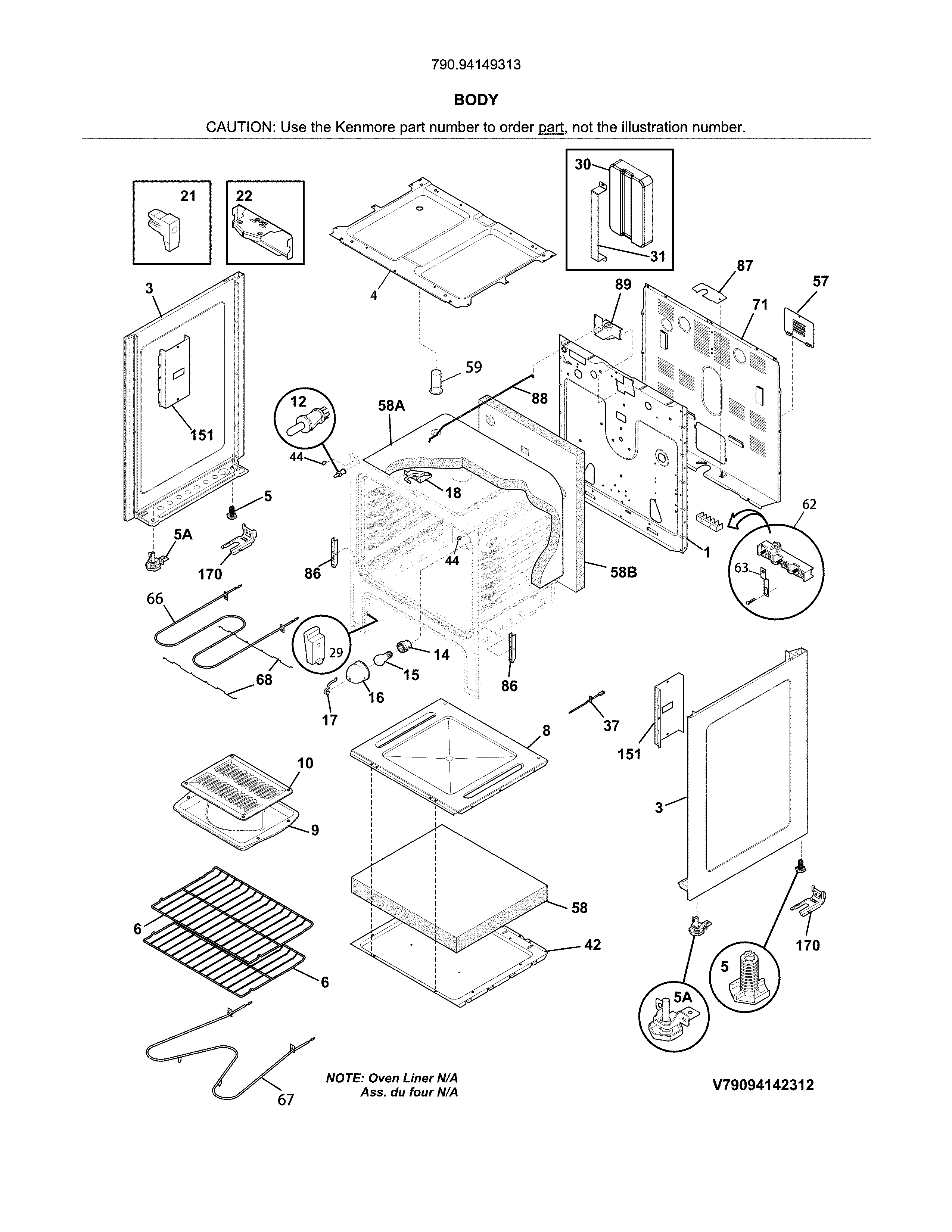

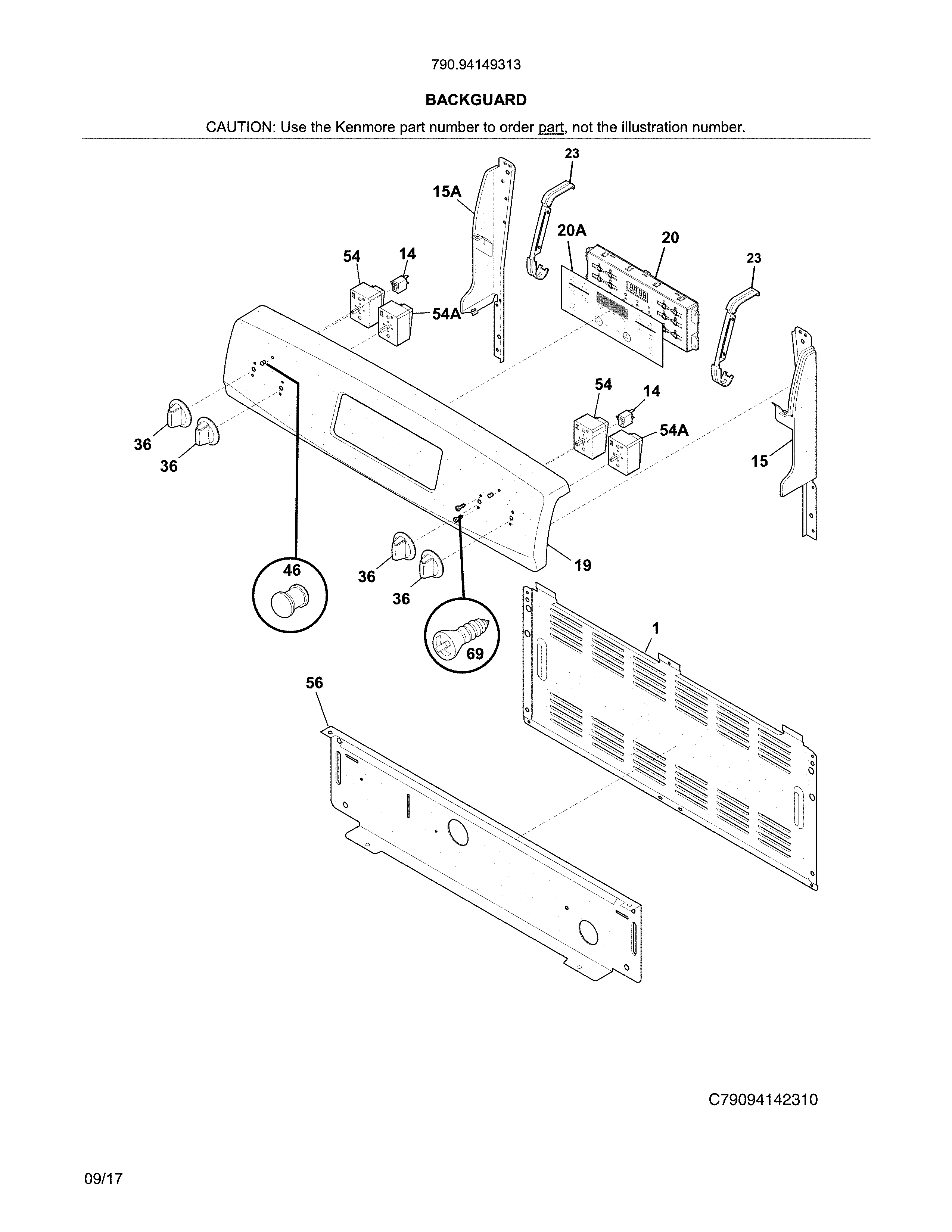

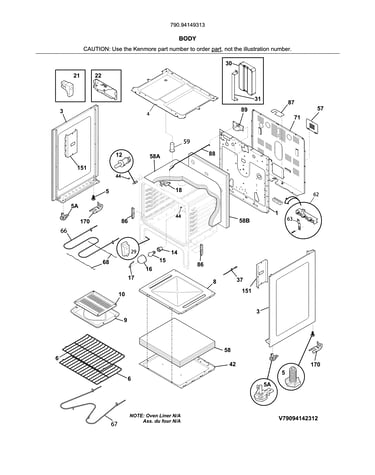

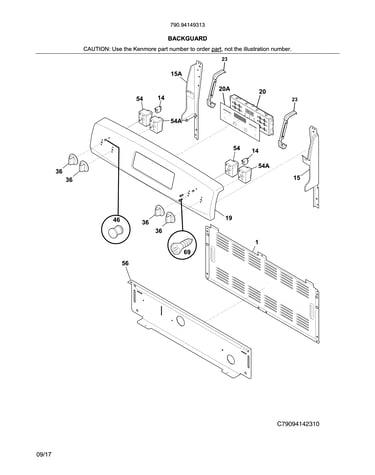

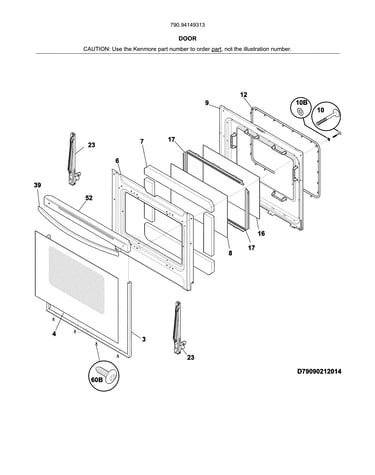

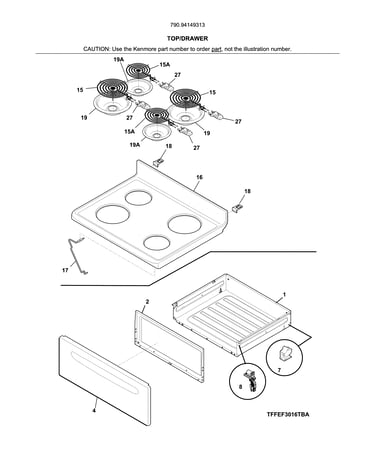

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 108 parts
Range oven temperature sensor (replaces 316490003)
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it doesn’t control the oven light properly.
Learn how to troubleshoot a coil surface element on your stove that won't heat.
