Central Air Conditioner

Model # 25371290 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25371290 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Grommet 126340
#2

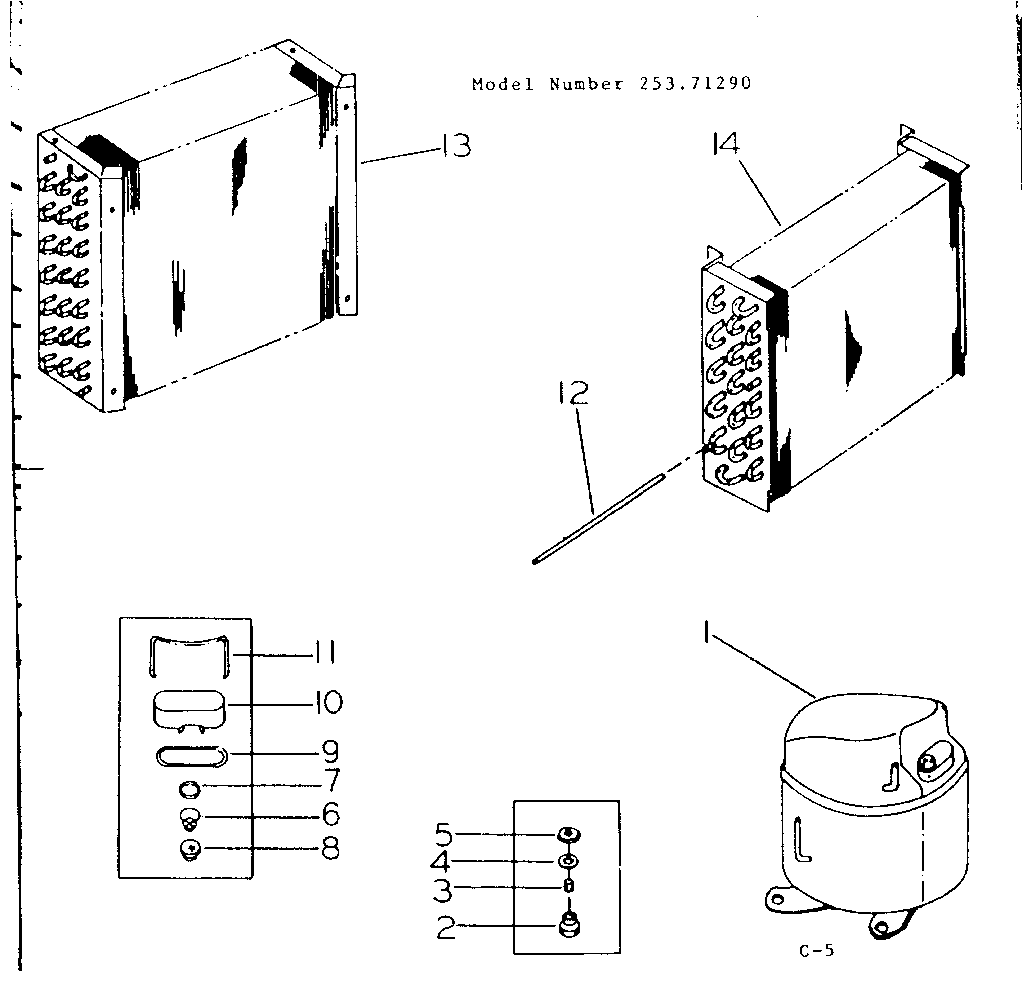

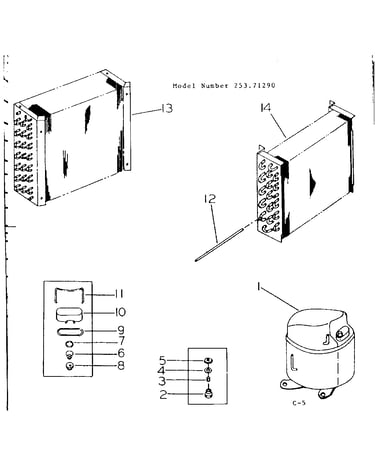

Refrigeration system parts diagram

Grommet

Part #126340

Replaced by #218513300

?
Manufacturer substitution
This part replaces 126340. Substitute parts can look different from the original.
$36.56 |
12% OFF Phone Price : $41.56
In Stock
Clamp 27669
#34

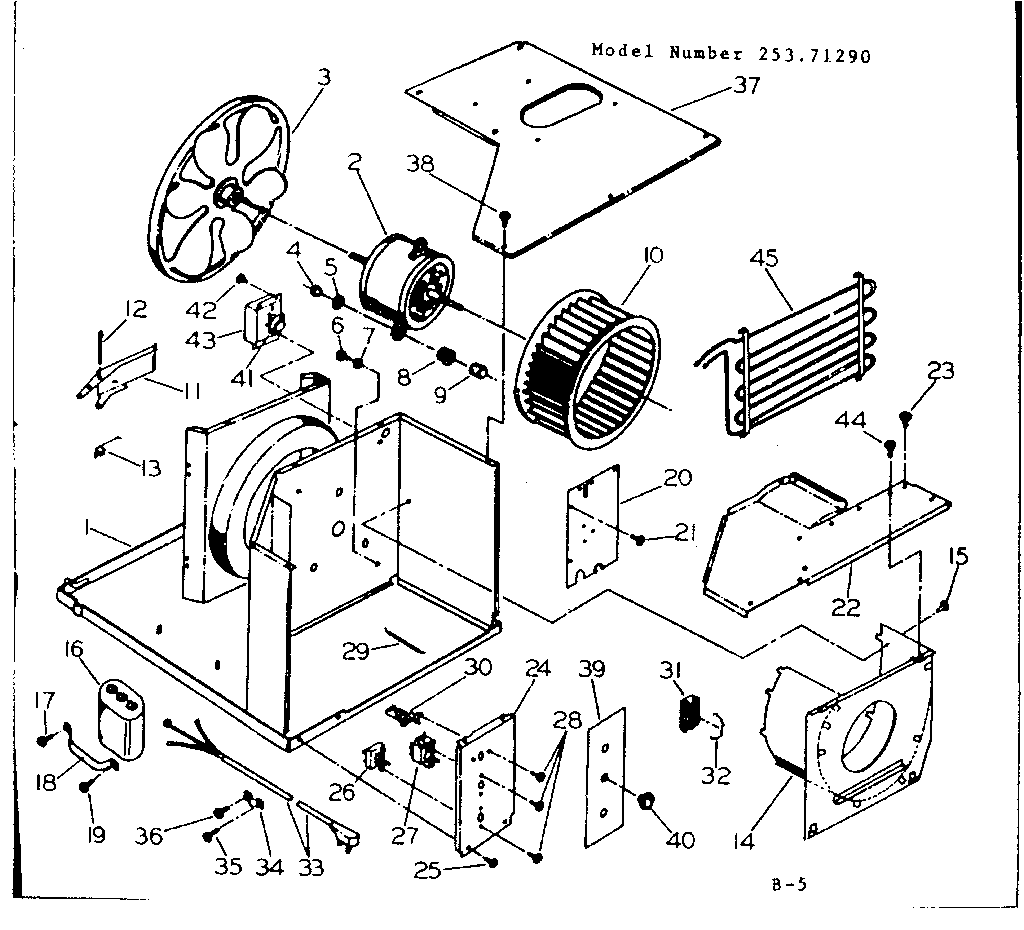

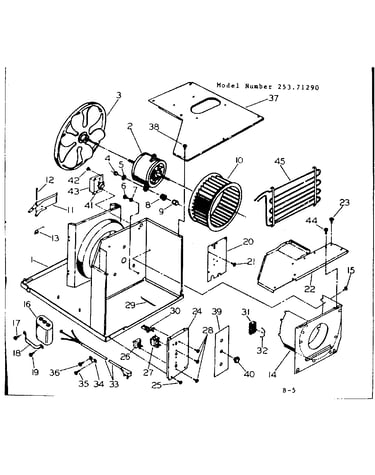

Electrical system & air handling parts diagram

Clamp

Part #27669

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 27669. Substitute parts can look different from the original.
$50.60
In Stock
Screw 100819
#27

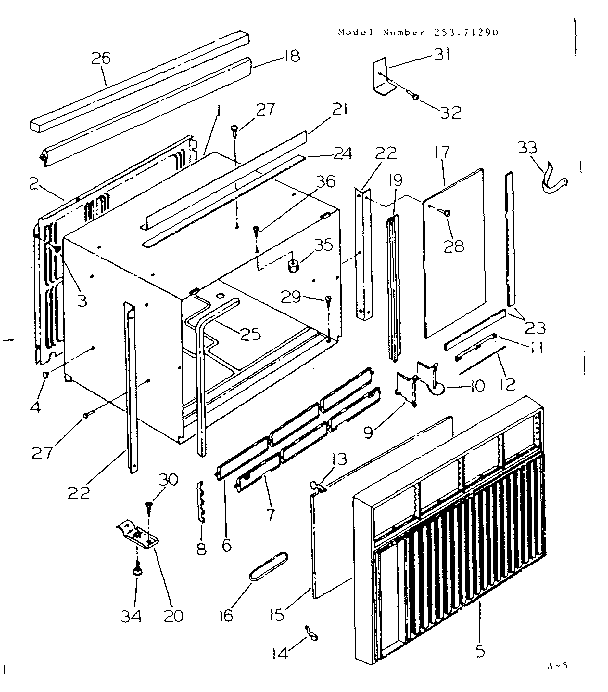

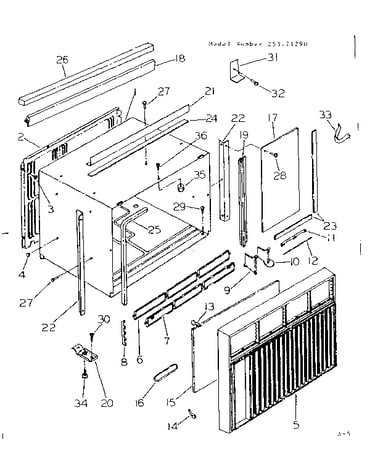

Cabinet and front parts diagram

Screw

Part #100819

Replaced by #08003581

?
Manufacturer substitution
This part replaces 100819. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Fan 120227
#3

Electrical system & air handling parts diagram

Fan

Part #120227

The manufacturer no longer makes this part, and there's no substitute part

Compressor AJT17-257
#1

Refrigeration system parts diagram

Compressor

Part #AJT17-257

The manufacturer no longer makes this part, and there's no substitute part

Comp Front 152075
#5A

Cabinet and front parts diagram

Comp front

Part #152075

The manufacturer no longer makes this part, and there's no substitute part

Cutout 112435
#41

Electrical system & air handling parts diagram

Cutout

Part #112435

The manufacturer no longer makes this part, and there's no substitute part

Strap 116434
#11

Refrigeration system parts diagram

Strap

Part #116434

The manufacturer no longer makes this part, and there's no substitute part

Control Box 128126
#43

Electrical system & air handling parts diagram

Control box

Part #128126

The manufacturer no longer makes this part, and there's no substitute part

Member 152649
#22

Cabinet and front parts diagram

Member

Part #152649

The manufacturer no longer makes this part, and there's no substitute part
