Kenmore 66517765891 portable dishwasher Parts

Your Kenmore dishwasher’s model number is usually printed on a label around the door opening. For your portable Kenmore dishwasher, the model number is the key identifier we use for correct parts, service, and troubleshooting; record both the model and serial numbers.

Where to look for the model number label

Check these common spots first (in order):

• Along the inner door frame when the door is open
• On the top edge of the door
• On the tub wall just inside the door opening
• On the back of the dishwasher cabinet (portable units sometimes place labels here)
• Near the lower front frame area behind the toe panel (if equipped)

What to write down (and why)

When you find the label, copy the information exactly as shown.

Item on the label	What it’s used for	Example format
Model number	Matching diagrams and parts to your exact unit	665XXXXXXXXXX
Serial number	Service history, production details, support	Letters and numbers

For Kenmore dishwashers, many model numbers start with 665 (as in 66517765891), which helps narrow the correct parts list quickly.

Quick tips if the label is hard to read

• Wipe the label gently with a damp cloth; detergent film can hide the print
• Use your phone camera and zoom in; angled light often makes faded ink readable
• If the label is damaged, check your paperwork and the 66517765891 owner’s manual

Why it matters

Kenmore dishwashers can look similar across multiple model series, but parts like the door latch, racks, and seals vary by model. Using the exact model number helps us match the right replacement part the first time and avoid fit issues.

Last updated: February 2026

Yes. We still carry replacement parts for many Kenmore dishwashers, including Kenmore model 66517765891; the key is matching parts by the full model number so the door, wash system, and rack components fit and seal correctly. Use the 66517765891 owner's manual to confirm features and service notes before ordering.

How to make sure you order the right part

Use your exact model number (66517765891) and match the part by name and ID.

• Confirm the model tag matches 66517765891 (portable dishwasher)
• Compare the part name and part ID, not just a description
• Check whether the issue is a leak, poor washing, or a door that will not latch
• Replace seals and latches together when wear is obvious (it prevents repeat leaks)
• Follow the install steps and safety notes in the installation guide

Common parts we see customers replace on this model

These are frequent wear items for leaks, door closing problems, and rack issues.

Symptom	Likely part to check	Example part for this model
Water leaking at the door	Door gasket and door alignment	Dishwasher door seal WPW10509257

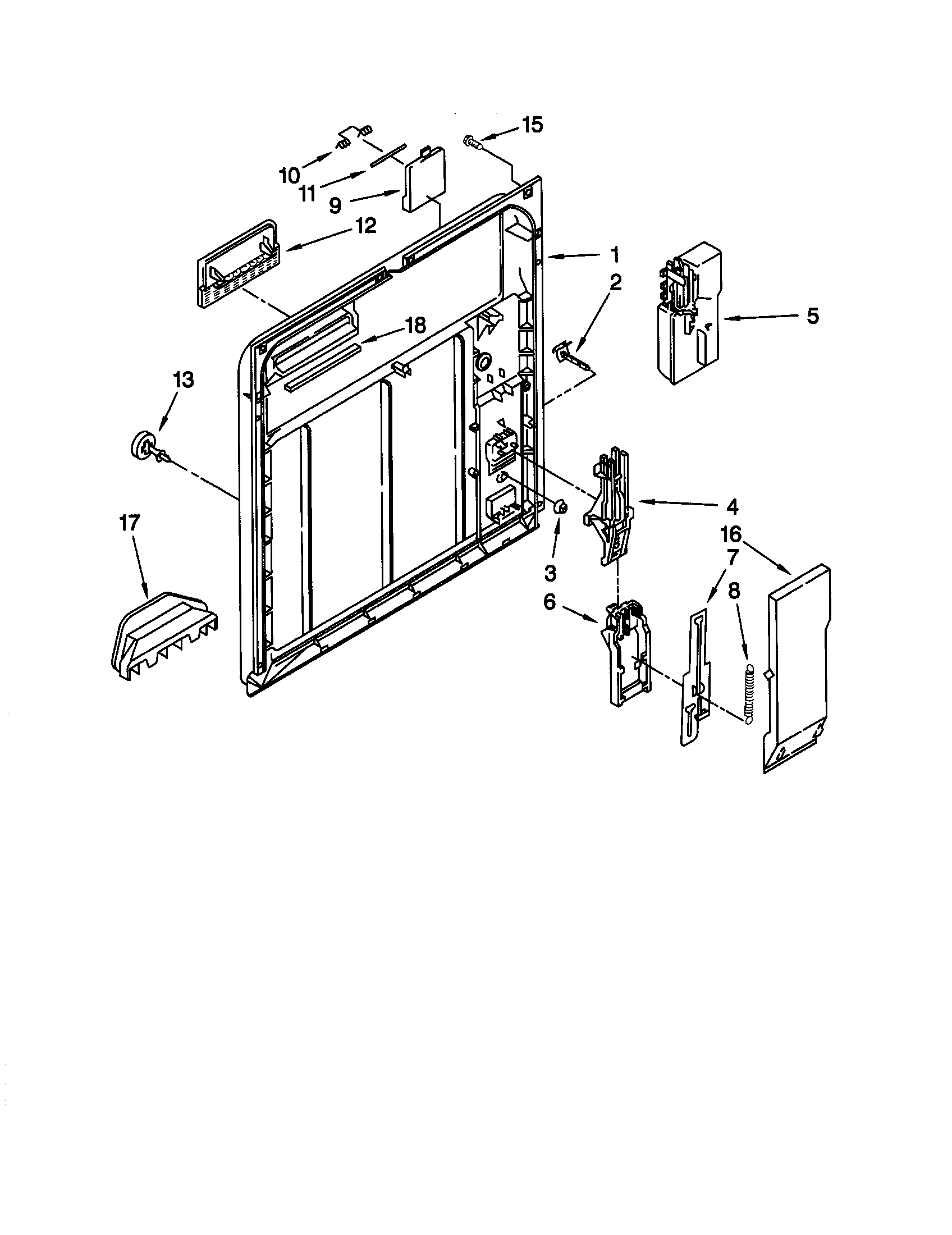

Door will not stay closed	Latch mechanism	Dishwasher door latch WP3380854

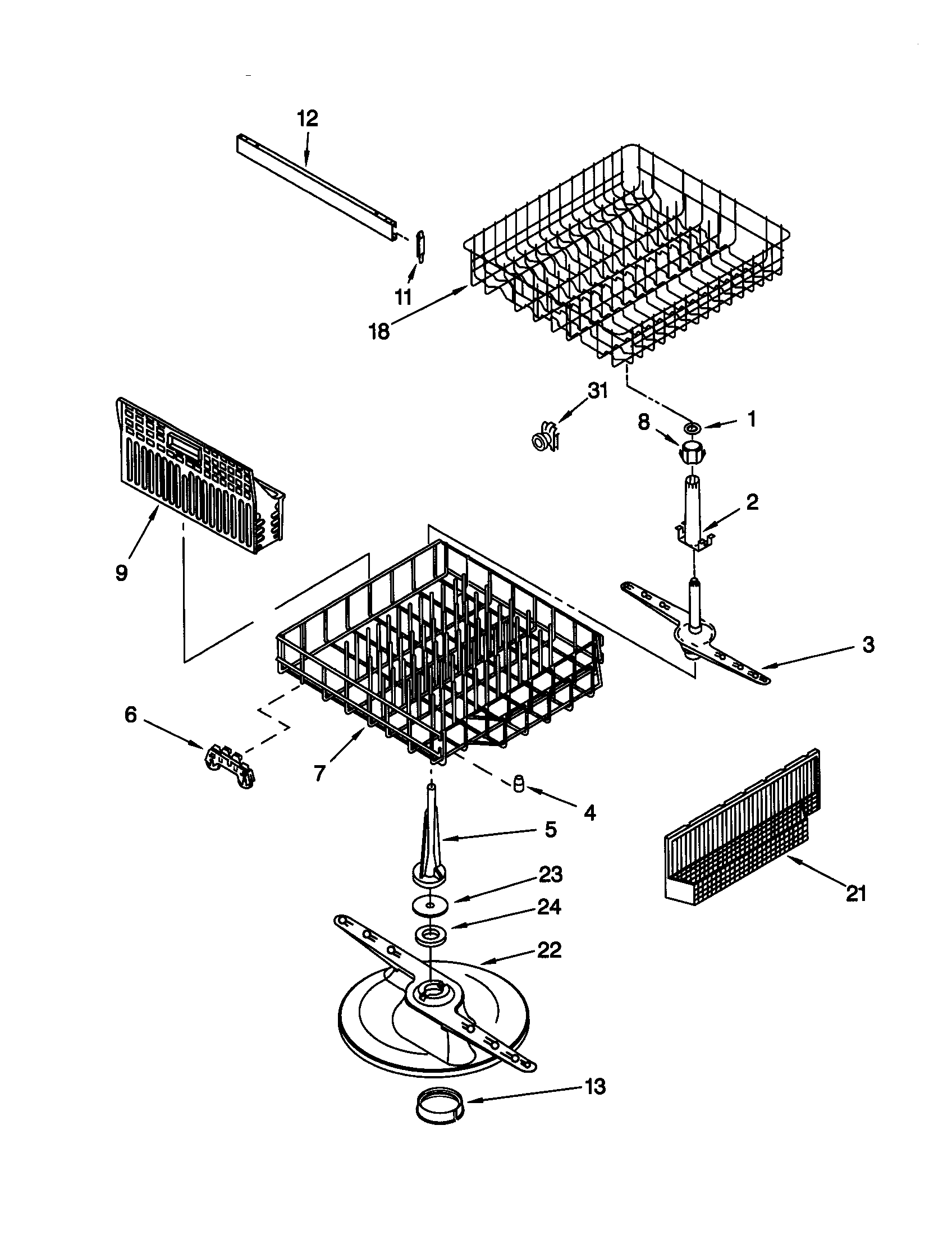

Upper rack not rolling smoothly	Track and adjusters	Track (WP3385089), adjuster (WPW10204131)
Poor spray or weak cleaning	Spray arm and seals	Spray arm (WP8268874), lower spray arm seal (WP3376846)

Why it matters

Using the correct Kenmore 66517765891 parts helps prevent leaks at the inner door area, restores proper wash pressure through the spray arms, and keeps racks tracking correctly so the door closes and seals as designed.

Last updated: February 2026

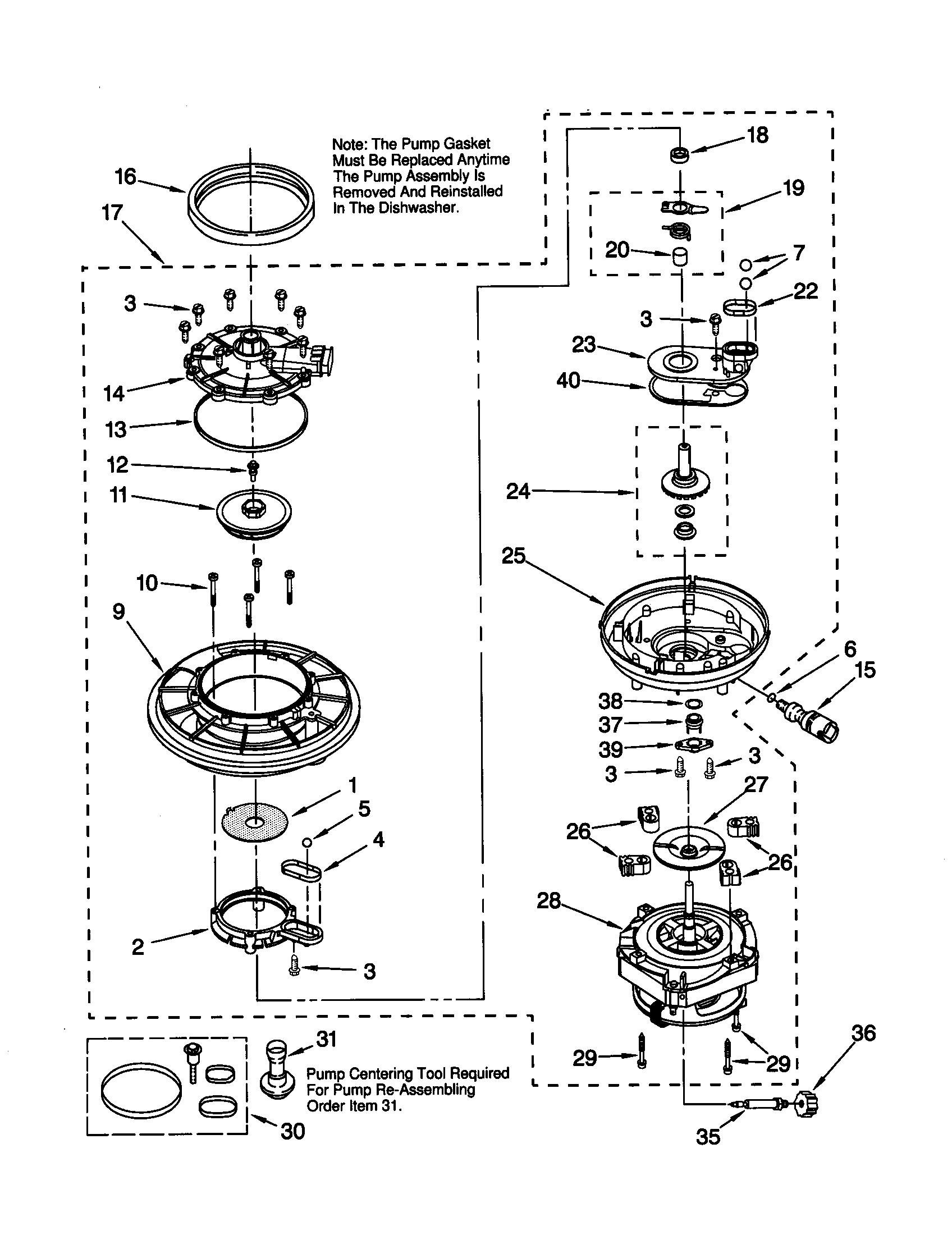

On Kenmore portable dishwasher model 66517765891, the impeller is removed from the wash pump after you disconnect power and water, access the pump from the bottom, and take off the fastener holding the impeller to the motor shaft. Use the steps in the 66517765891 owner's manual for safe access and reassembly.

Before you start (safety and access)

• Disconnect electrical power to the dishwasher.
• Turn off the water supply.
• Pull the portable dishwasher out so you can work comfortably.
• Remove the lower access panel (it is typically held by 4 screws).
• Place a towel or shallow pan under the unit to catch any water.

Impeller removal steps (typical Kenmore Ultra Wash style pump)

1. Remove the lower rack and check the sump area for debris first.
2. From the bottom, locate the wash pump and motor assembly.
3. Remove the pump cover or housing fasteners to expose the impeller.
4. Remove the impeller retaining screw or nut (many designs use a reverse thread; turn clockwise to loosen).
5. Lift the impeller straight off the motor shaft.
6. Inspect the impeller and pump area for broken glass, labels, or food buildup.

Parts you may need during reassembly

If you see leaks after reassembly, these model-matched seals are common fixes:

• Dishwasher lower spray arm seal WP3376846 (helps prevent leaks around the spray arm connection)
• Dishwasher door seal WPW10509257 (helps stop water leaking at the door)

Quick checks: what you see vs. what it usually means

What you notice	Likely cause	What to do
Impeller is hard to lift off	Mineral buildup or debris on shaft	Work it upward gently; clean shaft before reinstalling
Chipped or cracked impeller	Wear or foreign object damage	Replace the impeller (match by model)
Grinding noise before failure	Debris in pump or worn pump components	Clean sump; inspect pump motor and seals

Why it matters

A damaged or jammed impeller reduces wash pressure, so the lower spray arm and spray tower cannot circulate water correctly. That leads to poor cleaning, redepositing food, and sometimes pump leaks or motor strain.

Last updated: February 2026

Yes, repairing a Kenmore portable dishwasher model 66517765891 is usually worth it when the problem is a wear item (seal, latch, rack hardware) or a leak you can pinpoint. If the repair involves major wash-system parts and the dishwasher is older, compare the total repair cost to replacement.

Quick way we decide: cost, age, and what failed

Use these practical checkpoints before buying parts or scheduling service:

• If the repair is under ~50% of replacement cost, we typically repair.
• If it’s a leak at the door or a simple closing issue, we repair first (common, straightforward).
• If the wash system is involved (motor, pump, spray arms), weigh cost more carefully because those parts can be expensive.
• If it’s within warranty coverage, repair is the clear choice.
• If performance is otherwise good (cleans well, drains well), repairs pay off.

For warranty details and troubleshooting guidance specific to this dishwasher, check the 66517765891 owner’s manual.

Common “worth it” repairs on this model

These are frequent fixes that can stop leaks and restore normal operation without major teardown:

• Door leaking or drips at the front: replace the dishwasher door seal WPW10509257
• Door won’t latch or pops open mid-cycle: replace the dishwasher door latch WP3380854
• Rack won’t roll smoothly or falls off track: inspect the track WP3385089 and adjuster WPW10204131
• Small seep at heater pass-through: inspect/replace the dishwasher heating element rubber washer WP717273

Repair vs replace: a simple comparison

Situation	Usually repair	Usually replace
Door leak, latch issue, rack hardware	Yes	No
Single part failure, dishwasher otherwise runs normally	Yes	No
Multiple major failures (pump/motor plus timer issues)	Sometimes	Often
Out-of-warranty major wash-system repair with high parts cost	Sometimes	Often

Why it matters

A portable dishwasher like the Kenmore 66517765891 can often be kept running reliably with targeted part replacement. Fixing leaks early also helps prevent cabinet damage and repeat failures.

Last updated: February 2026

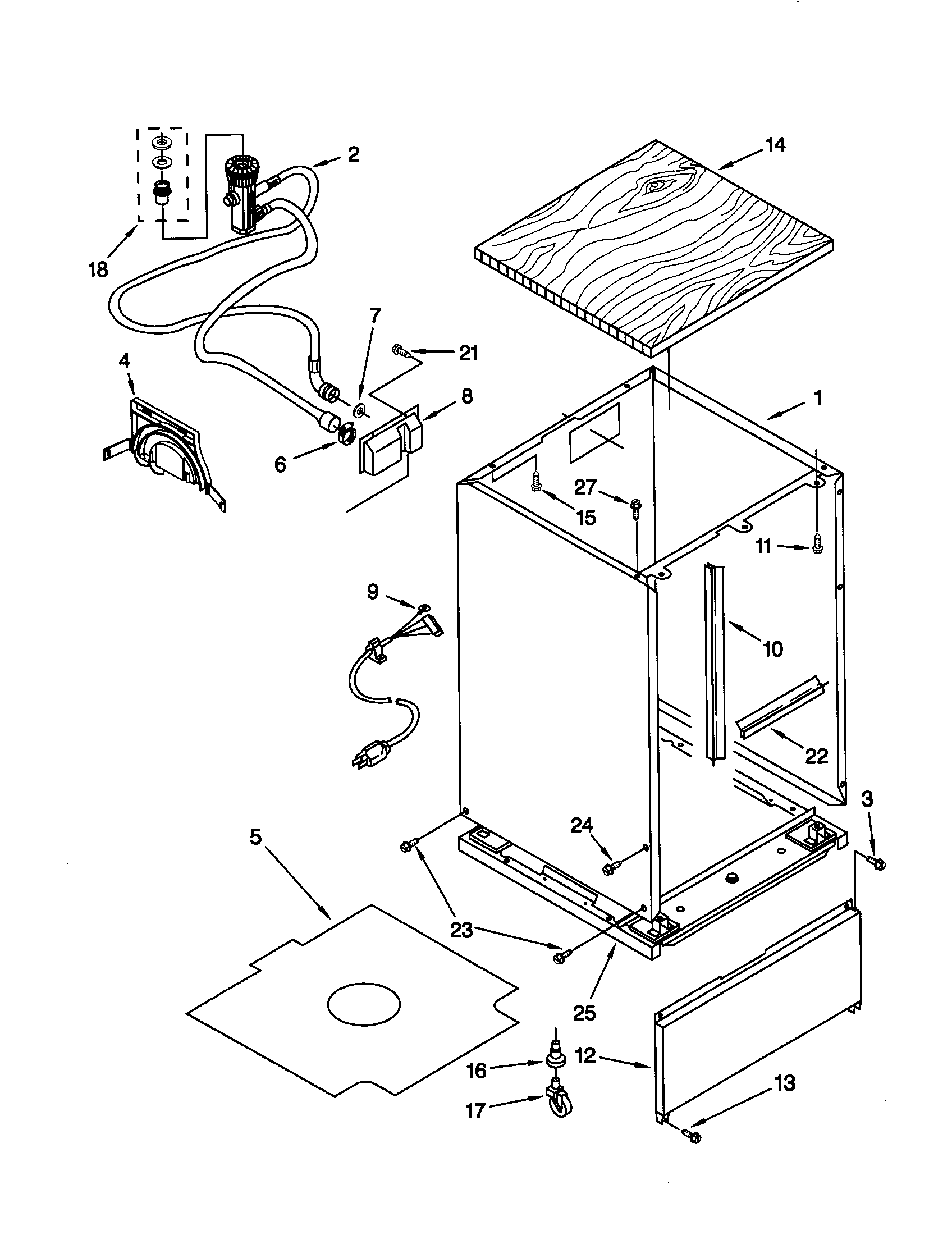

The Kenmore portable dishwasher model 66517765891 is a full-size portable unit (roll-around, faucet-connected). For the exact exterior dimensions (width, height, depth) and any adjustable height range, use the measurements and diagrams in the 66517765891 installation guide.

What “size” usually means for a portable dishwasher

When you are planning fit and hookups, we recommend confirming these items:

• Overall width (side-to-side at the widest point)
• Overall height (floor to top; check if casters or leveling feet adjust)
• Overall depth (front of door to back panel; include hose clearance)
• Door swing clearance (space needed to open the door fully)
• Hookup reach (distance to sink faucet and drain point)

Installation space requirements called out for this model

The installation guide for 66517765891 specifies key placement and hookup limits:

• Sink or laundry tub must drain at 7 gallons (26 liters) per minute minimum
• Top of sink or laundry tub must be 27 to 48 inches (68.6 to 122 cm) high (measured from the bottom of the dishwasher)
• Floor must support 180 pounds (81.6 kg)
• A grounded electrical outlet is required
• Hot water faucet (or hot/cold single-spout faucet) must be within 30 inches (76.2 cm) of the back of the dishwasher
• Water pressure must be 20 to 120 psi (103 to 827 kPa)

Quick planning checklist (measure before you buy parts or move it)

Measure	Target	Why it matters
Width, height, depth	From your unit	Confirms fit through doorways and parking space
Sink height	27 to 48 inches	Ensures proper drain routing and hookup geometry
Faucet distance	Within 30 inches	Prevents hose strain and poor connections

Why it matters

Portable dishwashers depend on correct clearances and hookup geometry. Matching the guide’s sink height, faucet distance, and drain capacity requirements helps prevent poor draining, leaks, and connection damage.

Last updated: February 2026
