Model #RC24CY-3AW/4M47B Magic Chef refrigerator

Here are the repair parts and diagrams for your Magic Chef RC24CY-3AW-4M47B refrigerator.

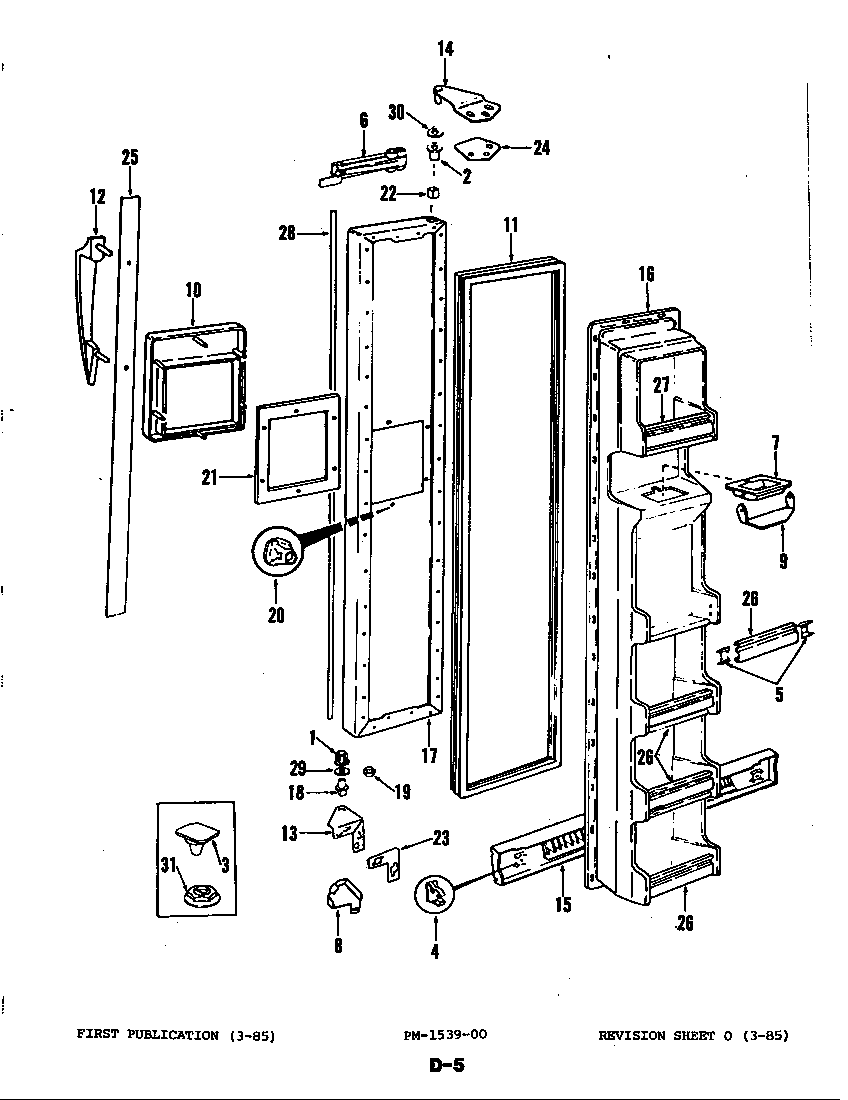

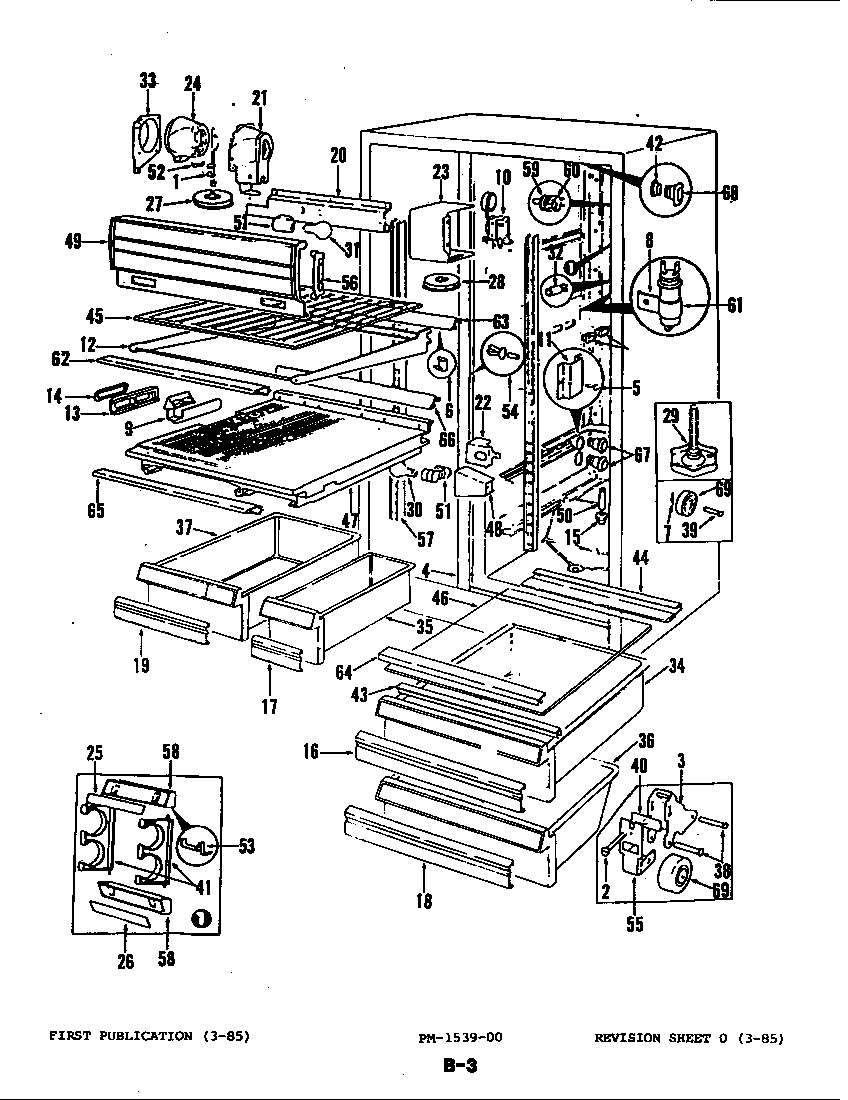

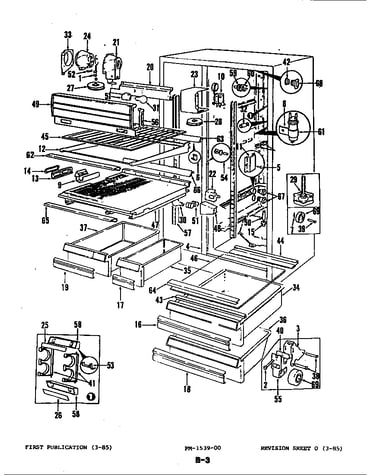

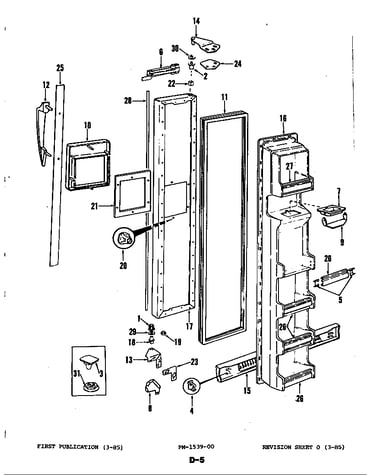

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 212 parts

Refrigerator Dispenser Switch

#50

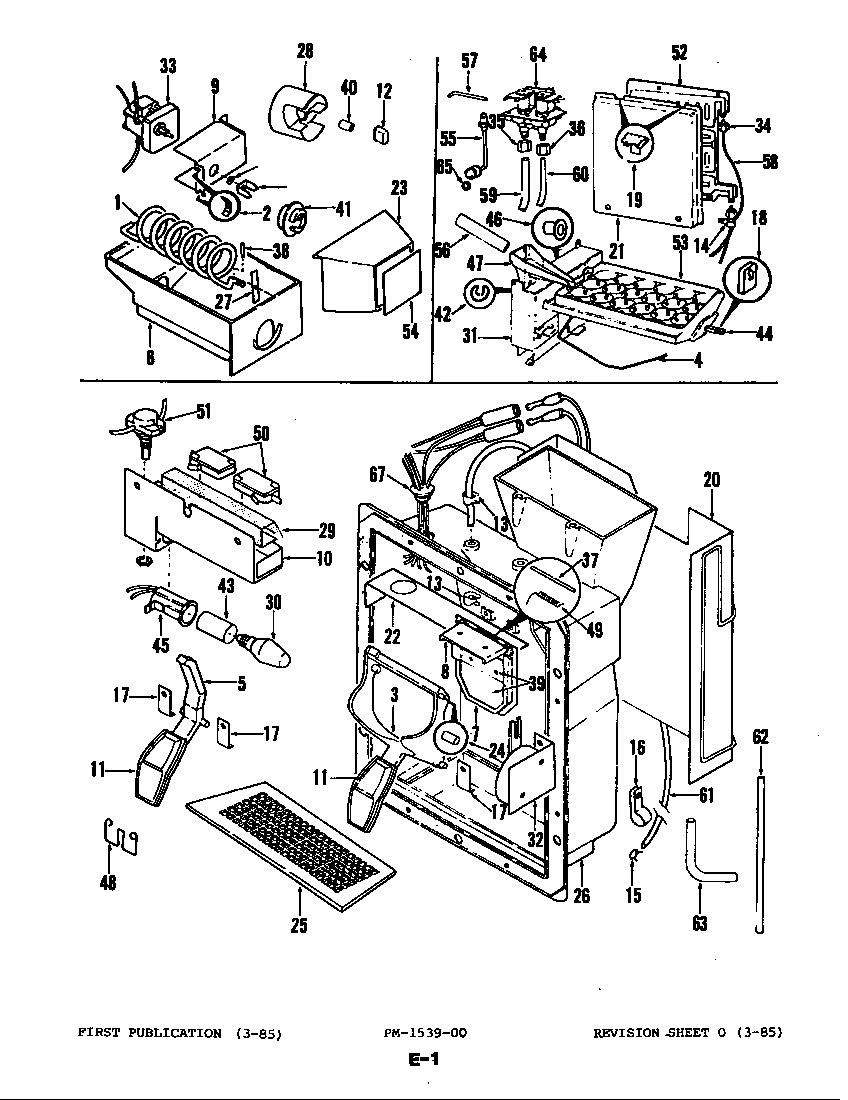

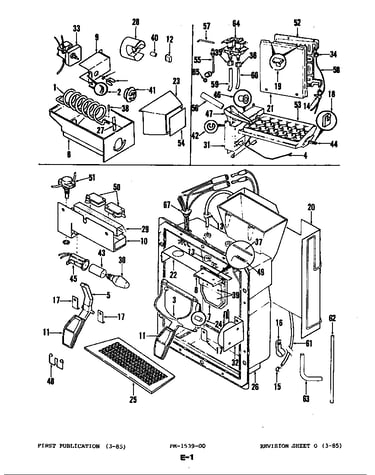

Water & ice dispenser Diagram

$10.99

In Stock

Refrigerator Ice Maker Assembly

#31

Water & ice dispenser Diagram

Refrigerator ice maker assembly

Part #MHIK7989
?
Manufacturer substitution
This part replaces 62577-4. Substitute parts can look different from the original.
This part replaces 62577-4
$295.86

In Stock

Refrigerator Water Tubing

#60

Water & ice dispenser Diagram

Refrigerator water tubing

Part #WPB5705307
?
Manufacturer substitution
This part replaces 55602-9. Substitute parts can look different from the original.
This part replaces 55602-9
This item is not returnable
$6.67
7% OFFMSRP:$7.20

In Stock

Refrigerator Tray

#53

Water & ice dispenser Diagram

Refrigerator tray

Part #WP59688-1A
?
Manufacturer substitution
This part replaces 59688-1. Substitute parts can look different from the original.
This part replaces 59688-1
$10.39

In Stock

Dryer Rivet

#23B

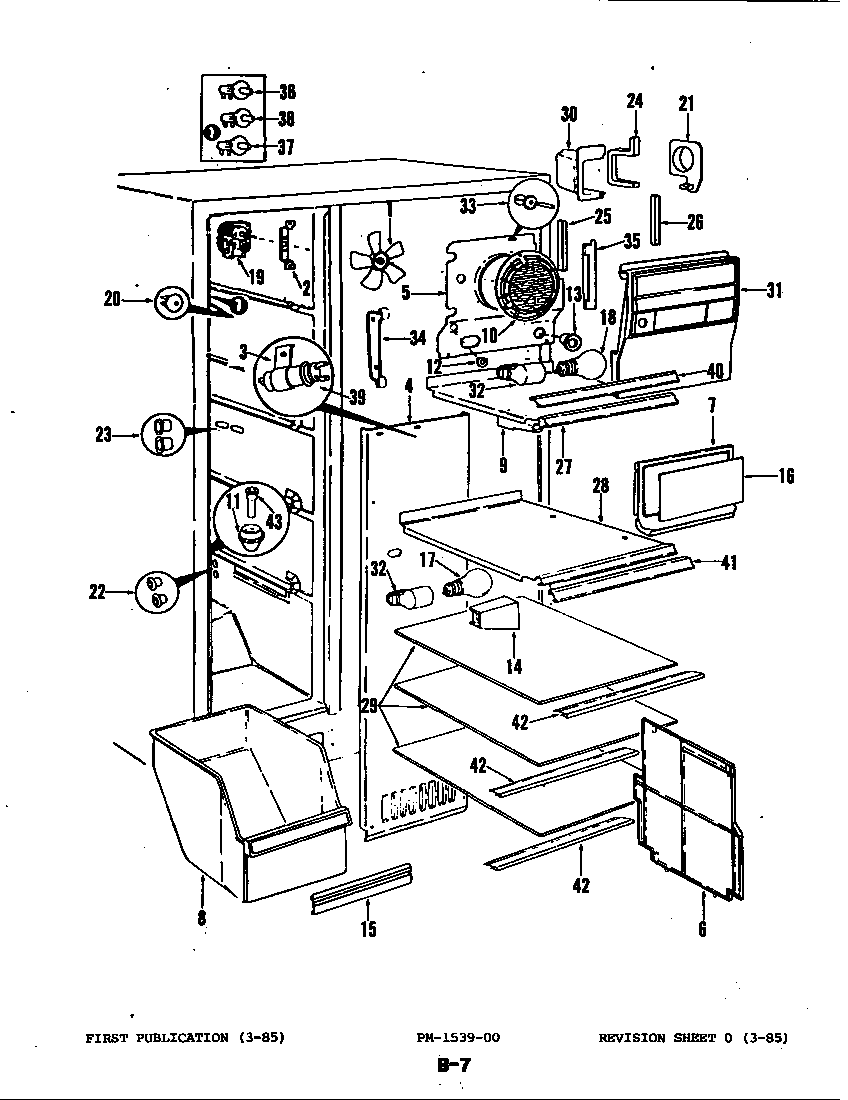

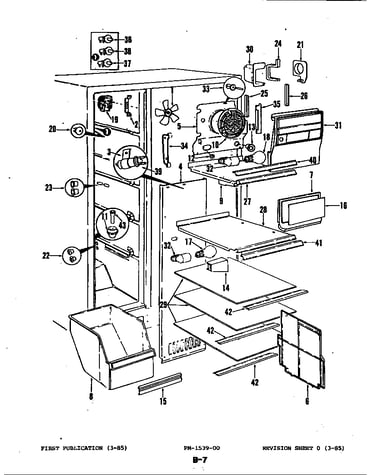

Freezer compartment Diagram

Dryer rivet

Part #WP210720
?
Manufacturer substitution
This part replaces 26397-9. Substitute parts can look different from the original.
This part replaces 26397-9
$12.49

In Stock

Screw

#42F

Water & ice dispenser Diagram

Screw

Part #WP1163283
?
Manufacturer substitution
This part replaces 405022-103. Substitute parts can look different from the original.
This part replaces 405022-103
This item is not returnable
$3.29

In Stock

Refrigerator Defrost Bi-Metal Thermostat

#37

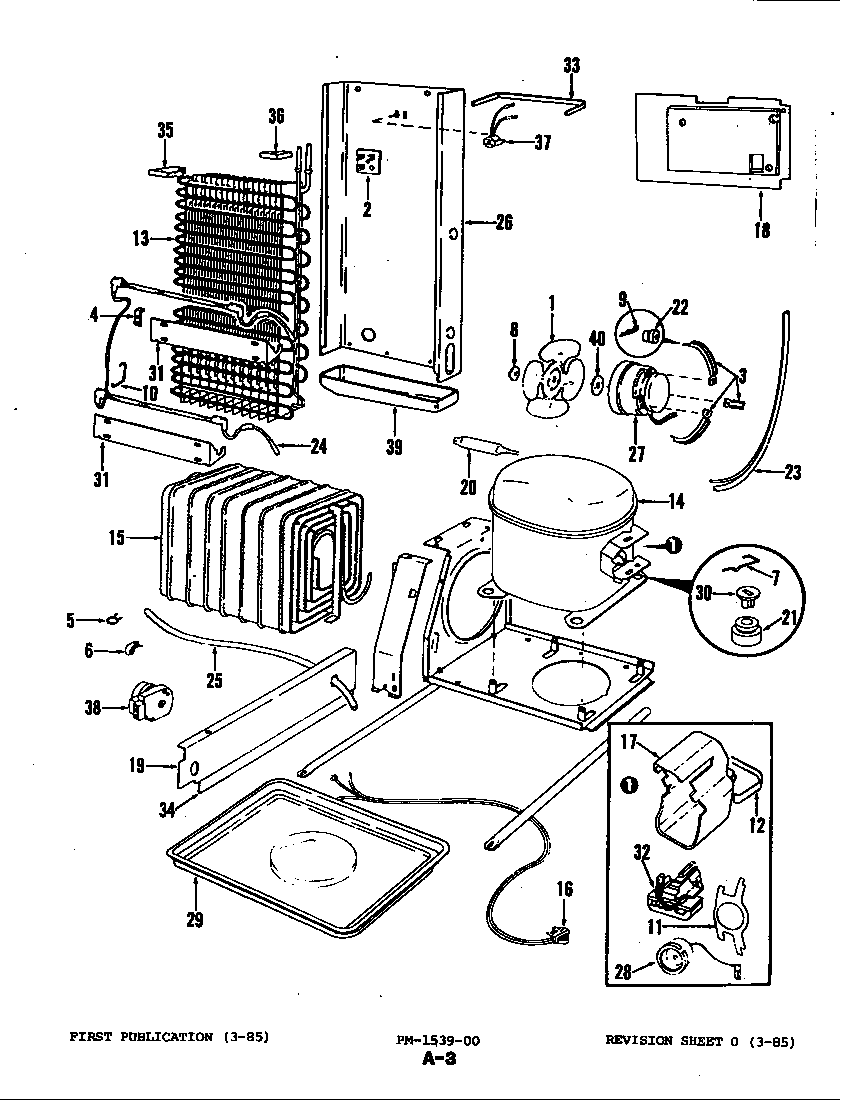

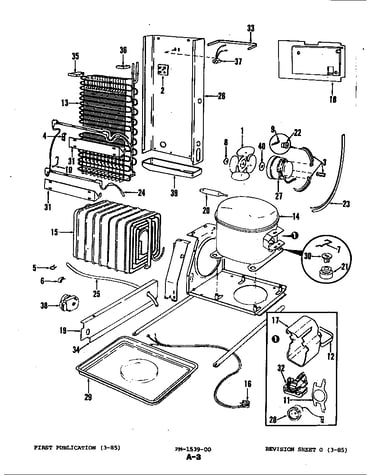

Unit compartment & system Diagram

Refrigerator defrost bi-metal thermostat

Part #WP52085-29
?
Manufacturer substitution
This part replaces 52085-13. Substitute parts can look different from the original.
This part replaces 52085-13
$17.96

In Stock

Refrigerator Bracket

#22

Unit compartment & system Diagram

Refrigerator bracket

Part #WP61004743
?
Manufacturer substitution
This part replaces 56933-1. Substitute parts can look different from the original.
This part replaces 56933-1
This item is not returnable
$4.89

In Stock

Refrigerator Screw

#23C

Freezer compartment Diagram

Refrigerator screw

Part #W11233072
?
Manufacturer substitution
This part replaces 400015-1. Substitute parts can look different from the original.
This part replaces 400015-1
$12.49

In Stock

Refrigerator Door Hinge Nylon Washer

#41

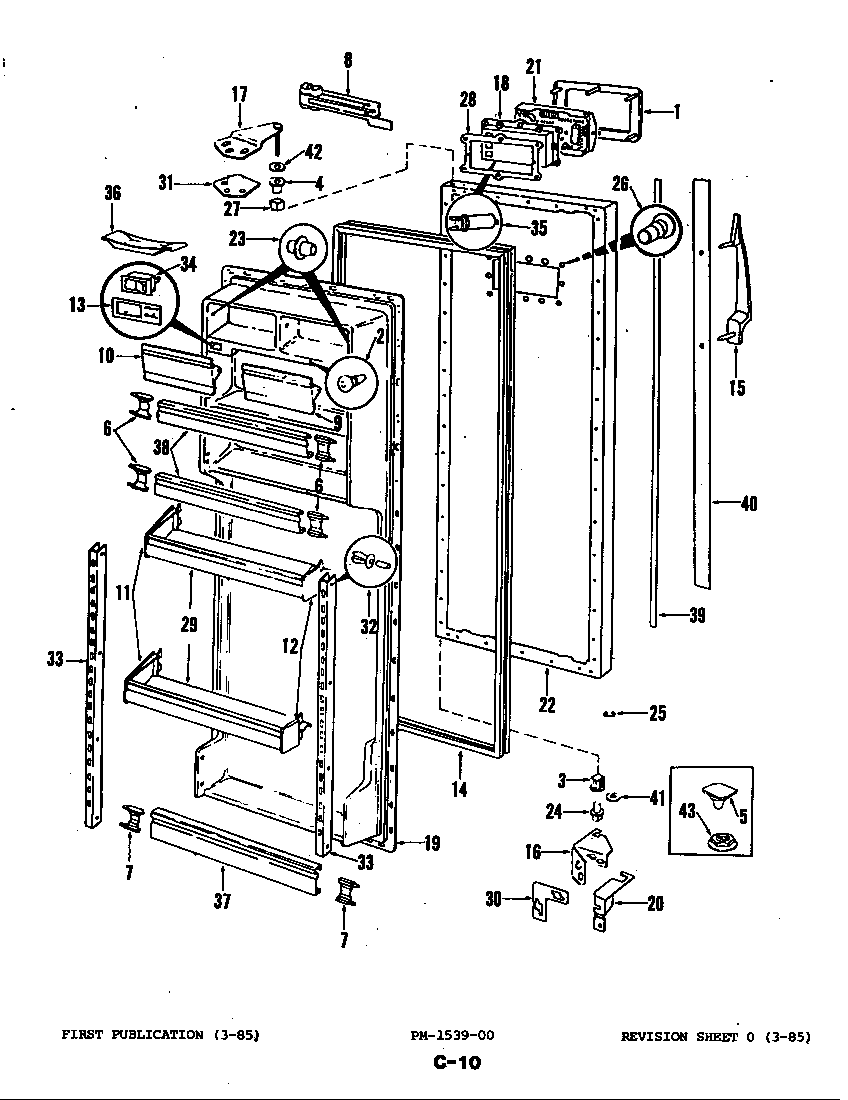

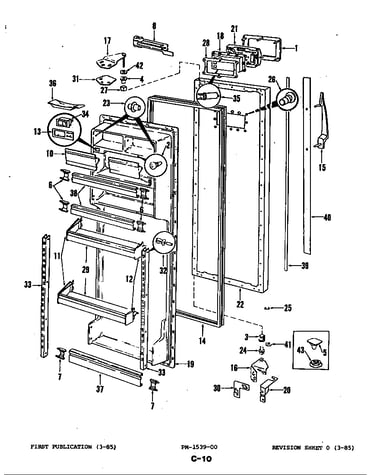

Fresh food door Diagram

Refrigerator door hinge nylon washer

Part #WP54233-1
?
Manufacturer substitution
This part replaces 54233-1. Substitute parts can look different from the original.
This part replaces 54233-1
This item is not returnable
$1.65
25% OFFMSRP:$2.19

In Stock
