Whirlpool RS696PXYB0 electric range Parts

Common issues we see with Whirlpool ovens (including the Whirlpool RS696PXYB0 electric range) are no-heat or weak heating, uneven baking, error codes, oven door problems, and oven light failures. Most fixes come down to checking power, testing heating circuits, and replacing a failed wear part such as a heating element or light component.

Most common symptoms and likely causes

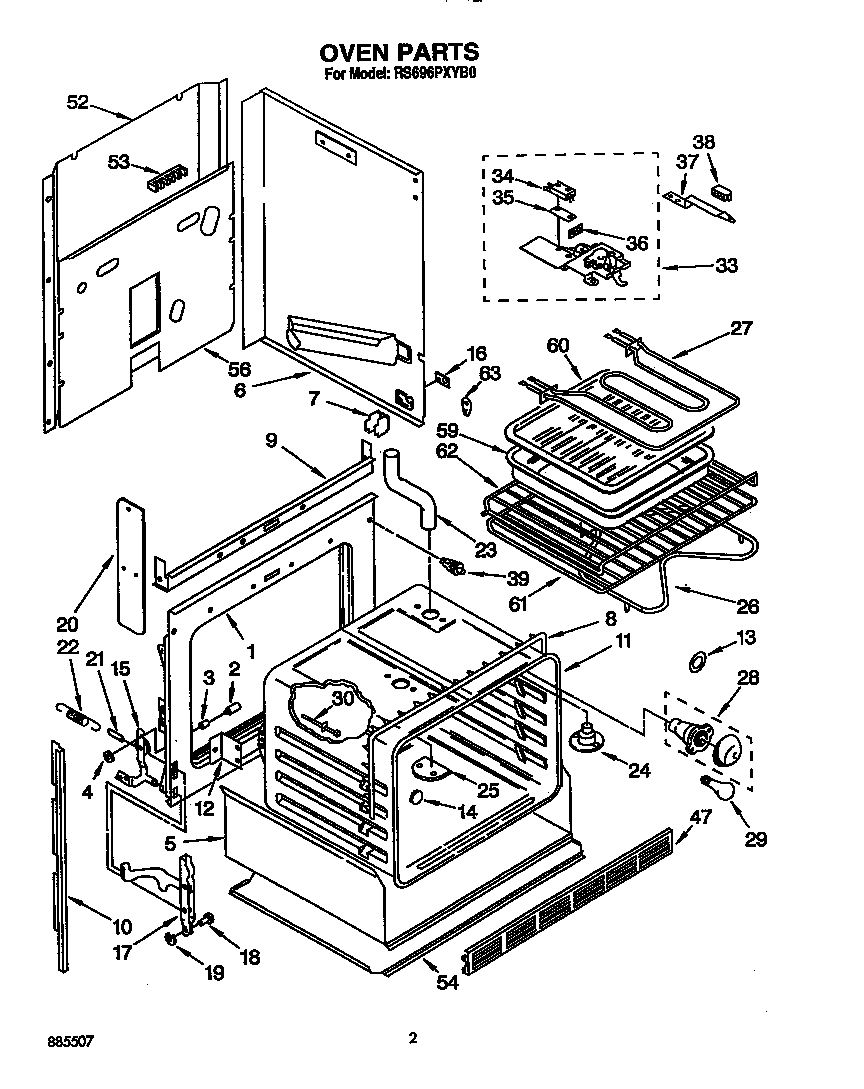

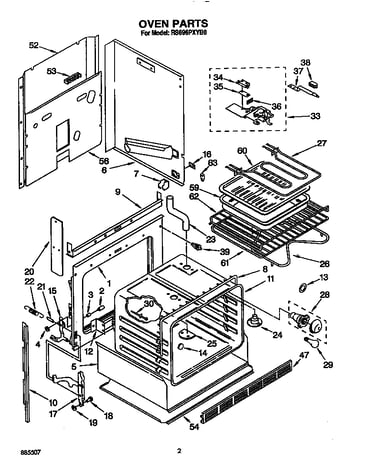

• Oven will not heat or heats slowly: failed bake element, failed broil element, wiring issue, or a control problem
• Uneven baking or temperature swings: temperature sensor/thermostat issue, poor airflow, or a weak bake element
• Error codes on the display: control detecting a sensor, keypad, or circuit fault (start with the code definition)
• Oven light not working: burned-out bulb, failed socket, or loose connection

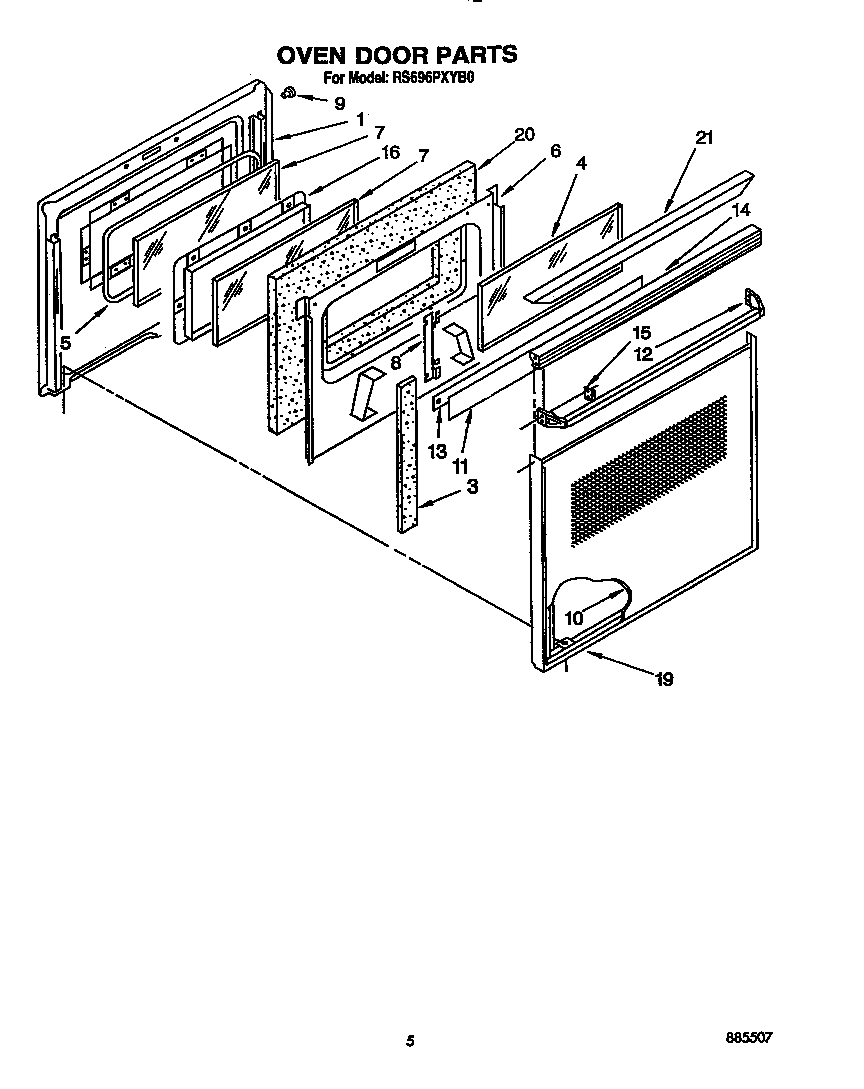

• Door won’t close well or feels “heavy/light”: worn door spring or hinge-related hardware

Quick checks we recommend first (safe, no tools)

1. Confirm the range has full power (electric ranges typically need a 240V supply; a tripped breaker can leave you with partial power).
2. Try Bake and Broil separately; if one works and the other does not, that points to a specific element.
3. Look for visible damage: blisters, cracks, or holes on the bake/broil element.
4. If the oven light is out, replace the bulb first.
5. If an error code appears, look it up before replacing parts.

Parts that commonly fix these problems

Symptom	Common fix	Example part for RS696PXYB0
No bake heat	Replace bake element	Bake element WP308180
No broil heat	Replace broil element	Range broil element WP660579
Oven light out	Replace bulb or socket	Light bulb 8009, light socket W11594027
Door won’t stay closed	Replace door spring	Range oven door spring WP308126

Why it matters

Heating and door issues affect cooking results and can overwork the control and wiring. Fixing a weak element or a failing light socket early helps prevent repeat failures and keeps temperatures more consistent.

Helpful DIY references

• Use Whirlpool error codes to match the exact code to the most likely circuit or component.
• For no-heat symptoms, follow oven wont heat troubleshooting electric range problems video to narrow down whether the bake element, broil element, or power supply is the root cause.

Last updated: February 2026

Your Whirlpool electric range RS696PXYB0 does not have a single “range part number.” Each replacement part has its own part number, and the easiest way to match the right one is to first find the model/serial tag on the range, then use that model to select the exact part from our list (for example, a light bulb 8009).

Where to look for the model/serial tag on a Whirlpool range

On many Whirlpool freestanding electric ranges, the model/serial tag is commonly found in one of these spots:

• Behind the storage drawer or warming drawer (pull the drawer out and look on the frame)
• Along the oven door frame (visible when you open the oven door)
• On the back panel of the range
• Under the cooktop edge (less common)

How to use the tag to get the correct part number

Once you locate the tag, use these steps to avoid ordering the wrong part:

• Write down the full model number (for this page, it is RS696PXYB0)
• If present, note the serial number (helps with production changes)
• Identify the part by function (bake, broil, surface element, light, knob)
• Match the part in the parts list for RS696PXYB0
• Compare the part name and part ID before ordering

Common “part number” mix-ups (and what they mean)

What you see	What it usually is	What to do
Model number (example: RS696PXYB0)	Identifies the appliance	Use it to look up the correct parts list
Part number (example: 311255)	Manufacturer’s number for one part	Use it to confirm you are buying the right item
Part ID (example: 8009)	Our catalog identifier for the part page	Use it to open the exact part listing

Why it matters

Whirlpool ranges often have multiple versions of similar-looking parts (surface elements, infinite switches, bake elements). Using the model/serial tag first prevents fit and wiring mismatches, especially for electrical parts.

Related help

If you’re troubleshooting a display code while identifying parts, use our Whirlpool error codes reference to narrow down which component is likely involved.

Last updated: February 2026

A Whirlpool electric range like model RS696PXYB0 typically lasts 13 to 15 years. Regular cleaning, avoiding overheating, and replacing wear items (like heating elements or switches) when symptoms first appear helps you reach, and often exceed, that lifespan.

What affects lifespan the most

• Heating element condition: weak or broken elements force longer cook times and extra strain
• Electrical connections: loose or overheated wiring at the power connection can cause failures

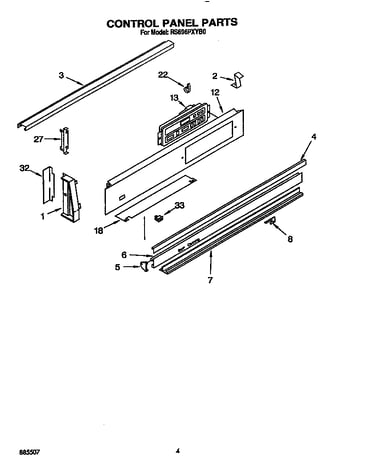

• Control and switch wear: frequent high-heat use can wear surface controls faster
• Door and insulation health: heat loss makes the oven work harder
• Cleaning habits: spills and grease buildup can damage finishes and components over time

Common “end-of-life” symptoms (and what they usually mean)

Symptom	Most common cause	Typical fix type
Oven will not heat or heats unevenly	Failed bake or broil element	Replace element

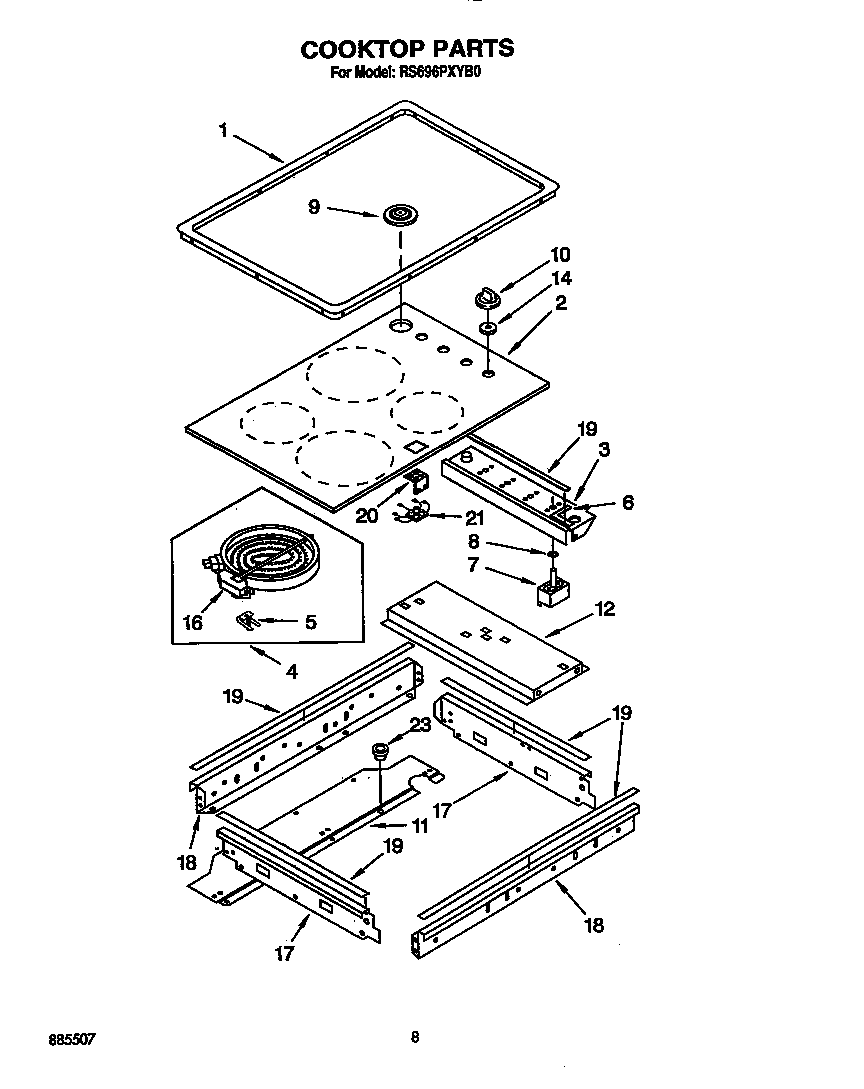

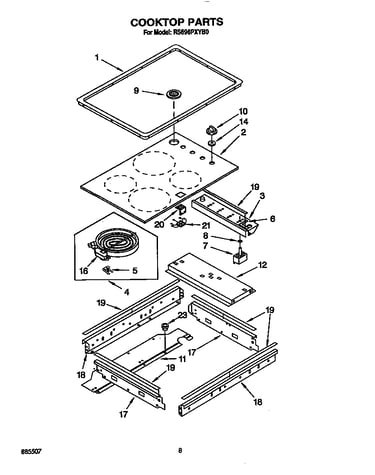

One surface burner will not regulate heat	Worn infinite switch	Replace switch
Oven light does not work	Burned-out bulb or socket	Replace bulb or socket

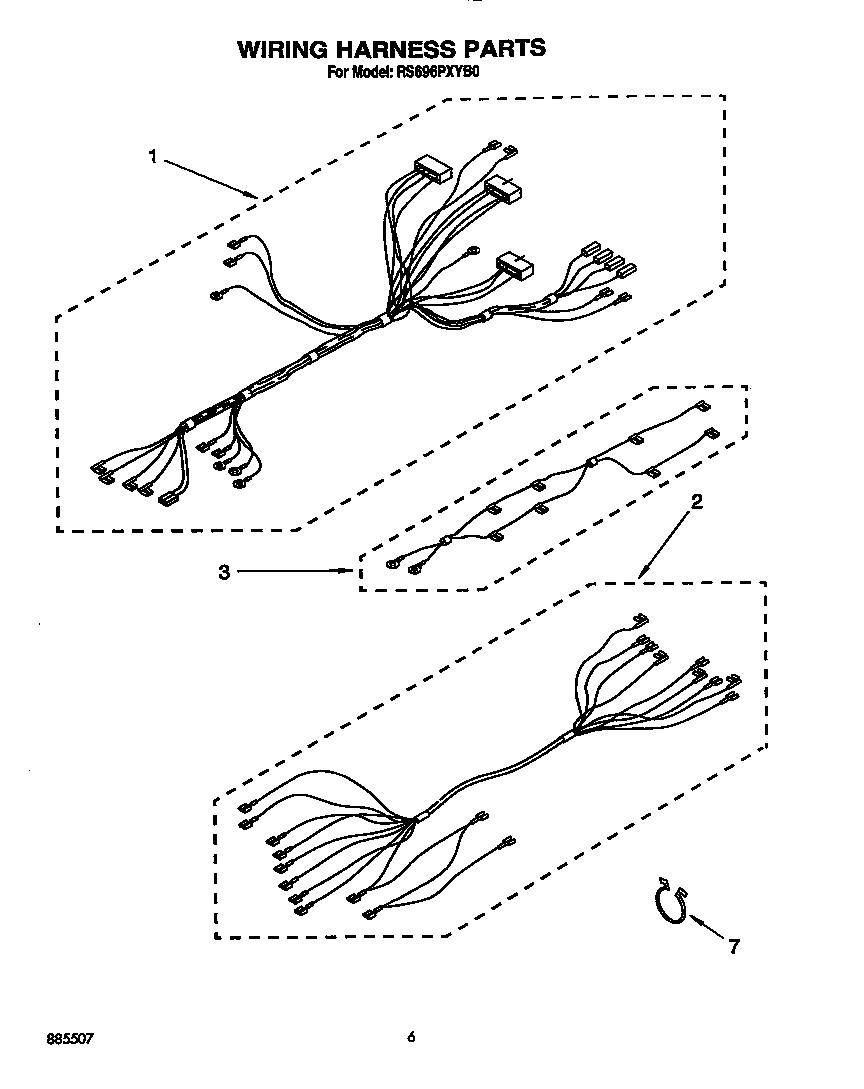

Burning smell at back where cord connects	Overheated terminal connection	Inspect and repair wiring/terminal block

If you see these issues, we recommend addressing them early; it is usually cheaper than running the range until multiple parts fail.

Parts that commonly extend the life of RS696PXYB0

• Replace a weak lower oven heater with the bake element WP308180
• If broil is out or uneven, check the range broil element WP660579
• For a burner that will not cycle correctly, consider the infinite switch W10900107
• If the oven light is out, start with the light bulb 8009 (and replace the socket if it is heat-damaged)
• If you ever find heat damage at the power connection, inspect the terminal block WP8203546

Why it matters

A range that is struggling to heat or regulate temperature uses more time and energy, and the extra heat stress can shorten the life of nearby wiring, switches, and controls. Fixing a single failing part early often prevents a bigger repair later.

Last updated: February 2026
