Amana ACF422GAB-PACF422GAB1 electric freestanding range Parts
Here are the diagrams and repair parts for Amana ACF422GAB-PACF422GAB1 electric freestanding range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

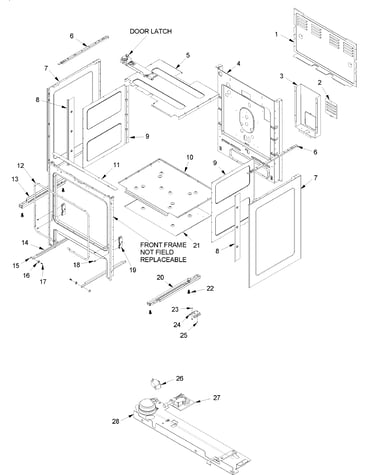

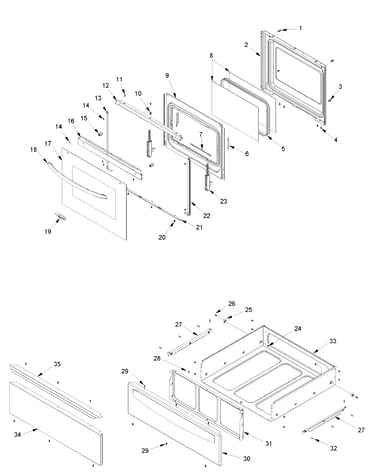

SELECT DIAGRAM
Browse Parts for ACF422GAB-PACF422GAB1 Ranges
Screw
Part #31750432
The manufacturer no longer makes this part, and there's no substitute part

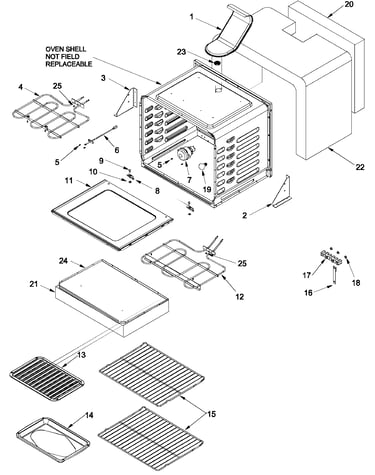

Cavity diagram
Screw, #10-1
Part #31750507Replaced by #WP7101P126-60
Manufacturer substitutionThis part replaces 31750507. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9517% OFF Phone Price : $5.95
Qty
Cavity diagram
Terminal Block
Part #0306378Replaced by #WP8203546
Manufacturer substitutionThis part replaces 0306378. Substitute parts can look different from the original.This item is not returnableIn Stock$20.9322% OFF Phone Price : $26.93QtyScrew
Part #31750701Replaced by #W11245710

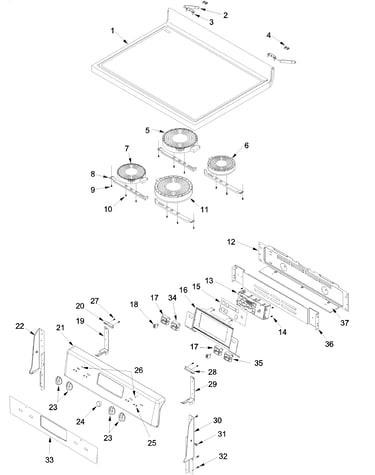

Manufacturer substitutionThis part replaces 31750701. Substitute parts can look different from the original.This item is not returnableIn Stock$18.6110% OFF Phone Price : $20.61QtyMain top and backguard diagram
Indicator Light
Part #31722801Replaced by #WP903115
Manufacturer substitutionThis part replaces 31722801. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyCavity diagram
Lamp
Part #0042175Replaced by #8009
Manufacturer substitutionThis part replaces 0042175. Substitute parts can look different from the original.In Stock$35.61QtyScrew
Part #31750410Replaced by #W11245710
Manufacturer substitutionThis part replaces 31750410. Substitute parts can look different from the original.This item is not returnableIn Stock$18.6110% OFF Phone Price : $20.61QtyMain top and backguard diagram
Radiant Harness
Part #77001050Replaced by #32055001
Manufacturer substitutionThis part replaces 77001050. Substitute parts can look different from the original.In Stock$42.09QtyMain top and backguard diagram
Radiant Harness
Part #77001051Replaced by #32055101
Manufacturer substitutionThis part replaces 77001051. Substitute parts can look different from the original.In Stock$41.29QtyRibbon Element
Part #32083001
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
