Frigidaire LFSS2612TP5 refrigerator Parts

On the Frigidaire LFSS2612TP5 side-by-side refrigerator, defrosting is automatic; during a defrost cycle the compressor and fans stop and the defrost system runs for about 30 minutes, then normal cooling resumes. For model-specific control and service details, use the LFSS2612TP5 owner's manual.

Quick ways to handle frost buildup (without damaging the freezer)

If you see heavy frost on the back wall or airflow seems weak, use these safe steps first:

• Move food to a cooler and keep doors closed as much as possible.
• Set the freezer and refrigerator controls to “0” (off) if you plan to power down.
• Unplug the refrigerator before using any tools or removing panels.
• Let ice melt naturally; use towels to catch water.
• Never chip ice with sharp tools and never use a heat gun; both can puncture the evaporator.

What “defrost mode” looks like on this model

A defrost cycle can look like a cooling problem even when everything is working normally.

What you notice	What it usually means	What to do
Compressor not running	Unit is in defrost cycle	Wait about 30 minutes and recheck temps
Fans quiet	Fans pause during defrost	Normal; avoid frequent door openings
Frost keeps returning quickly	Door not sealing or door left ajar	Inspect gaskets and door alignment

If frost keeps coming back: common causes to check

Persistent frost is usually an air leak or airflow issue, not a “manual defrost” problem.

• Door gasket not sealing (dirty, warped, torn)
• Door not closing fully (bins or food blocking)
• Frequent door openings or humid room air
• Blocked vents (packages pressed against air returns)
• Evaporator fan issue (reduced airflow)

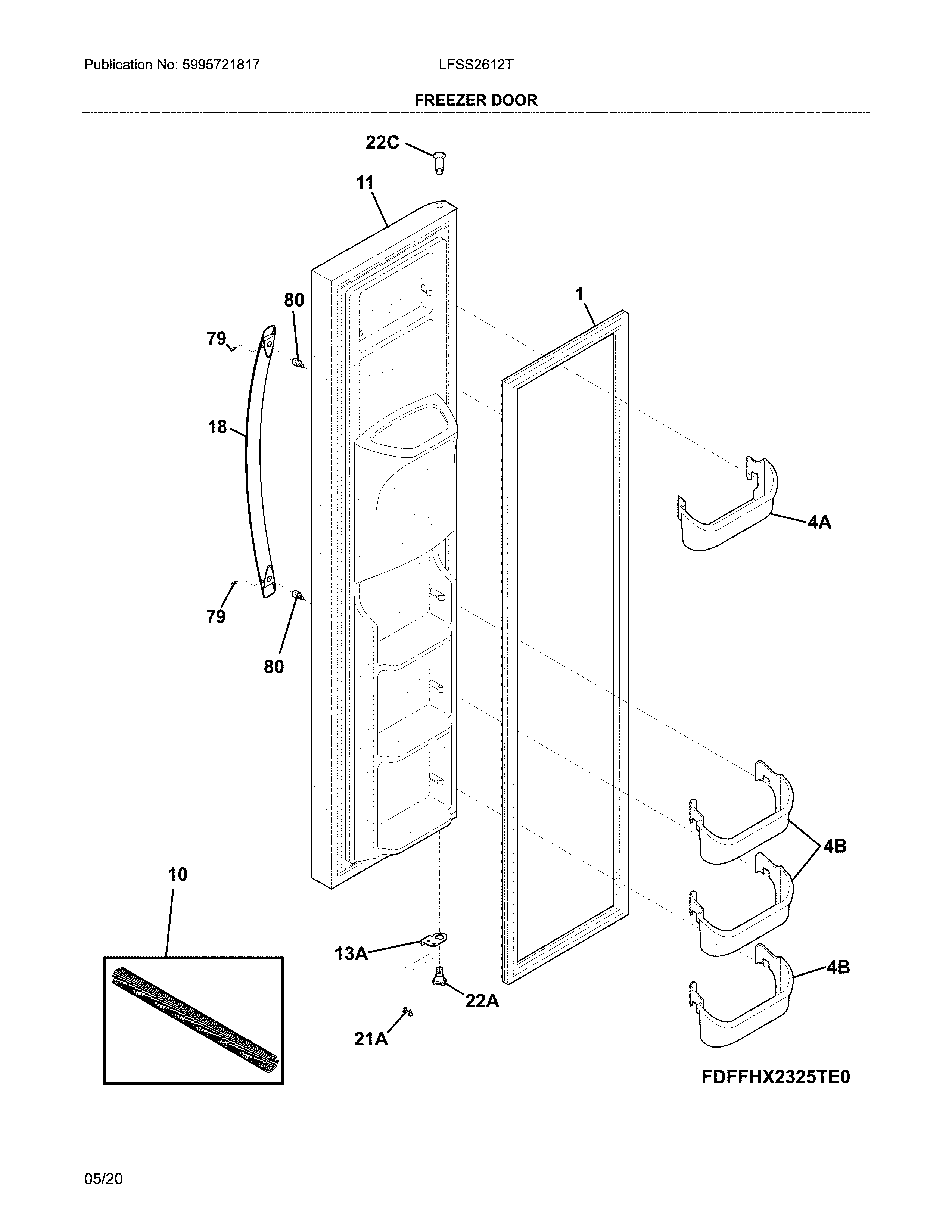

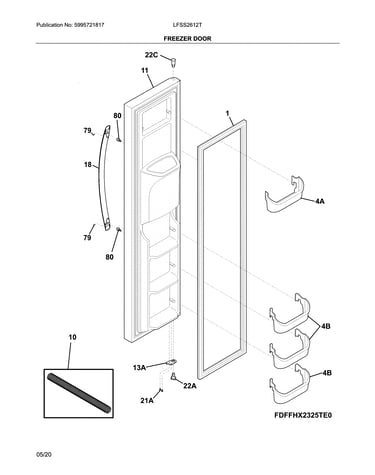

If you suspect a door seal problem, the freezer gasket option for this model is the refrigerator freezer door gasket, black 241786014.

Why it matters

Heavy frost restricts airflow across the evaporator, which makes temperatures swing, increases run time, and can lead to warm spots in the freezer and fresh food section.

Last updated: January 2026

On the Frigidaire LFSS2612TP5, 5Y/CF indicates a communication error: the main electronic control is not communicating properly with the user interface (display/control panel). This typically points to a loose connection, damaged wiring, or a failed control board or interface.

What to check first (quick, safe steps)

• Power reset: unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power.
• Confirm stable power: make sure the cord is fully seated in a grounded outlet (no extension cord).
• Look for obvious harness issues: pinched wires near the top hinge area or behind the control housing.
• Check for moisture: condensation or water intrusion near the control/display area can trigger communication faults.
• Note any other symptoms: flashing temperature display, beeping, dispenser not responding, or cooling changes.

Likely causes and typical fixes

Communication errors usually come down to one of these:

What’s wrong	What you’ll usually see	Typical fix
Loose or oxidized connector	Error comes and goes	Reseat connectors, inspect pins
Damaged wire harness	Error after door movement	Repair/replace harness
Failed main control board	Persistent error, multiple odd behaviors	Replace main control
Failed user interface	Buttons/display unresponsive	Replace user interface

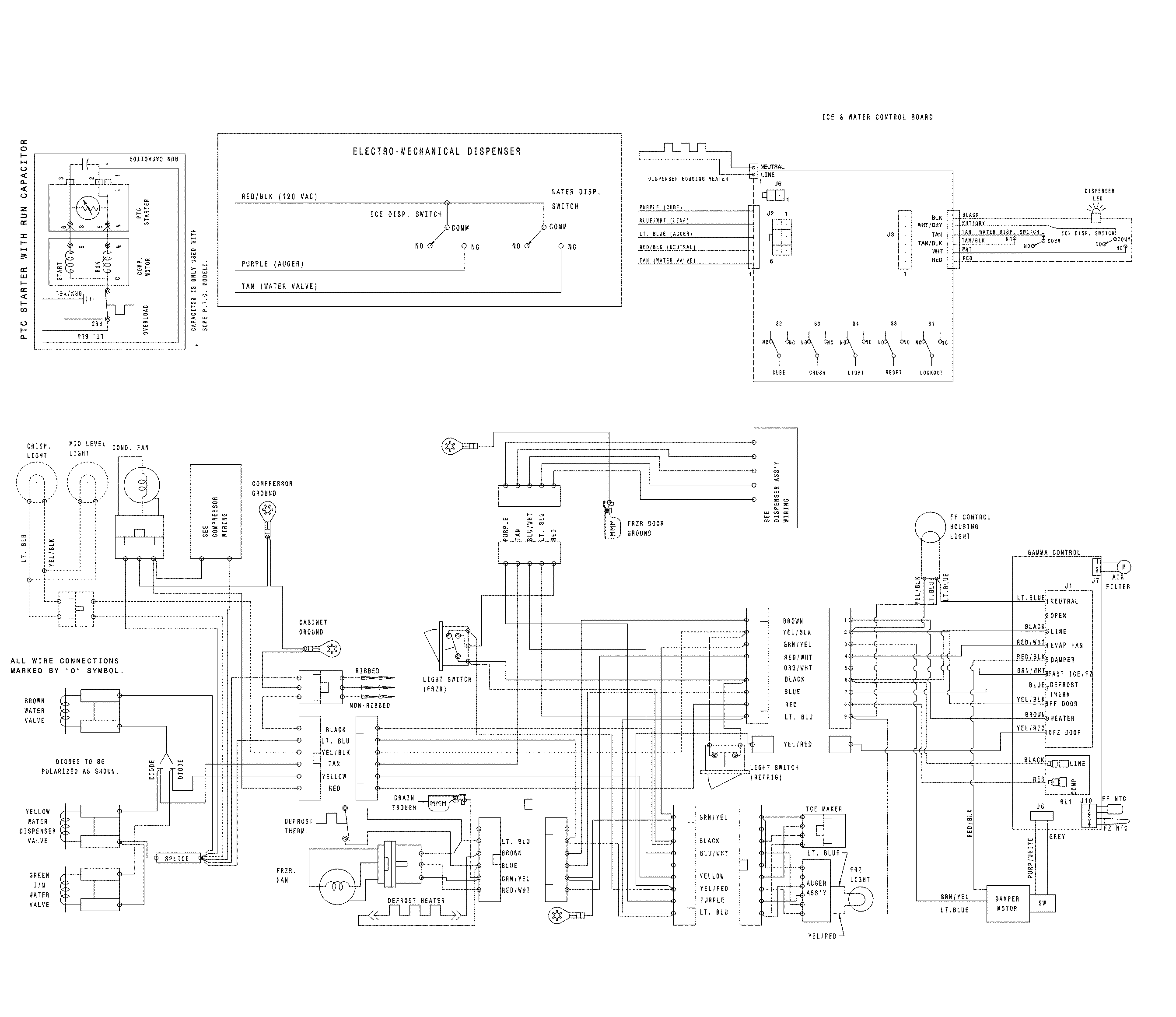

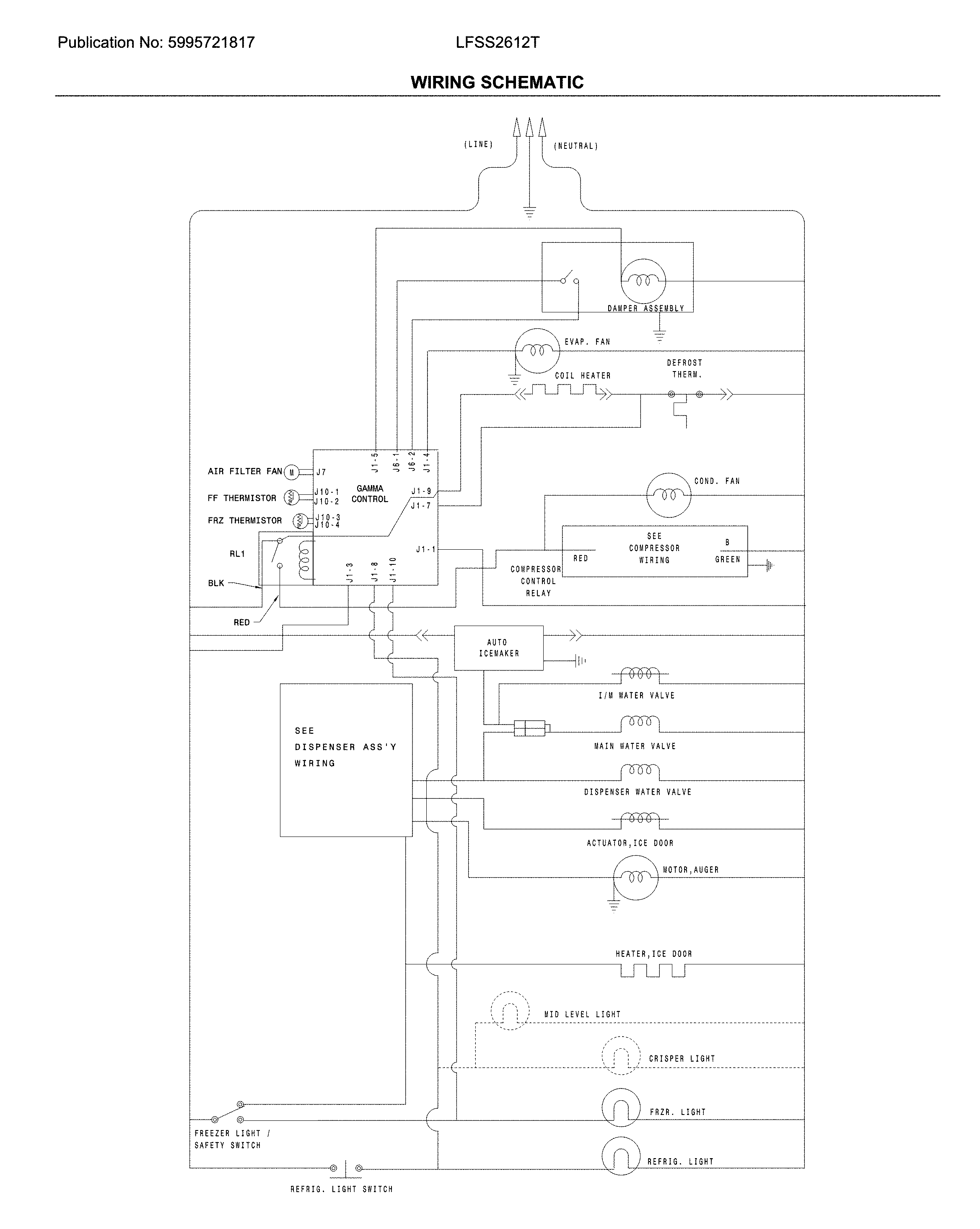

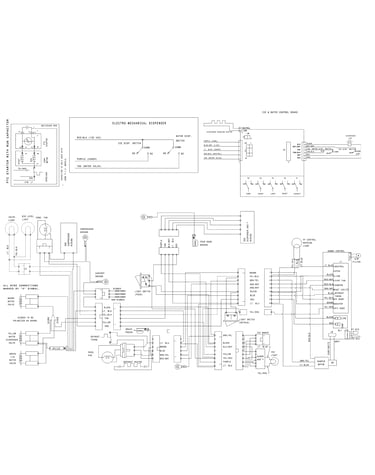

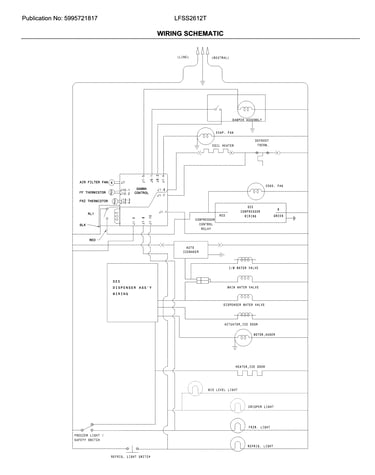

For model-specific access points, connector locations, and diagnostic guidance, follow the wiring and control information in the LFSS2612TP5 owner’s manual.

Why it matters

When the main control and user interface cannot “talk” to each other, the refrigerator may not respond correctly to temperature changes, dispenser commands, or defrost timing. Fixing the communication path helps restore normal operation and prevents nuisance alarms.

Helpful DIY references

• Use the Frigidaire refrigerator error codes guide to compare display behavior and confirm you are reading the code correctly.

Last updated: January 2026

Food freezing in the fresh-food section of your Frigidaire LFSS2612TP5 usually happens when the refrigerator temperature setting is too cold, cold air is leaking in through a door gasket, or airflow is being pushed into the compartment too aggressively. Start by warming the refrigerator setting and giving it a full 24 hours to stabilize.

Quick checks we recommend first

• Raise the refrigerator temperature 1 degree using the control panel; then wait 24 hours before changing it again (this model’s manual calls out the 24-hour stabilization time).
• Make sure items are not blocking the air vents in the fresh-food section.
• Avoid placing high-water foods (leafy greens, berries) directly in the cold-air path.
• Confirm the doors close fully and the cabinet is level; a slightly open door can create temperature swings.
• Inspect the door seals for gaps, tears, or areas that do not contact the cabinet evenly.

For control operation and temperature adjustment steps, follow the LFSS2612TP5 owner’s manual.

Most common causes (and what to do)

Likely cause	What you’ll notice	What to do next
Refrigerator set too cold	Freezing is widespread, especially near vents	Increase the refrigerator setting 1 degree; wait 24 hours
Air damper stuck too open	Freezing is worst near the air outlet	Check for blocked vents; if symptoms persist, the damper may need service
Door gasket leaking	Frost, moisture between doors, or warm spots around the seal	Clean the gasket and mating surface; replace if it will not seal
Poor airflow from overpacking	Freezing in specific zones	Reorganize to keep vents clear and allow circulation

Parts that commonly relate to this symptom

If airflow control or sealing is the issue, these model-matched parts are often involved:

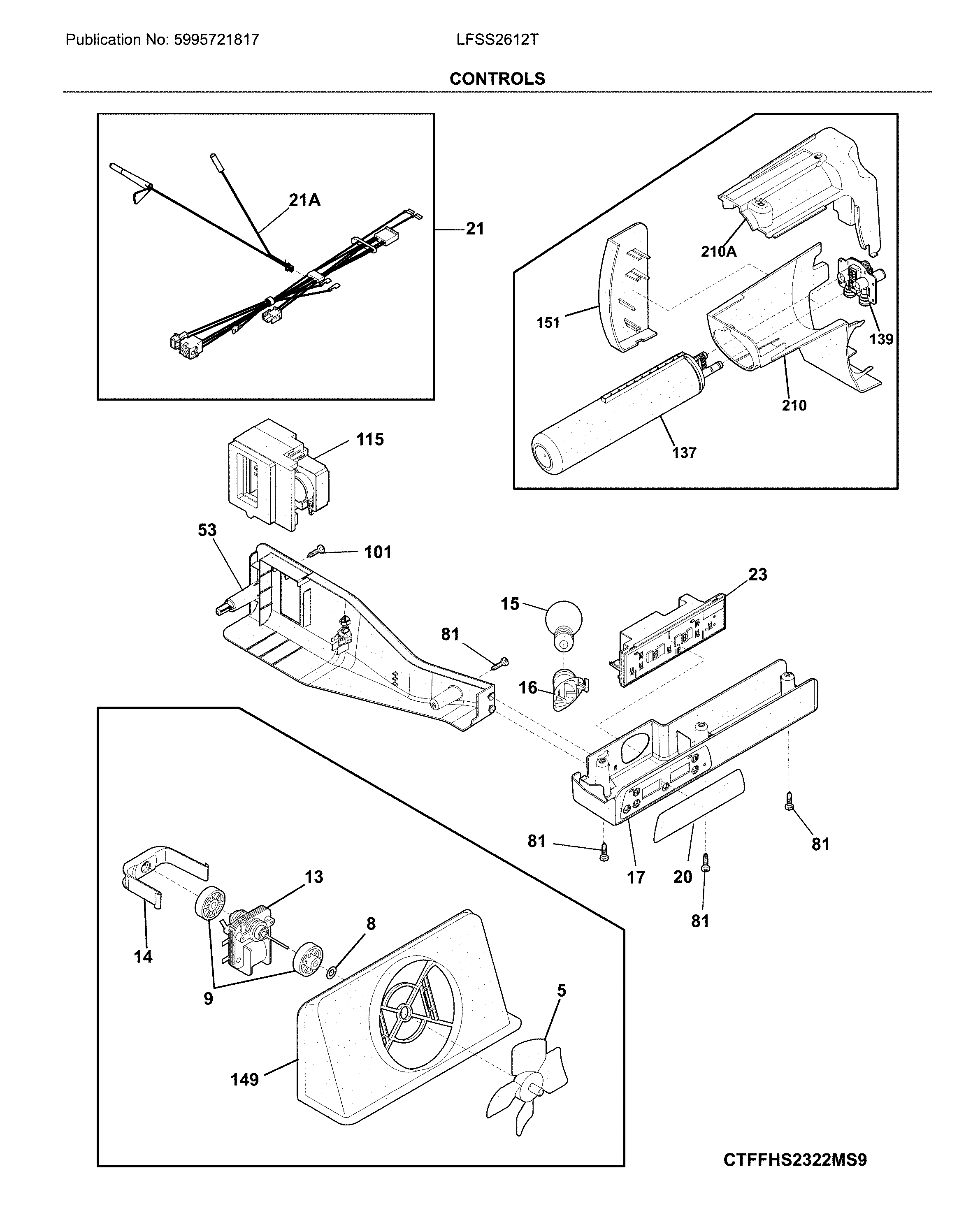

• Refrigerator air damper control assembly 242303001 (controls how much freezer air enters the refrigerator section)
• Frigidaire refrigerator door gasket (black) 241786013 (helps prevent cold-air leaks and moisture intrusion)

Why it matters

Freezing temperatures damage produce, can crack eggs and containers, and often point to an airflow or sealing problem that also makes the refrigerator run longer than necessary.
