Kenmore
Side-By-Side Refrigerator

Model # 25357398601 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25357398601 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

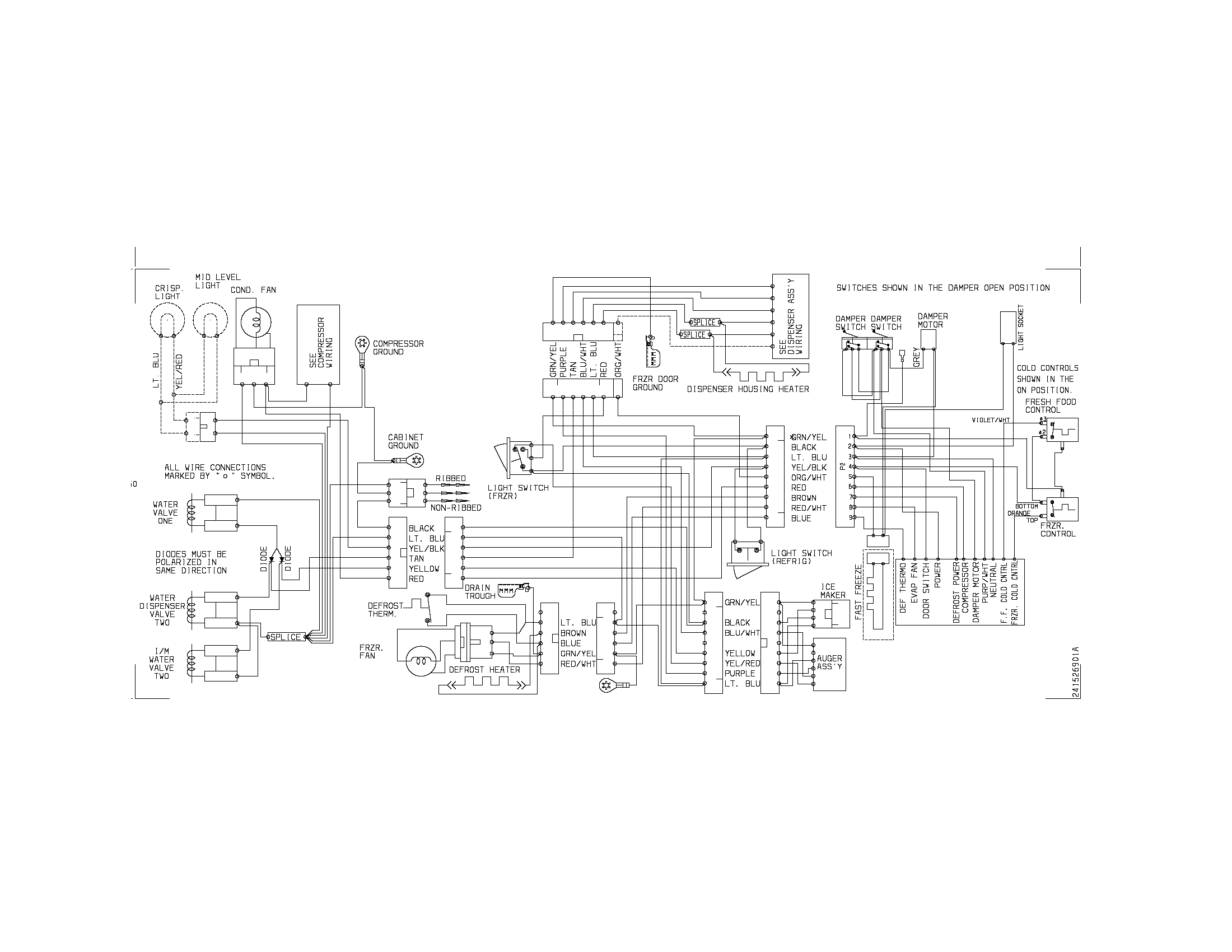

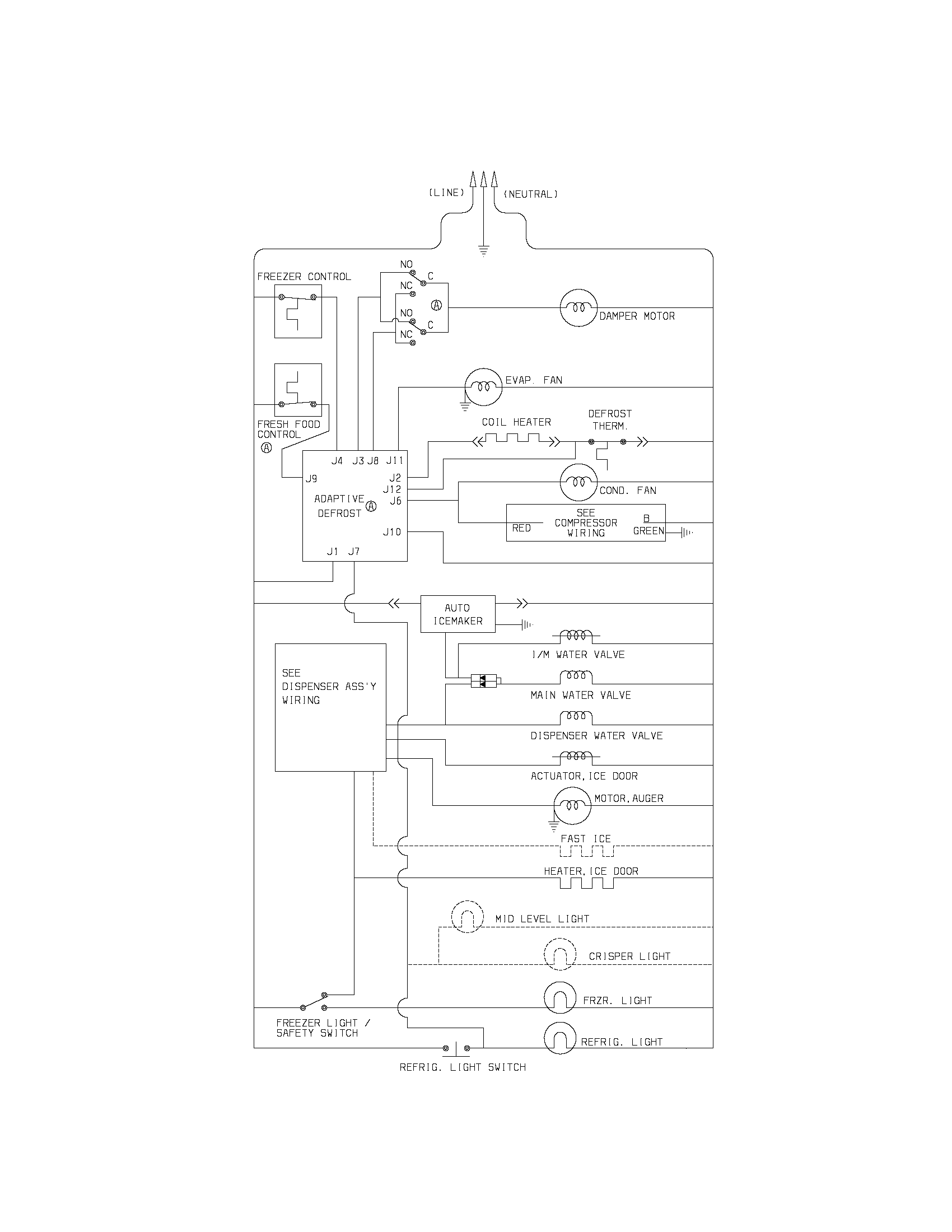

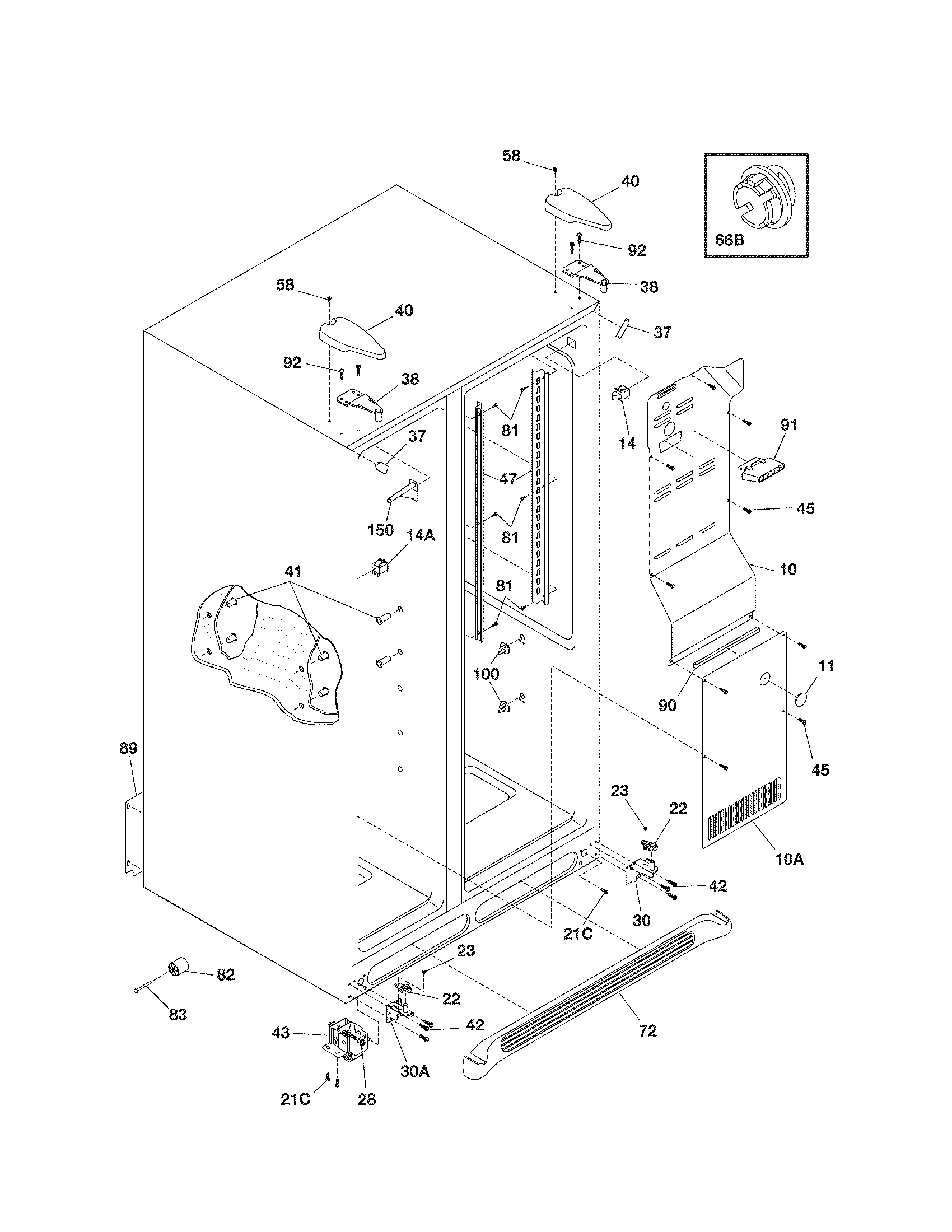

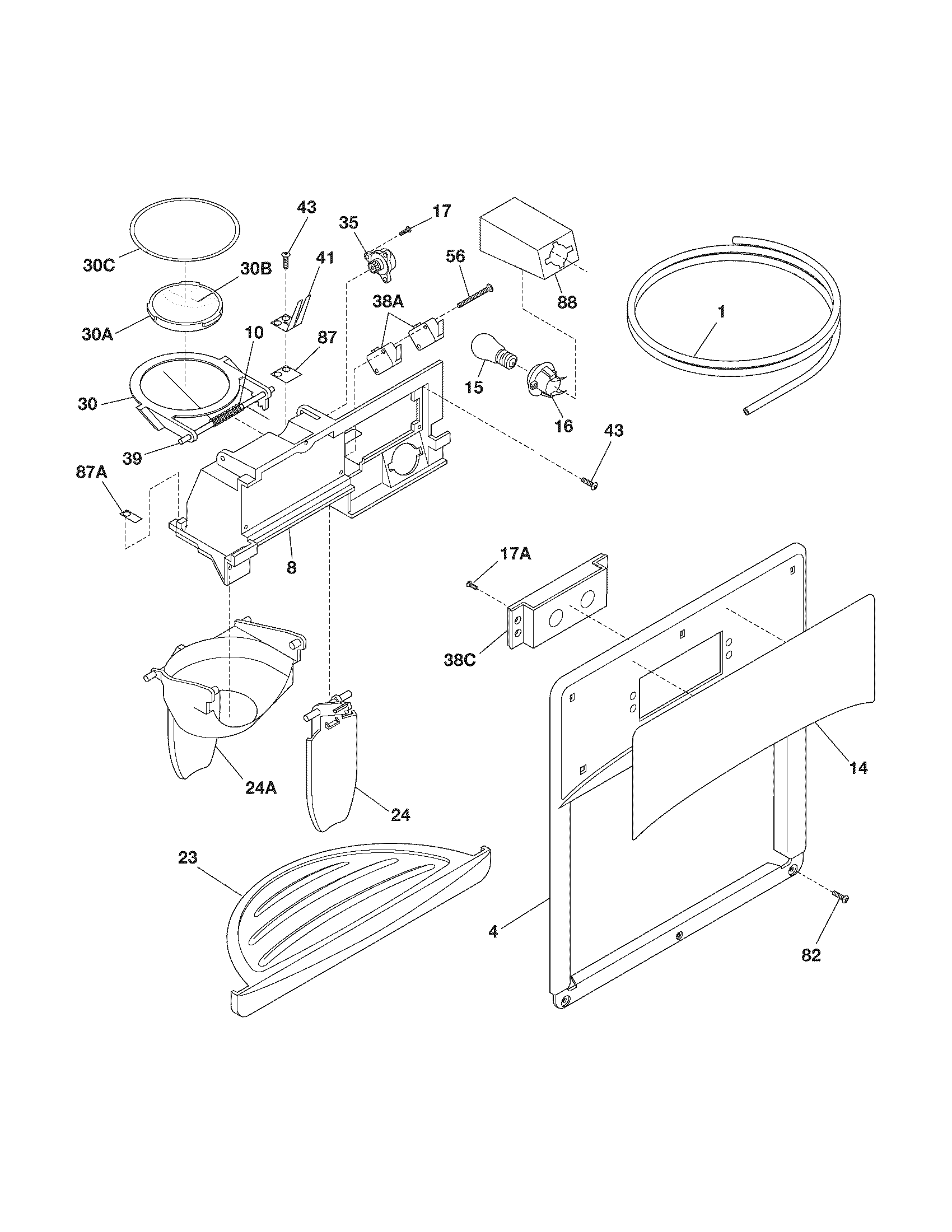

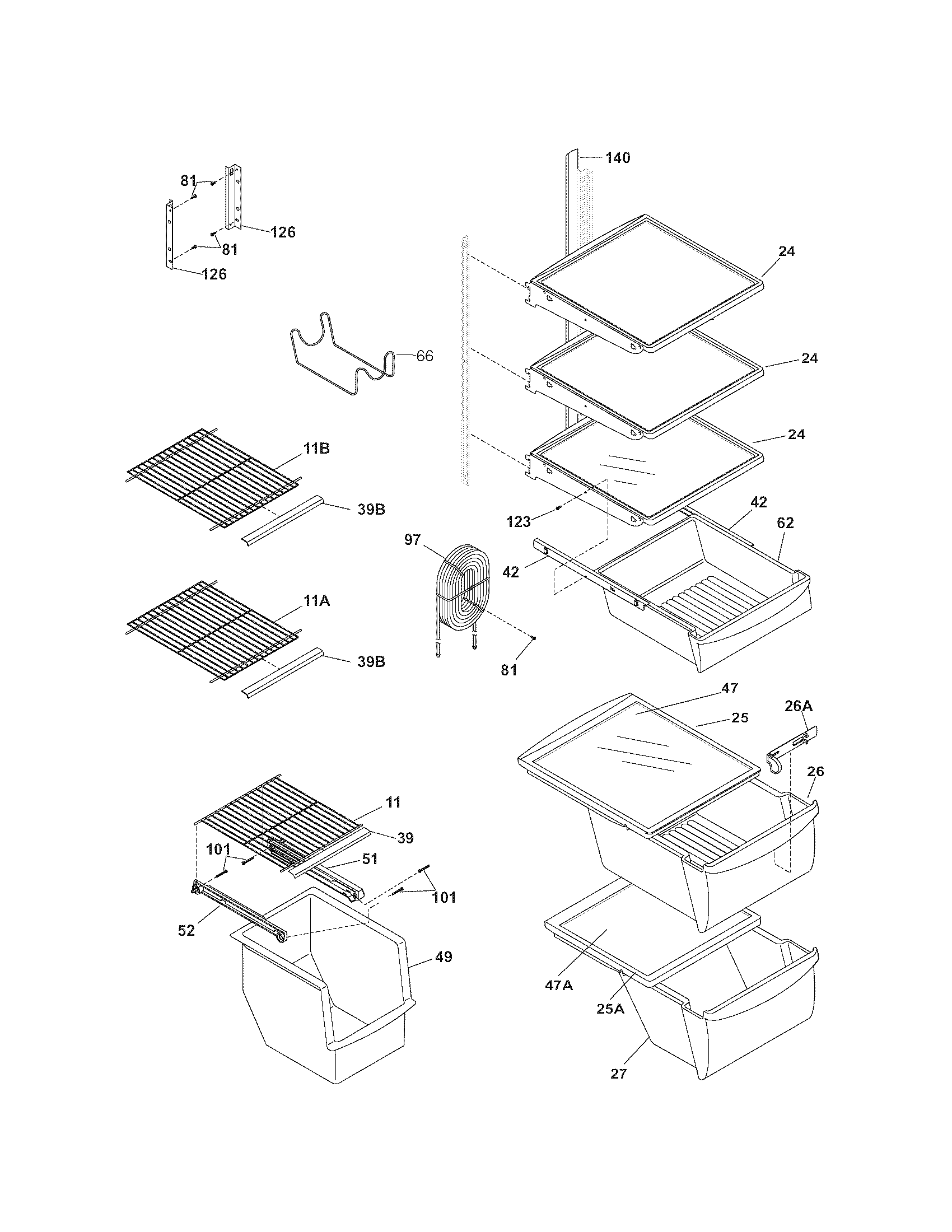

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 326 parts  |

Ice Maker Mold 5303320545
#17

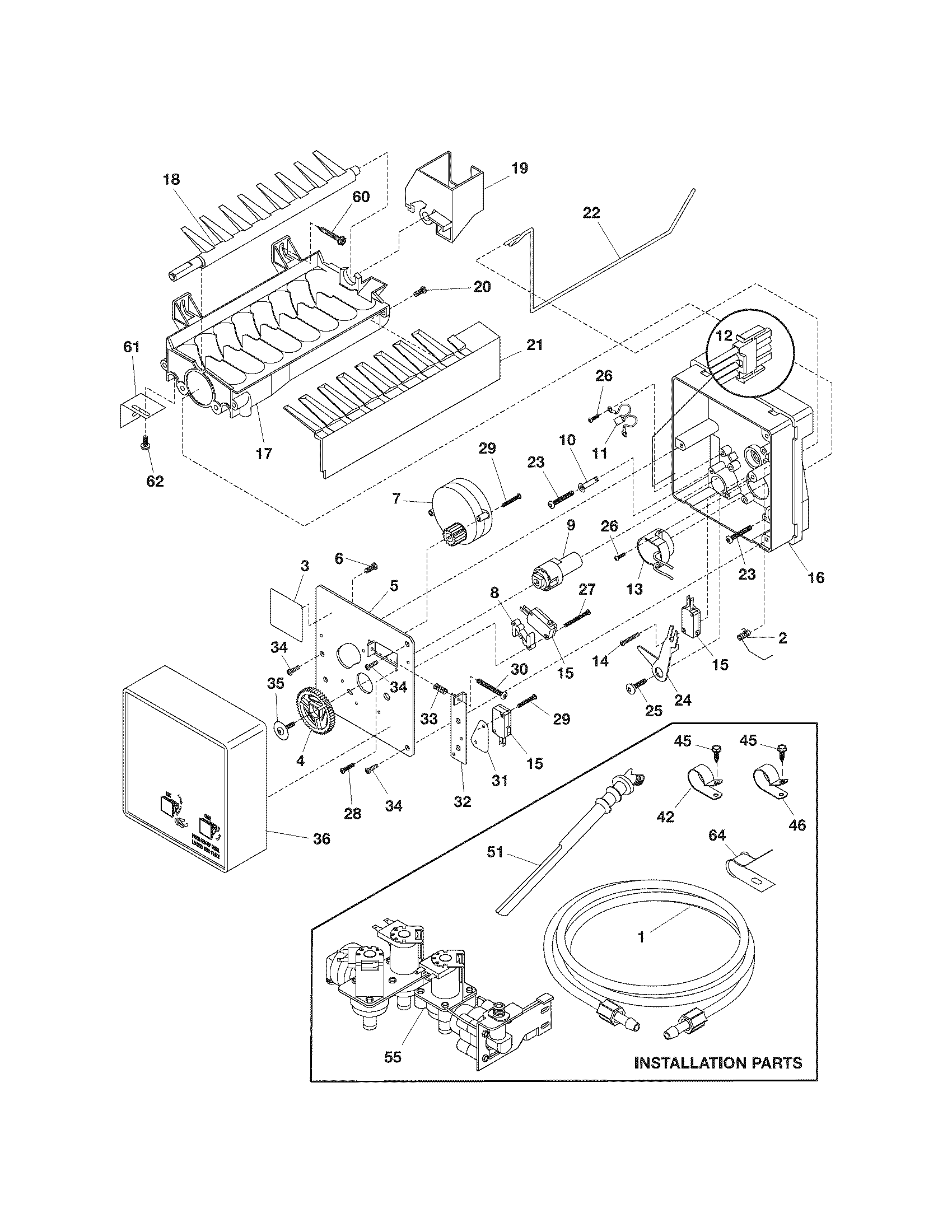

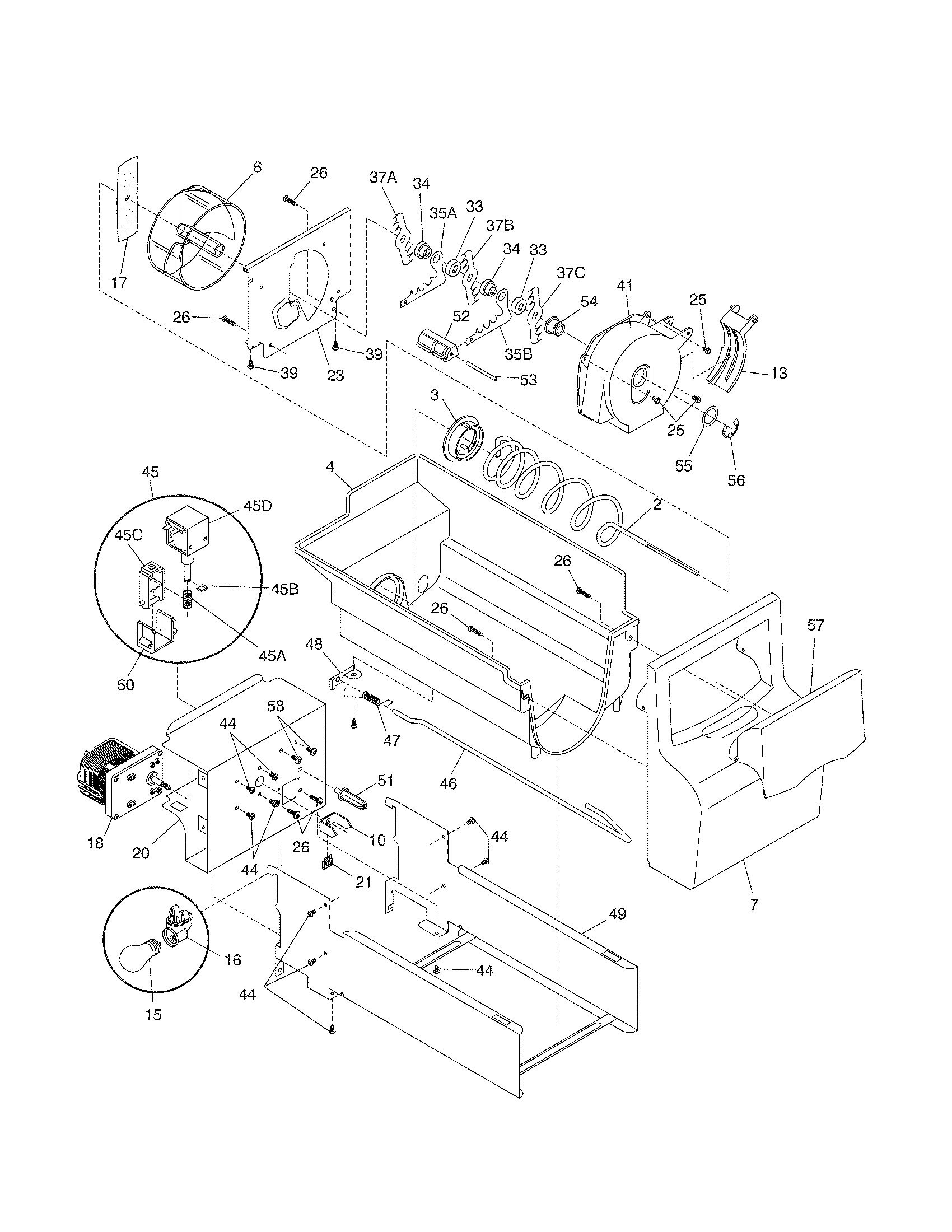

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$141.49
8% OFF Phone Price : $153.49
In Stock
Refrigerator Filter Dryer 5303305677
#4

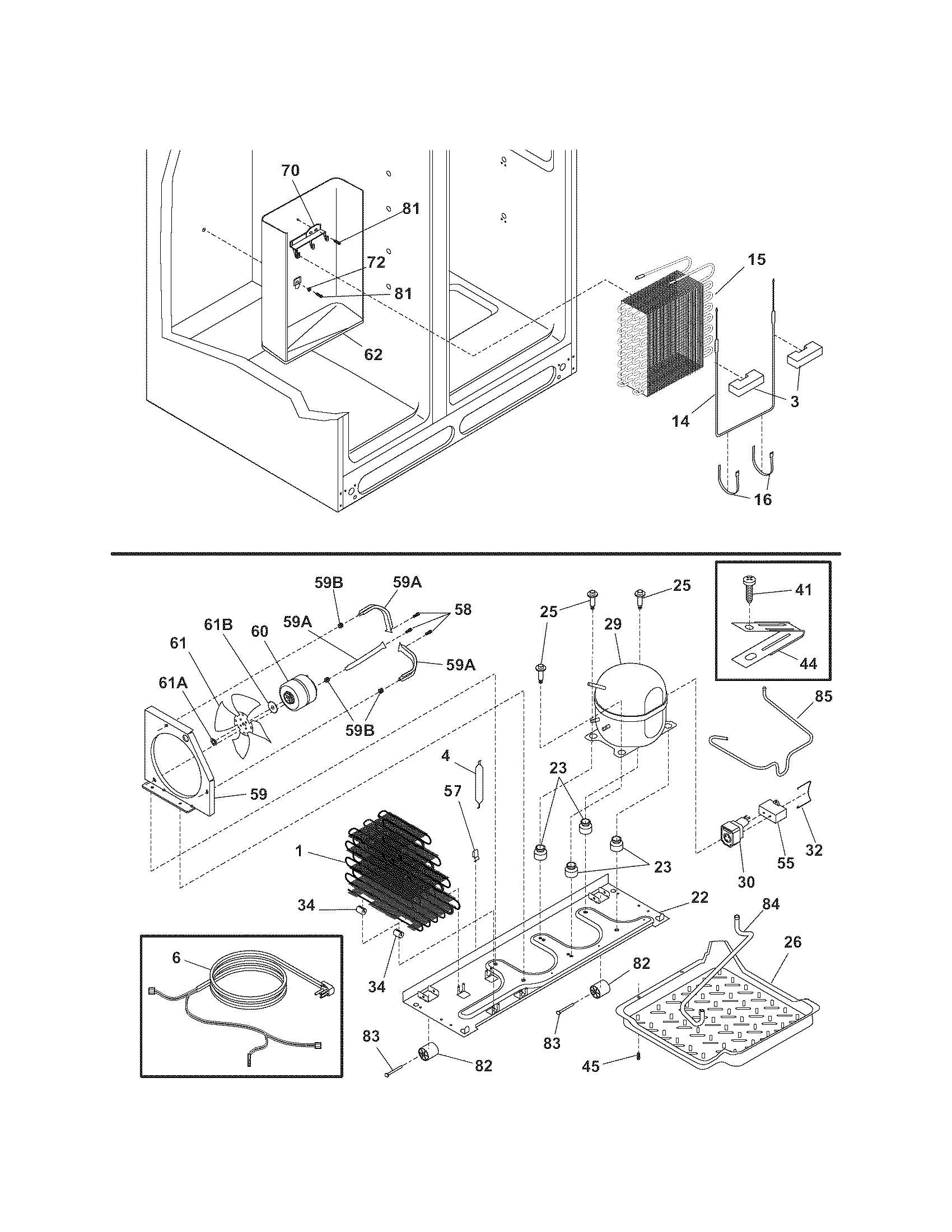

System diagram

Refrigerator filter dryer

Part #5303305677

BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Genuine Kenmore Refrigerator Water Filter 9910
#137

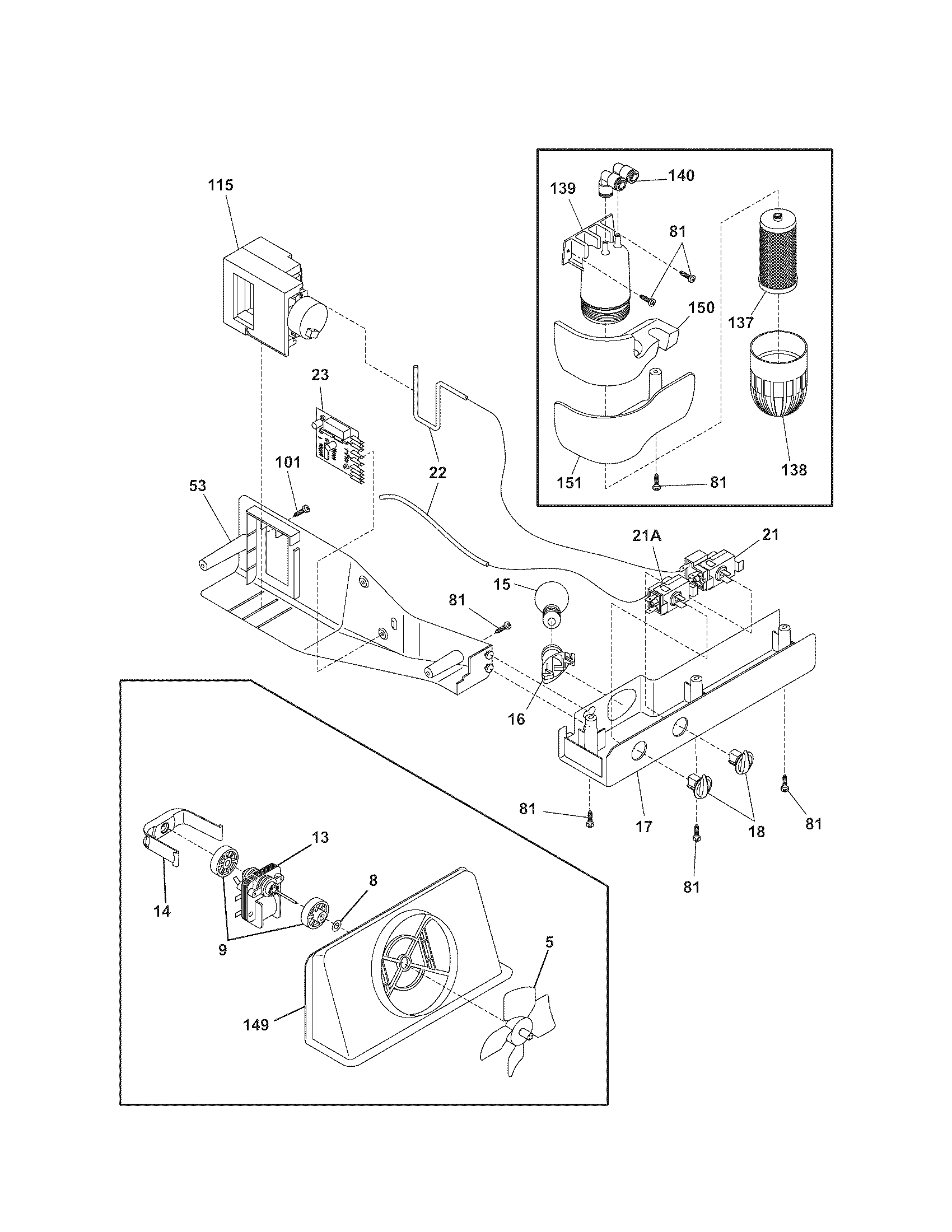

Controls diagram

Genuine kenmore refrigerator water filter

Part #9910

Replaced by #9913

?
Manufacturer substitution
This part replaces 9910. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

Back Order
Refrigerator Water Inlet Valve Assembly 240531101
#55

Ice maker diagram

Refrigerator water inlet valve assembly

Part #240531101

Replaced by #242252702

?
Manufacturer substitution
This part replaces 240531101. Substitute parts can look different from the original.
BEST SELLER
$78.07
7% OFF Phone Price : $84.07
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 75303918214) 5303918214
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 75303918214)

Part #5303918214

BEST SELLER
$22.75
21% OFF Phone Price : $28.75
In Stock
Refrigerator Door Bin 240323001
#4

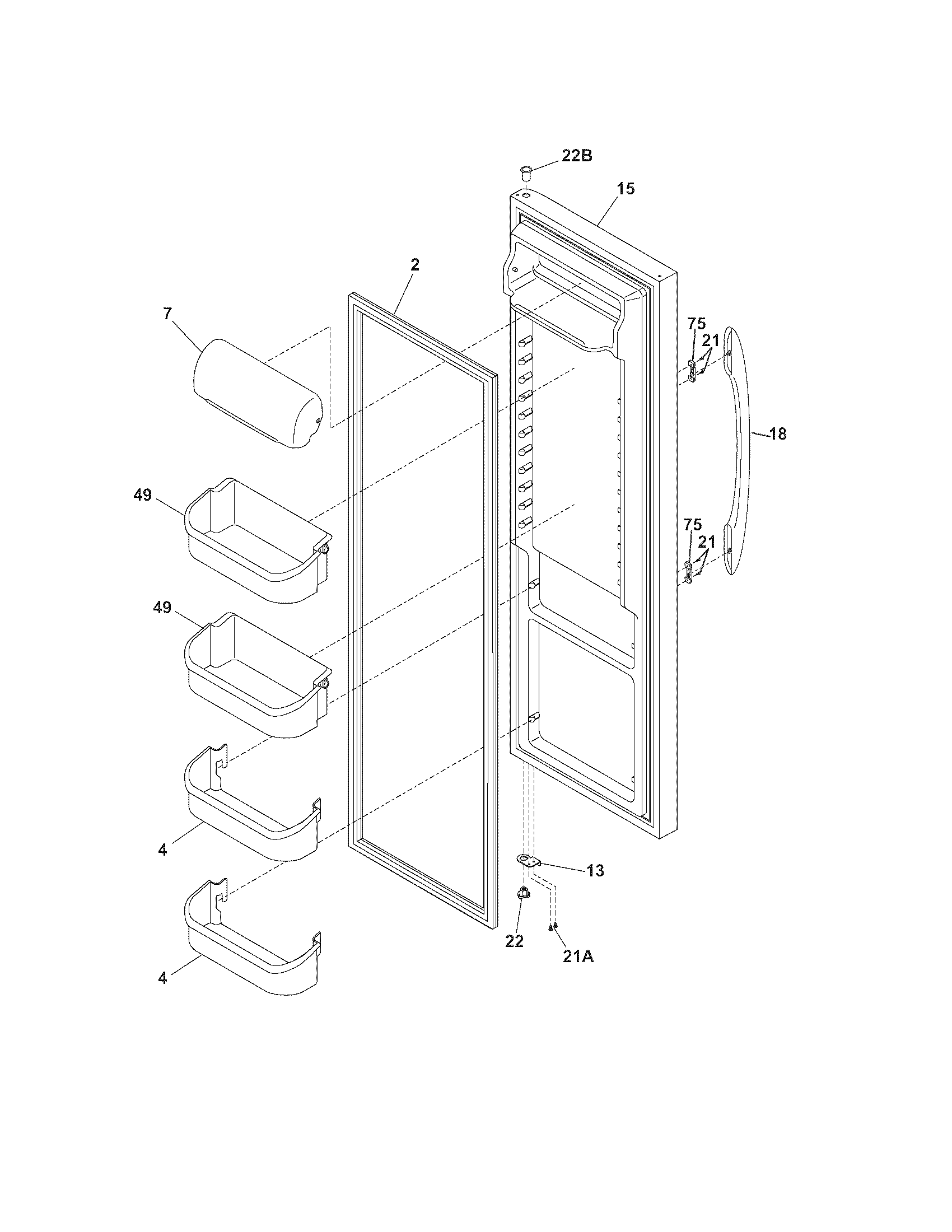

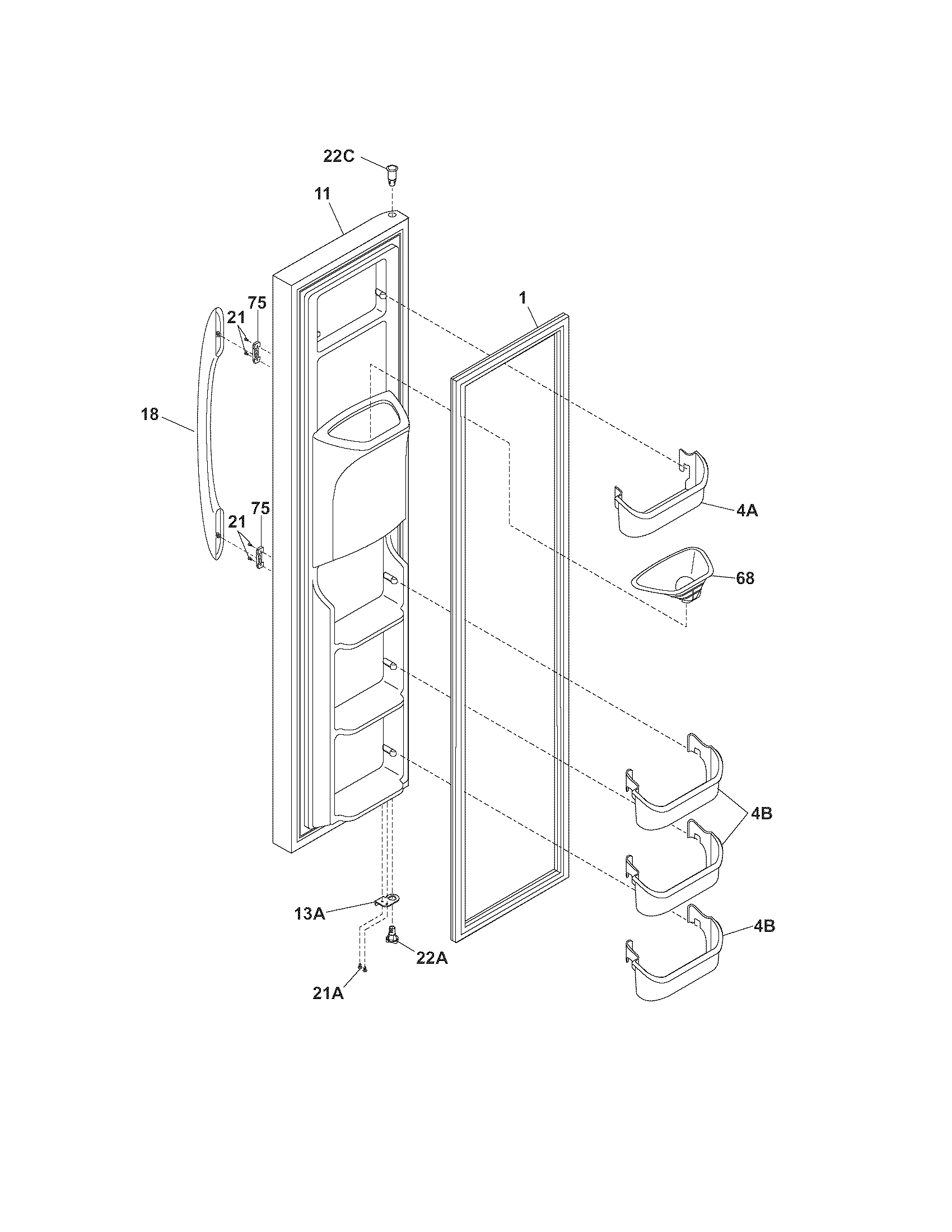

Refrigerator door diagram

Refrigerator door bin

Part #240323001

BEST SELLER
$41.90
13% OFF Phone Price : $47.90
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

Controls diagram

Refrigerator evaporator fan blade

Part #5308000010

BEST SELLER
$39.93
13% OFF Phone Price : $45.93
In Stock
Refrigerator Evaporator Motor 240369702
#13

Controls diagram

Refrigerator evaporator motor

Part #240369702

Replaced by #5303918549

?
Manufacturer substitution
This part replaces 240369702. Substitute parts can look different from the original.
BEST SELLER
$71.38
8% OFF Phone Price : $77.38
In Stock
Ice Container 240323808
#NI

Ice container diagram

Ice container

Part #240323808

Replaced by #241860803

?
Manufacturer substitution
This part replaces 240323808. Substitute parts can look different from the original.
BEST SELLER
$157.97
7% OFF Phone Price : $169.97
In Stock
Refrigerator Evaporator (replaces 5303918216, 75303918284) 5303918284
#15

System diagram

Refrigerator evaporator (replaces 5303918216, 75303918284)

Part #5303918284

BEST SELLER
$327.83
$12.00 OFF Phone Price : $339.83
In Stock
