Model # WFMC2100UC/02 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFMC2100UC-02 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

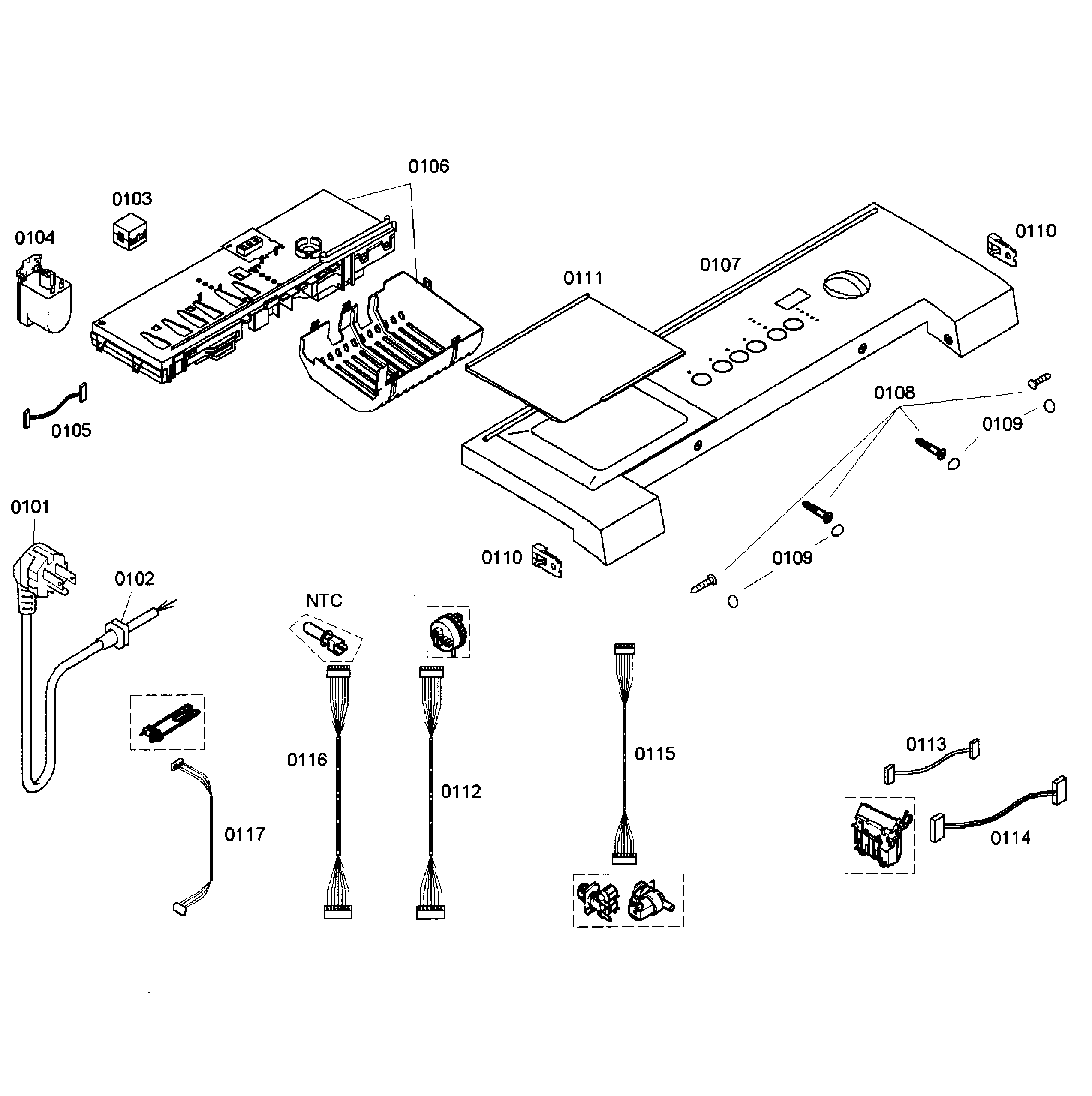

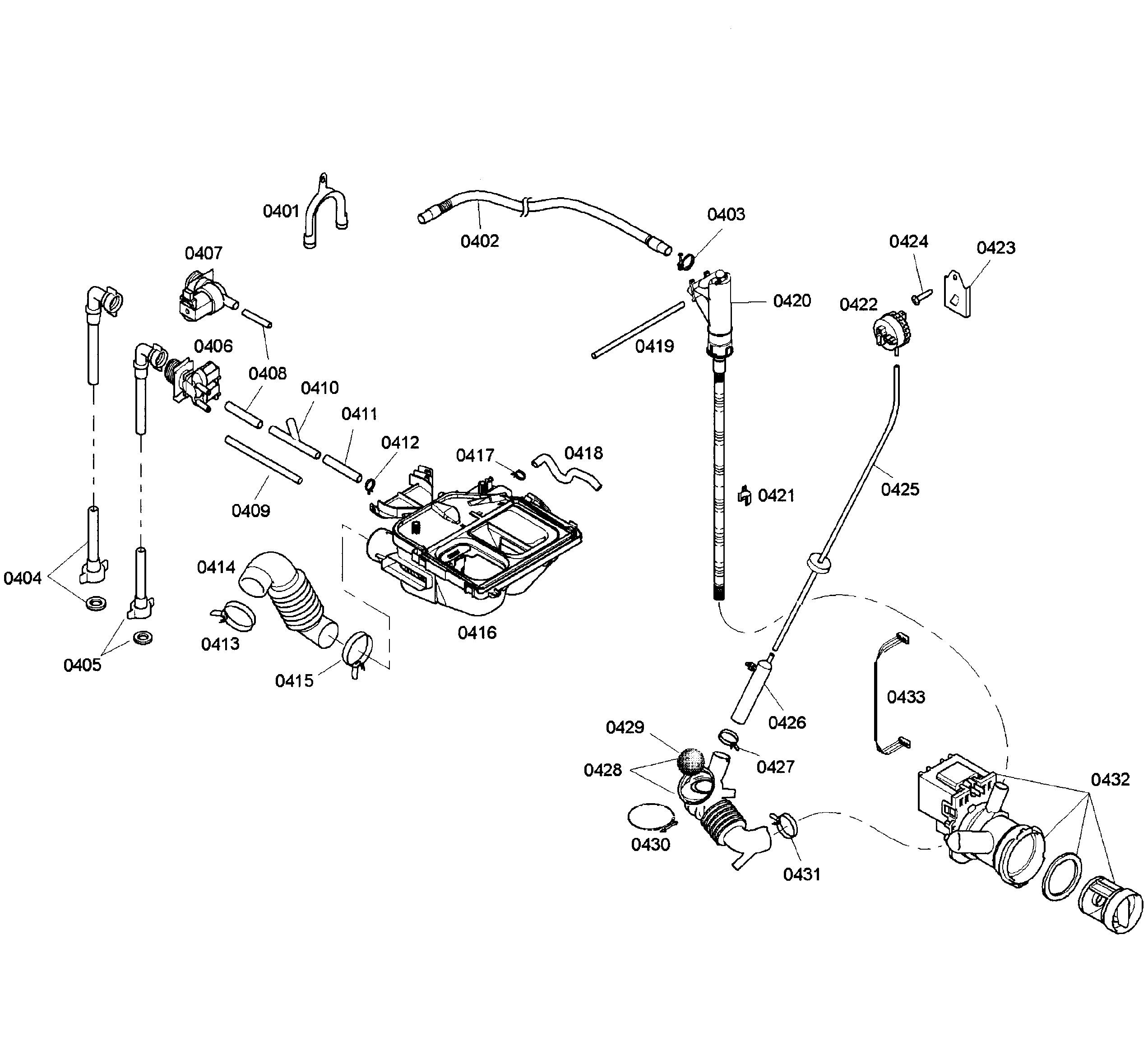

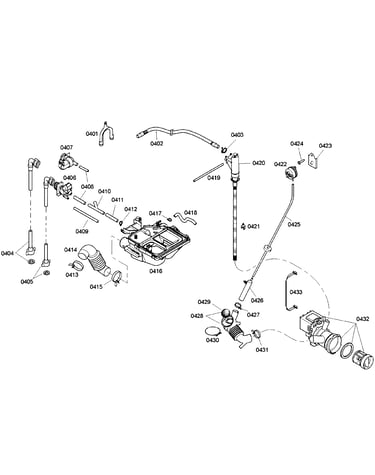

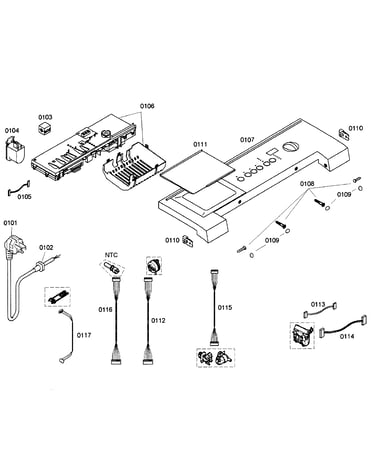

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Damper 491694
#329

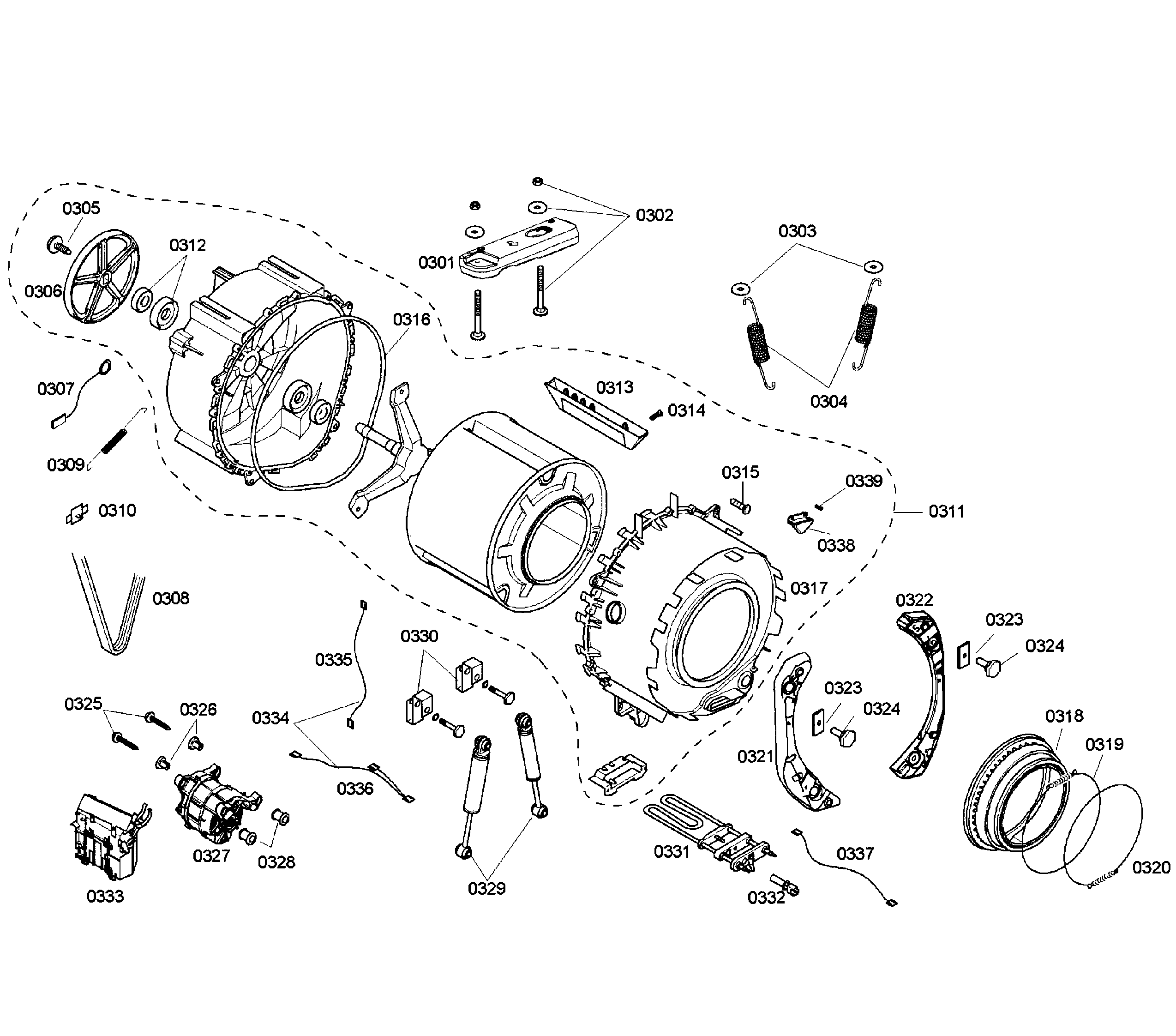

Drum assy diagram

Damper

Part #491694

Replaced by #00642112

?
Manufacturer substitution
This part replaces 491694. Substitute parts can look different from the original.
$68.79 |
7% OFF Phone Price : $73.79
In Stock
Spring Retainer 491692
#320

Drum assy diagram

Spring retainer

Part #491692

Replaced by #00644646

?
Manufacturer substitution
This part replaces 491692. Substitute parts can look different from the original.
This item is not returnable
$16.09 |
11% OFF Phone Price : $18.09
In Stock
Washer Door Hinge 491646
#219

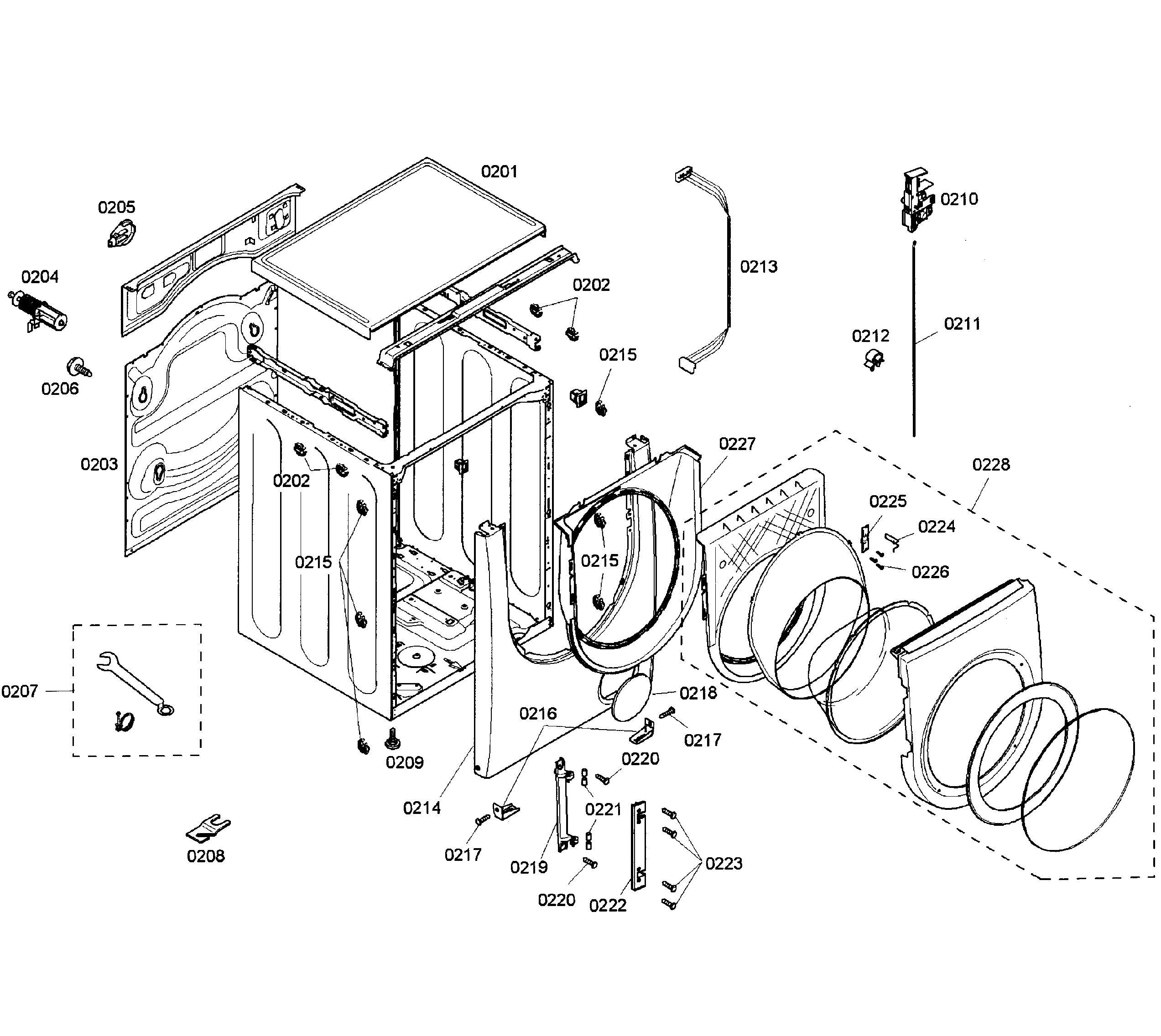

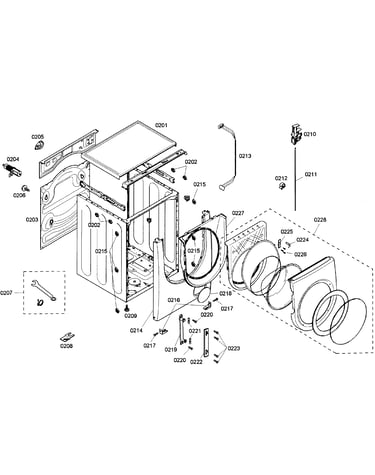

Cabinet/door diagram

Washer door hinge

Part #491646

Replaced by #00651004

?
Manufacturer substitution
This part replaces 491646. Substitute parts can look different from the original.
$38.99 |
11% OFF Phone Price : $43.99
In Stock
Drum 243085
#311

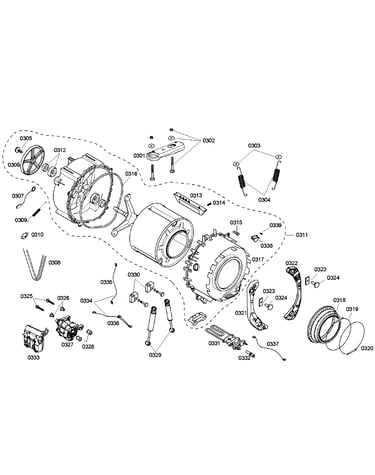

Drum assy diagram

Drum

Part #243085

The manufacturer no longer makes this part, and there's no substitute part

Spring 491683
#304

Drum assy diagram

Spring

Part #491683

Replaced by #00491683

?
Manufacturer substitution
This part replaces 491683. Substitute parts can look different from the original.
$68.24
In Stock
Seal 416363
#312

Drum assy diagram

Seal

Part #416363

Replaced by #00613084

?
Manufacturer substitution
This part replaces 416363. Substitute parts can look different from the original.
$22.89 |
18% OFF Phone Price : $27.89
In Stock
Washer 422246
#303

Drum assy diagram

Washer

Part #422246

Replaced by #00422246

?
Manufacturer substitution
This part replaces 422246. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Spring 491606
#309

Drum assy diagram

Spring

Part #491606

Replaced by #00491606

?
Manufacturer substitution
This part replaces 491606. Substitute parts can look different from the original.
$26.97
In Stock
Bushing 422174
#221

Cabinet/door diagram

Bushing

Part #422174

Replaced by #00422174

?
Manufacturer substitution
This part replaces 422174. Substitute parts can look different from the original.
This item is not returnable
$7.79 |
11% OFF Phone Price : $8.79
In Stock
Washer Tub Pulley Screw 422237
#305

Drum assy diagram

Washer tub pulley screw

Part #422237

Replaced by #00422237

?
Manufacturer substitution
This part replaces 422237. Substitute parts can look different from the original.
This item is not returnable
$4.97
In Stock
