WILL THIS PART FIT MY MODEL?

bosch-436440-Washer Drain Pump
Hover to Zoom

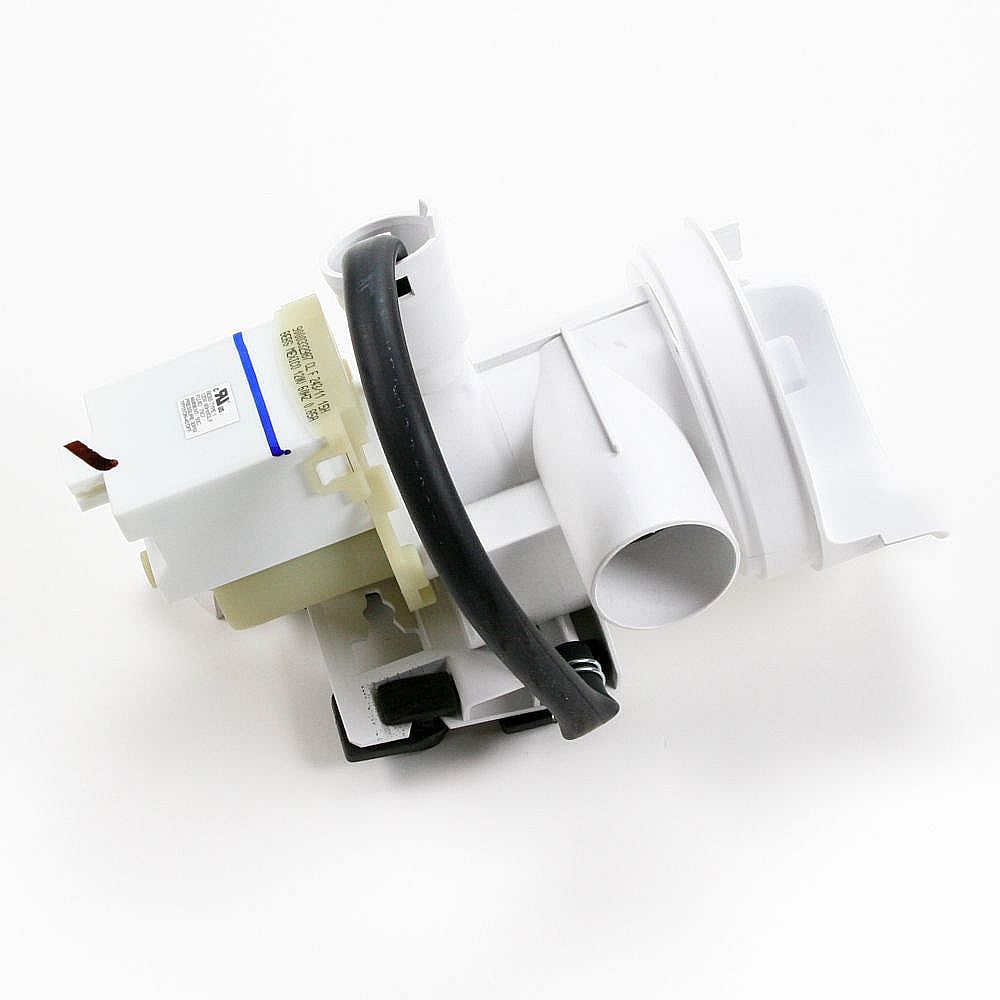

Washer Drain Pump 436440

Part #436440

This part is no longer available.

We’ve permanently sold out of this part. It’s no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don’t have access to this part. You might be able to find the part through another replacement parts retailer or through a reseller on Ebay or similar website. If you can’t find that part and decide to replace the product, we invite you to visit www.sears.com

This part fits
Bosch

Part Information

Choose this manufacturer-approved drain pump for your front-load washer.

This drain pump for a Bosch front-load washer model number WFMC1001UC-02 removes water from the wash tub.

Shut off power to the washer before beginning to install the replacement drain pump. Accessing the old pump requires removing the front panel from the washer cabinet. To do this, remove the door hinges, door spring and door latch screws, then carefully remove the front shield. Take out the screws from the top and bottom of the front panel, then lift the panel up to free it from the plastic tabs on each side.

To take out the old drain pump, pull of the hoses, disconnect the door latch release cord and disconnect the wire harness. Slide the pump to the rear of the washer and pull it out of the machine.

Top models using the same part

Model NameModel NumberDiagram Name
Model #WFMC544SUC/15 Bosch washerWFMC544SUC/15
Dispenser/sump/pump
Model #WFMC2201UC/13 Bosch washerWFMC2201UC/13
Dispenser assy/pump assy
Model #WFMC220BUC/15 Bosch washerWFMC220BUC/15
Pump assy
Model #WFMC220BUC/16 Bosch washerWFMC220BUC/16
Pump assy
Model #WFMC5301UC/16 Bosch washerWFMC5301UC/16
Pump/dispenser
Model #WFMC5301UC/07 Bosch washerWFMC5301UC/07
Pump/dispenser
Model #WFMC5301UC/04 Bosch washerWFMC5301UC/04
Pump/dispenser
Model #WFMC2201UC/02 Bosch washerWFMC2201UC/02
All parts
Model #WFMC1001UC/02 Bosch washerWFMC1001UC/02
All parts
Model #WFMC6401UC/02 Bosch washerWFMC6401UC/02
All parts
