Kenmore 6289398391 electric range Parts
Here are the diagrams and repair parts for Kenmore 6289398391 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

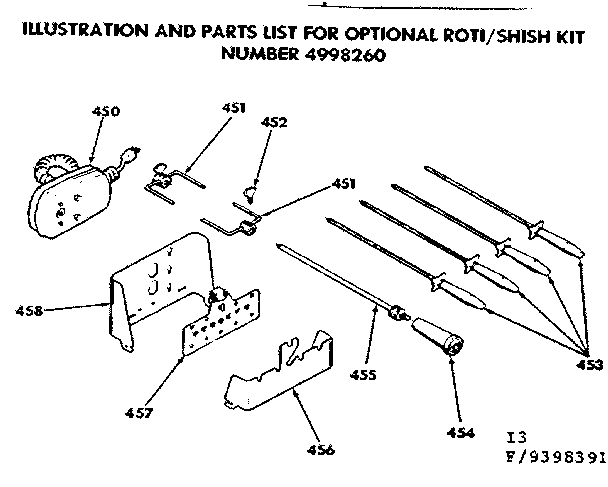

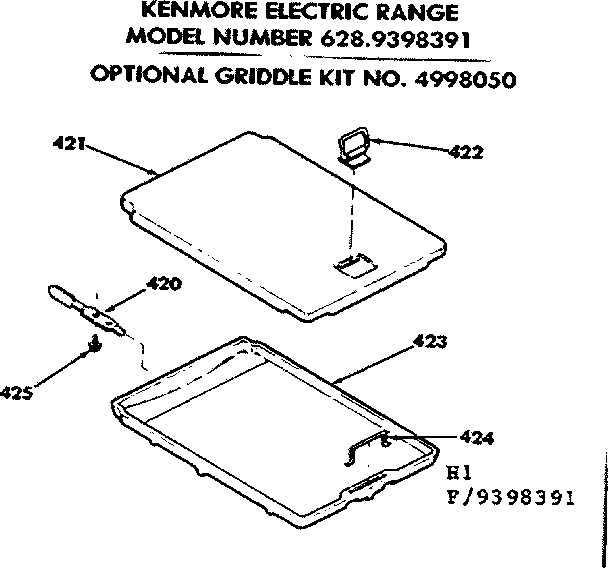

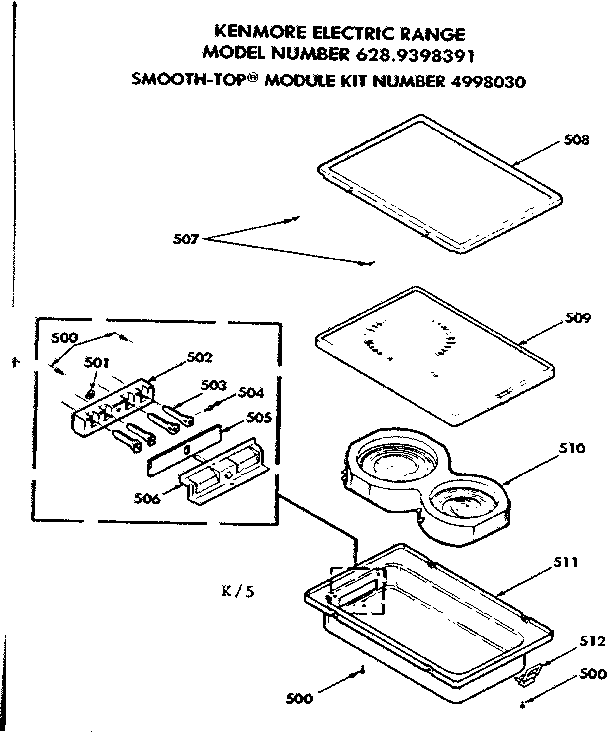

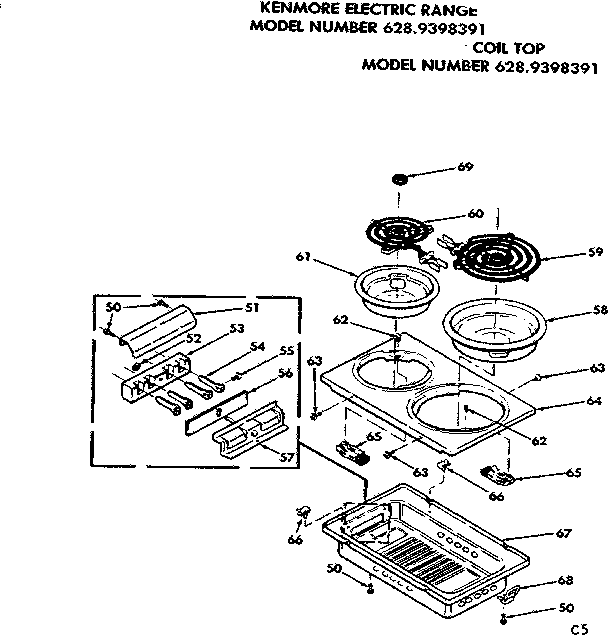

SELECT DIAGRAM
Browse Parts for6289398391 Ranges
Body assembly diagram
Insulation
Part #1314863Replaced by #3008673
Manufacturer substitutionThis part replaces 1314863. Substitute parts can look different from the original.In Stock$53.06
Qty
Body assembly diagram
Bracket
Part #1311369Replaced by #3051552

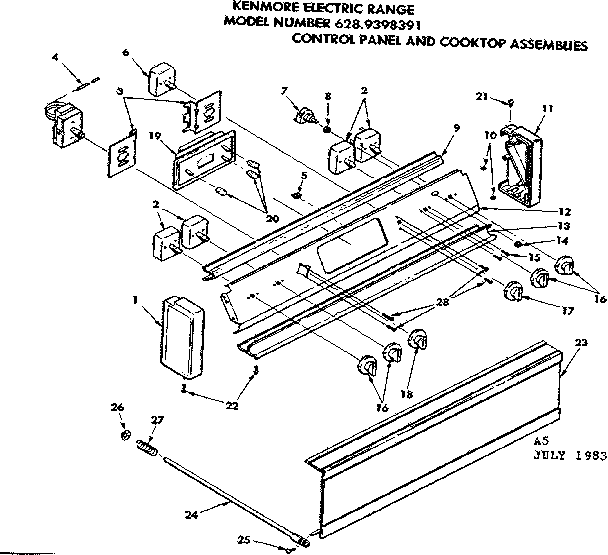

Manufacturer substitutionThis part replaces 1311369. Substitute parts can look different from the original.In Stock$29.02QtyControl panel and cooktop assemblies diagram
Nut
Part #GM274796Replaced by #08015925

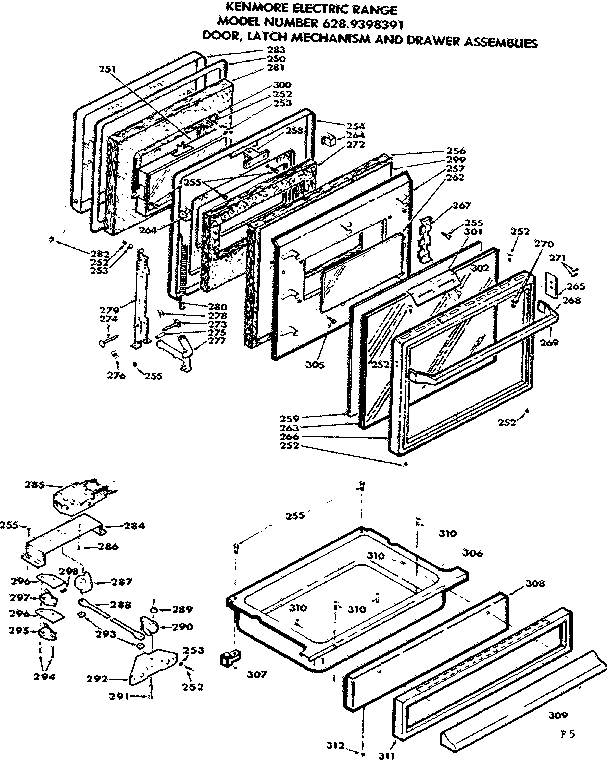

Manufacturer substitutionThis part replaces GM274796. Substitute parts can look different from the original.In Stock$25.22QtyDoor, latch mechanism and drawer assemblies diagram
Insulation
Part #1322622Replaced by #3008673
Manufacturer substitutionThis part replaces 1322622. Substitute parts can look different from the original.In Stock$53.06Qty#NI
All parts diagram
Toe Plate
Part #1325189Replaced by #08012736

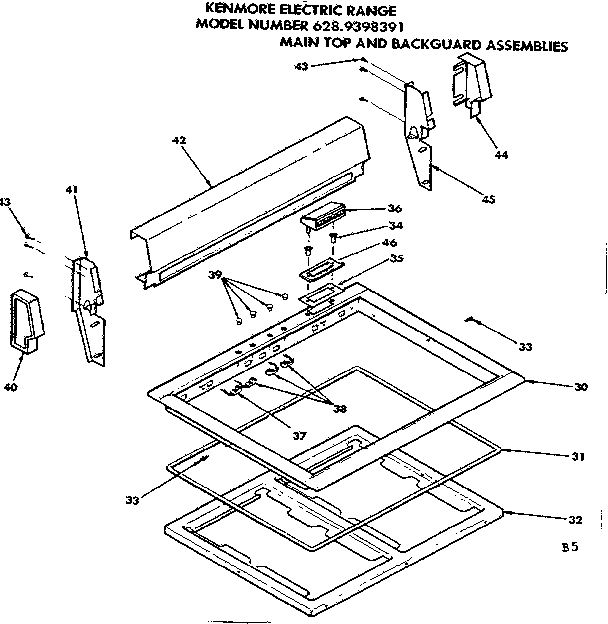

Manufacturer substitutionThis part replaces 1325189. Substitute parts can look different from the original.In Stock$26.55QtyMain top and backguard assemblies diagram
Speed Clip
Part #1164567Replaced by #5303322996
Manufacturer substitutionThis part replaces 1164567. Substitute parts can look different from the original.In Stock$25.40QtyBody assembly diagram
Broiler Grid
Part #1317972Replaced by #5304442087
Manufacturer substitutionThis part replaces 1317972. Substitute parts can look different from the original.
Oversize itemThis part exceeds standard shipping size or weight limits, so an additional oversize shipping charge will apply. Oversize shipping surcharges are not eligible for any discounts or promotions. It will be shown in your order total at checkout.In Stock$45.3612% OFF Phone Price : $51.36QtyDoor, latch mechanism and drawer assemblies diagram
Screw
Part #1164557Replaced by #08012213

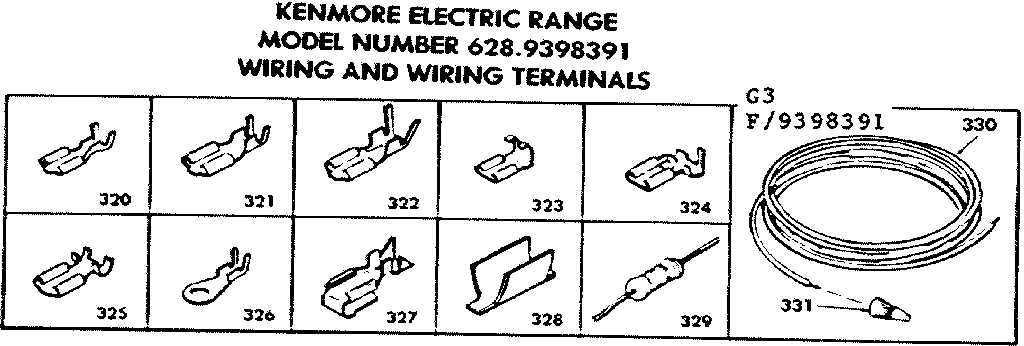

Manufacturer substitutionThis part replaces 1164557. Substitute parts can look different from the original.In Stock$25.69QtyWiring and wiring terminals diagram
Blue Wire
Part #1167813Replaced by #5301167813
Manufacturer substitutionThis part replaces 1167813. Substitute parts can look different from the original.In Stock$25.75QtyBody assembly diagram
Clip
Part #1317076Replaced by #5301317076
Manufacturer substitutionThis part replaces 1317076. Substitute parts can look different from the original.In Stock$27.35Qty
