Model # 79575252401 Official Kenmore top-mount refrigerator
Here are the diagrams and repair parts for Official Kenmore 79575252401 top-mount refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
79575252401 Refrigerators
#903D

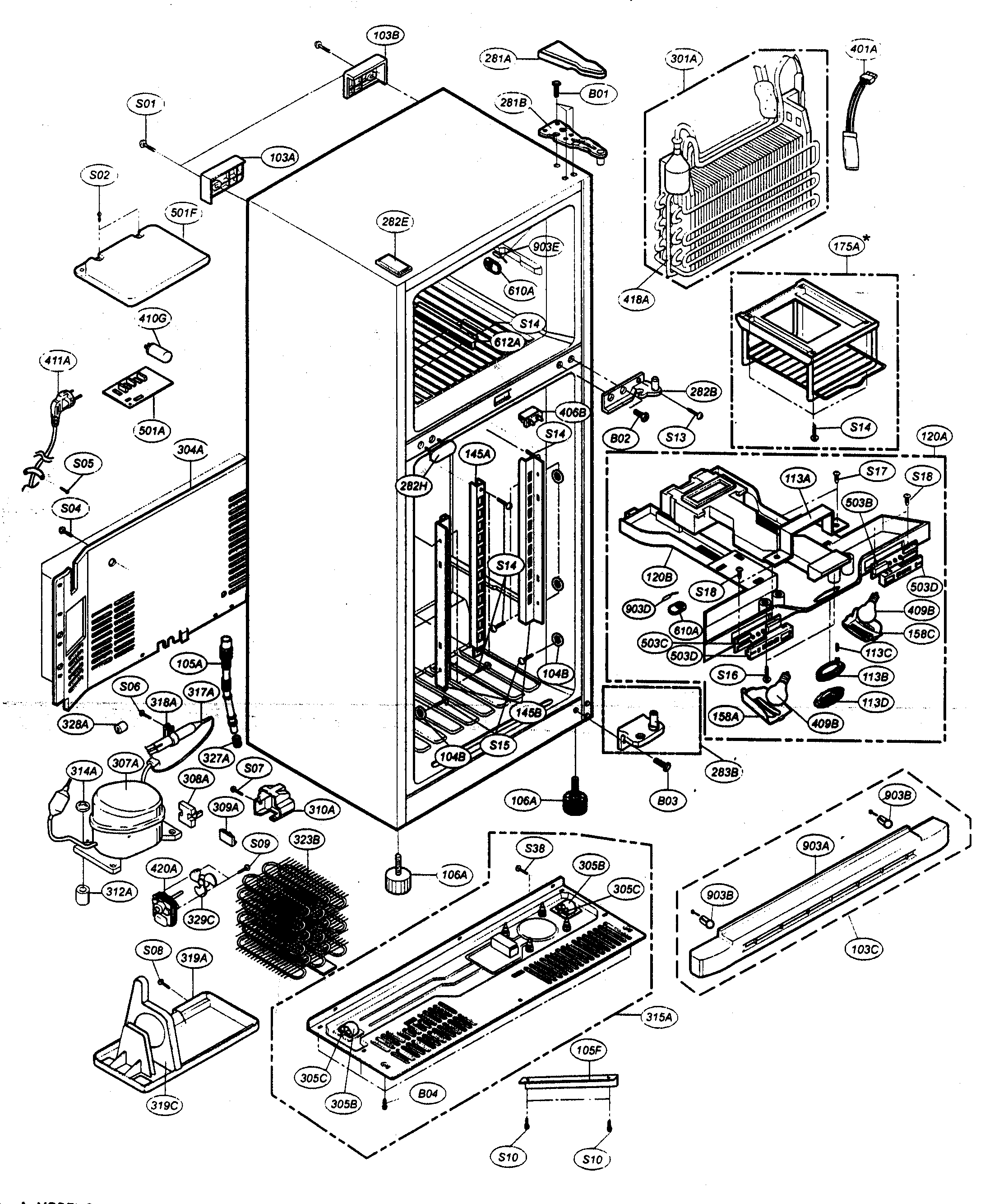

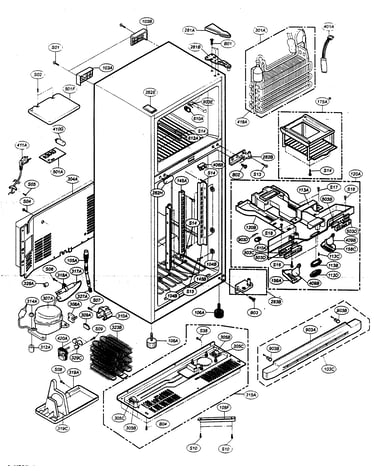

Case parts diagram
Refrigerator sensor
Part #6500JK1003A
Replaced by #6500JB2001B
?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
$32.67 |
16% OFF Phone Price : $38.67
In Stock
#619A

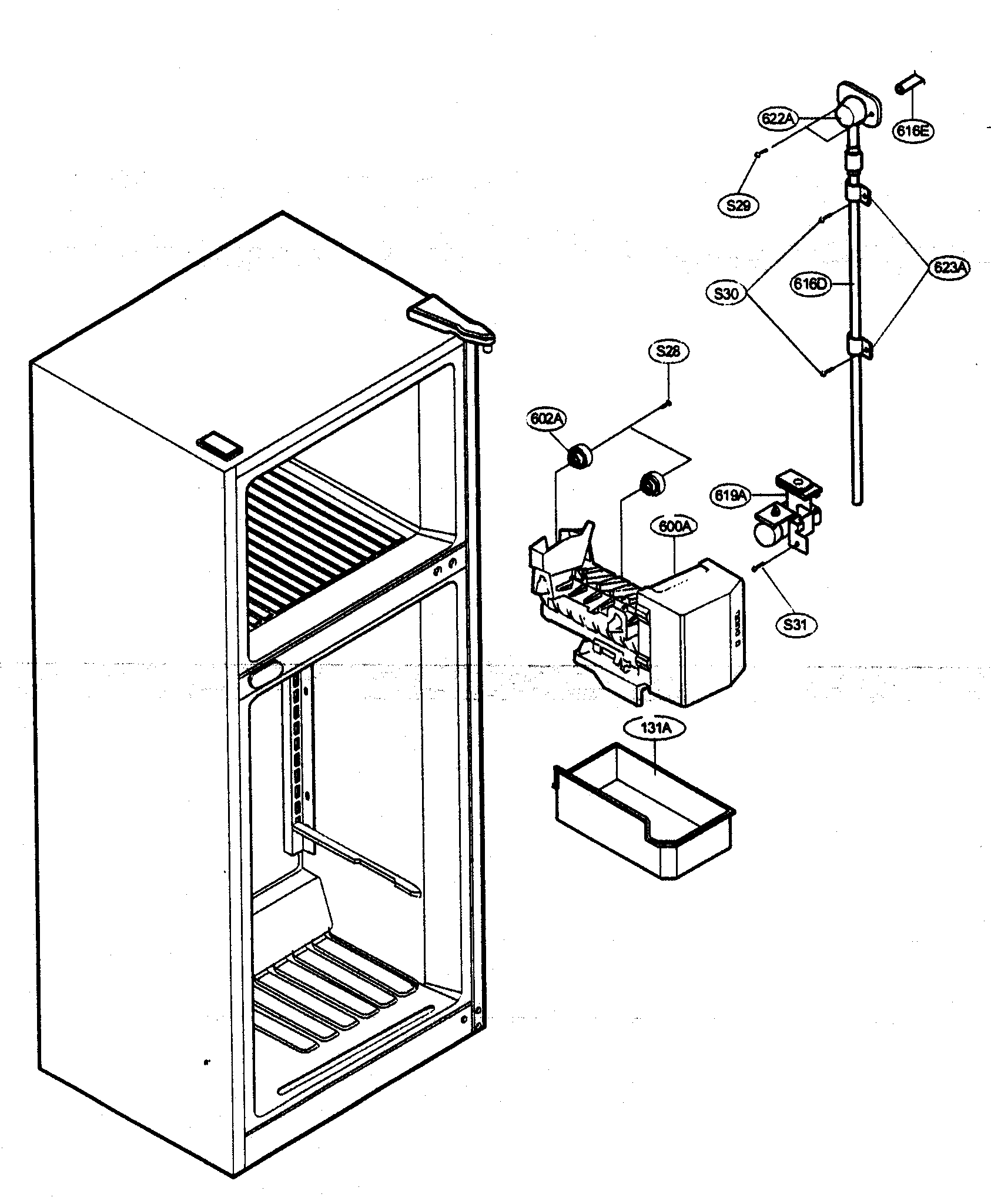

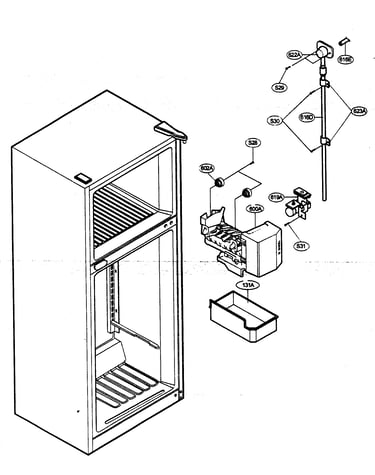

Ice maker parts 2 diagram
Refrigerator water inlet valve (replaces 5220ja2003a, 5220ja2009b, 5221ja2008g)
Part #5220JA2009D
$81.97 |
7% OFF Phone Price : $87.97
In Stock
#308A
Case parts diagram
Ptc asm
Part #6749C-0008D
Replaced by #6749C-0014E
?
Manufacturer substitution
This part replaces 6749C-0008D. Substitute parts can look different from the original.
$34.09 |
15% OFF Phone Price : $40.09
In Stock
#329A

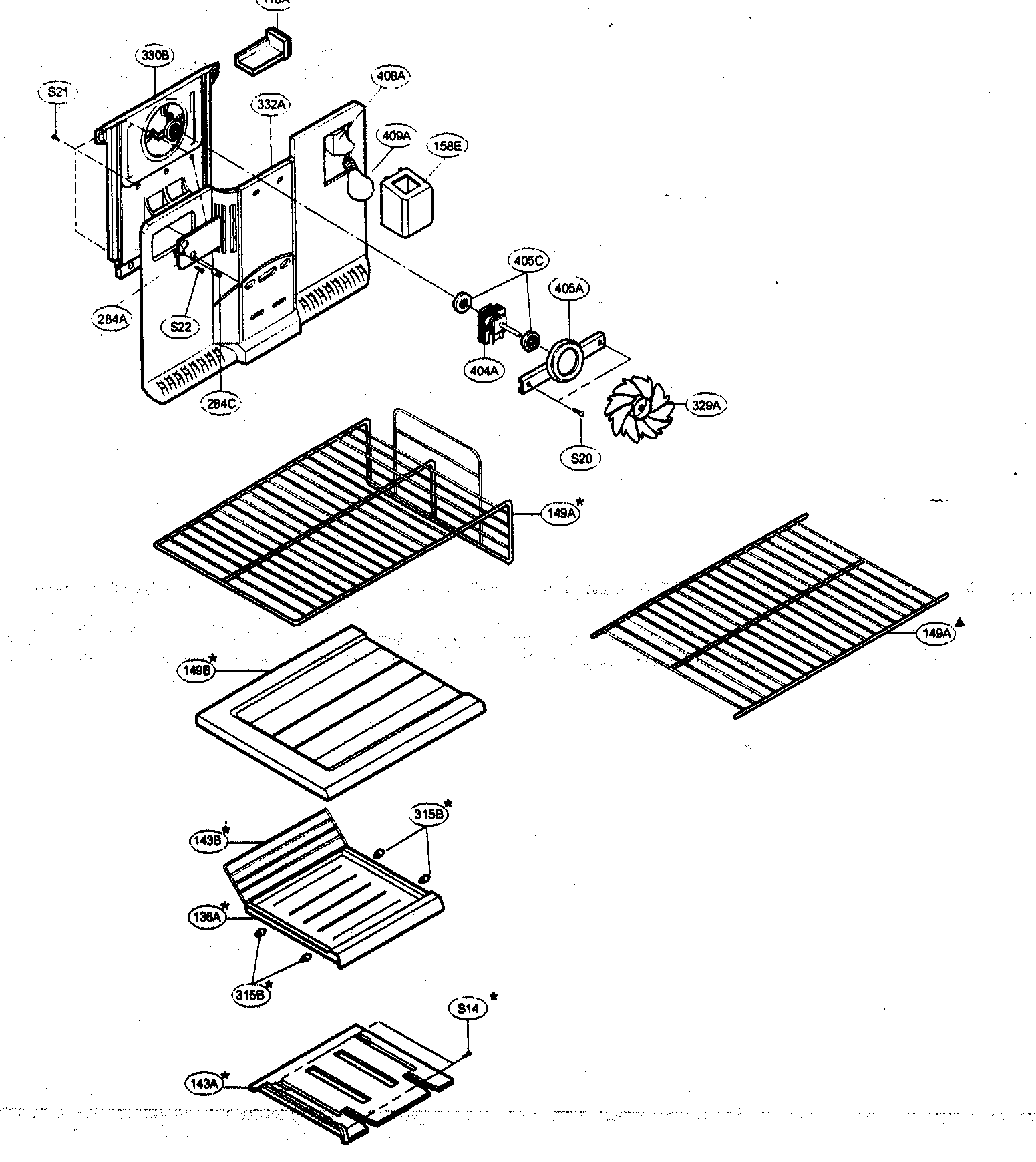

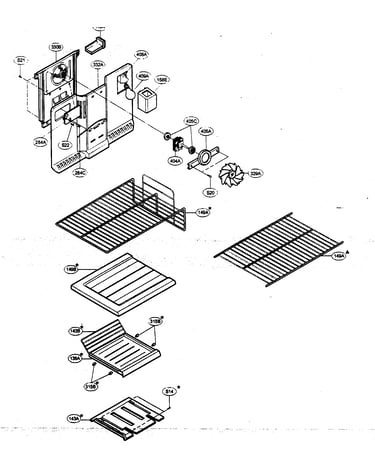

Freezer parts diagram
Refrigerator evaporator fan blade
Part #5901JJ1003A
This item is not returnable
$32.67 |
16% OFF Phone Price : $38.67
In Stock
#903E
Case parts diagram
Refrigerator thermistor
Part #6500JK1004A
Replaced by #6500JB2002T
?
Manufacturer substitution
This part replaces 6500JK1004A. Substitute parts can look different from the original.
This item is not returnable
$25.31 |
19% OFF Phone Price : $31.31
In Stock
#903B
Case parts diagram
Refrigerator toe grille clip
Part #4930JJ2021A
This item is not returnable
$13.78 |
13% OFF Phone Price : $15.78
In Stock
#154A

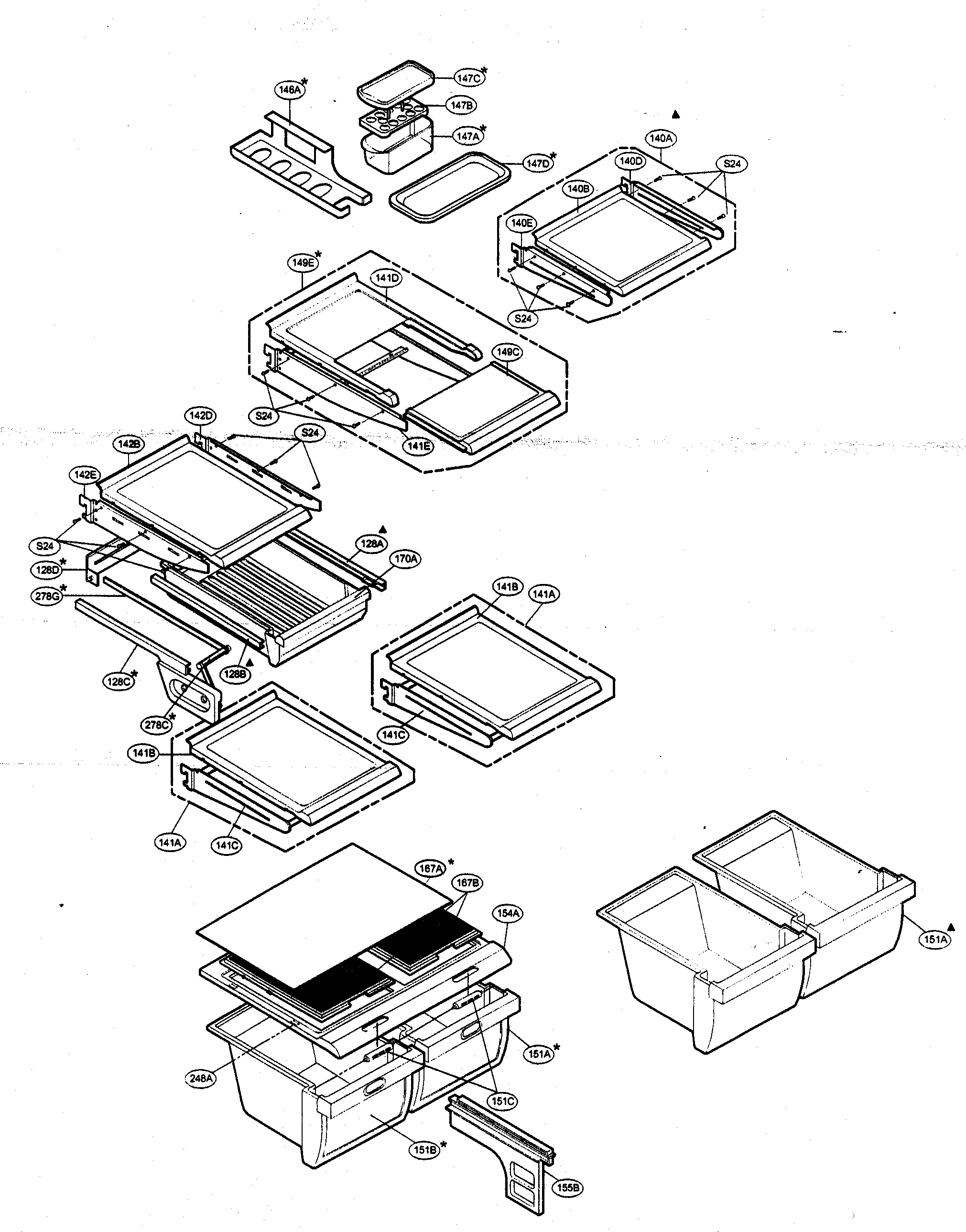

Refrigerator parts diagram
Refrigerator crisper drawer cover frame
Part #3550JL2001C
Replaced by #3551JJ1069P
?
Manufacturer substitution
This part replaces 3550JL2001C. Substitute parts can look different from the original.
$118.66 |
9% OFF Phone Price : $130.66
In Stock
#420A
Case parts diagram
Refrigerator condenser motor
Part #4681JK1001B
Replaced by #4680JK1001B
?
Manufacturer substitution
This part replaces 4681JK1001B. Substitute parts can look different from the original.
$99.14 |
11% OFF Phone Price : $111.14
In Stock
#248A
Refrigerator parts diagram
Refrigerator drawer slide rail
Part #5218JJ3001A
This item is not returnable
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Refrigerator shelf
Part #5027JJ1039A
Replaced by #AHT72996107
?
Manufacturer substitution
This part replaces 5027JJ1039A. Substitute parts can look different from the original.
$81.74 |
7% OFF Phone Price : $87.74
In Stock
