Model # WFW8640BW1 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool WFW8640BW1 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

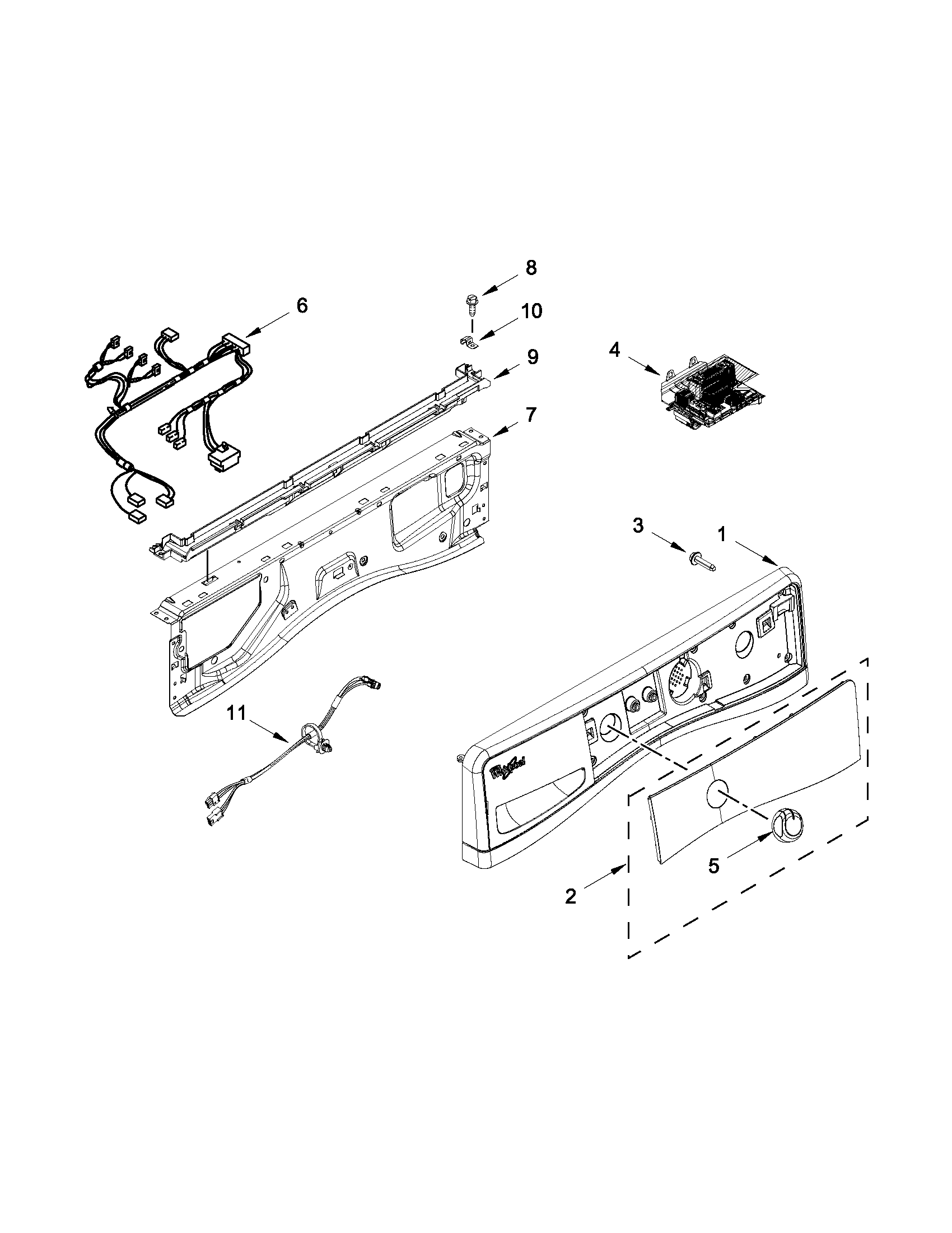

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forWFW8640BW1 Washer

  • Affresh Washer Cleaner, 3-pack W10135699
    #NI

    Optional parts (not included) diagram

    Affresh washer cleaner, 3-pack

    Part #W10135699

    BEST SELLER

    Get free shipping with Automatic Reorder

    $11.56
    15% OFF Phone Price : $13.56
    In Stock
  • Washer Water-level Pressure Switch W10448876
    #20

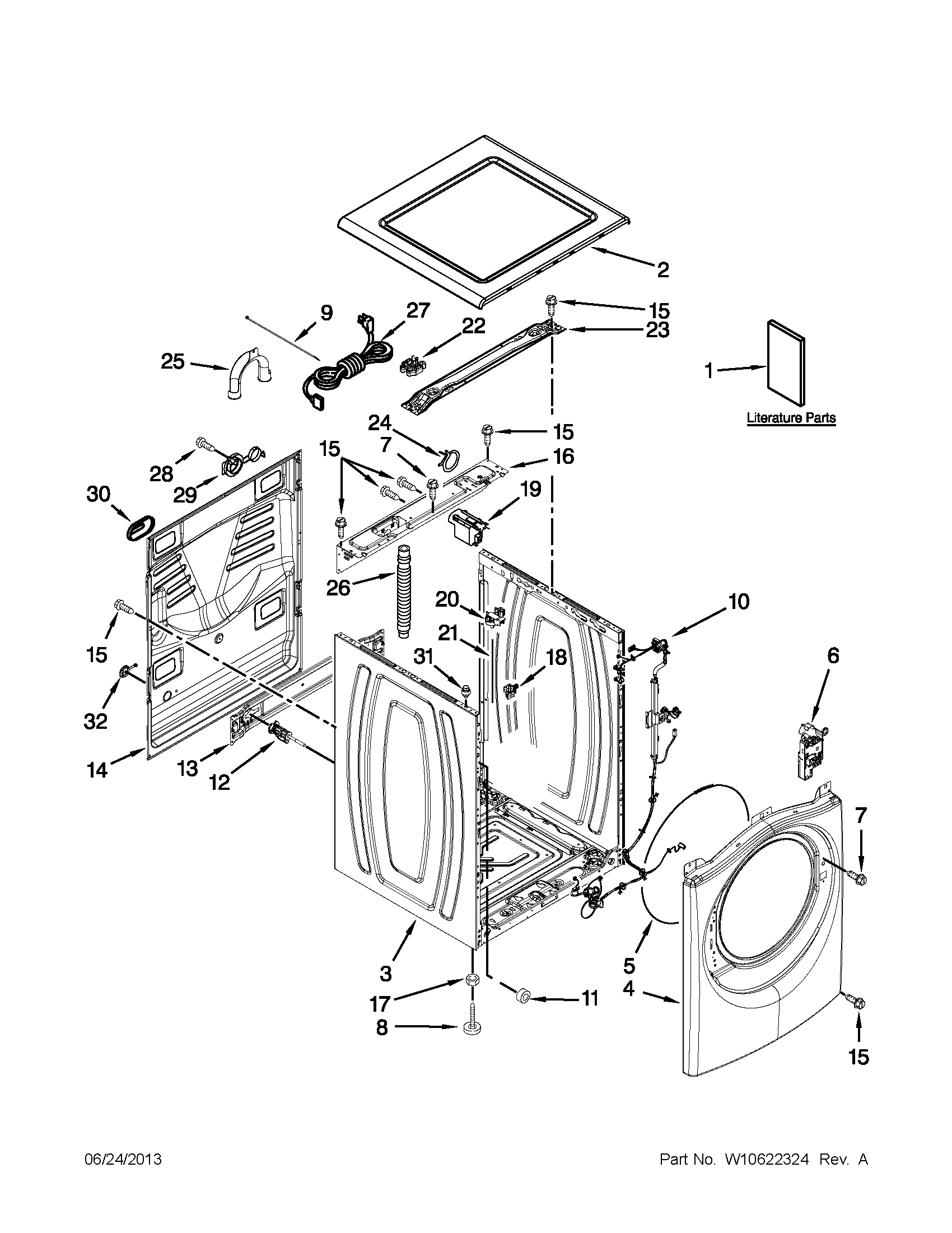

    Top and cabinet parts diagram

    Washer water-level pressure switch

    Part #W10448876

    Replaced by #WPW10448876

    ?
    Manufacturer substitution
    This part replaces W10448876. Substitute parts can look different from the original.
    BEST SELLER
    $35.50
    14% OFF Phone Price : $41.50
    In Stock
  • Washer Bellow W10340443
    #10

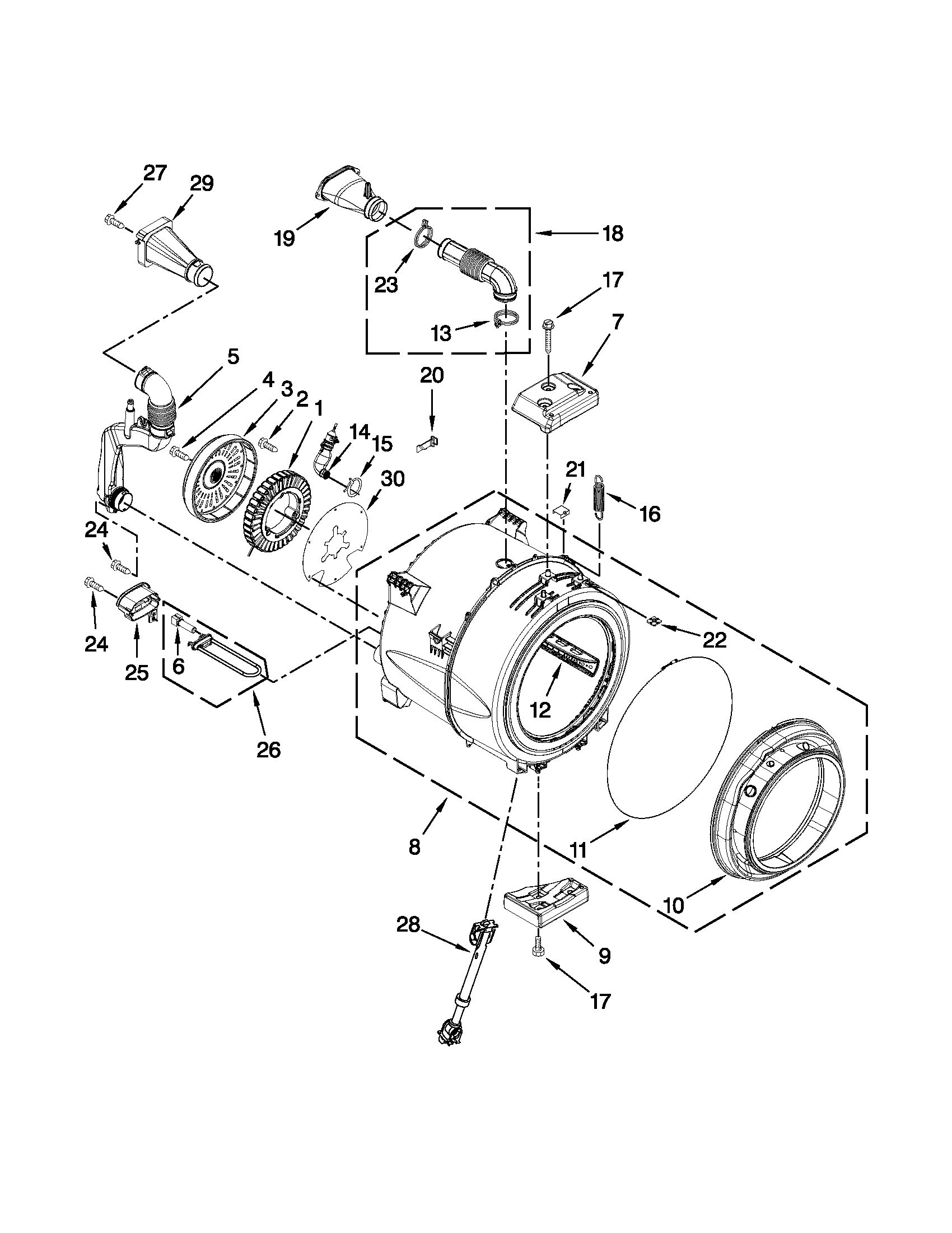

    Tub and basket parts diagram

    Washer bellow

    Part #W10340443

    Replaced by #W11106747

    ?
    Manufacturer substitution
    This part replaces W10340443. Substitute parts can look different from the original.
    BEST SELLER
    $145.23
    8% OFF Phone Price : $157.23
    Back Order
  • Washer Shock Absorber W10261492
    #28

    Tub and basket parts diagram

    Washer shock absorber

    Part #W10261492

    Replaced by #W11415987

    ?
    Manufacturer substitution
    This part replaces W10261492. Substitute parts can look different from the original.
    BEST SELLER
    $56.92
    10% OFF Phone Price : $62.92
    In Stock
  • Washer Dispenser Drawer Assembly W10365885
    #11

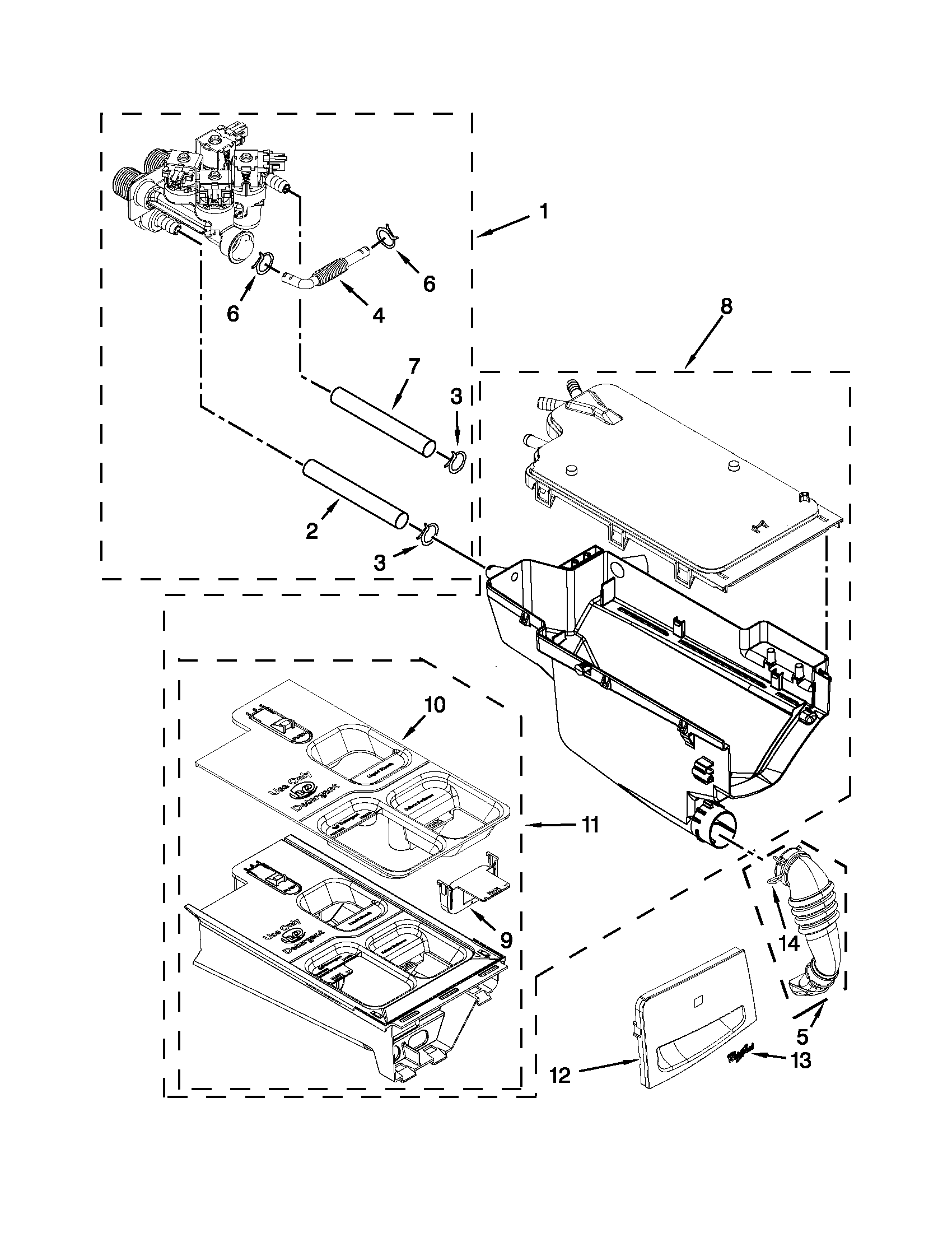

    Dispenser parts diagram

    Washer dispenser drawer assembly

    Part #W10365885

    Replaced by #WPW10365885

    ?
    Manufacturer substitution
    This part replaces W10365885. Substitute parts can look different from the original.
    BEST SELLER
    $59.48
    9% OFF Phone Price : $65.48
    In Stock
  • Hose Clamp 9724997
    #3

    Dispenser parts diagram

    Hose clamp

    Part #9724997

    Replaced by #WP596669

    ?
    Manufacturer substitution
    This part replaces 9724997. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Clamp W10096852
    #6

    Dispenser parts diagram

    Clamp

    Part #W10096852

    Replaced by #WP596669

    ?
    Manufacturer substitution
    This part replaces W10096852. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Washer Tub-to-pump Hose W10467168
    #3

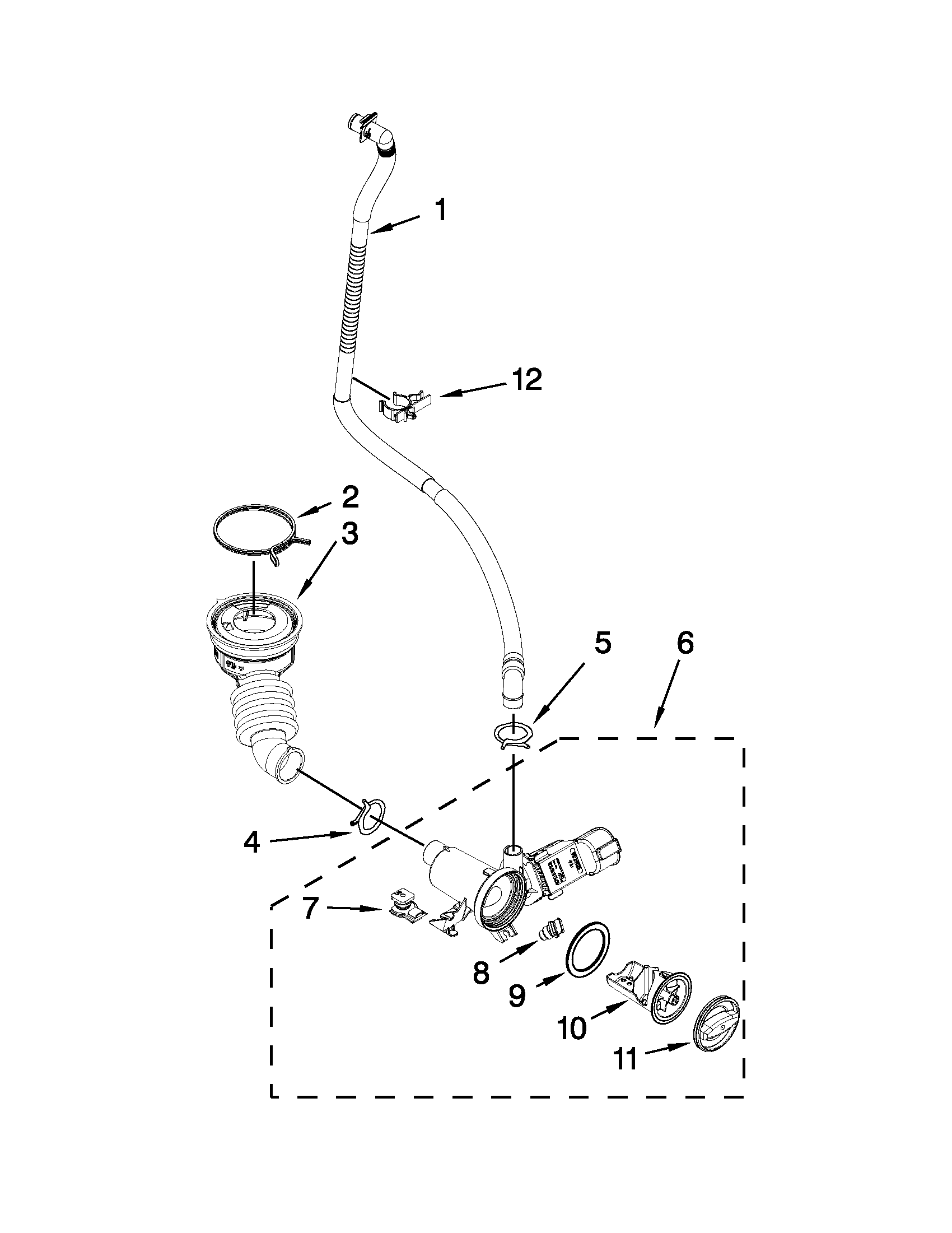

    Pump parts diagram

    Washer tub-to-pump hose

    Part #W10467168

    Replaced by #WPW10467168

    ?
    Manufacturer substitution
    This part replaces W10467168. Substitute parts can look different from the original.
    BEST SELLER
    $26.80
    18% OFF Phone Price : $32.80
    Back Order
  • Washer Door Boot Spring Clamp W10237503
    #5

    Top and cabinet parts diagram

    Washer door boot spring clamp

    Part #W10237503

    Replaced by #W11266654

    ?
    Manufacturer substitution
    This part replaces W10237503. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $19.52
    9% OFF Phone Price : $21.52
    In Stock
  • Cap W10208398
    #2

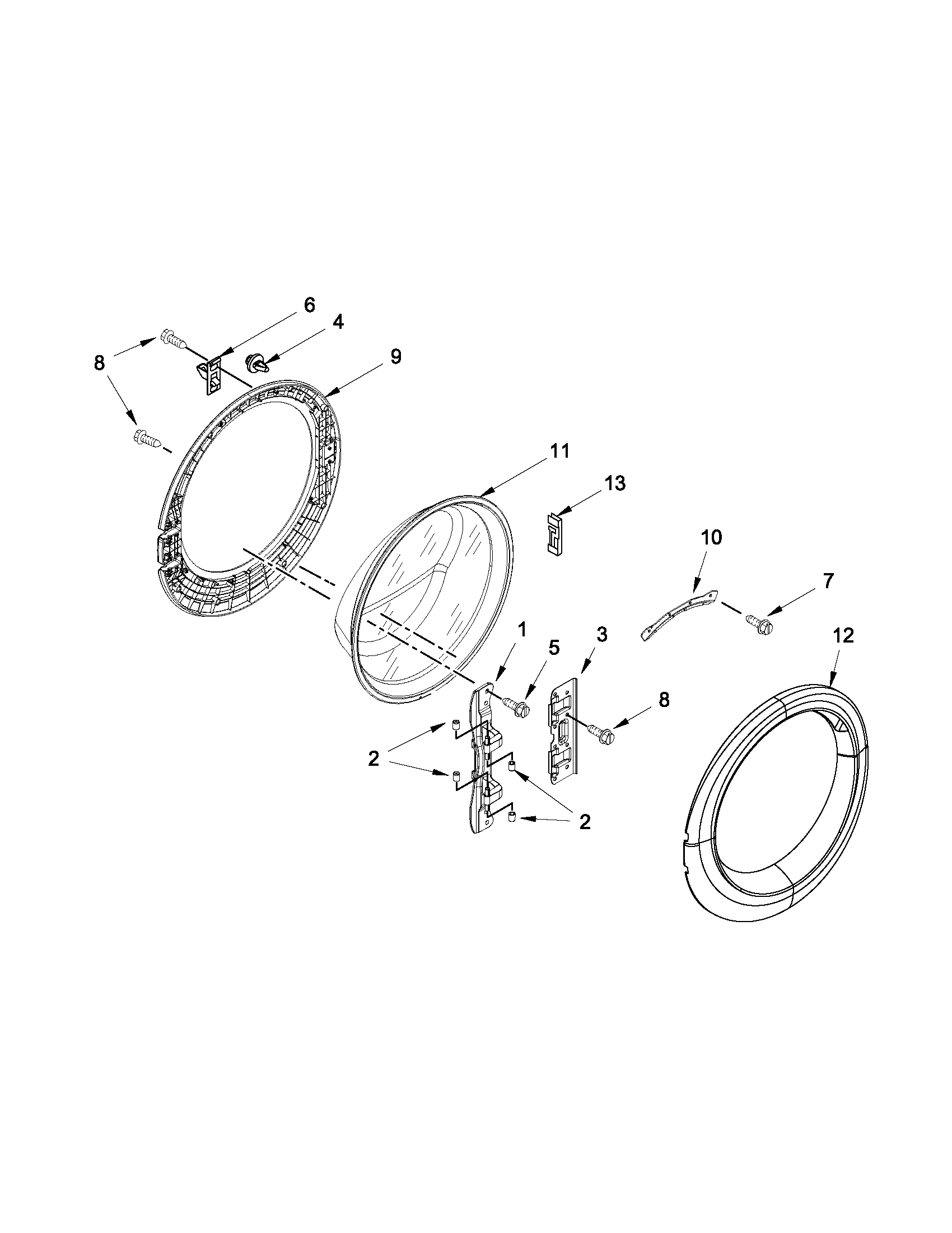

    Door parts diagram

    Cap

    Part #W10208398

    Replaced by #WPW10208398

    ?
    Manufacturer substitution
    This part replaces W10208398. Substitute parts can look different from the original.
    BEST SELLER
    $12.76
    14% OFF Phone Price : $14.76
    In Stock
