The exact cubic-foot capacity for Kenmore model 79551312014 is listed on the model’s rating information in the 79551312014 owner's manual. Most Kenmore 795-prefix (LG-built) side-by-side refrigerators land in the roughly 20 to 26 cu. ft. range, but the manual gives the specific number for your unit.

We recommend checking these spots in this order:

• Owner’s manual specs section (usually “Specifications” or “Product information”)
• Model/serial label inside the fresh food compartment (often on a side wall)
• Energy/ratings label area (sometimes near the model/serial label)
• If you still cannot locate it, match your model to the correct documentation using the full model number: 79551312014

On Kenmore refrigerators, 795 is a manufacturer prefix commonly associated with LG-built units. It helps identify the platform and parts family, but it does not tell you the refrigerator’s size.

Knowing the cubic feet helps when you are comparing replacement refrigerators, planning kitchen fit, and choosing compatible accessories (like bins and drawers). It also helps when troubleshooting cooling complaints because overloading a compartment can restrict airflow.

Last updated: February 2026

On Kenmore refrigerator model 79551312014, the drip pan (drain tray) sits underneath the cabinet and collects defrost water; cleaning it means safely accessing the pan, washing and sanitizing it, then reinstalling it so you prevent odors, mold, and floor puddles. For access details specific to your unit, follow the 79551312014 owner's manual.

• Unplug the refrigerator or switch off power at the breaker.
• Pull the refrigerator straight out to access the lower rear area.

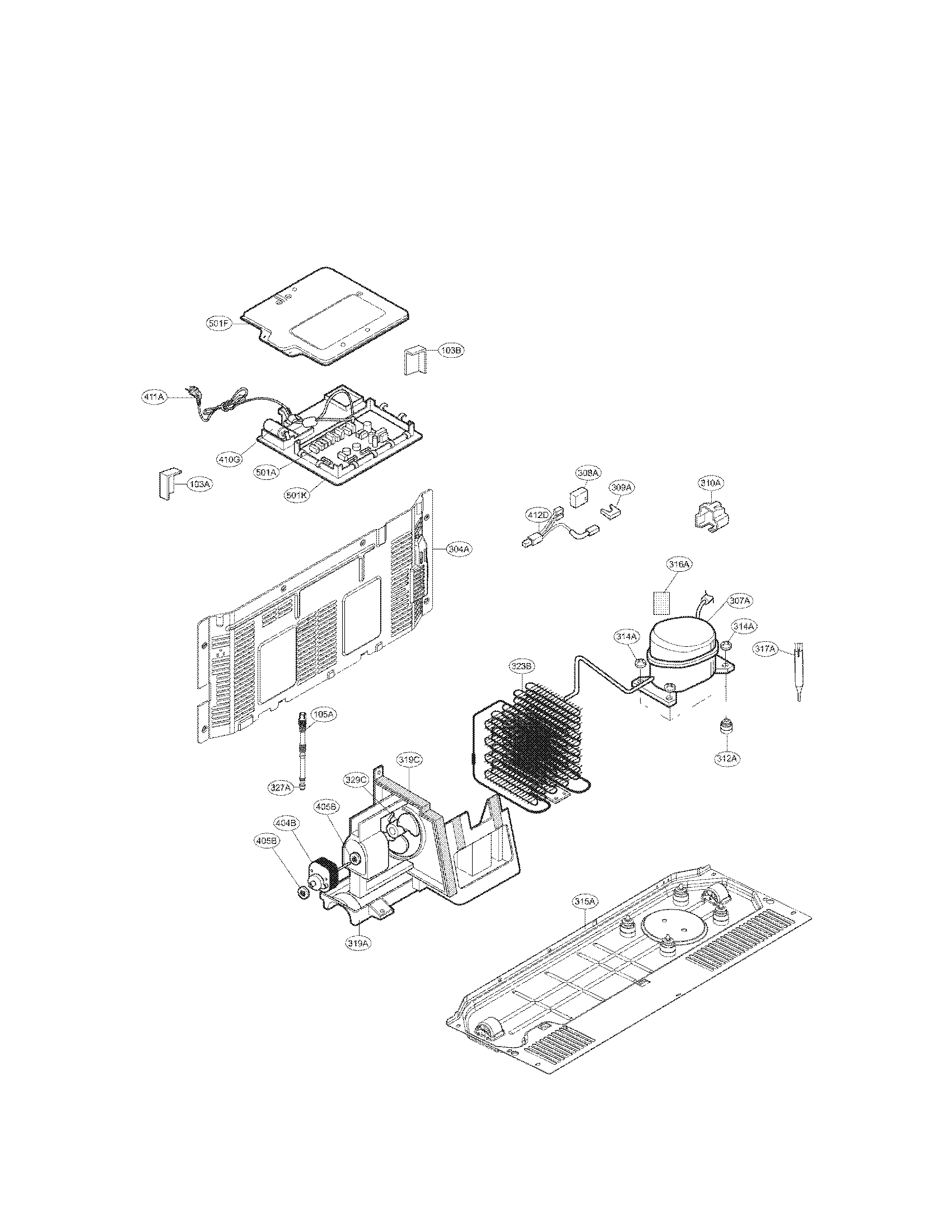

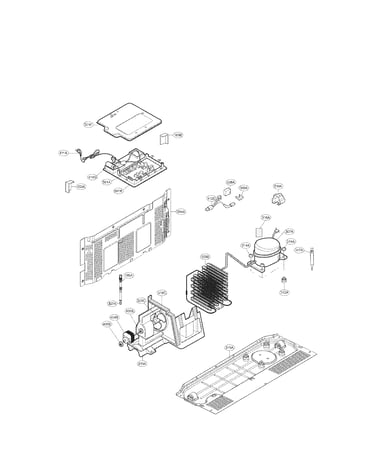

• Locate the drip pan near the compressor and condenser area.
• Slide the pan out carefully; keep it level to avoid spills.
• Wash with hot water and mild dish soap; scrub residue with a soft brush.
• Rinse, then sanitize (1 tablespoon unscented bleach per 1 gallon of water); air-dry fully.
• Reinstall the pan, push the refrigerator back, restore power.

A dirty drip pan is often a symptom of a drainage issue, not just normal defrost water.

• Look for slime or heavy debris (points to a clogged defrost drain).
• Check for standing water that returns quickly.
• Inspect the drain tube for cracks, kinks, or looseness.
• Vacuum dust from the condenser area to help cooling performance.

If the drain line is damaged or won’t stay seated, replacement is the reliable fix.

• Refrigerator drain tube 5251JA3003D (routes defrost water to the drip pan)

A clean, properly draining drip pan helps prevent refrigerator smells, reduces mold risk, and keeps defrost water from leaking onto your kitchen floor and damaging flooring.

Last updated: February 2026

Kenmore model numbers are read left to right; the first 3 digits are the source (who built the appliance), and the remaining digits identify the design series and specific version. For your Kenmore refrigerator model 79551312014, the 795 prefix indicates it’s an LG-built Kenmore, which helps us match the correct parts and service information.

Most Kenmore side-by-side refrigerators list the model and serial on a rating label. Common locations include:

• Inside the fresh food compartment on a side wall
• On the ceiling of the fresh food compartment near the light
• Along the door frame (hinge side)
• Behind the toe grille or lower kickplate area
• On the back of the cabinet (less common for daily access)

For diagrams and label location notes specific to this unit, check the 79551312014 owner's manual.

Kenmore formats vary by product line, but this quick breakdown works for most Kenmore appliances:

• Prefix (first 3 digits): identifies the manufacturing source (example: 795 = LG-built Kenmore)
• Middle digits: identify the platform or series (helps narrow compatible assemblies)
• Last digits: identify version, color, feature package, or production variation

Using the full model number prevents wrong-part issues, especially on items that change by revision (ice maker, dispenser parts, controls).

• Ensures the right fit for door bins, drawers, and gaskets
• Helps match electrical parts like thermistors and control boards
• Avoids mix-ups between similar-looking Kenmore 795-series refrigerators

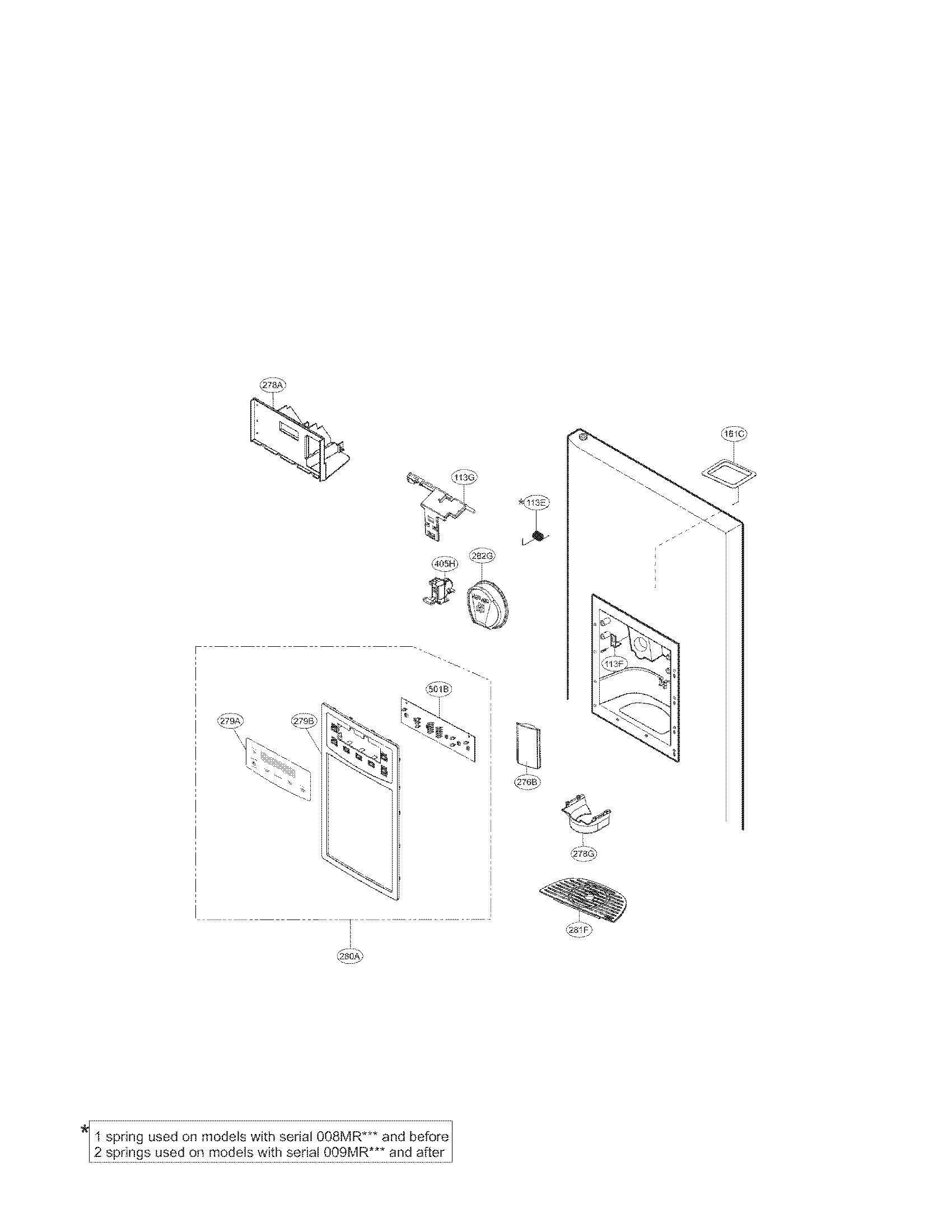

If you’re troubleshooting dispenser or ice issues on this model, the how to disassemble a Kenmore refrigerator dispenser guide is a good next step before ordering parts.

Last updated: February 2026

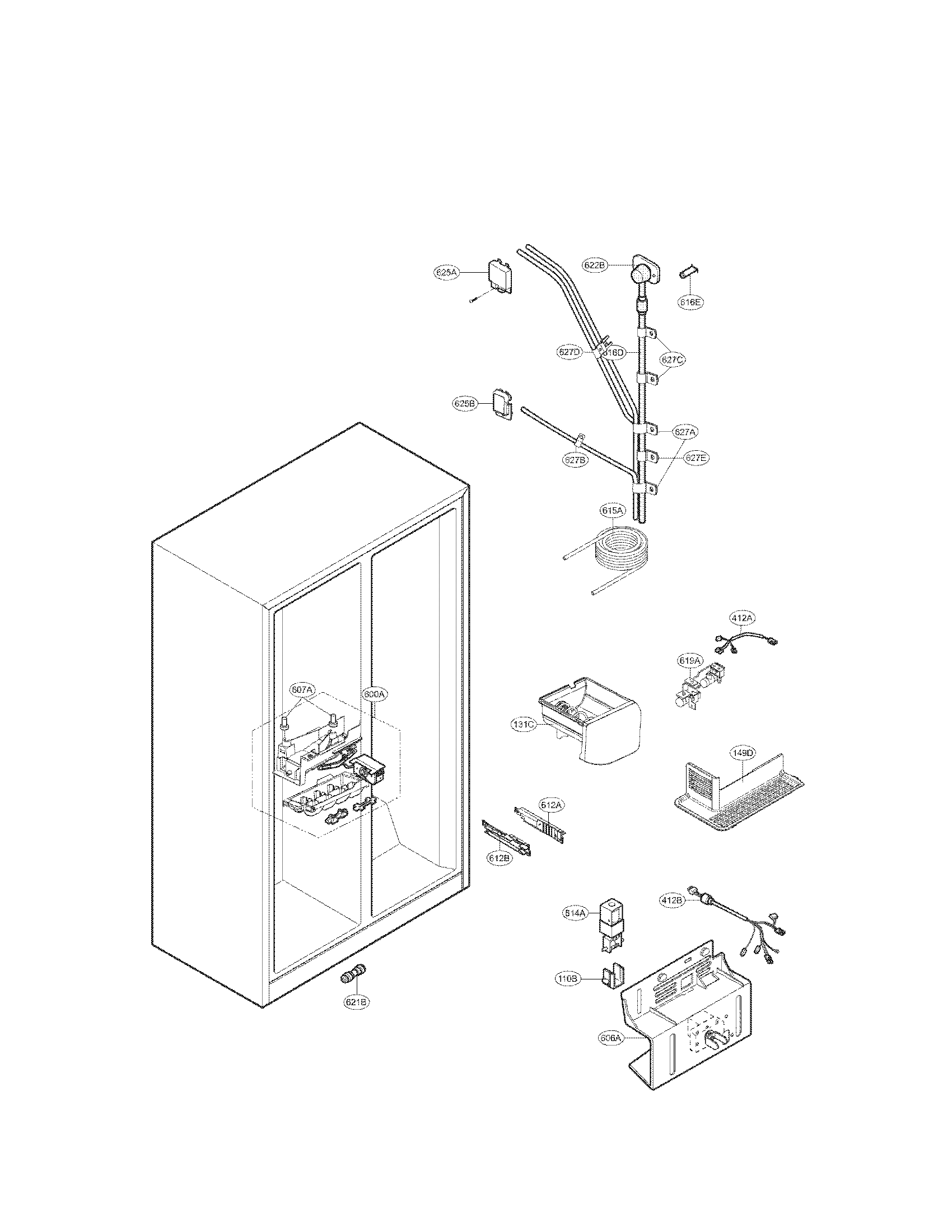

To replace the ice maker in your Kenmore 79551312014 side-by-side refrigerator, we shut off power and the water supply, remove the ice bin, unplug the ice maker wiring harness, then swap in the new assembly and restore power and water. Use the 79551312014 owner’s manual for the exact access and fastener locations.

• Unplug the refrigerator (or switch off the breaker).
• Turn off the water supply valve to the refrigerator.
• Protect the floor with towels; melting ice can drip.
• Use a 1/4-inch nut driver or Phillips screwdriver (most common for ice maker mounts).
• Wear cut-resistant gloves around sheet metal edges.

1. Remove the ice bin from the freezer door or freezer compartment (depending on your configuration).
2. Remove the ice maker cover (if present) to expose mounting screws and the harness.
3. Disconnect the wiring harness by releasing the locking tab and pulling straight out.
4. Remove mounting screws and lift the ice maker off the mounting tabs/bracket.
5. Install the replacement ice maker, hanging it on the tabs first, then tightening screws.
6. Reconnect the harness, reinstall the cover, and slide the ice bin back in.
7. Restore water and power, then allow 12 to 24 hours for normal ice production.

• Confirm the ice maker is switched ON (if it has an on/off switch).
• Make sure the fill tube is not frozen.
• Verify the freezer temperature is near 0°F for best ice production.
• Dump the first batch or two of ice if it looks cloudy or has debris.

For this model page, the listed ice maker option is the lg refrigerator ice maker assembly 5989JA1002D. If your refrigerator uses a different ice maker style, match by model number and the connector style.

A correctly installed ice maker prevents leaks, reduces ice jams, and helps the dispenser work smoothly. Replacing the full assembly is often faster and more reliable than trying to rebuild individual internal components.

Last updated: February 2026

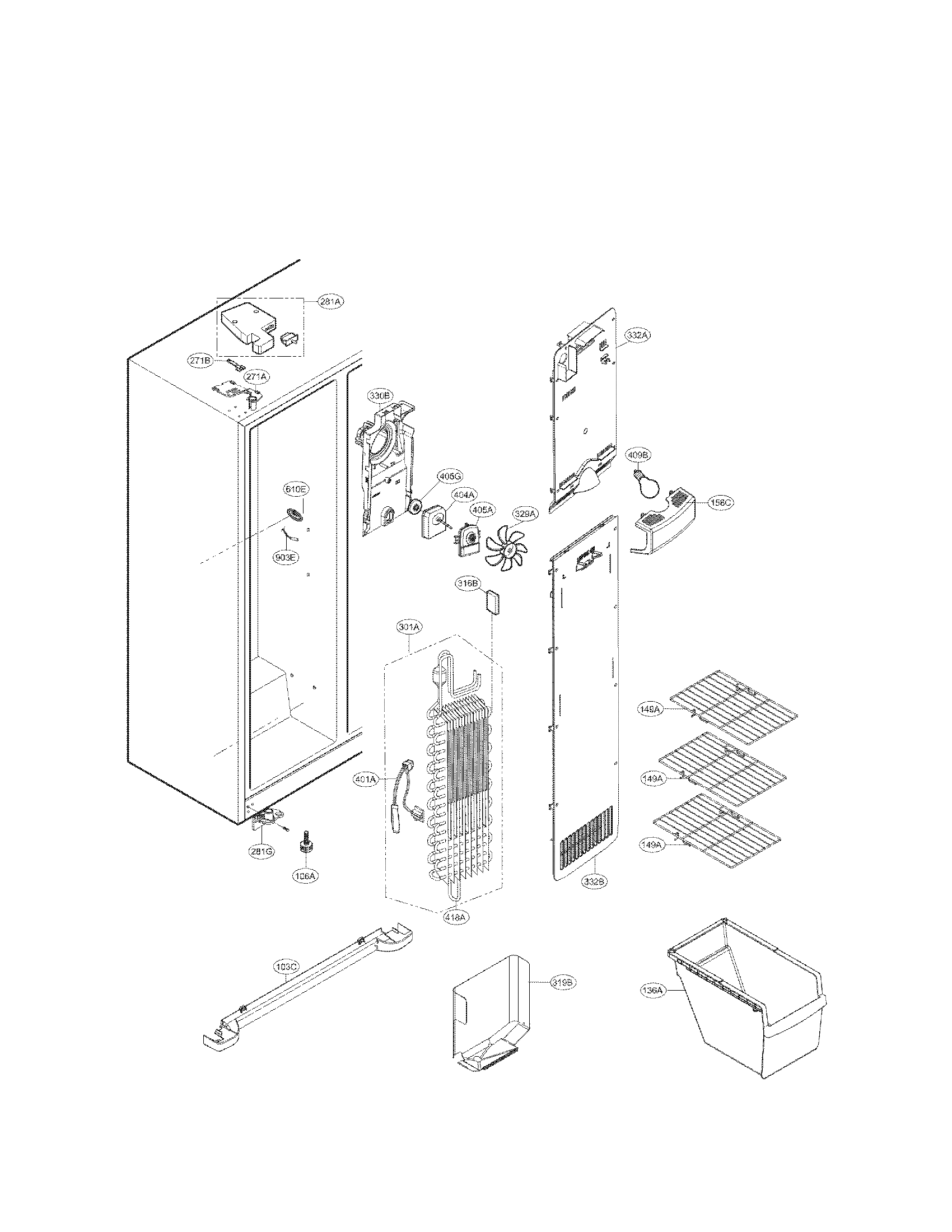

On Kenmore refrigerator model 79551312014, the SY EF code points to a problem in the evaporator fan circuit (the fan that moves cold air through the freezer and refrigerator). Most often, the fan is blocked by ice, the fan motor is failing, or wiring/controls are not powering the fan correctly; check the 79551312014 owner's manual for the model-specific display and reset steps.

• Power reset: Unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power.
• Listen for the evaporator fan: With the freezer door switch held closed, you should typically hear the fan running.
• Look for frost or ice buildup: Heavy frost on the freezer back wall often means a defrost airflow issue that can stop the fan.
• Check vents and airflow: Make sure packages are not blocking return vents between compartments.
• Confirm temperatures: Set freezer near 0°F and fresh food near 37°F; allow 24 hours to stabilize.

If the fan motor is the issue, one of these model-listed motors is often involved:

• Refrigerator evaporator fan motor 4681JB1029S
• Refrigerator evaporator fan motor EAU60694507

The evaporator fan is what distributes cold air. When it stops, you can get warm refrigerator temps, soft ice, frost buildup, and longer compressor run times, even if the compressor is still operating.

Last updated: February 2026

Most Kenmore refrigerators, including model 79551312014, last 10 to 15 years with normal use. With consistent maintenance (clean airflow, good door sealing, and timely part replacement), it’s common to reach the upper end of that range or longer; heavy use and poor ventilation shorten life.

Here’s a practical way to think about service life for a Kenmore side-by-side refrigerator:

• 10 to 15 years: typical average lifespan
• 15+ years: common with good maintenance and stable temperatures
• Under 10 years: more likely with dirty condenser area, frequent door opening, or unresolved cooling/defrost issues

We recommend these habits for Kenmore model 79551312014:

• Clean dust from the condenser area regularly so heat can dissipate.
• Keep door gaskets clean and check for gaps that let warm air in.
• Set stable temps (avoid “max cold” unless needed): 37°F fresh food, 0°F freezer.
• Don’t block interior vents; airflow is critical in side-by-side designs.
• Fix small issues early (slow water dispensing, warm spots, unusual noises).

For model-specific care and cleaning guidance, use the 79551312014 owner’s manual.

A refrigerator often “fails early” because a supporting system is struggling, not because the cabinet is worn out. These are common wear or failure points that can drive bigger problems:

• Evaporator fan motor (poor airflow, warm fridge)
• Defrost system components (frost buildup, restricted airflow)
• Thermistor (temperature sensing errors)
• Ice maker and dispenser components (ice jams, leaks, door not sealing)

If you’re troubleshooting dispenser or ice issues that are stressing the system, the how to prevent water dispenser and ice maker problems guide is a solid checklist.

A refrigerator that’s running inefficiently (dirty condenser area, air leaks, frost buildup) makes the compressor run longer and hotter. Reducing run time is one of the most reliable ways to extend overall lifespan and avoid expensive cooling-system repairs.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 79551312014, the model number is printed on the appliance identification label, which is typically located inside the fresh food (refrigerator) compartment along the side wall near the front, or on the ceiling area near the controls. Use the full model number from that label when ordering parts.

Look for a white or silver sticker or plate that lists both the model and serial information.

• Inside the refrigerator section on the left or right side wall (near the door opening)
• On the ceiling of the refrigerator compartment (near the temperature control housing)
• Behind the crisper drawers on the side wall (less common, but possible)
• On the door frame area of the refrigerator compartment
• If you cannot find it inside, check the back exterior panel near the lower area

The label usually includes multiple fields. Copy the model number exactly as shown.

Kenmore model numbers can be very similar across side-by-side refrigerators. Using the exact model number helps us match the correct parts list and avoid ordering the wrong items (for example, an ice maker assembly or door hinge that looks similar but mounts differently).

Once you find the label, compare it to the model shown in your documentation and keep it handy for repairs. The 79551312014 owner’s manual is also a good place to confirm the model/serial label location and the correct naming format.

Last updated: February 2026

Many Kenmore refrigerators were built by Whirlpool, and the quickest way to tell is the model number prefix: Whirlpool-built Kenmore models commonly start with 106. Your Kenmore 79551312014 is in the 795 series, which is typically associated with LG-built Kenmore refrigerators, not Whirlpool.

Kenmore uses a prefix system where the first three digits usually point to the original manufacturer.

• 106: commonly Whirlpool-built Kenmore refrigerators
• 110, 665: commonly Whirlpool-built Kenmore appliances (often laundry or dishwashers)
• 795: commonly LG-built Kenmore refrigerators
• Always match the full model number on the rating label, not just the door badge

Manufacturer matters because parts, wiring layouts, and service procedures can differ even when two refrigerators look similar. For Kenmore 79551312014, using the correct model-based diagrams and procedures helps you avoid ordering the wrong ice maker, control board, or dispenser components.

Use these steps to confirm you are shopping and troubleshooting by the right identifier:

• Find the rating label (often inside the fresh food section on a side wall)
• Confirm the model is 79551312014 (all digits matter)
• Use the model manual for feature and control details: 79551312014 owner's manual
• If you are diagnosing dispenser issues, use model-matched parts such as the refrigerator auger motor EAU59551204 when applicable

If you are working on water or dispenser maintenance, these guides are often useful alongside the model manual:

• How to replace the water filter in a Kenmore refrigerator
• How to disassemble a Kenmore refrigerator dispenser
