Electric Range

Model # JB860DJ5WW Official GE electric freestanding range

Here are the diagrams and repair parts for Official GE JB860DJ5WW electric freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

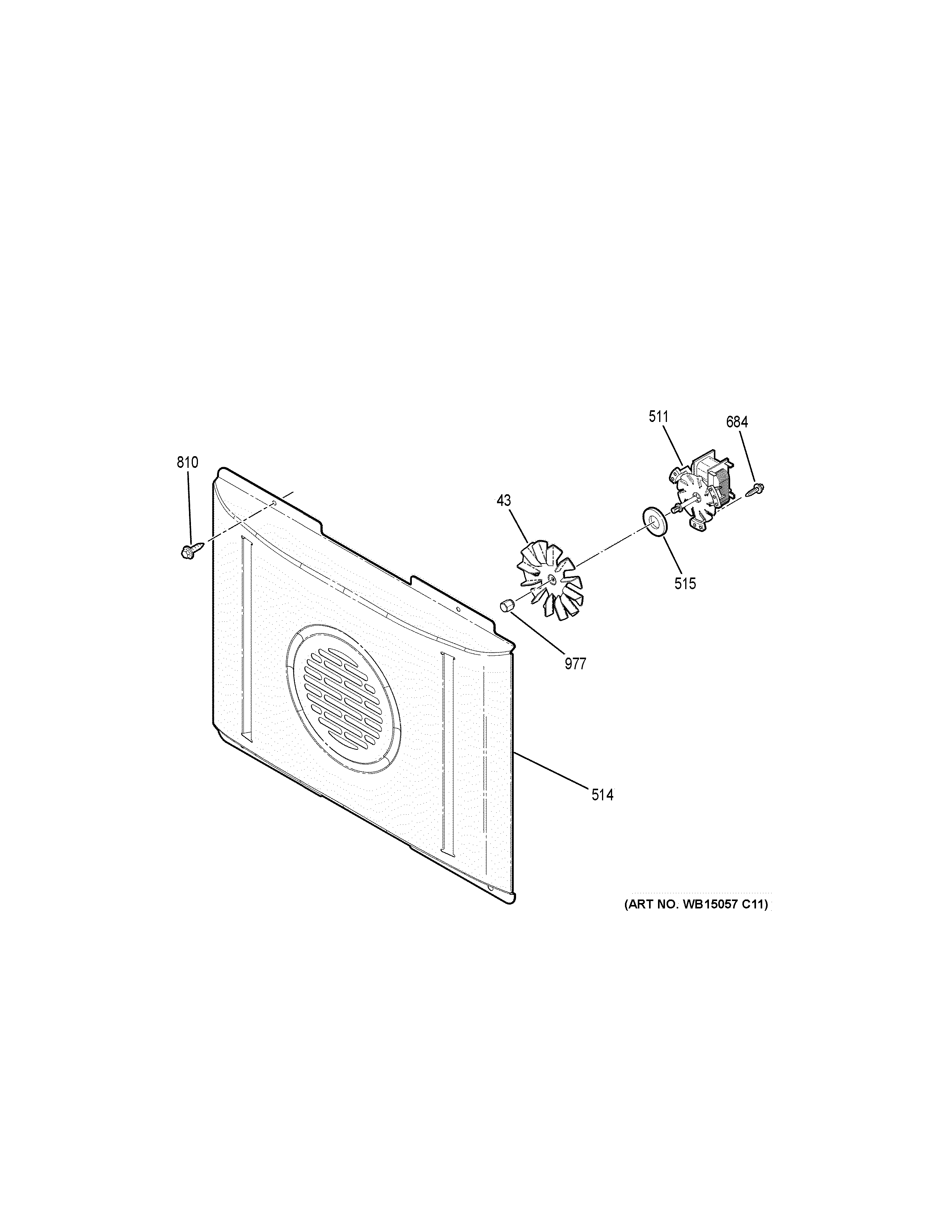

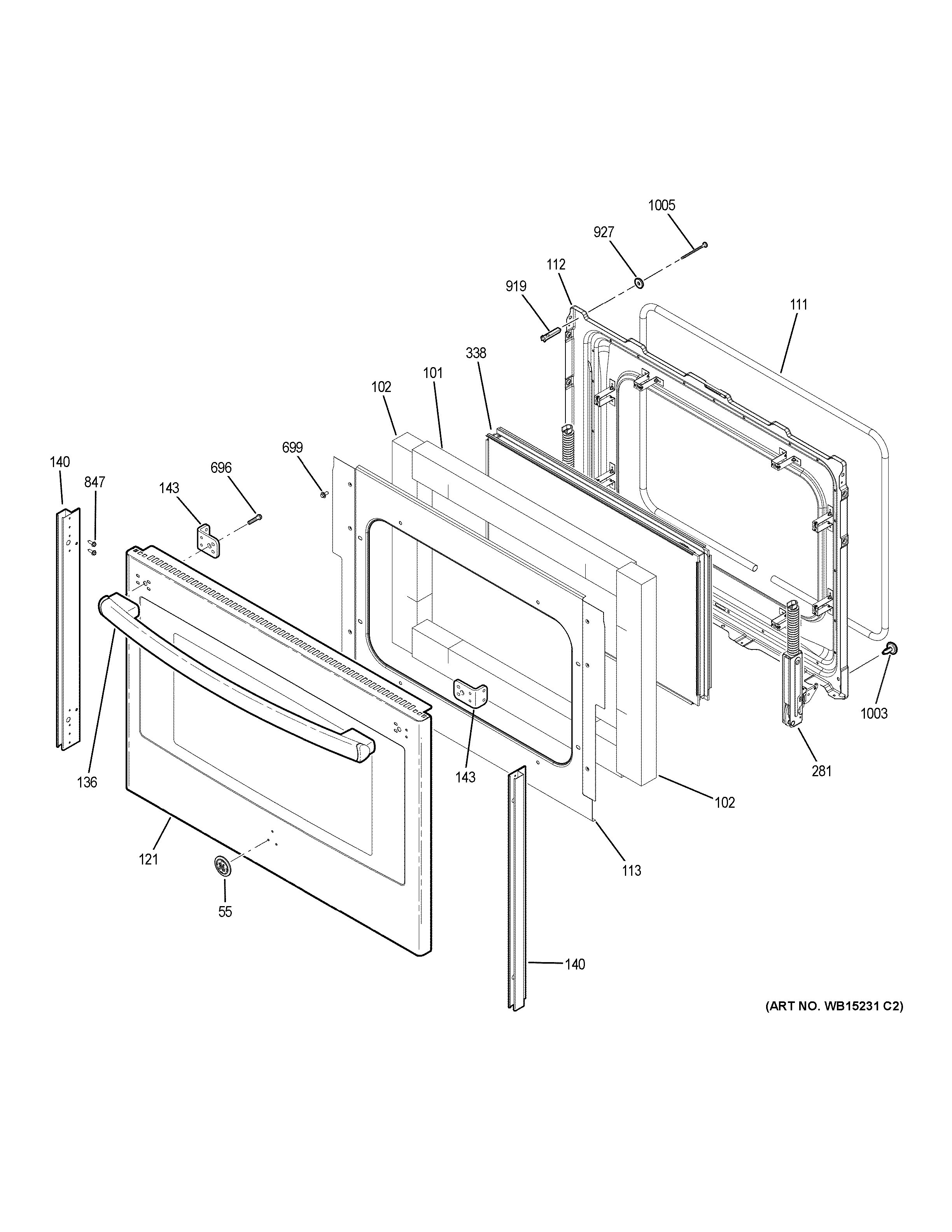

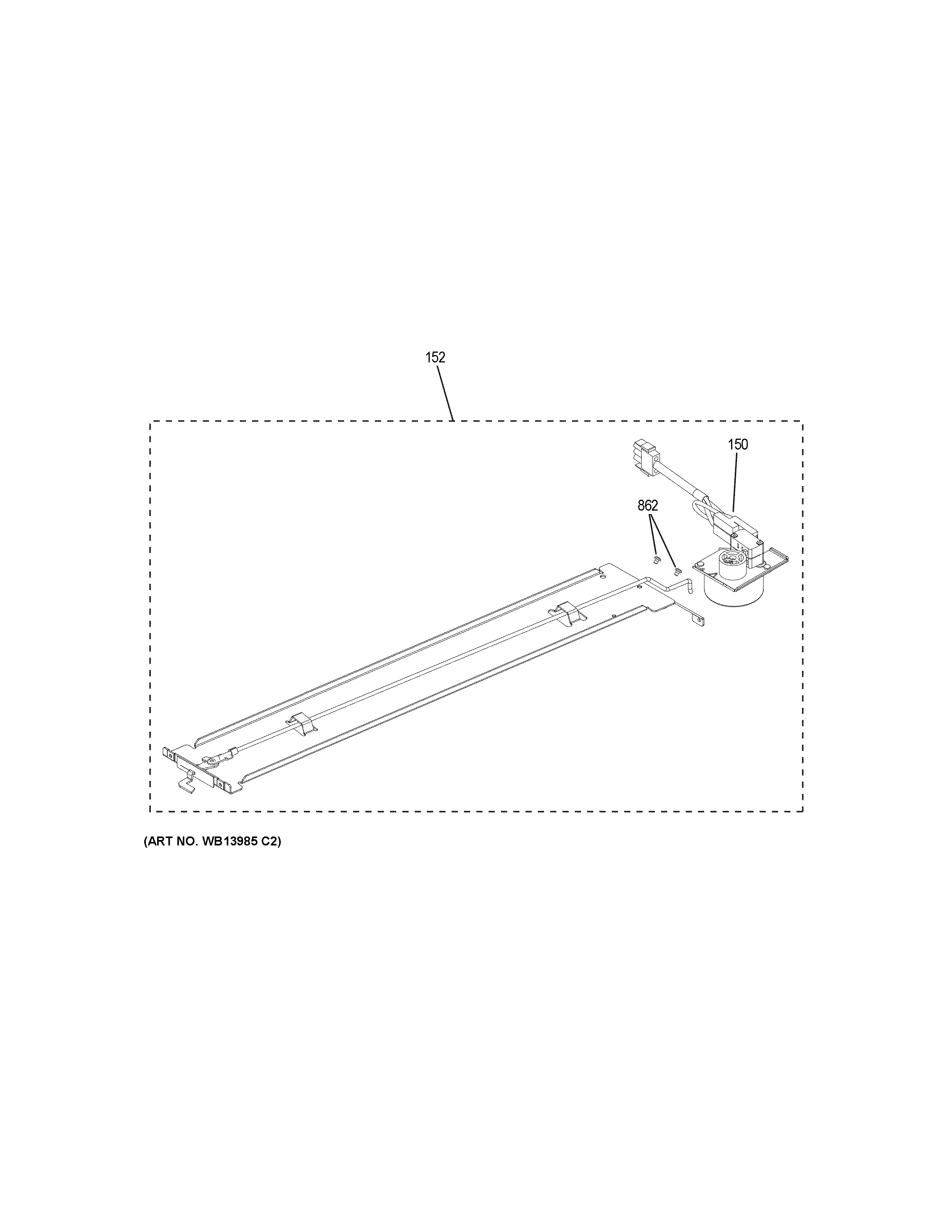

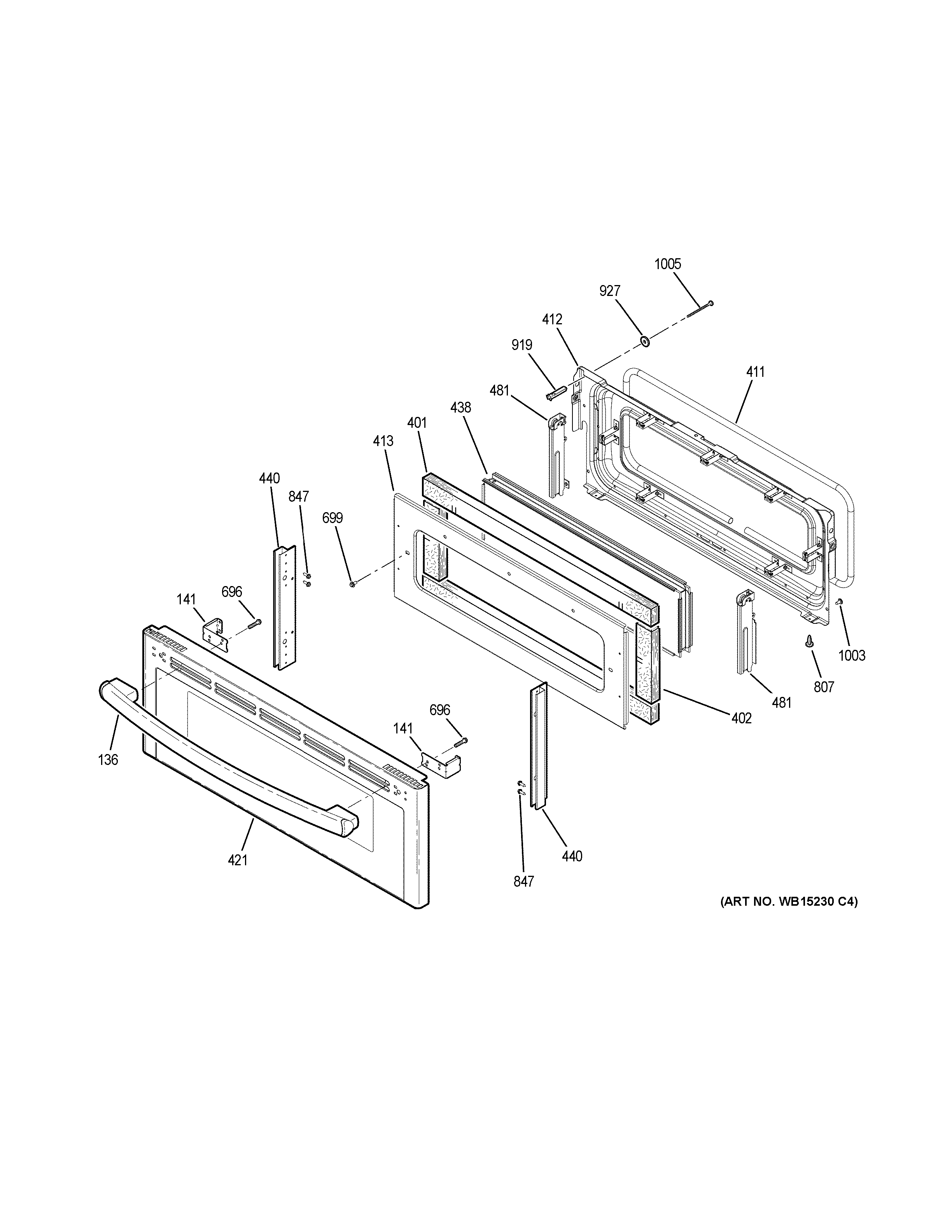

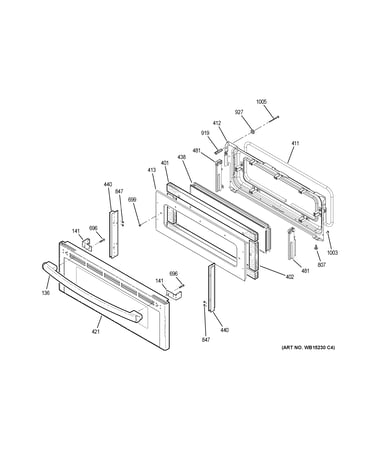

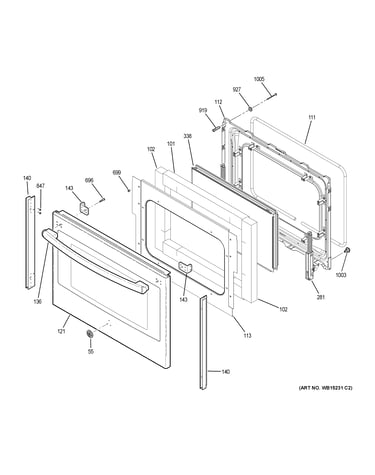

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJB860DJ5WW Ranges

  • G.e. Range Surface Element Control Switch WB24X25013
    #19

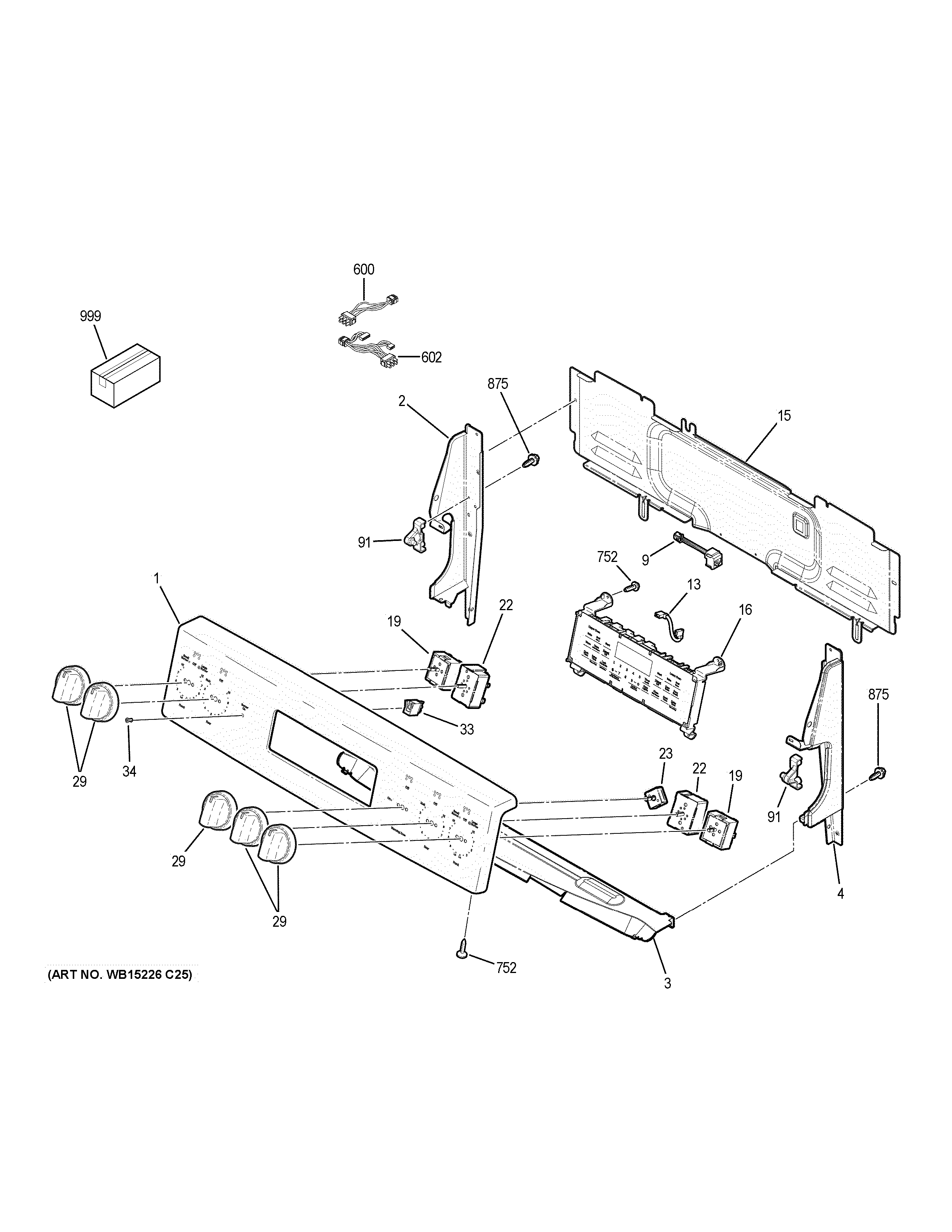

    Control panel diagram

    G.e. range surface element control switch

    Part #WB24X25013

    BEST SELLER
    $39.36 |
    13% OFF Phone Price : $45.36
    In Stock
  • Oven Lamp WB08T10022
    #257

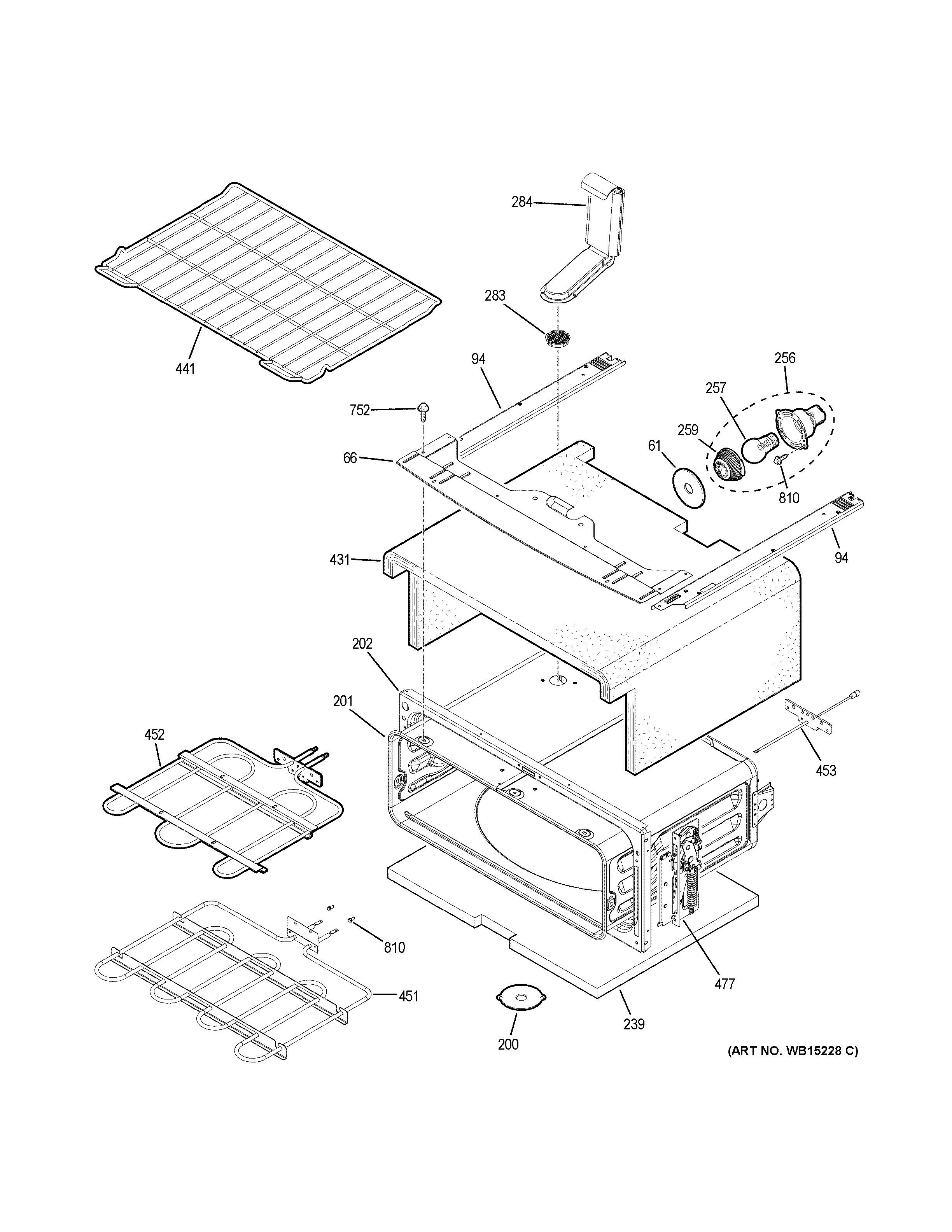

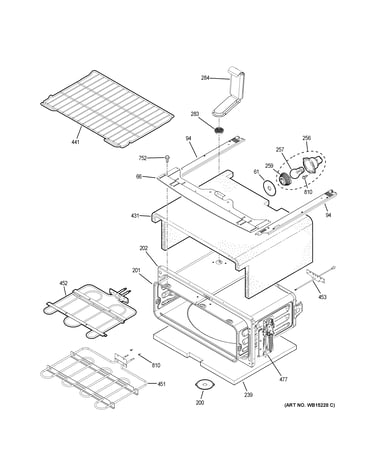

    Upper oven diagram

    Oven lamp

    Part #WB08T10022

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces WB08T10022. Substitute parts can look different from the original.
    BEST SELLER
    $15.06 |
    12% OFF Phone Price : $17.06
    In Stock
  • G.e. Range Halogen Surface Element WB30T10130
    #58

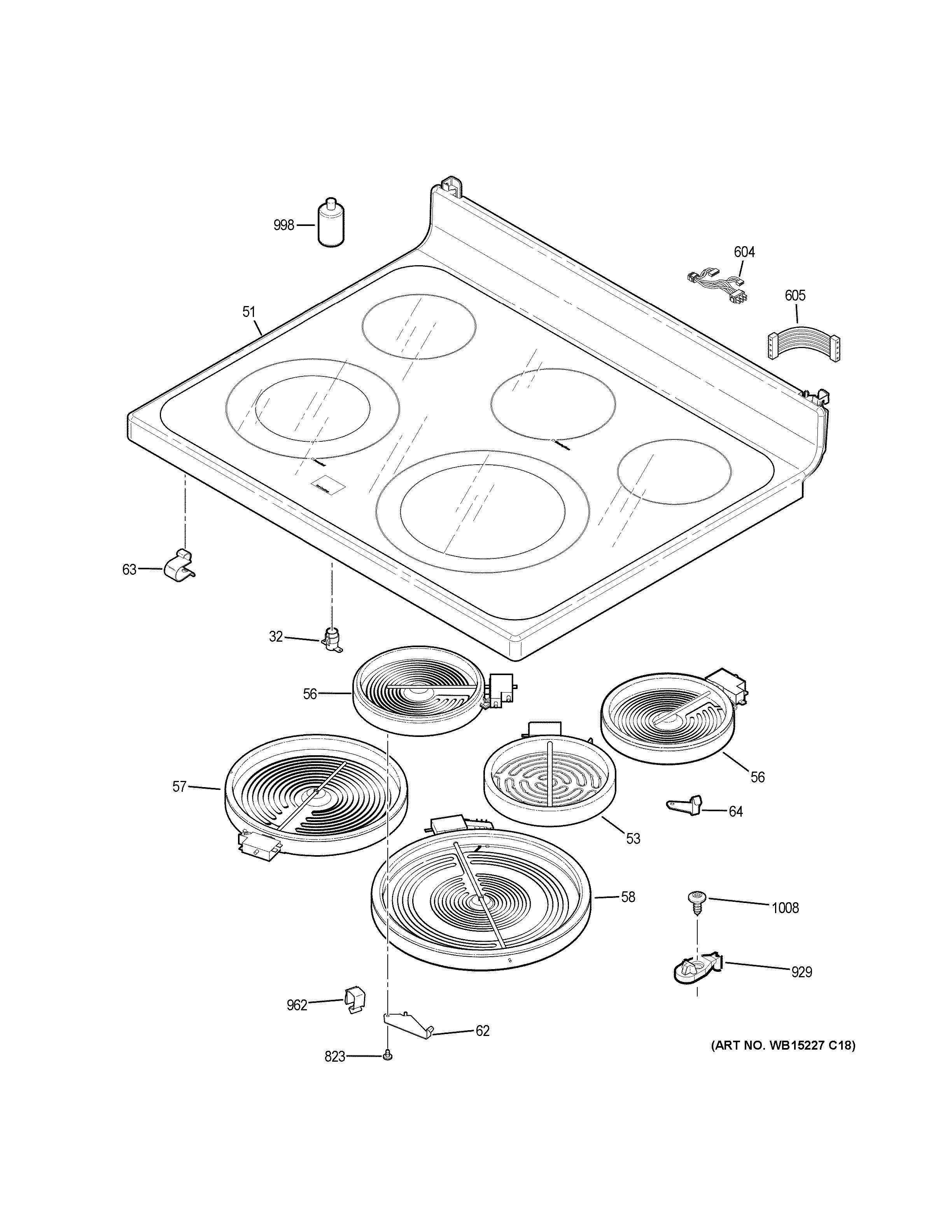

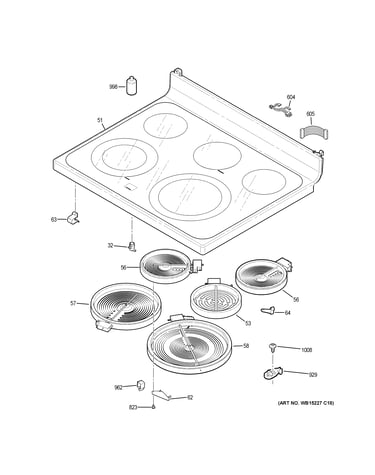

    Cooktop diagram

    G.e. range halogen surface element

    Part #WB30T10130

    BEST SELLER
    $157.72 |
    7% OFF Phone Price : $169.72
    In Stock
  • G.e. Range Dual Radiant Surface Element, 6 To 9-in WB30X24111
    #57

    Cooktop diagram

    G.e. range dual radiant surface element, 6 to 9-in

    Part #WB30X24111

    BEST SELLER
    $96.06 |
    11% OFF Phone Price : $108.06
    In Stock
  • Range Surface Element Control Switch, 1,500-watt WB24T10029
    #22

    Control panel diagram

    Range surface element control switch, 1,500-watt

    Part #WB24T10029

    BEST SELLER
    $40.16 |
    13% OFF Phone Price : $46.16
    In Stock
  • Range Radiant Surface Element, 5-1/2-in WB30T10145
    #56

    Cooktop diagram

    Range radiant surface element, 5-1/2-in

    Part #WB30T10145

    BEST SELLER
    $91.93 |
    6% OFF Phone Price : $97.93
    In Stock
  • Wall Oven Temperature Sensor WB23T10015
    #453

    Upper oven diagram

    Wall oven temperature sensor

    Part #WB23T10015

    BEST SELLER
    $29.27 |
    17% OFF Phone Price : $35.27
    In Stock
  • Range Terminal Block WB17T10011
    #255

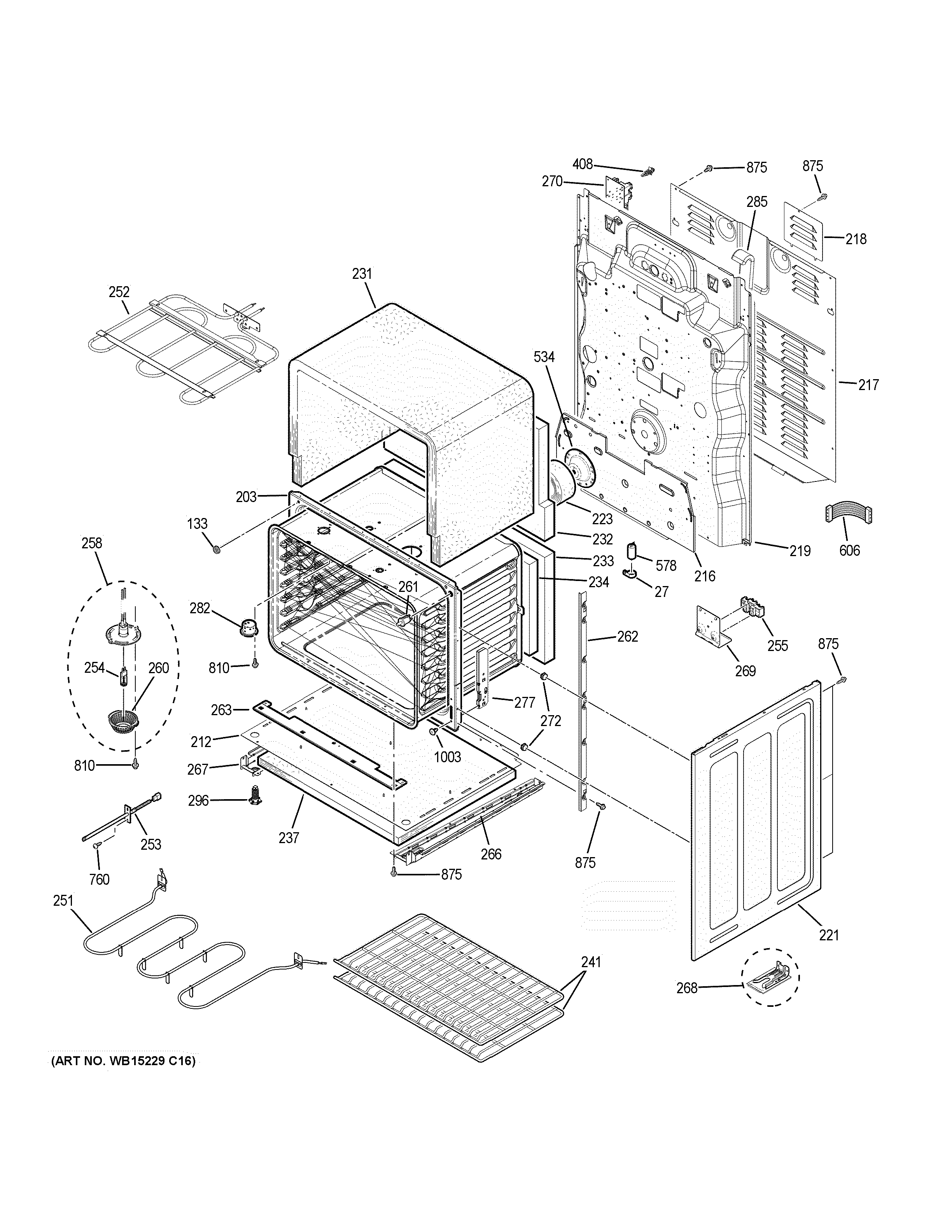

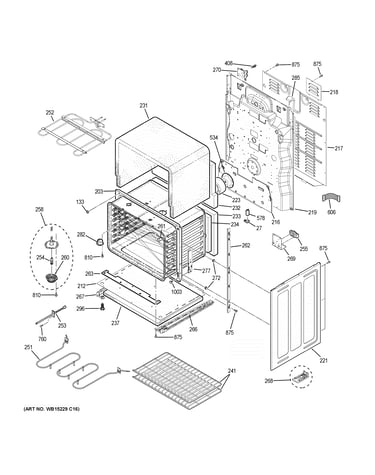

    Lower oven diagram

    Range terminal block

    Part #WB17T10011

    BEST SELLER
    $54.72 |
    10% OFF Phone Price : $60.72
    In Stock
  • Oven Lamp Holder WB08T10002
    #256

    Upper oven diagram

    Oven lamp holder

    Part #WB08T10002

    Replaced by #WB08T10002

    ?
    Manufacturer substitution
    This part replaces WB08T10002. Substitute parts can look different from the original.
    BEST SELLER
    $30.00 |
    17% OFF Phone Price : $36.00
    In Stock
  • Wall Oven Relay Control Board WB27X25594
    #270

    Lower oven diagram

    Wall oven relay control board

    Part #WB27X25594

    This item is not returnable
    $93.15 |
    6% OFF Phone Price : $99.15
    In Stock
