Model # 7MMVWX550YW0 Official Maytag washer

Here are the diagrams and repair parts for Official Maytag 7MMVWX550YW0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

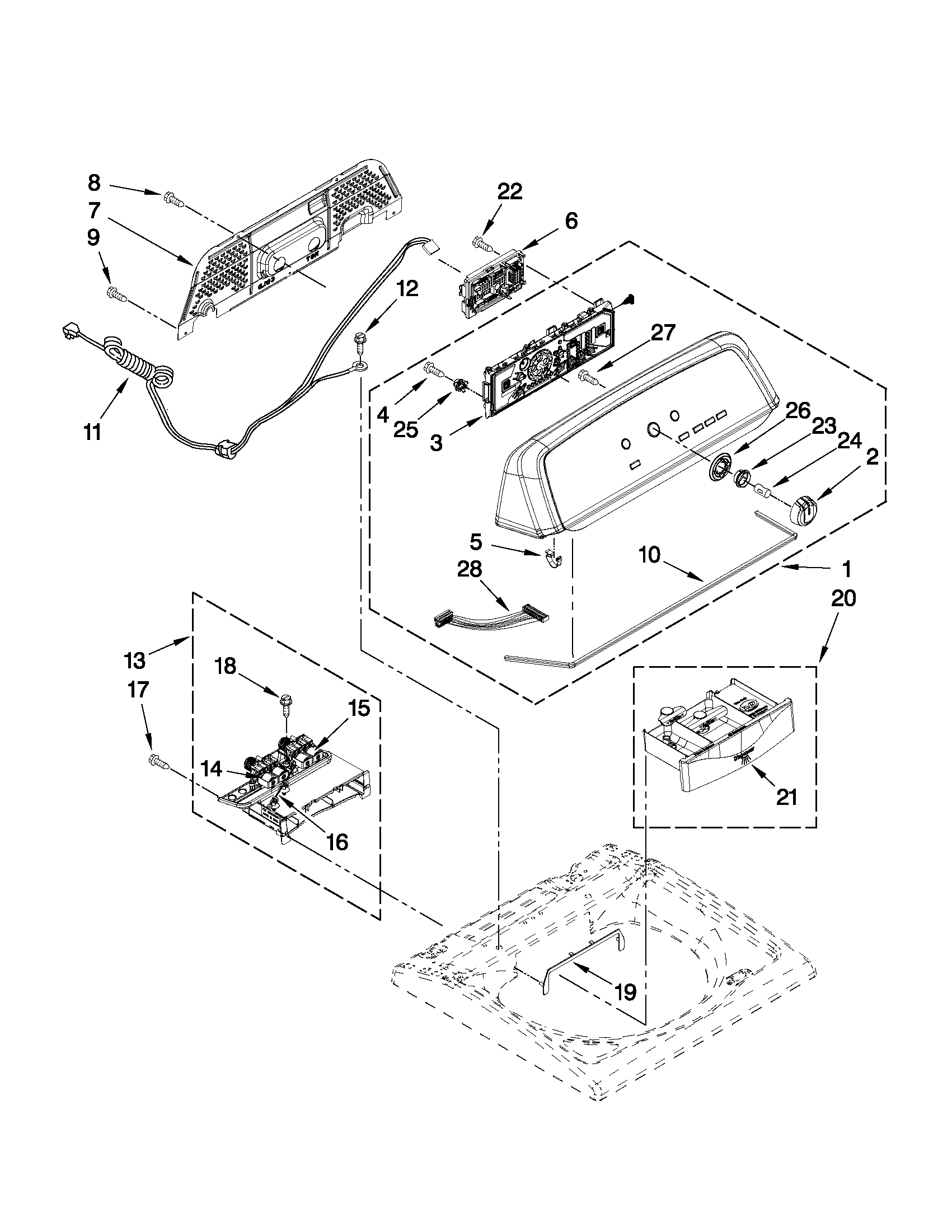

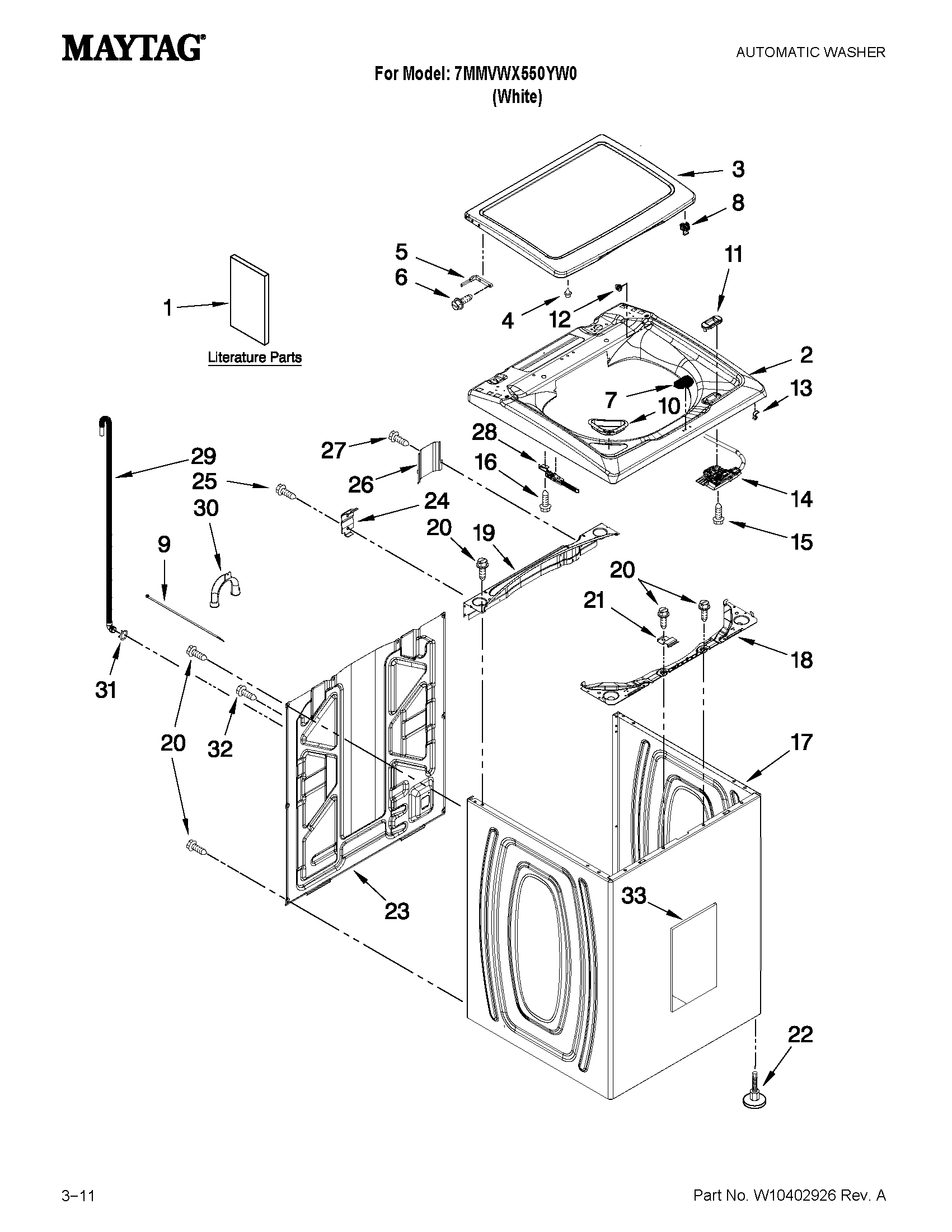

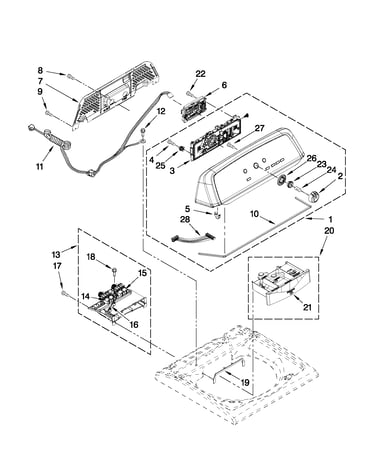

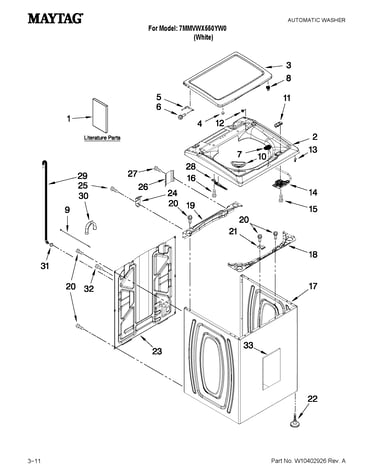

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |

Spring W10326374
#9

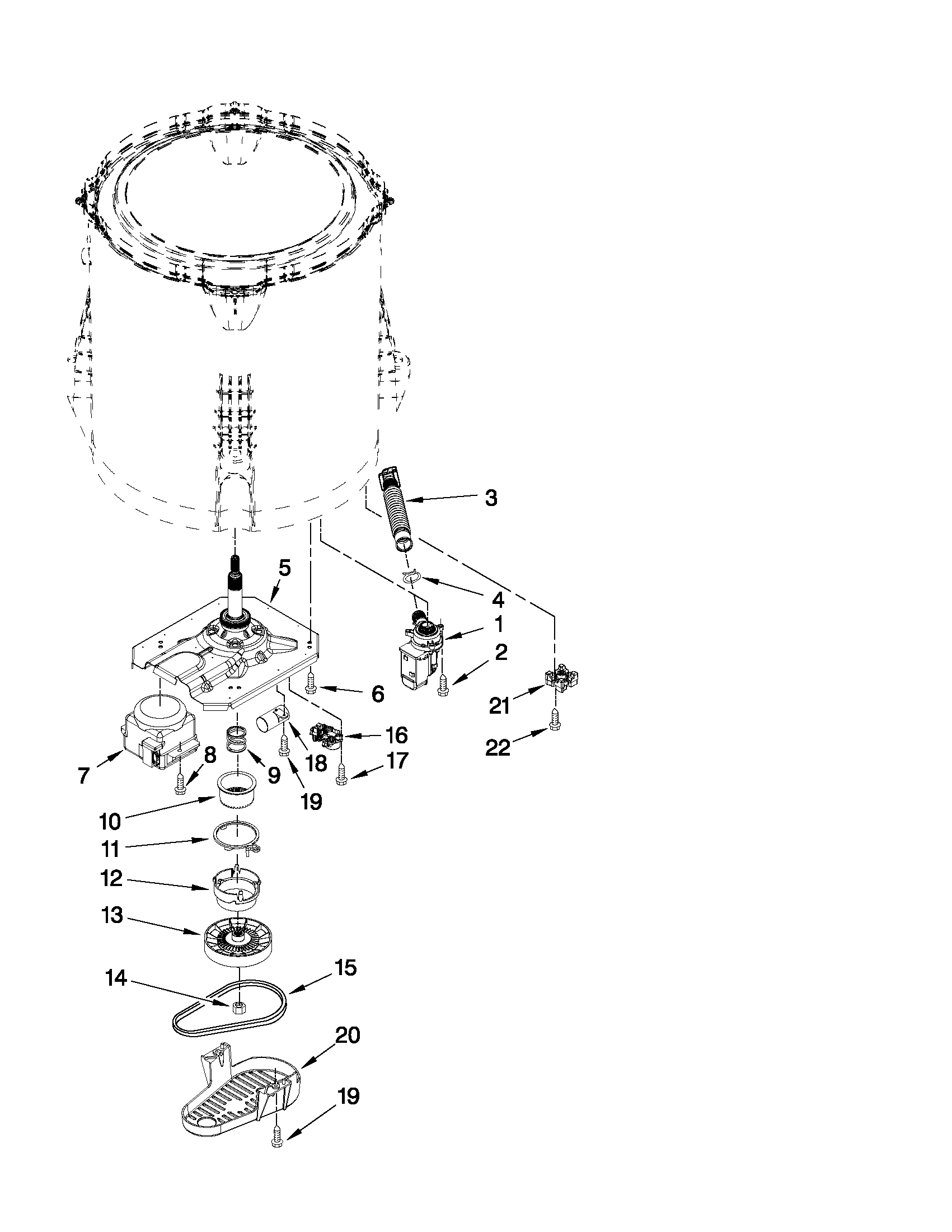

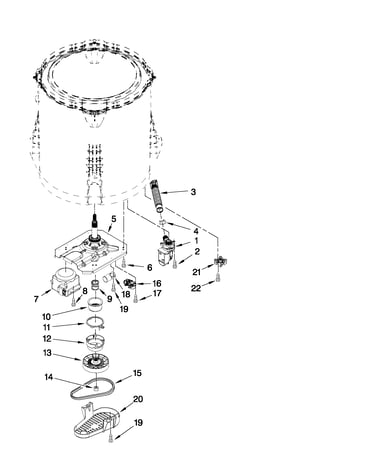

Gearcase, motor and pump parts diagram

Spring

Part #W10326374

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10326374. Substitute parts can look different from the original.
BEST SELLER
$53.28
9% OFF Phone Price : $58.28
In Stock
Cam W10006353
#11

Gearcase, motor and pump parts diagram

Cam

Part #W10006353

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006353. Substitute parts can look different from the original.
BEST SELLER
$53.28
9% OFF Phone Price : $58.28
In Stock
Cam W10006354
#12

Gearcase, motor and pump parts diagram

Cam

Part #W10006354

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006354. Substitute parts can look different from the original.
BEST SELLER
$53.28
9% OFF Phone Price : $58.28
In Stock
Washer Drive Pulley And Splutch Assembly W10006352
#10

Gearcase, motor and pump parts diagram

Washer drive pulley and splutch assembly

Part #W10006352

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006352. Substitute parts can look different from the original.
BEST SELLER
$53.28
9% OFF Phone Price : $58.28
In Stock
Washer Motor Drive Pulley W10006356
#13

Gearcase, motor and pump parts diagram

Washer motor drive pulley

Part #W10006356

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006356. Substitute parts can look different from the original.
BEST SELLER
$53.28
9% OFF Phone Price : $58.28
In Stock
Washer Drive Belt W10006384
#15

Gearcase, motor and pump parts diagram

Washer drive belt

Part #W10006384

Replaced by #WPW10006384

?
Manufacturer substitution
This part replaces W10006384. Substitute parts can look different from the original.
BEST SELLER
$27.00
23% OFF Was : $35.00
In Stock
Washer Actuator W10006355
#16

Gearcase, motor and pump parts diagram

Washer actuator

Part #W10006355

Replaced by #WPW10006355

?
Manufacturer substitution
This part replaces W10006355. Substitute parts can look different from the original.
BEST SELLER
$57.92
11% OFF Was : $65.00
In Stock
Washer Drain Pump Assembly W10276397
#1

Gearcase, motor and pump parts diagram

Washer drain pump assembly

Part #W10276397

Replaced by #WPW10276397

?
Manufacturer substitution
This part replaces W10276397. Substitute parts can look different from the original.
BEST SELLER
$107.15
11% OFF Was : $120.00
In Stock
Washer Screw W10003790
#2

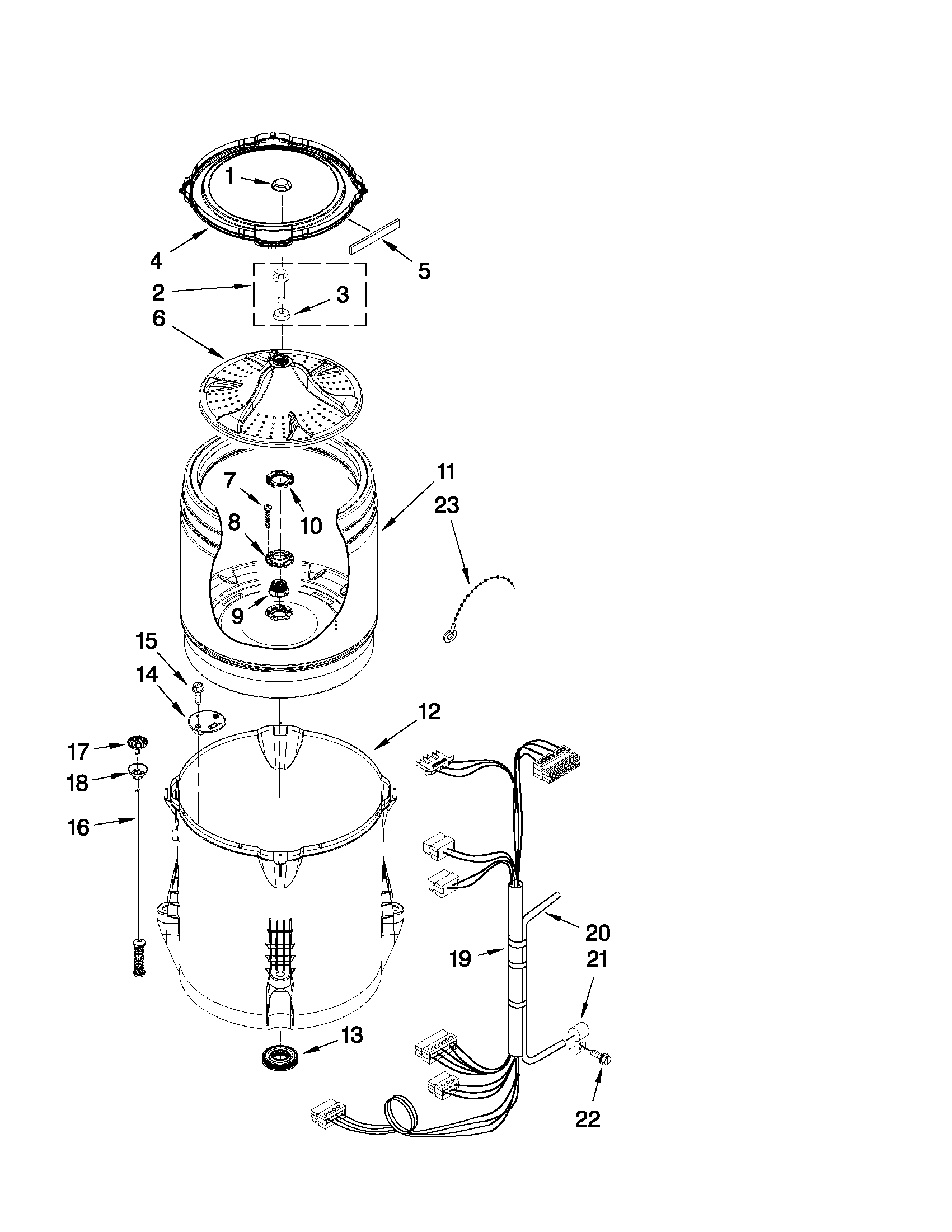

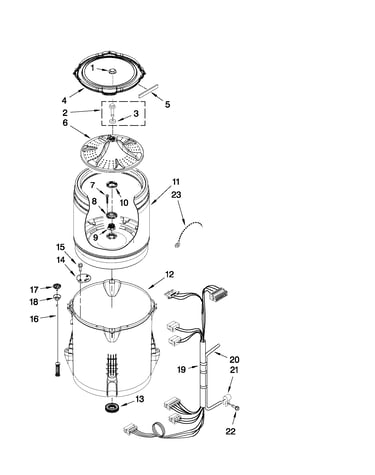

Basket and tub parts diagram

Washer screw

Part #W10003790

Replaced by #W10772621

?
Manufacturer substitution
This part replaces W10003790. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.89
67% OFF Was : $15.00
In Stock
Suspension W10257085
#16

Basket and tub parts diagram

Suspension

Part #W10257085

Replaced by #W10780051

?
Manufacturer substitution
This part replaces W10257085. Substitute parts can look different from the original.
BEST SELLER
$103.04
21% OFF Was : $130.00
In Stock
