Model # GLD2850T10CS Official GE dishwasher

Here are the diagrams and repair parts for Official GE GLD2850T10CS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

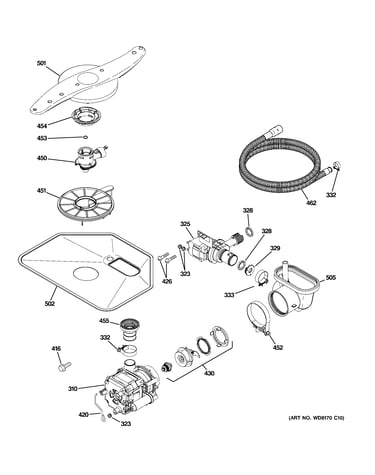

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |

Dishwasher Dishrack Slide Rail Stop (replaces Wd12x344) WD12X10304
#652

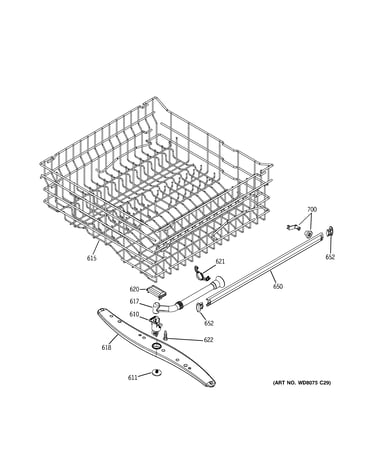

Upper rack assembly diagram

Dishwasher dishrack slide rail stop (replaces wd12x344)

Part #WD12X10304

BEST SELLER
$13.29
13% OFF Phone Price : $15.29
In Stock
Water Valve WD15X10011
#744

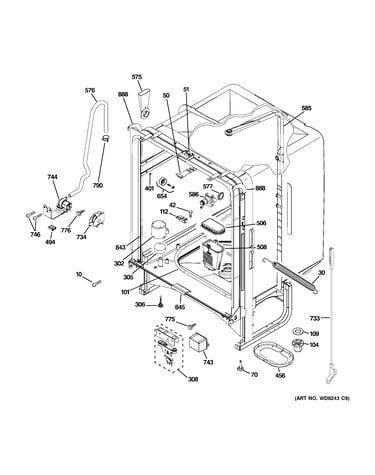

Body parts diagram

Water valve

Part #WD15X10011

Replaced by #WD15X10014

?
Manufacturer substitution
This part replaces WD15X10011. Substitute parts can look different from the original.
BEST SELLER
$33.34
13% OFF Phone Price : $38.34
In Stock
Dishwasher Door Latch Actuator (replaces Wd13x10008) WD13X10045
#804

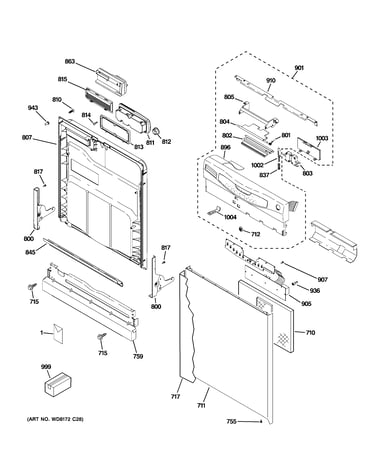

Escutcheon & door assembly diagram

Dishwasher door latch actuator (replaces wd13x10008)

Part #WD13X10045

This item is not returnable
$22.54
18% OFF Phone Price : $27.54
In Stock
Recess Sprng WR02X10585
#801

Escutcheon & door assembly diagram

Recess sprng

Part #WR02X10585

Replaced by #WR02X10585

?
Manufacturer substitution
This part replaces WR02X10585. Substitute parts can look different from the original.
$7.91
11% OFF Phone Price : $8.91
In Stock
Lower Rack WD28X10168
#701

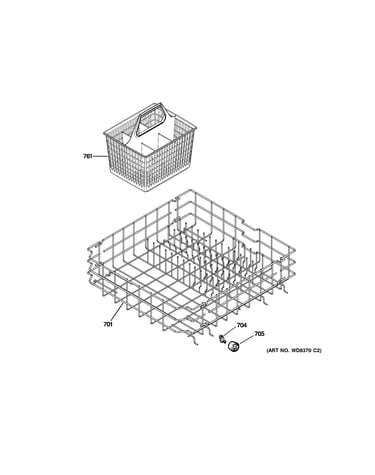

Lower rack assembly diagram

Lower rack

Part #WD28X10168

Replaced by #WD28X10385

?
Manufacturer substitution
This part replaces WD28X10168. Substitute parts can look different from the original.
$141.26
7% OFF Phone Price : $151.26
In Stock
Slide WD30X0098
#650

Upper rack assembly diagram

Slide

Part #WD30X0098

Replaced by #WD30X98

?
Manufacturer substitution
This part replaces WD30X0098. Substitute parts can look different from the original.
$23.15
18% OFF Phone Price : $28.15
In Stock
Dishwasher Screw WD02X10067
#622

Upper rack assembly diagram

Dishwasher screw

Part #WD02X10067

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Dishwasher Dishrack, Upper WD28X10169
#615

Upper rack assembly diagram

Dishwasher dishrack, upper

Part #WD28X10169

Replaced by #WD35X10381

?
Manufacturer substitution
This part replaces WD28X10169. Substitute parts can look different from the original.
$143.59
7% OFF Phone Price : $153.59
In Stock
Dishwasher Door Handle Plunger Spring WD03X10026
#837

Escutcheon & door assembly diagram

Dishwasher door handle plunger spring

Part #WD03X10026

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Interlock Cover WD12X10323
#1003

Escutcheon & door assembly diagram

Interlock cover

Part #WD12X10323

Replaced by #WD12X10401

?
Manufacturer substitution
This part replaces WD12X10323. Substitute parts can look different from the original.
$7.88
11% OFF Phone Price : $8.88
In Stock
