Kenmore 10651135610 side-by-side refrigerator Parts

The cubic-foot capacity for Kenmore model 10651135610 is provided on the refrigerator’s rating label and in the 10651135610 owner's manual. Use those two sources to get the exact total capacity for your specific unit; that is the number used for specs and comparisons.

Where to find the exact cubic feet for model 10651135610

Check these spots in this order:

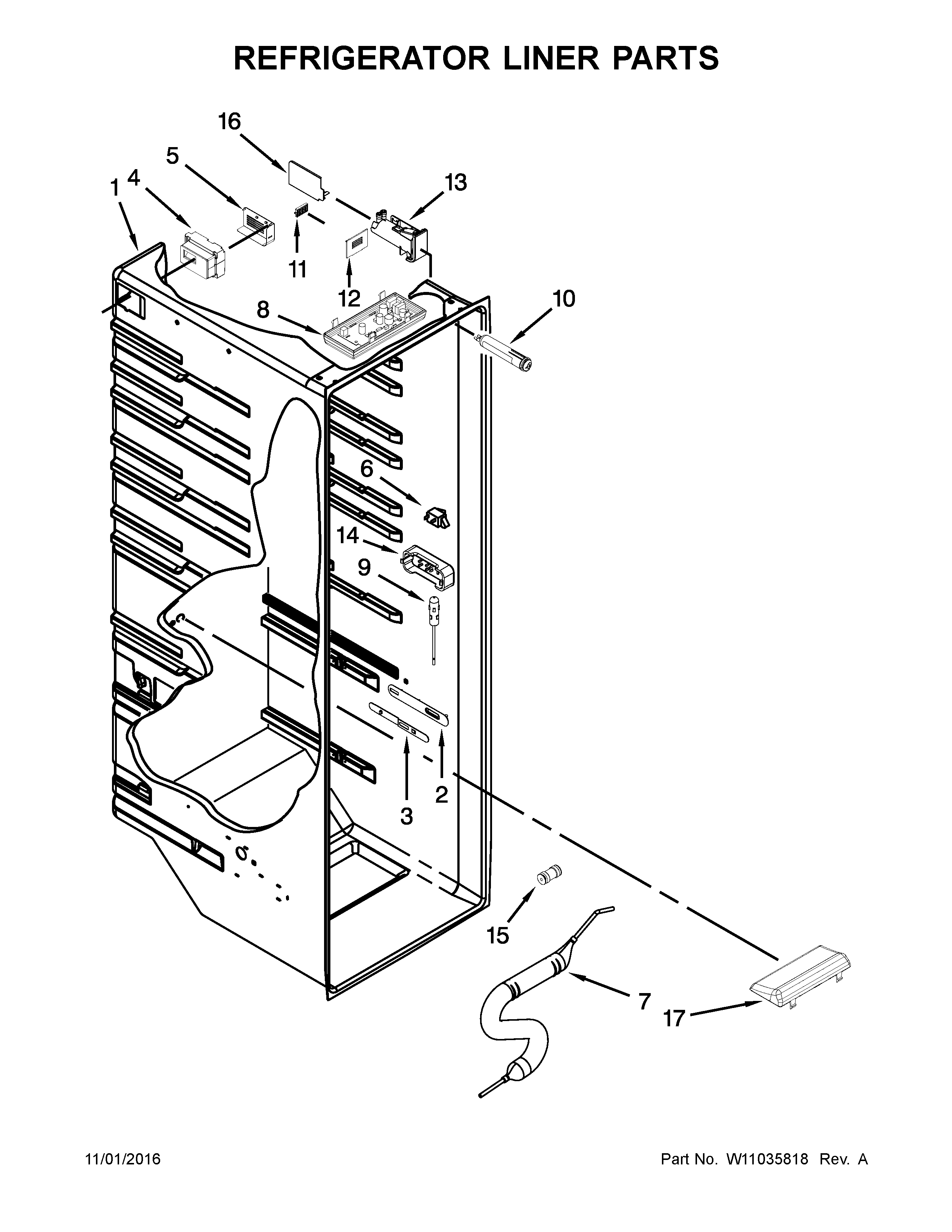

• Rating label: inside the fresh food section (commonly on a side wall, near the crisper area, or on the ceiling)
• Owner’s manual: look for “Specifications,” “Product data,” or “Consumer information” in the 10651135610 owner's manual
• Model and serial tag: often next to the rating label; it confirms you are reading the correct label for 10651135610
• If the label is damaged: compare your model number and features, then use the manual’s spec section as the reference

What “cubic feet” means (and what it does not)

Cubic feet is the total interior volume (refrigerator plus freezer). Usable space is always less because shelves, bins, the ice maker, and air ducts take up room.

Spec term	What it includes	What to expect
Total capacity (cu. ft.)	Fresh food + freezer	The main number shown on the rating label
Usable storage	Shelves, bins, drawers installed	Feels smaller than total capacity

Why it matters

The correct capacity helps when comparing Kenmore side-by-side refrigerators and when selecting storage parts that affect space, such as a refrigerator door bin WPW10710203 or shelves.

Last updated: January 2026

Kenmore side-by-side refrigerator model 10651135610 dimensions are provided in the specifications section of the 10651135610 owner's manual. Use those published measurements for cabinet planning, then confirm with a tape measure on your unit (handles, hinges, and leveling feet can change the real-world fit).

How to measure it correctly (so it fits the opening)

• Measure width at the widest point (doors, hinges, or trim)
• Measure height from the floor to the highest point (hinge cover if higher)
• Measure depth two ways: cabinet only and to the front of the handles
• Check door swing clearance so doors open fully without hitting walls
• Leave room for the power cord and water line behind the unit

Space planning clearances (typical)

Use the manual dimensions as your baseline; then add clearance for airflow and hookups.

Planning item	What to base it on	Typical clearance to add
Side clearance	manual width	1/2 to 1 inch total
Top clearance	manual height	about 1 inch
Rear clearance	manual depth	2 to 3 inches

Why it matters

Correct dimensions and clearances prevent restricted airflow (warm temperatures), doors that do not open fully, and pinched water lines that can cause leaks or dispenser and ice maker issues.

Related parts to check after moving the refrigerator

• Replace the Kenmore refrigerator water filter 9081 if water taste or flow is poor
• Inspect the water supply connection for drips after pushing the unit back
• Re-level the refrigerator so doors close and seal consistently

Last updated: January 2026

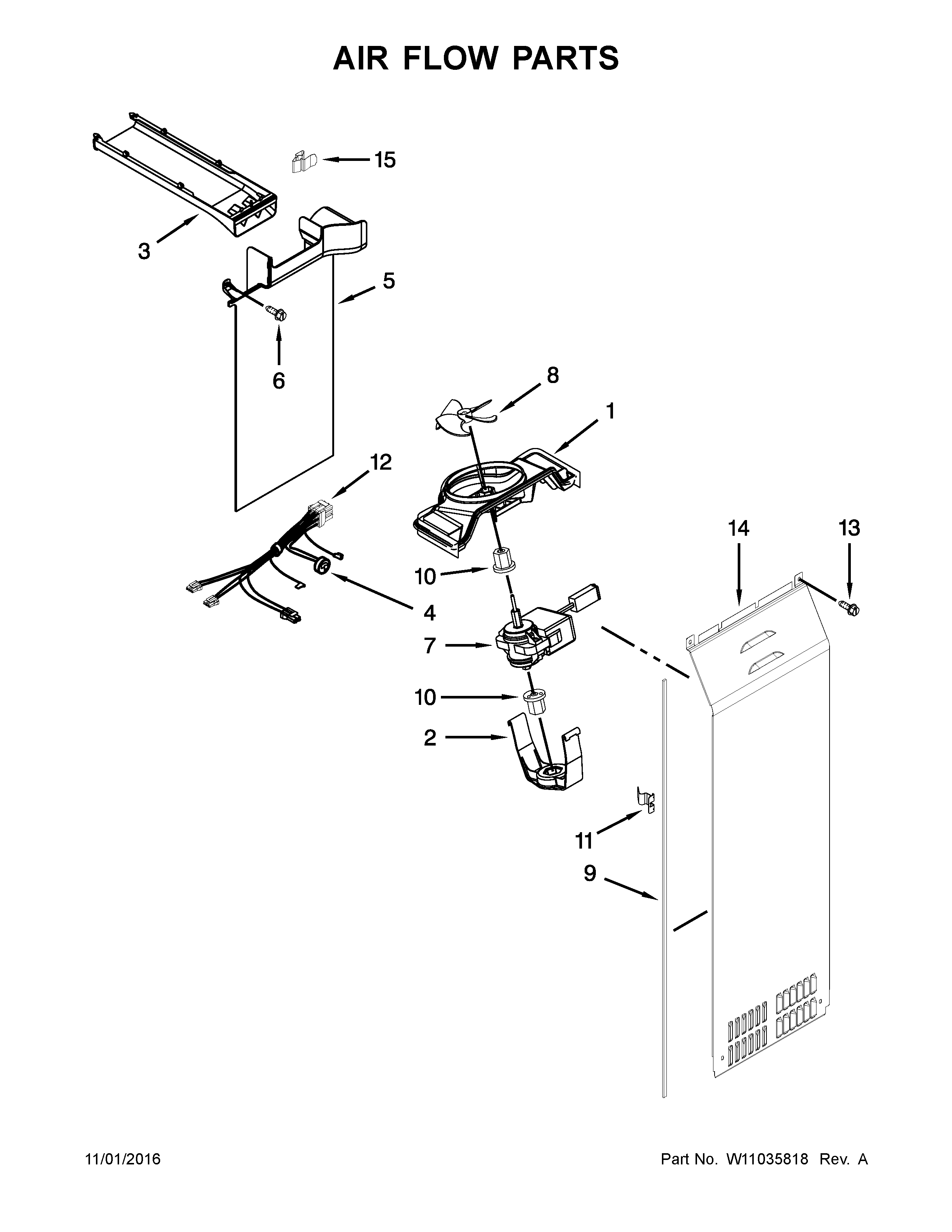

On Kenmore side-by-side refrigerator model 10651135610, the SY EF (sometimes shown as 5Y EF) display indicates the refrigerator is detecting an evaporator fan airflow or fan feedback problem. We use the fan, door switch, frost buildup, and wiring checks below to pinpoint the cause.

What SY EF usually points to

SY EF is tied to the freezer evaporator fan system that circulates cold air through the freezer and into the fresh food section.

• Evaporator fan motor not running or running intermittently
• Fan blade obstructed by ice or rubbing the shroud
• Freezer door switch not closing (fan stays off with door open)
• Heavy frost from a defrost issue restricting airflow
• Loose wiring connection between the fan and control

For model-specific diagnostics and any built-in test modes, follow the 10651135610 owner's manual.

Quick checks you can do safely

1. Reset power: unplug for 5 minutes, then plug back in.
2. Listen for the fan: with the freezer door closed, you should hear airflow when the compressor is running.
3. Check for frost: heavy frost on the freezer back panel often means airflow is being blocked.
4. Press the door switch: if the fan starts only when you press it, the switch may be failing.

Common fixes and related parts

Symptom	Most common cause	Part that often resolves it
No fan sound, warming temps	Failed fan motor	Refrigerator evaporator fan motor WP2315549
Fan noisy or hitting ice	Damaged blade or ice interference	Refrigerator evaporator fan blade WP2169142
Fan stops when door is shut	Door switch not signaling closed	Refrigerator door switch W11384469
Frost buildup, weak airflow	Defrost control issue (often thermostat)	Refrigerator defrost bi-metal WPW10225581

Why it matters

The evaporator fan is the main way cold air moves through a side-by-side refrigerator. When airflow drops, the fresh food section warms first, ice production can slow, and temperatures become unstable.

Last updated: January 2026
