Kenmore Elite 79046603500 electric range Parts

To reset your Kenmore Elite electric range model 79046603500, turn the oven off, then reset power at the breaker for about 1 minute and restore power. If you are trying to clear a lockout, use the control-panel lockout steps in the owner's manual.

Quick reset options (use the one that matches your symptom)

• Control acting frozen or unresponsive: power reset at the breaker (most effective “reset”).
• Oven won’t start and “LOC” or “DOOR LOCKED” shows: turn off the Oven Lockout feature.
• After a power outage: keep the oven OFF until power is stable, then set the clock and test Bake/Broil.
• After self-clean: wait for the oven to cool and the door to unlock before trying to use it.

Power reset (factory-style reboot)

1. Set the oven to OFF/CANCEL.
2. Turn the range circuit OFF at the household breaker (or unplug if accessible).
3. Wait 60 seconds.
4. Restore power.
5. Test Bake at 350°F and Broil to confirm the elements heat normally.

Clear “LOC” (Oven Lockout) on model 79046603500

The Oven Lockout prevents the oven from turning on and locks the door, but it does not disable the clock or timer.

• Press and hold the Oven Lockout pad for 3 seconds.
• Wait for the door to fully unlock and for “LOC” to clear.

What you should see after a successful reset

Situation	What changes	What to do next
Power reset worked	Display returns to normal	Set clock; test Bake/Broil
Lockout was on	“LOC” clears; door unlocks	Start a normal Bake cycle
After self-clean	Door unlocks after cool-down	Wipe ash; resume cooking

Why it matters

A true “reset” on an electronic oven control is usually a power reboot. If the issue is actually a lockout or a self-clean door lock condition, clearing the lockout restores normal operation without replacing parts.

Last updated: February 2026

On the Kenmore Elite electric range model 79046603500, the model and serial number are printed on the serial plate located on the oven front frame behind the oven door (some models) or behind the drawer (some models). For exact placement and illustrations, use the installation guide.

Where to look (fast checklist)

• Open the oven door and check the front frame (the face frame around the oven opening)
• Look for a serial plate label behind the door on the frame
• If you do not see it, pull out the storage or warmer drawer and check behind the drawer area
• Use a flashlight; the label is often low and easy to miss
• Write down the model number, serial number, and any lot number/letter shown

Why the model number matters

We use the model number to match the correct Kenmore parts and diagrams for your range, especially for electrical and heating components like the oven temperature sensor, surface element switches, and wiring harnesses.

What you should record

Label item	What it’s used for
Model number (79046603500)	Ensures the correct parts list and diagrams
Serial number	Helps identify production details for the unit
Lot number/letter (if shown)	Helps narrow down version differences

If the label is hard to read

• Take a clear photo with your phone (no flash glare)
• Wipe dust or grease lightly with a damp cloth, then dry
• Avoid scraping the label; it can remove the print

Last updated: February 2026

Kenmore model numbers are read left to right: the first 3 digits identify the manufacturer family, and the remaining digits identify the specific product series and feature set. For Kenmore Elite electric range model 79046603500, the 790 prefix is the key identifier to use when matching parts and manuals. See the owner's manual for where the serial plate is located and how the model number is recorded.

What each section of a Kenmore model number means

Most Kenmore model numbers follow this structure:

• First 3 digits: manufacturer prefix (used for parts lookup and service literature)
• Middle digits: base design or series (platform and core configuration)
• Last digits: feature and production variations (color, revision, option package)

Example using your range

For 79046603500:

Section	Example	What it tells you
Manufacturer prefix	790	Manufacturer family used for parts matching
Series / platform	4660	Range design series (helps narrow compatible components)
Variation / revision	3500	Feature or production variation

Where to find the model number on this range

On Kenmore Elite ranges like 79046603500, the model and serial number are printed on the serial plate. The owner's manual shows the serial plate location and recommends recording the model and serial number for future reference.

• Check the oven frame area around the door opening
• Look for a rating label/serial plate (often visible when the oven door is open)
• Write down the full model number and serial number exactly as shown

Why it matters for parts and troubleshooting

Using the full model number prevents ordering the wrong part and helps you match the correct wiring, controls, and heating components.

Common examples where the exact model number matters:

• Replacing an oven sensor such as the range oven temperature sensor 316217002
• Matching a surface burner control like the range surface element infinite switch 318191023
• Confirming fit for an oven heating component like the range broil element 318255605

Last updated: February 2026

Yes. The Kenmore Elite 79046603500 is part of Kenmore’s premium “Elite” line, and it’s built as a feature-forward slide-in electric range with an electronic oven control, dual surface elements, a warmer drawer, and a self-cleaning oven (features vary by configuration). For exact features and control options on your unit, use the owner's manual.

What “high end” means for this model

For the 79046603500, “high end” typically refers to a more advanced feature set and a more built-in look than basic freestanding ranges.

Common premium traits you’ll see on this model family include:

• Slide-in design for a more integrated countertop appearance
• Electronic oven control with clock and kitchen timer
• Dual radiant surface elements (for flexible pan sizes)
• Warmer drawer controls (Warm & Ready style)
• Self-cleaning oven cycle

Quick feature snapshot

Category	What you get on 79046603500	Why it matters
Cooktop	Dual-size radiant elements plus standard elements	Better heat control for different cookware sizes
Oven	Electronic controls, self-clean	More precise settings and easier cleanup
Drawer	Warmer drawer	Keeps food hot without overcooking

Why it matters when buying parts or troubleshooting

Higher-end ranges often rely more on sensors, switches, and control components. When performance issues show up (temperature swings, burner not regulating, error beeps), the fix is frequently a specific electrical part rather than a mechanical adjustment.

If you’re diagnosing performance problems, these model-matched parts are commonly involved:

• Oven temperature accuracy issues: frigidaire range oven temperature sensor 316217002
• Surface element won’t regulate heat: frigidaire range surface element infinite switch 318191023
• Oven overheats or shuts down on high heat: range high-limit thermostat 318003624

How we recommend confirming your exact configuration

Even within the 790.4660_ series, feature sets can vary by color number and build.

• Match the model and serial from the serial plate

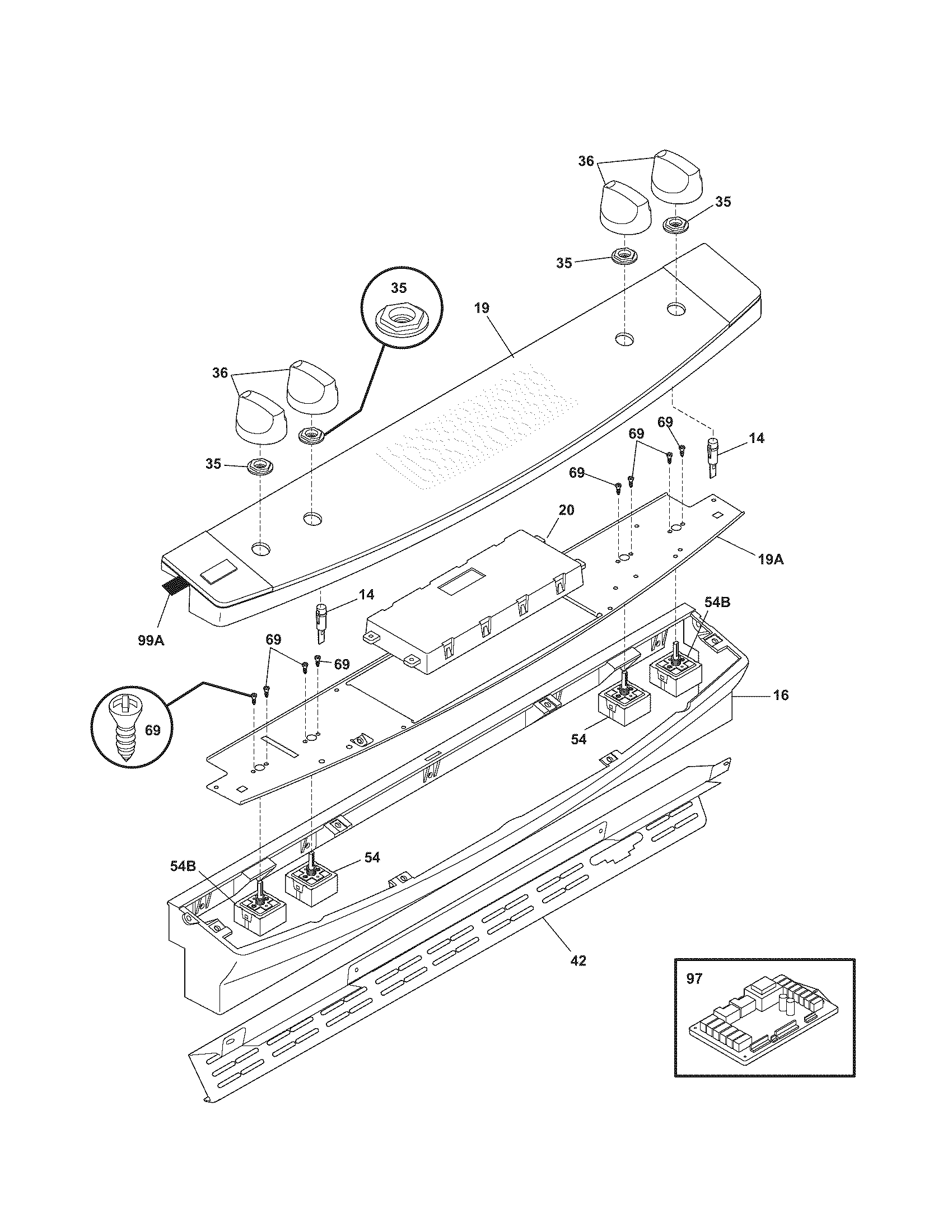

• Compare your control panel layout to the diagrams

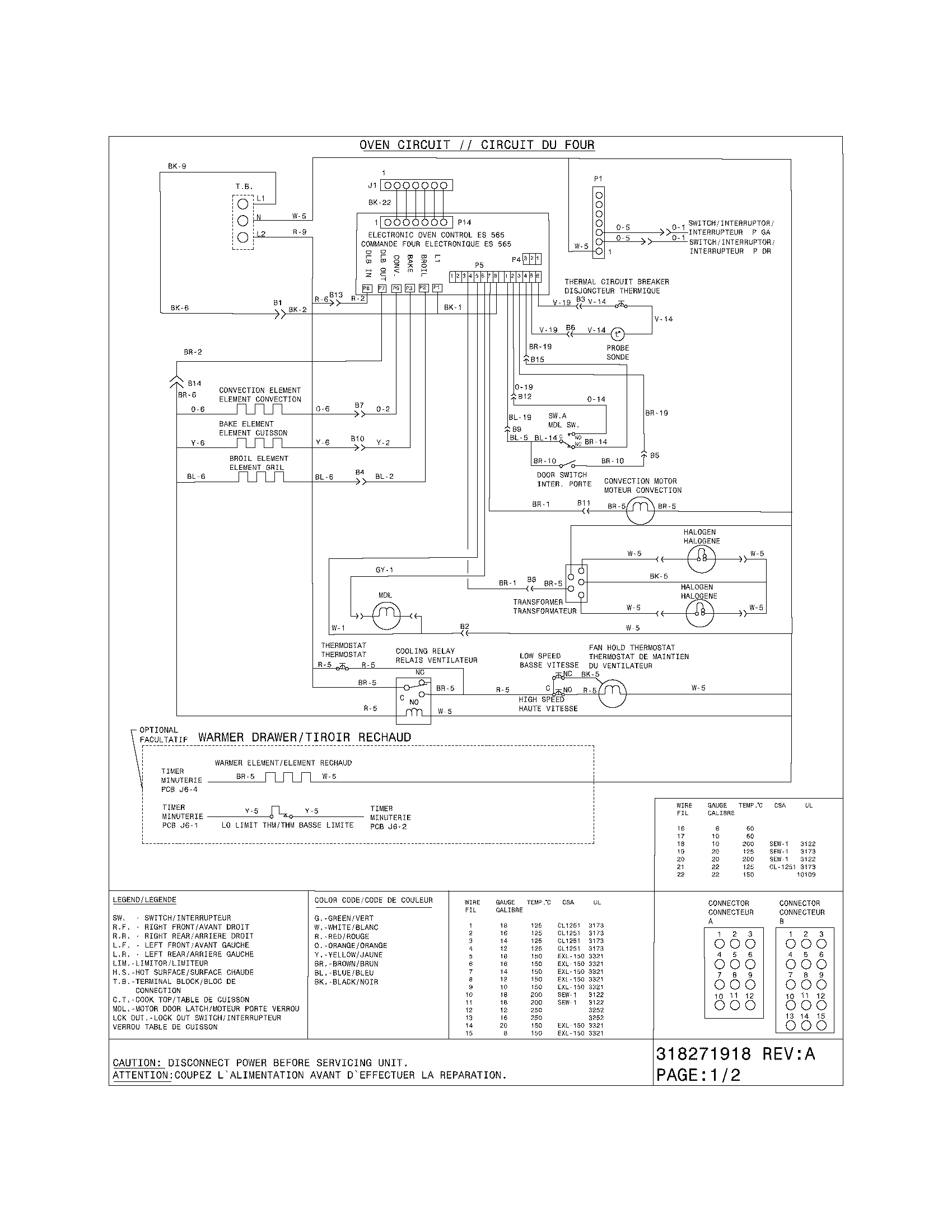

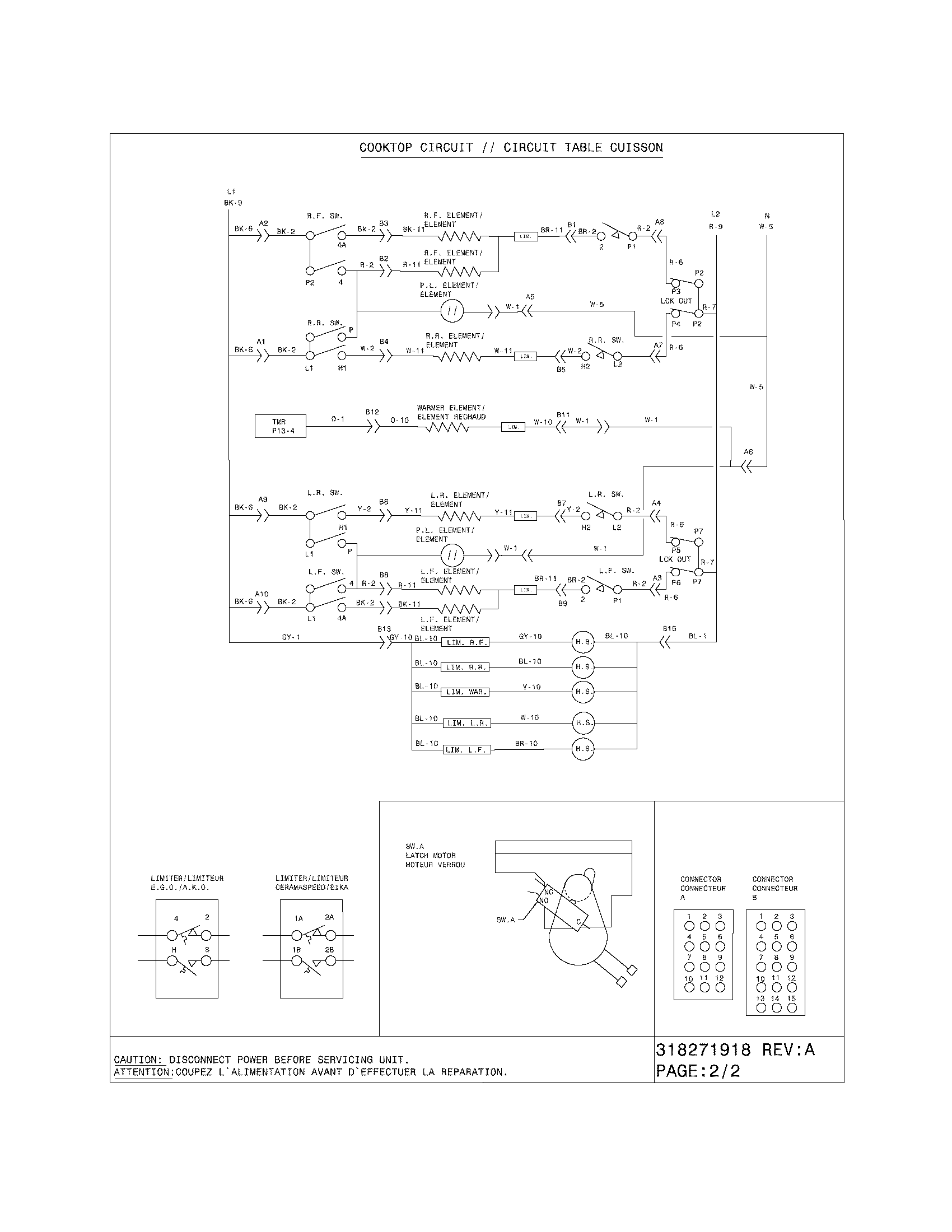

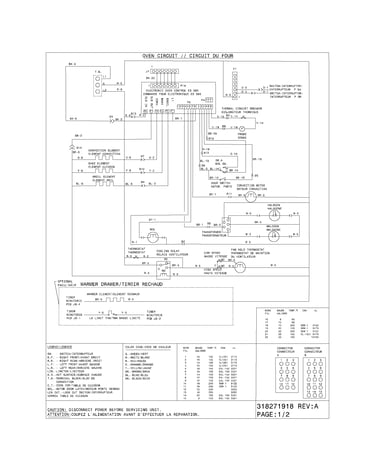

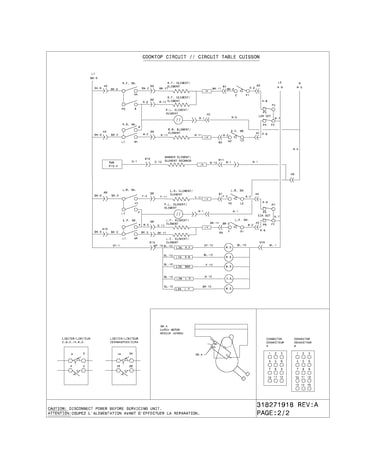

• Use the wiring diagram and control descriptions to confirm options

Last updated: February 2026

If your Kenmore Elite electric range model 79046603500 is not heating, the most common causes are a power supply problem, an incorrect control setting, or a failed heating component (bake/broil element, temperature sensor, or a control). Start with the quick checks in the owner's manual.

Quick checks first (fastest fixes)

• Confirm the range is getting full power; electric ranges typically need a 240V supply (a partially tripped breaker can leave you with lights but no heat).
• Make sure the cord/plug connection is tight (if your installation uses a plug).
• Verify you are using the correct control for the surface element you want to heat.
• Raise the heat setting; a setting that is too low can make it seem like the element is not working.
• If you are testing the oven, allow a few minutes; elements cycle on and off during normal operation.

Oven not heating: what to check next

For this model, a no-heat oven is usually tied to a failed sensor, an element issue, or a safety/control problem.

• Temperature sensor: If the oven temperature is wildly inaccurate or the oven will not regulate heat, the sensor is a prime suspect. Consider testing or replacing the frigidaire range oven temperature sensor 316217002.
• Broil element: If broil will not heat (or the oven struggles to reach temp), inspect the broil element for blisters, cracks, or burn spots; replace if damaged (example part: range broil element 318255605).
• Control or wiring: Loose or heat-damaged connections can stop heating. If you see discoloration or melted terminals at the power connection, the terminal block 5304409888 is a common repair.

Surface element not heating (cooktop)

• Try a different burner to confirm the issue is isolated.
• If only one burner fails, the infinite switch for that burner can be the cause; see frigidaire range surface element infinite switch 318191023.
• If the burner heats but is erratic, re-check the knob setting and switch operation.

Symptom-to-part guide

Symptom	Most likely area	Common part to check
Oven will not heat or temp is unstable	Oven sensing	Temperature sensor
Broil does not work	Broil circuit	Broil element
Cooktop burner dead	Burner control	Infinite switch
Range has power but heating is dead/intermittent	Power connection	Terminal block

Why it matters

Heating failures are often electrical. Catching a loose connection or failing sensor early helps prevent repeated no-heat problems and reduces the chance of heat damage to wiring and controls.

Last updated: February 2026
