Model # LAT9635AAE Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag LAT9635AAE washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

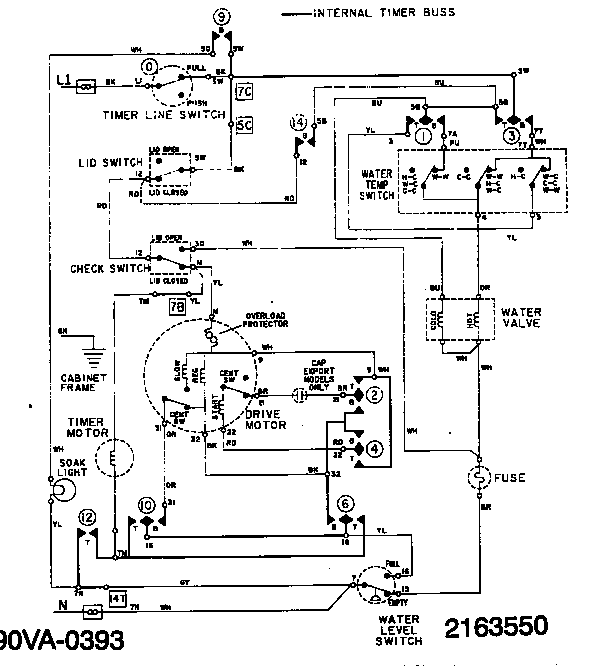

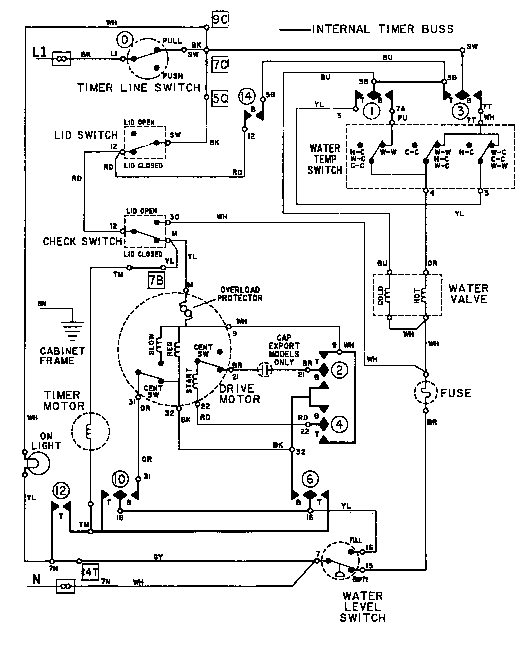

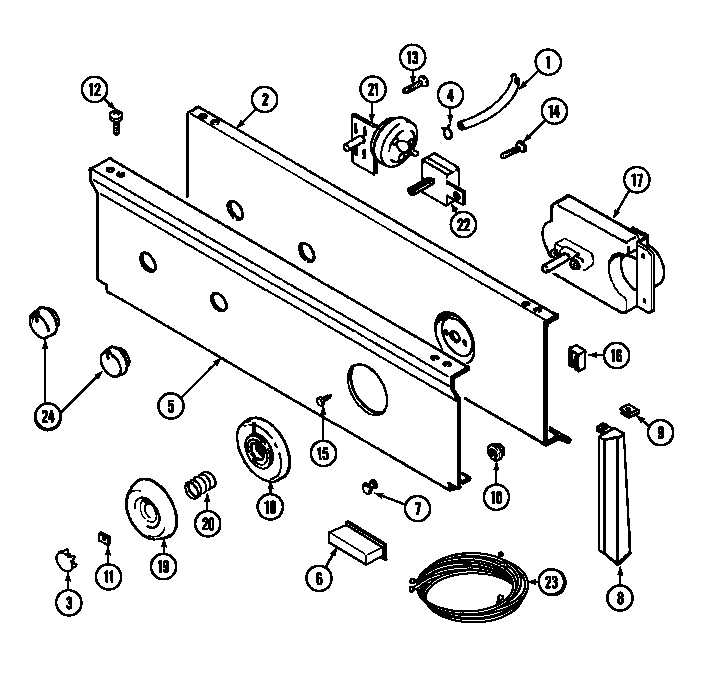

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |

Silastic,adh 058700
#15

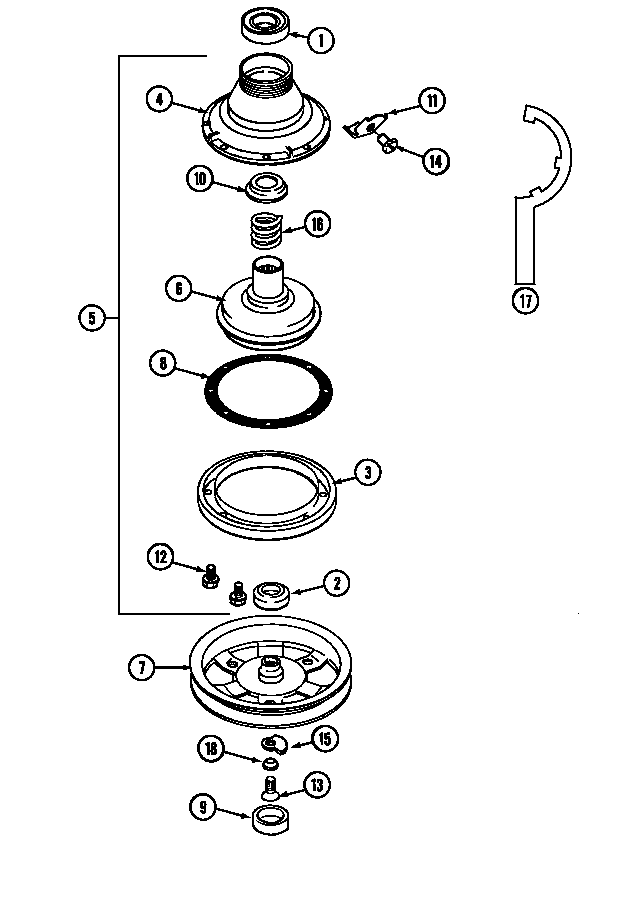

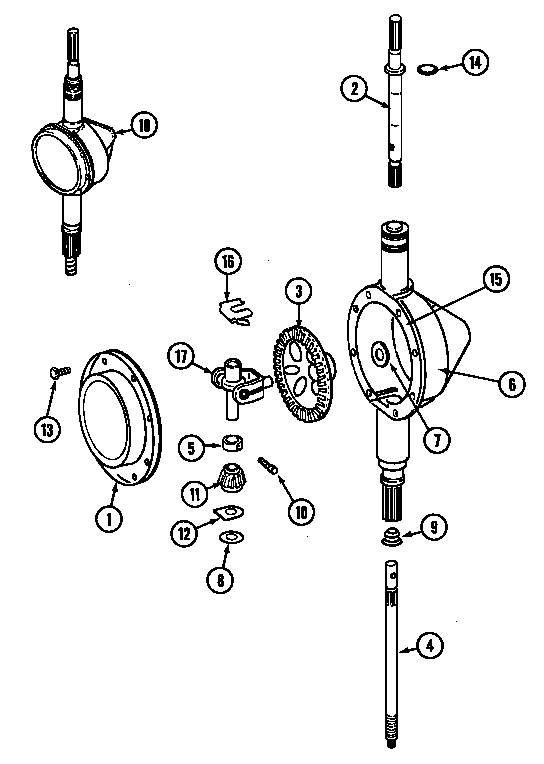

Transmission diagram

Silastic,adh

Part #058700

Replaced by #W10841140

?
Manufacturer substitution
This part replaces 058700. Substitute parts can look different from the original.
BEST SELLER
$14.99
12% OFF Phone Price : $16.99
In Stock
Lid Switch 205415
#16

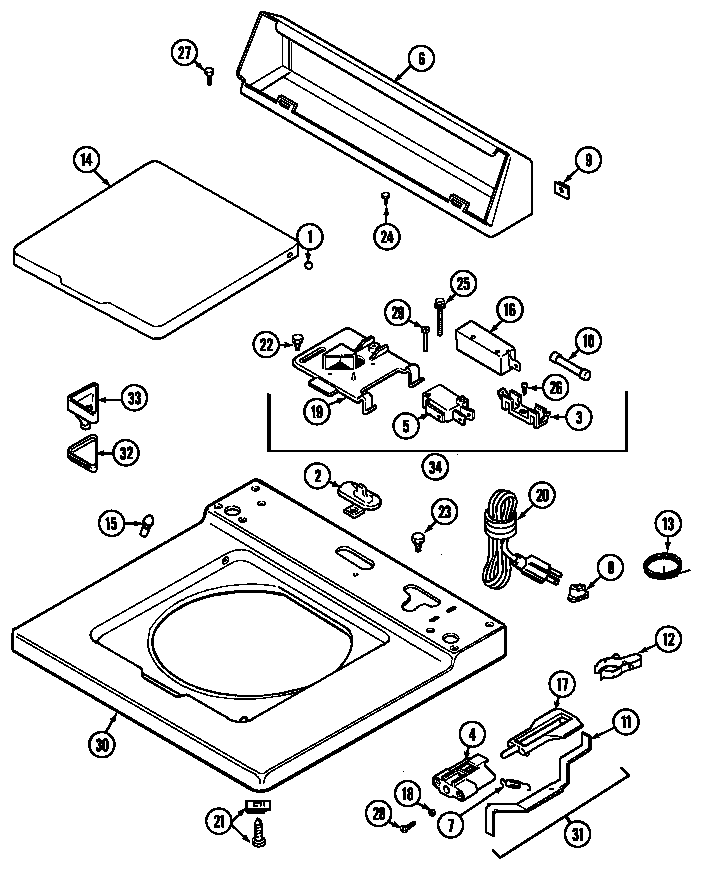

Top diagram

Lid switch

Part #205415

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 205415. Substitute parts can look different from the original.
BEST SELLER
$24.75
20% OFF Phone Price : $30.75
In Stock
Water Clamp 410296
Water clamp

Part #410296

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 410296. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Clamp,hose-i 216169
#14

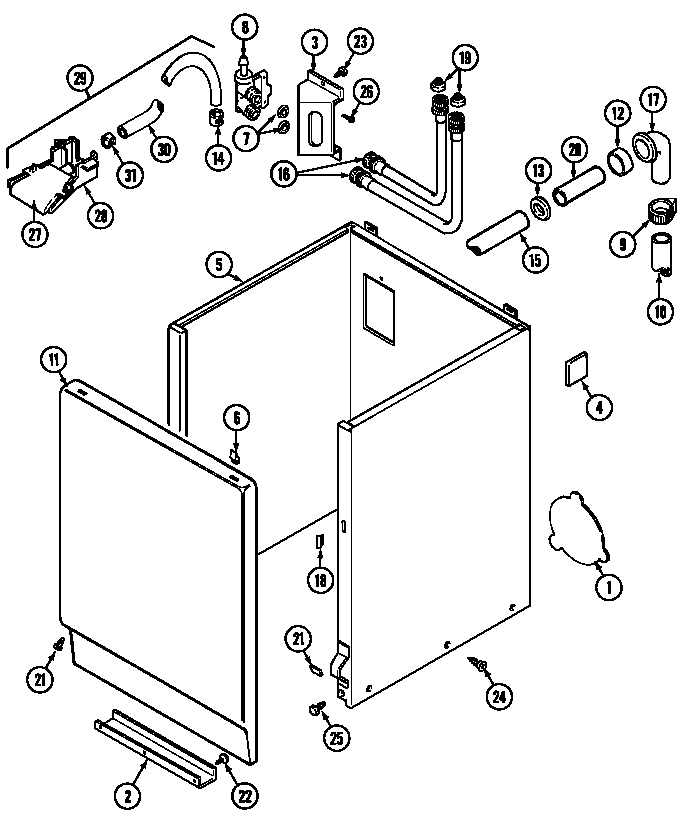

Cabinet diagram

Clamp,hose-i

Part #216169

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 216169. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Washer Drive Belt 211125
#42

Base diagram

Washer drive belt

Part #211125

Replaced by #12112425

?
Manufacturer substitution
This part replaces 211125. Substitute parts can look different from the original.
BEST SELLER
$39.91
13% OFF Phone Price : $45.91
In Stock
Washer Pump Drive Belt 211124
#41

Base diagram

Washer pump drive belt

Part #211124

Replaced by #12112425

?
Manufacturer substitution
This part replaces 211124. Substitute parts can look different from the original.
BEST SELLER
$39.91
13% OFF Phone Price : $45.91
In Stock
Hose Clamp 201011
#17

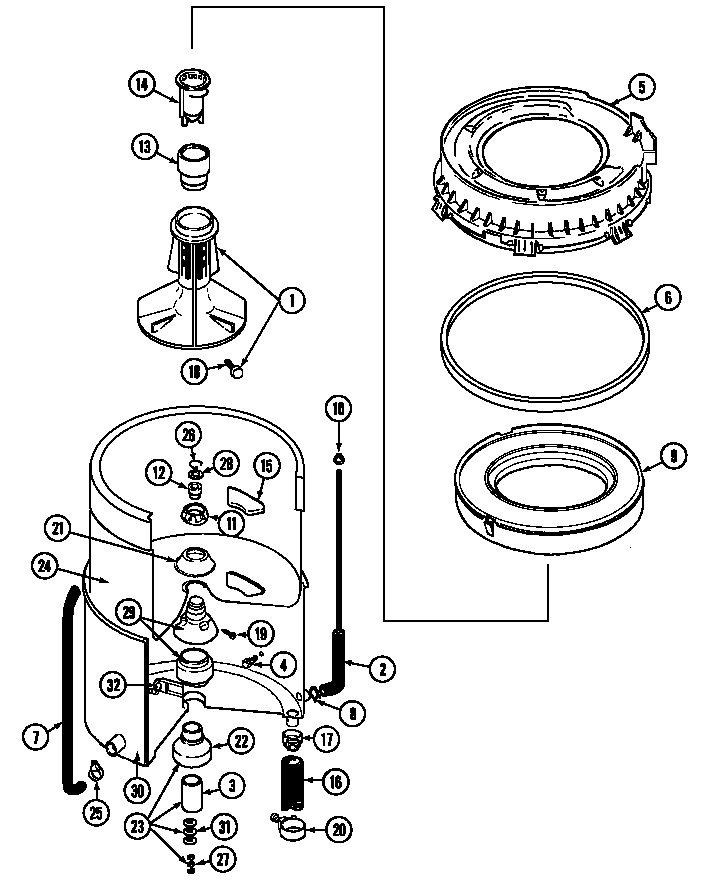

Tub diagram

Hose clamp

Part #201011

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 201011. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Clamp 211641
#8

Tub diagram

Clamp

Part #211641

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 211641. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Washer Screw 211294
Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Screw 313559
#27

Top diagram

Screw

Part #313559

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 313559. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
