Model # GLS3665RS03 Official Whirlpool 36" gas cooktop

Here are the diagrams and repair parts for Official Whirlpool GLS3665RS03 36" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Range Screw 3196160
#17

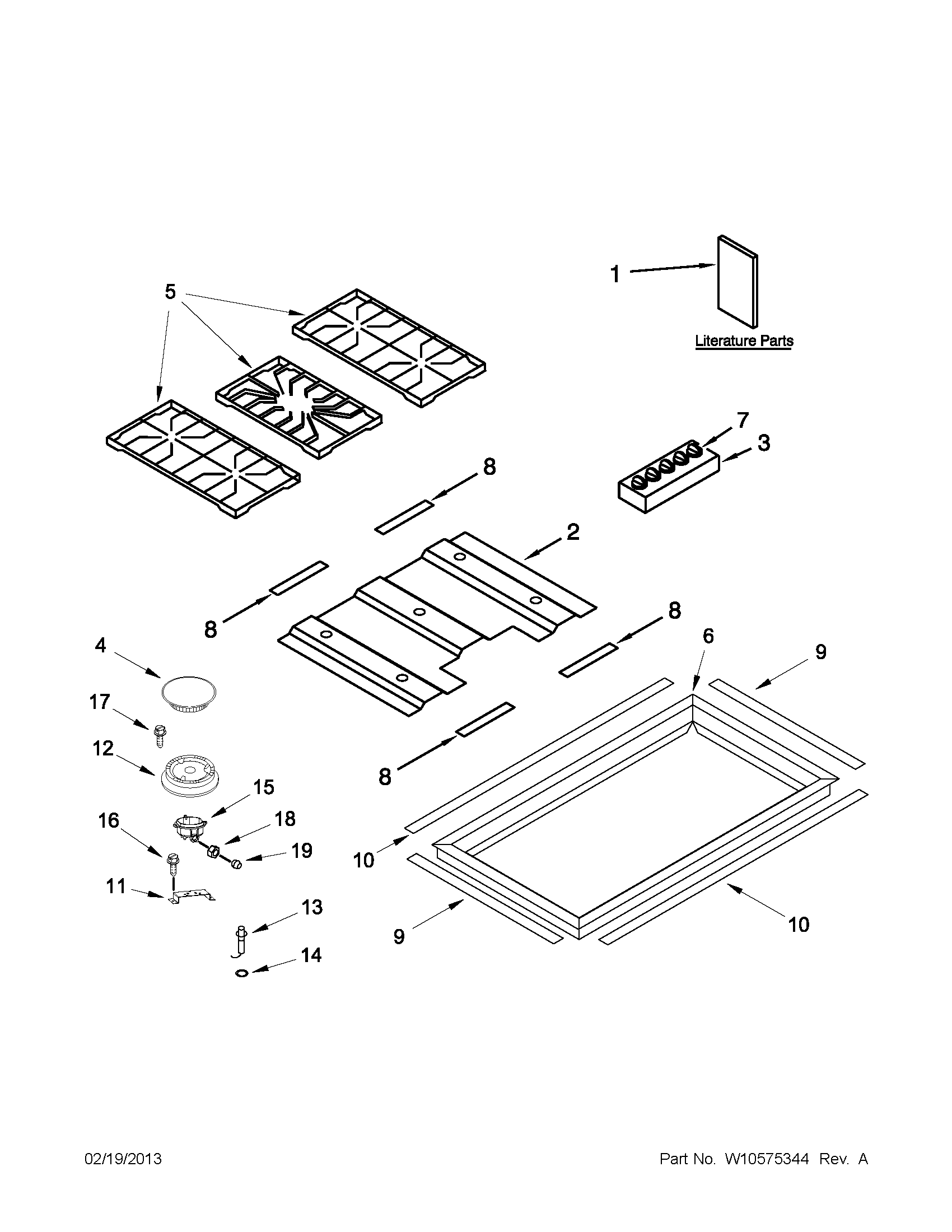

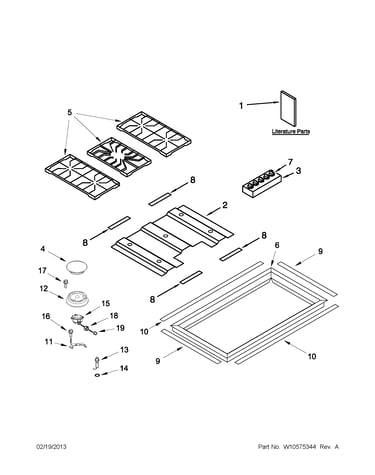

Cooktop, burner and grate parts diagram

Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooktop Burner Head 8286814
#12A

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286814

Replaced by #WP8286814

?
Manufacturer substitution
This part replaces 8286814. Substitute parts can look different from the original.
$62.73 |
7% OFF Phone Price : $67.73
In Stock
Cooktop Burner Head 8286815
Cooktop burner head

Part #8286815

Replaced by #WP8286815

?
Manufacturer substitution
This part replaces 8286815. Substitute parts can look different from the original.
$62.72 |
7% OFF Phone Price : $67.72
In Stock
Range Surface Burner Switch Seal W10140571
#9

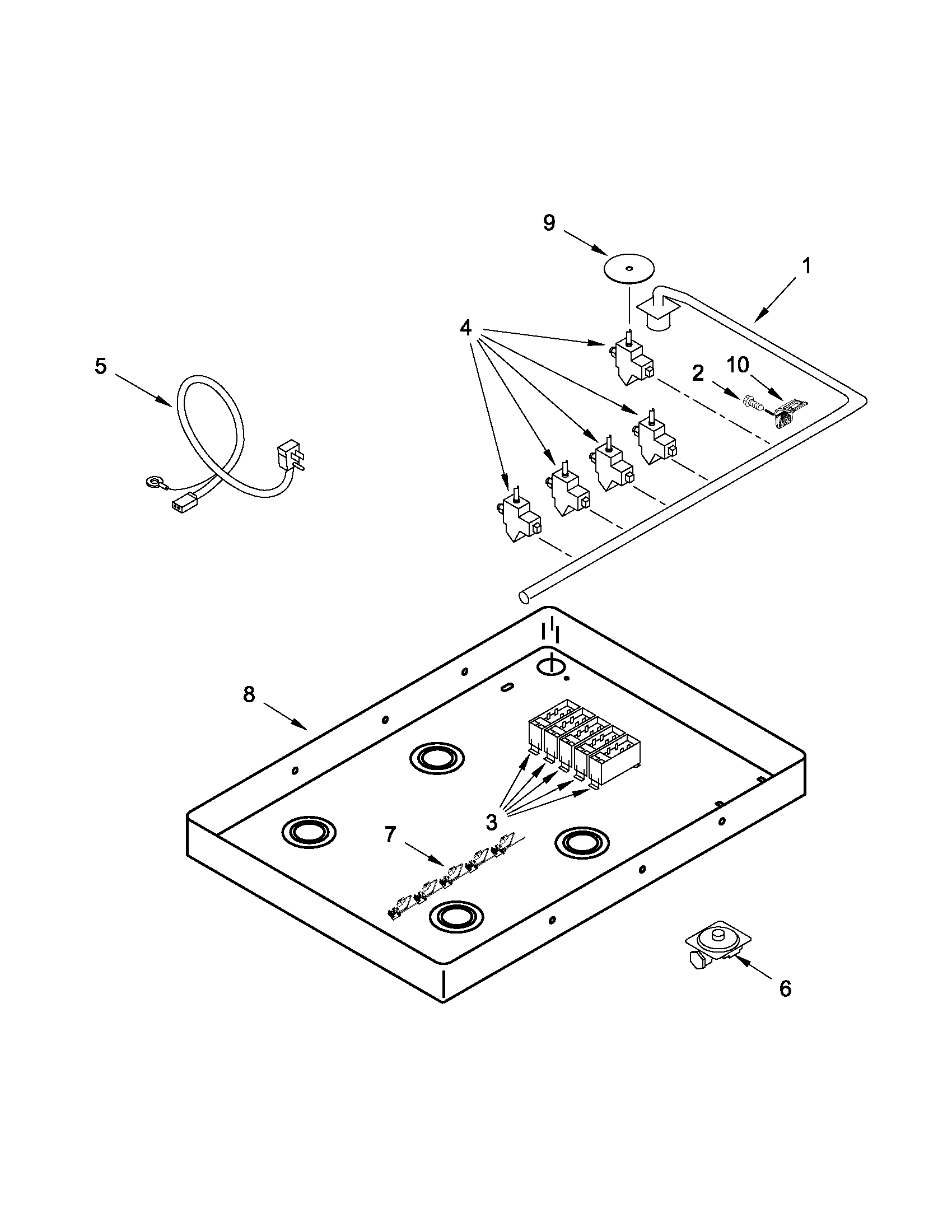

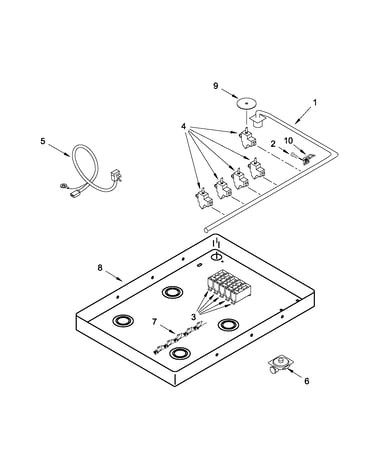

Burner box, gas valves and switches diagram

Range surface burner switch seal

Part #W10140571

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Holder Orifice W10571491
#15A

Cooktop, burner and grate parts diagram

Holder orifice

Part #W10571491

Replaced by #WPW10571491

?
Manufacturer substitution
This part replaces W10571491. Substitute parts can look different from the original.
$45.56
In Stock
Surface Igniter W10571488
#13B

Cooktop, burner and grate parts diagram

Surface igniter

Part #W10571488

Replaced by #WPW10571488

?
Manufacturer substitution
This part replaces W10571488. Substitute parts can look different from the original.
$26.49 |
16% OFF Phone Price : $31.49
In Stock
Clip W10571930
#14

Cooktop, burner and grate parts diagram

Clip

Part #W10571930

$13.28
In Stock
Sleeve W10575399
#19

Cooktop, burner and grate parts diagram

Sleeve

Part #W10575399

$13.28
In Stock
Cooktop Gasket 8190977
#NI

Burner box, gas valves and switches diagram

Cooktop gasket

Part #8190977

$210.98
In Stock
Mounting Bracket 8190978
#NI

Burner box, gas valves and switches diagram

Mounting bracket

Part #8190978

$32.87
In Stock
