Model # WFE505W0HS1 Official Whirlpool electric freestanding range

Here are the diagrams and repair parts for Official Whirlpool WFE505W0HS1 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

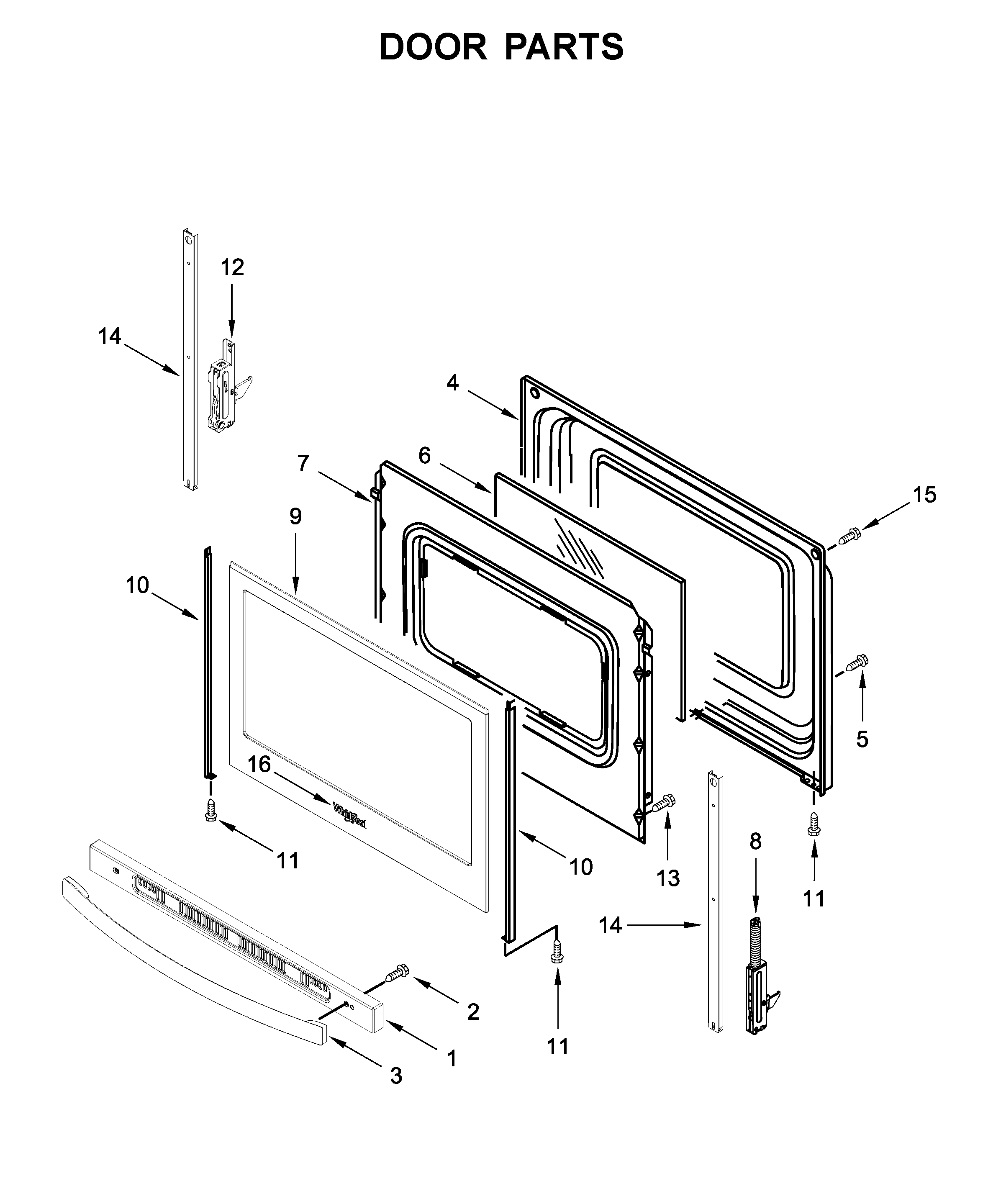

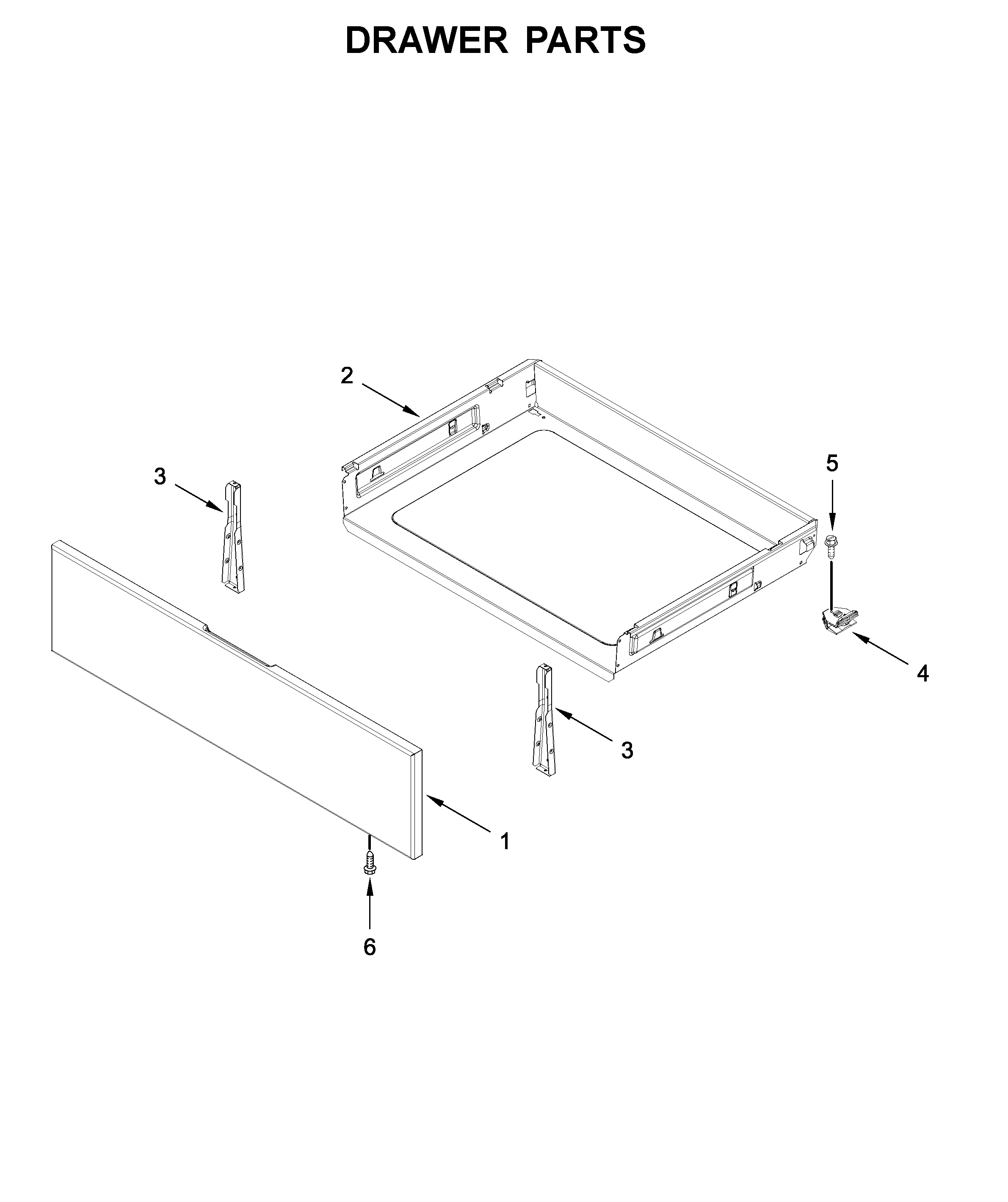

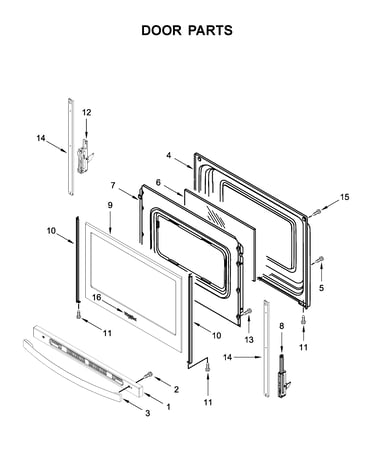

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |

Infinite Switch 3148954
#4B

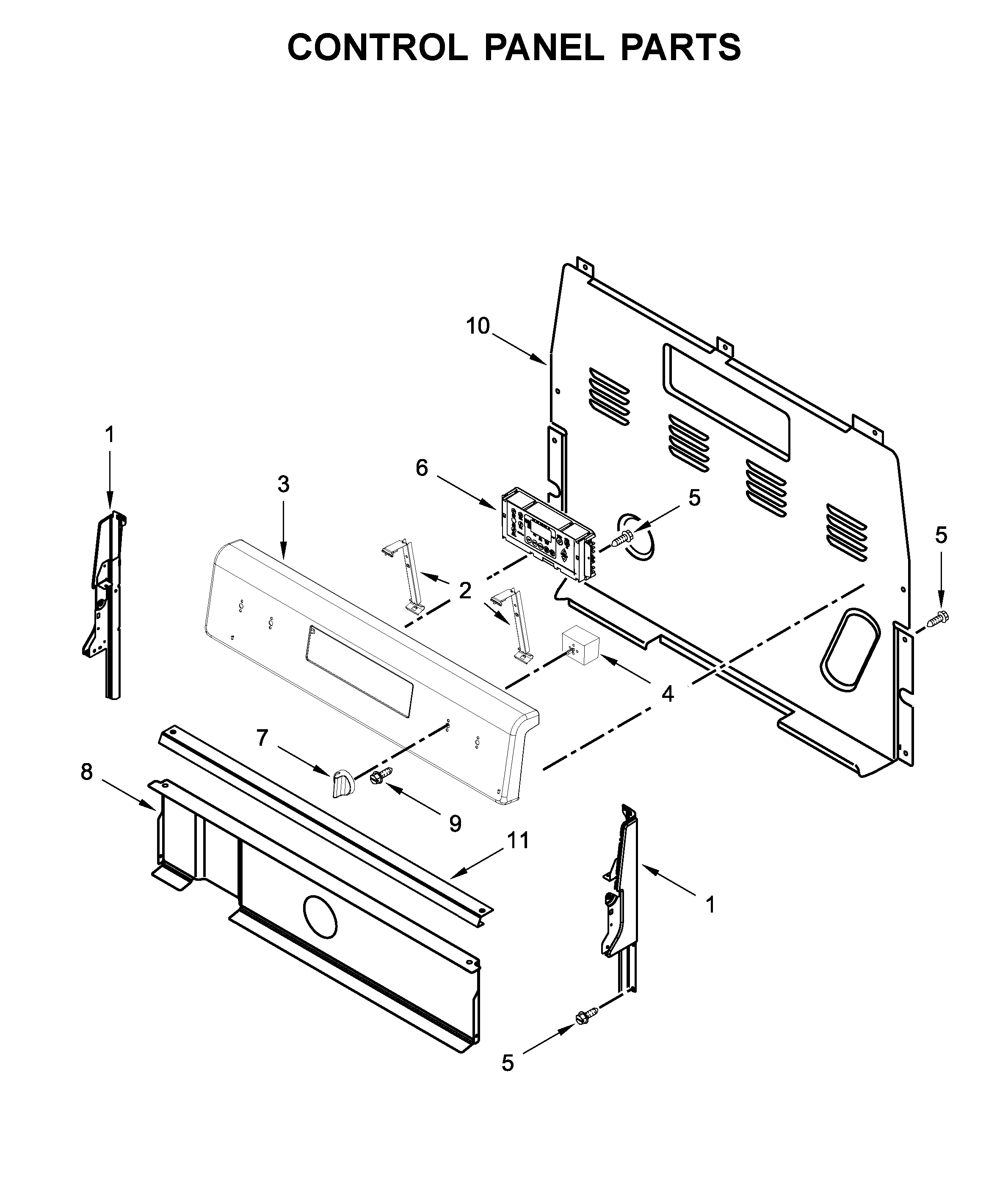

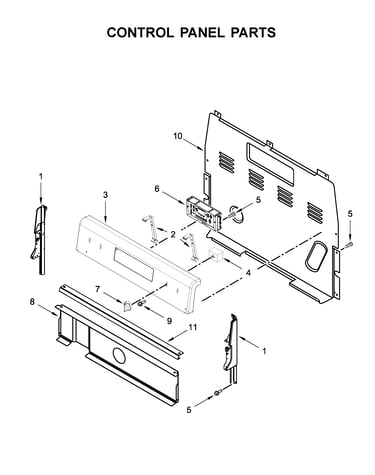

Control panel parts diagram

Infinite switch

Part #3148954

Replaced by #WP3149400

?
Manufacturer substitution
This part replaces 3148954. Substitute parts can look different from the original.
BEST SELLER
$36.70
14% OFF Phone Price : $42.70
In Stock
Range Oven Temperature Sensor W10181986
#27

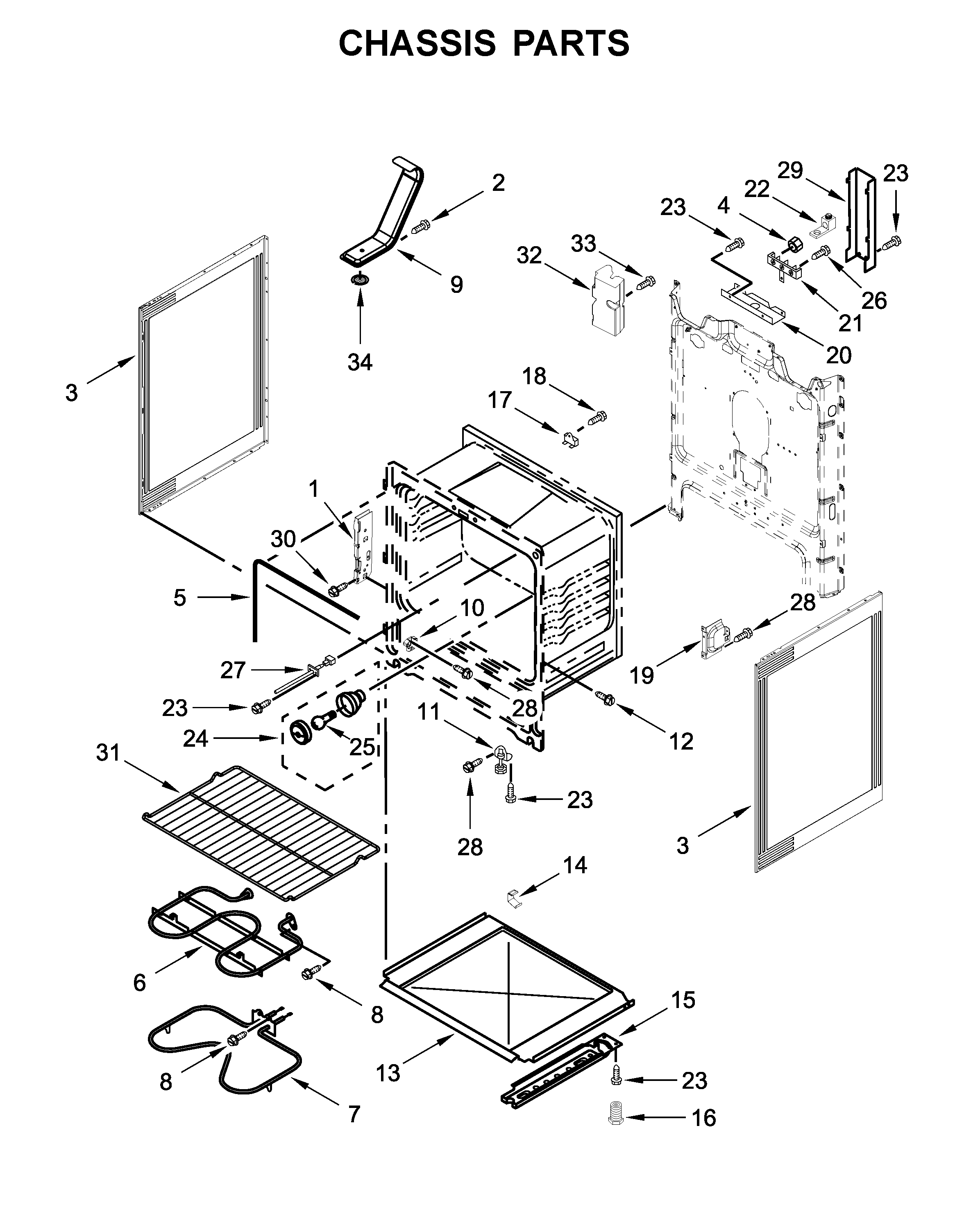

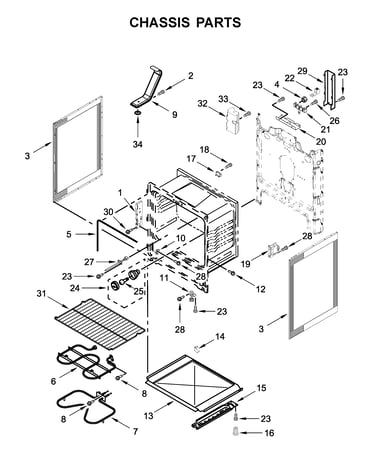

Chassis parts diagram

Range oven temperature sensor

Part #W10181986

Replaced by #WPW10181986

?
Manufacturer substitution
This part replaces W10181986. Substitute parts can look different from the original.
BEST SELLER
$65.03
8% OFF Phone Price : $71.03
In Stock
Range Dual Surface Element Control Switch W10434452
#4

Control panel parts diagram

Range dual surface element control switch

Part #W10434452

Replaced by #WPW10434452

?
Manufacturer substitution
This part replaces W10434452. Substitute parts can look different from the original.
BEST SELLER
$63.34
9% OFF Phone Price : $69.34
In Stock
Infinite Switch (silver) 3148951
#4A

Control panel parts diagram

Infinite switch (silver)

Part #3148951

Replaced by #WP3149404

?
Manufacturer substitution
This part replaces 3148951. Substitute parts can look different from the original.
BEST SELLER
$37.05
14% OFF Phone Price : $43.05
In Stock
Element (1200w)(left Rear & Right Rear) W10248261
#6

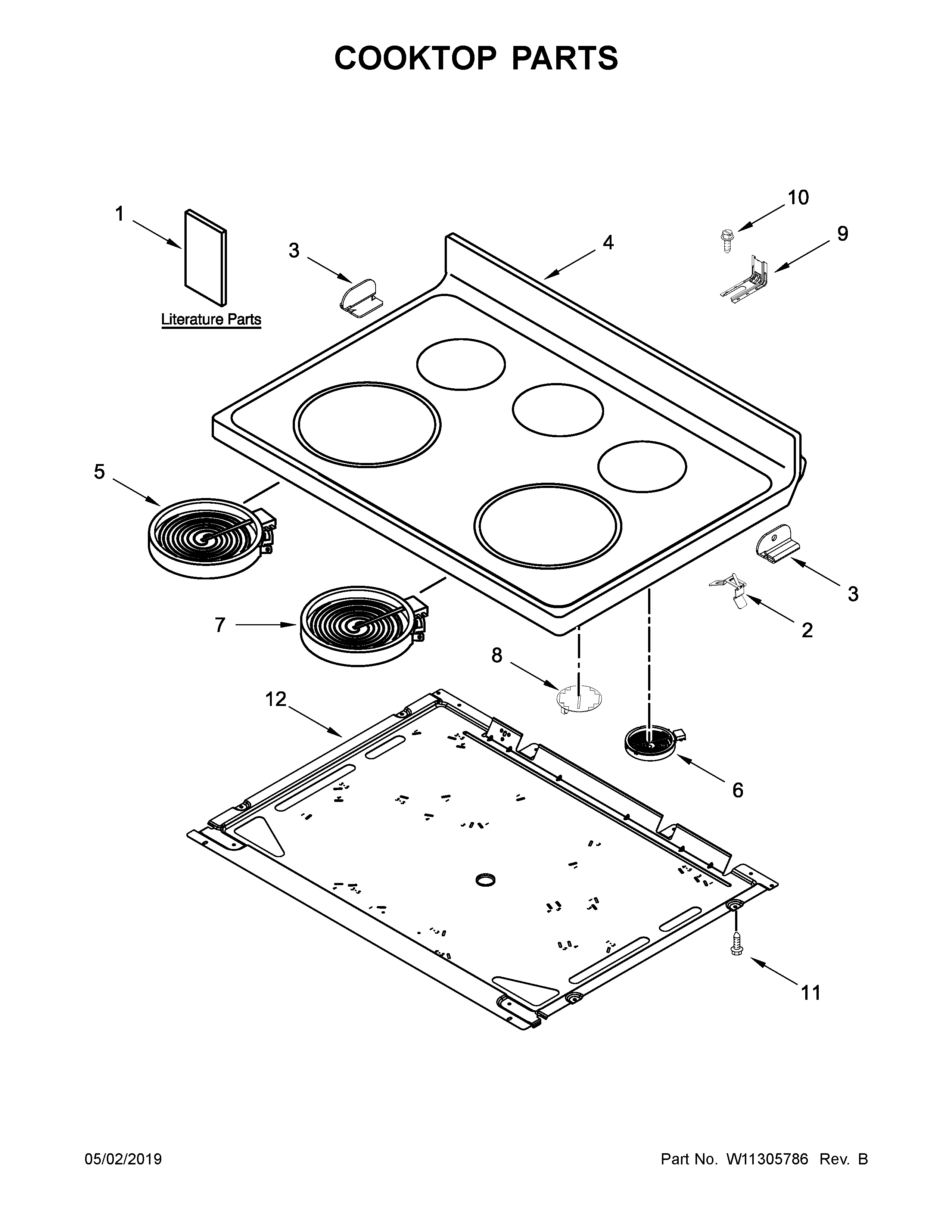

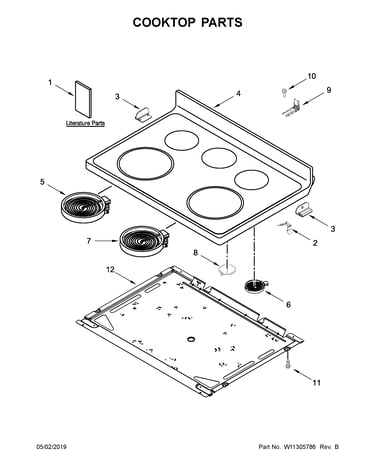

Cooktop parts diagram

Element (1200w)(left rear & right rear)

Part #W10248261

Replaced by #W11171119

?
Manufacturer substitution
This part replaces W10248261. Substitute parts can look different from the original.
BEST SELLER
$102.34
10% OFF Phone Price : $114.34
In Stock
Control, Electronic (lcx) (black) W11204517
#6

Control panel parts diagram

Control, electronic (lcx) (black)

Part #W11204517

Replaced by #W11567368

?
Manufacturer substitution
This part replaces W11204517. Substitute parts can look different from the original.
BEST SELLER
$176.87
6% OFF Phone Price : $188.87
In Stock
Range Terminal Block W10245259
#21

Chassis parts diagram

Range terminal block

Part #W10245259

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces W10245259. Substitute parts can look different from the original.
BEST SELLER
$34.10
15% OFF Phone Price : $40.10
In Stock
Affresh Cooktop Cleaner (replaces 31464) W10355051
#NI

Optional parts (not included) diagram

Affresh cooktop cleaner (replaces 31464)

Part #W10355051

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89
16% OFF Phone Price : $12.89
In Stock
Range Dual Radiant Surface Element W10275048
#5

Cooktop parts diagram

Range dual radiant surface element

Part #W10275048

Replaced by #W11517959

?
Manufacturer substitution
This part replaces W10275048. Substitute parts can look different from the original.
BEST SELLER
$85.00
7% OFF Phone Price : $91.00
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
