Model #SHE6AF02UC/02 Bosch dishwasher

Here are the diagrams and repair parts for Bosch SHE6AF02UC-02 dishwasher, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

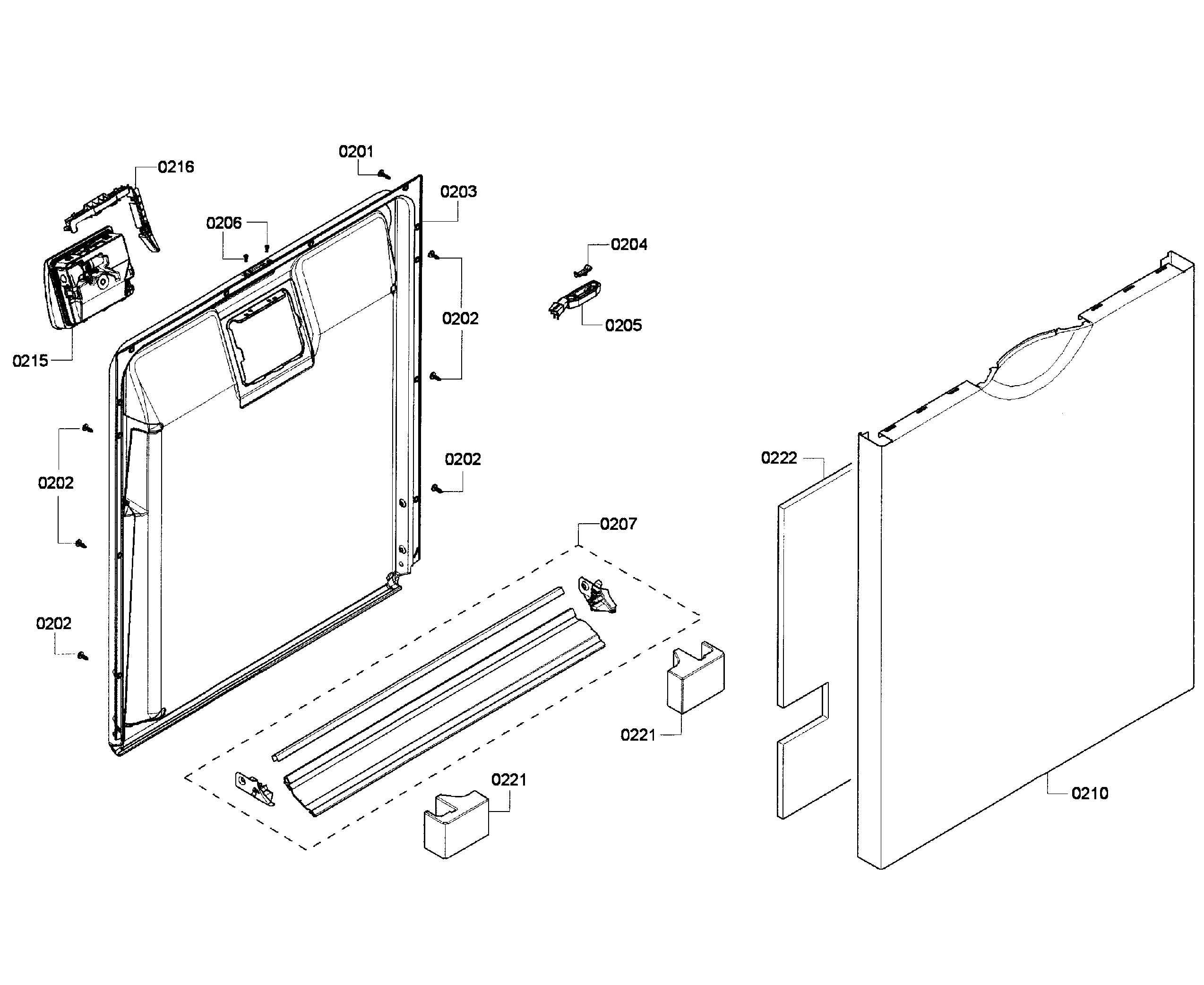

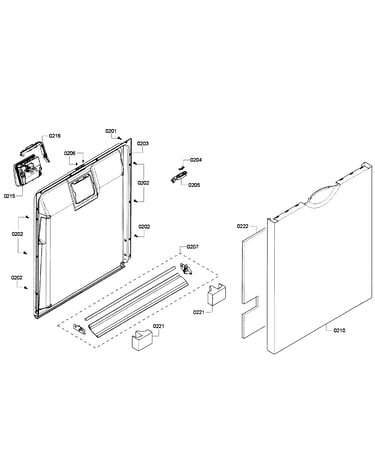

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 112 parts

    Dishwasher Tine Row Pivot Clip

    #626

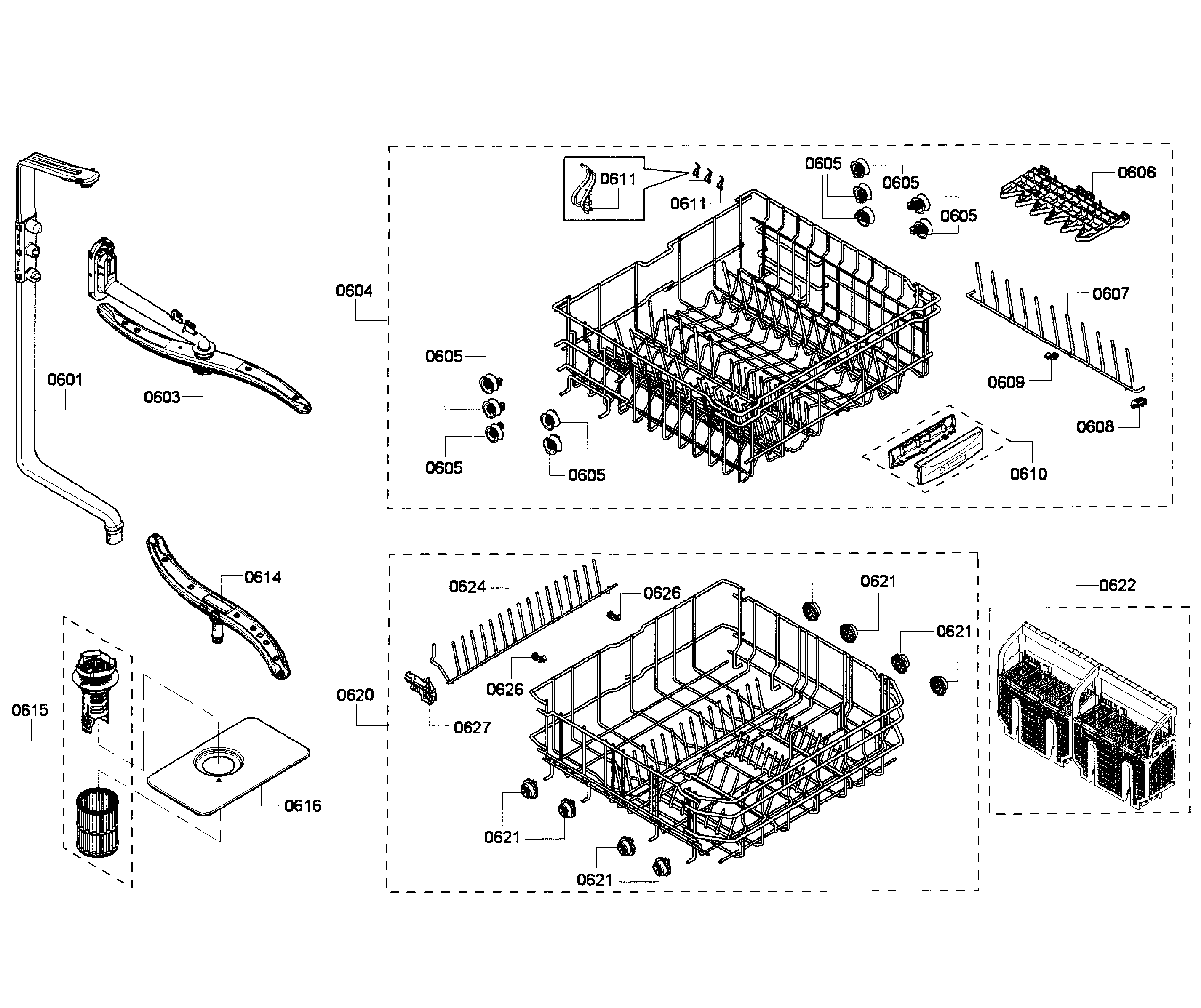

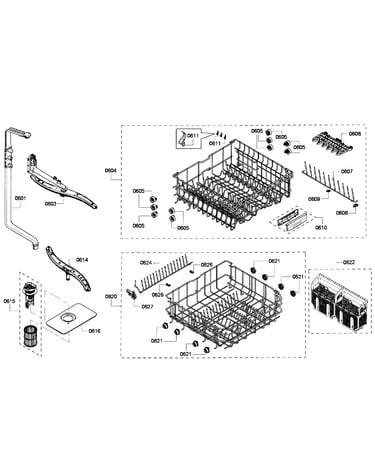

    Baskets Diagram

    Dishwasher tine row pivot clip

    Part #00611981
    ?
    Manufacturer substitution
    This part replaces 611981. Substitute parts can look different from the original.
    This part replaces 611981
    This item is not returnable
    $2.23

    In Stock

    Dishwasher Terminal Block Cover

    #516

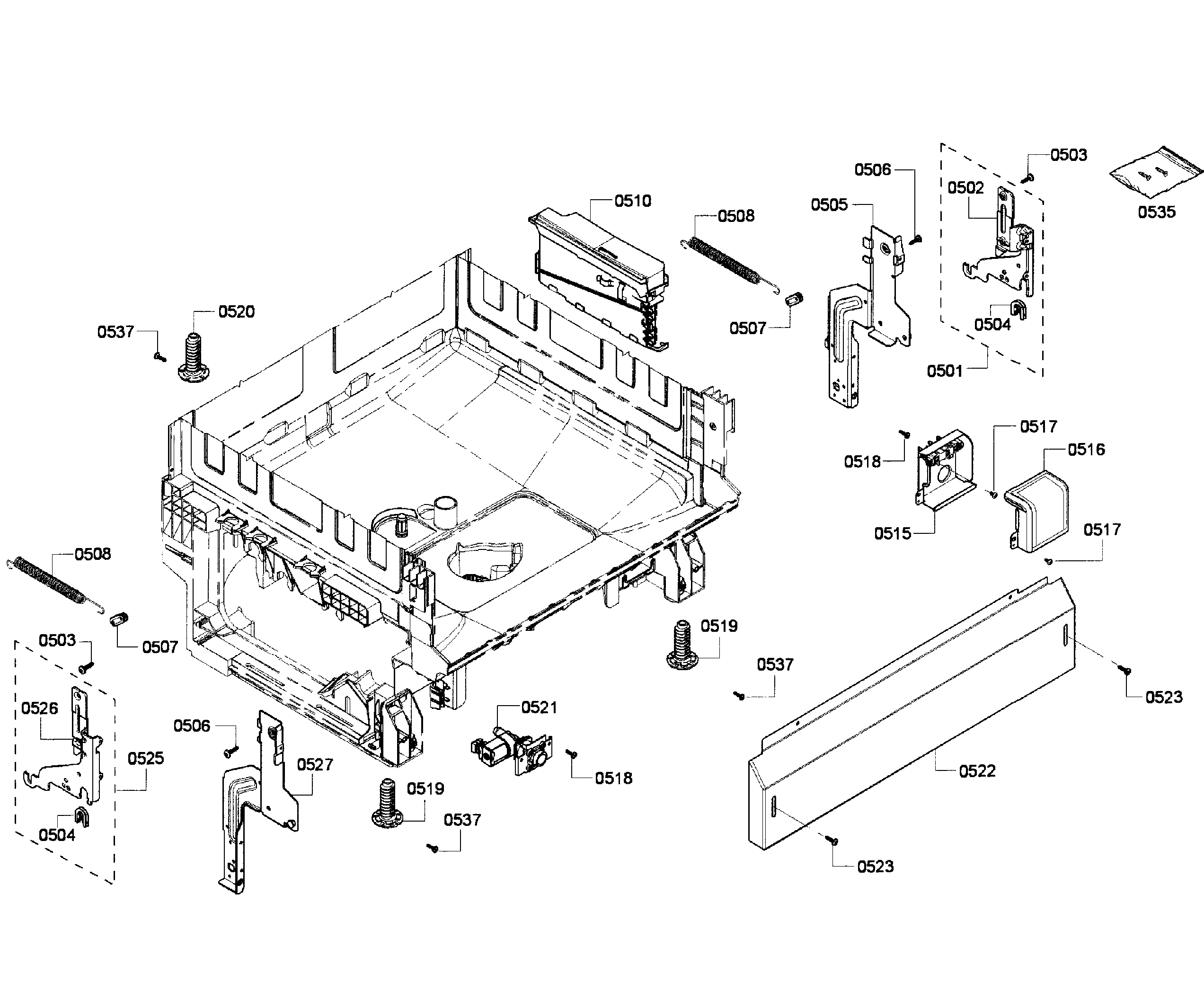

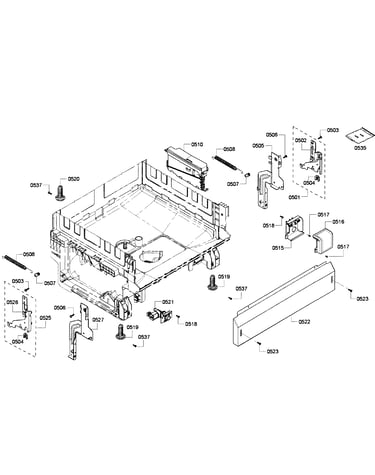

    Base assy Diagram

    Dishwasher terminal block cover

    Part #00640477
    ?
    Manufacturer substitution
    This part replaces 640477. Substitute parts can look different from the original.
    This part replaces 640477
    $10.09

    In Stock

    Dishwasher Drain Hose

    #432

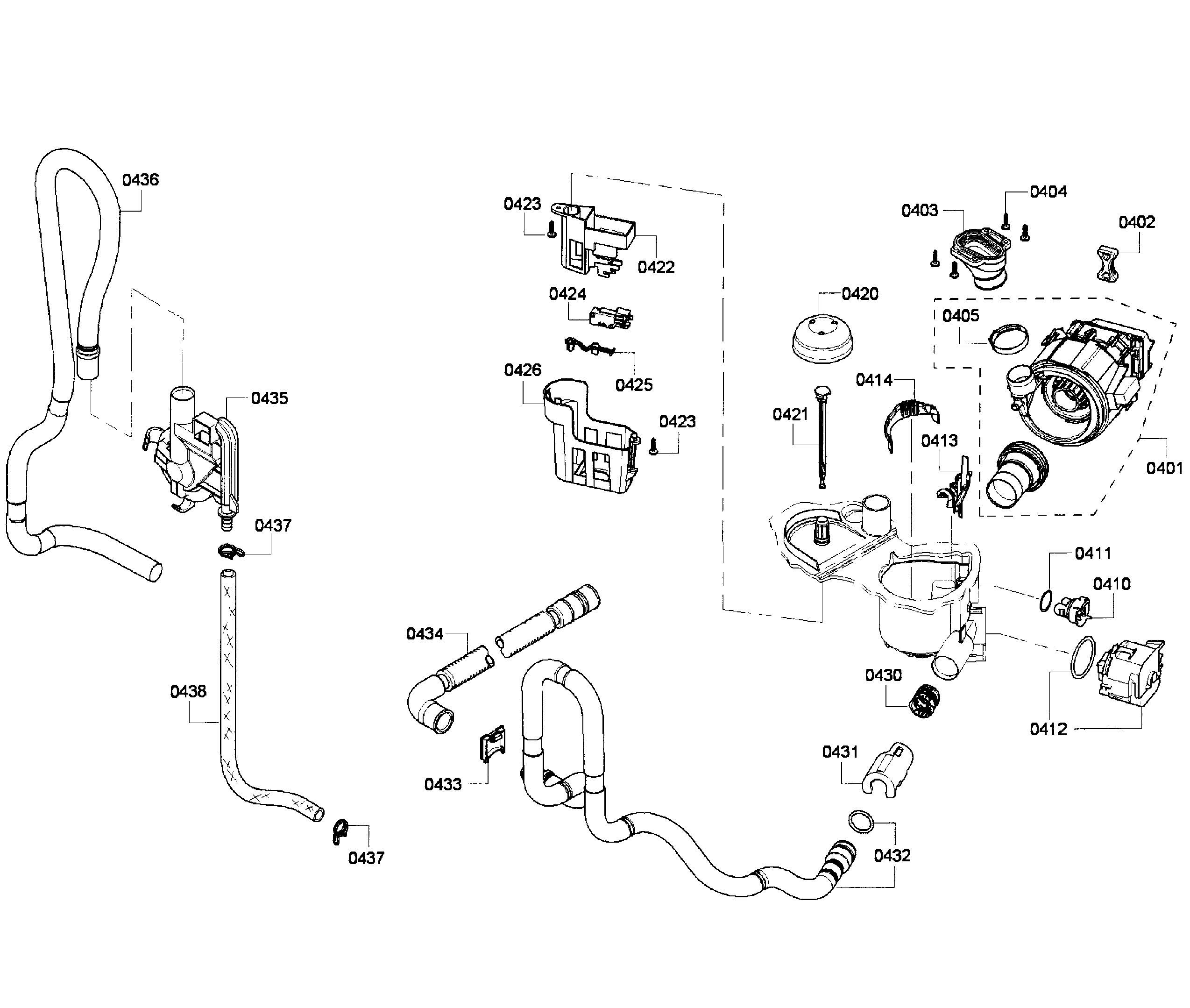

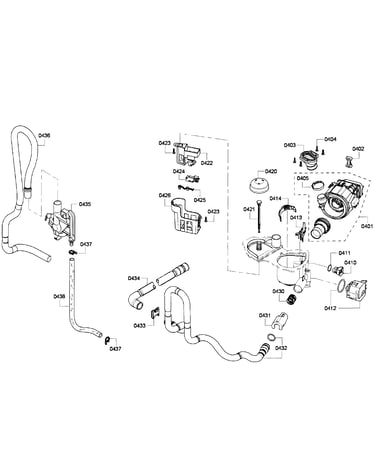

    Pump assy Diagram

    Dishwasher drain hose

    Part #00645149
    ?
    Manufacturer substitution
    This part replaces 645149. Substitute parts can look different from the original.
    This part replaces 645149
    $15.38

    In Stock

    Dishwasher Wire Harness

    #105

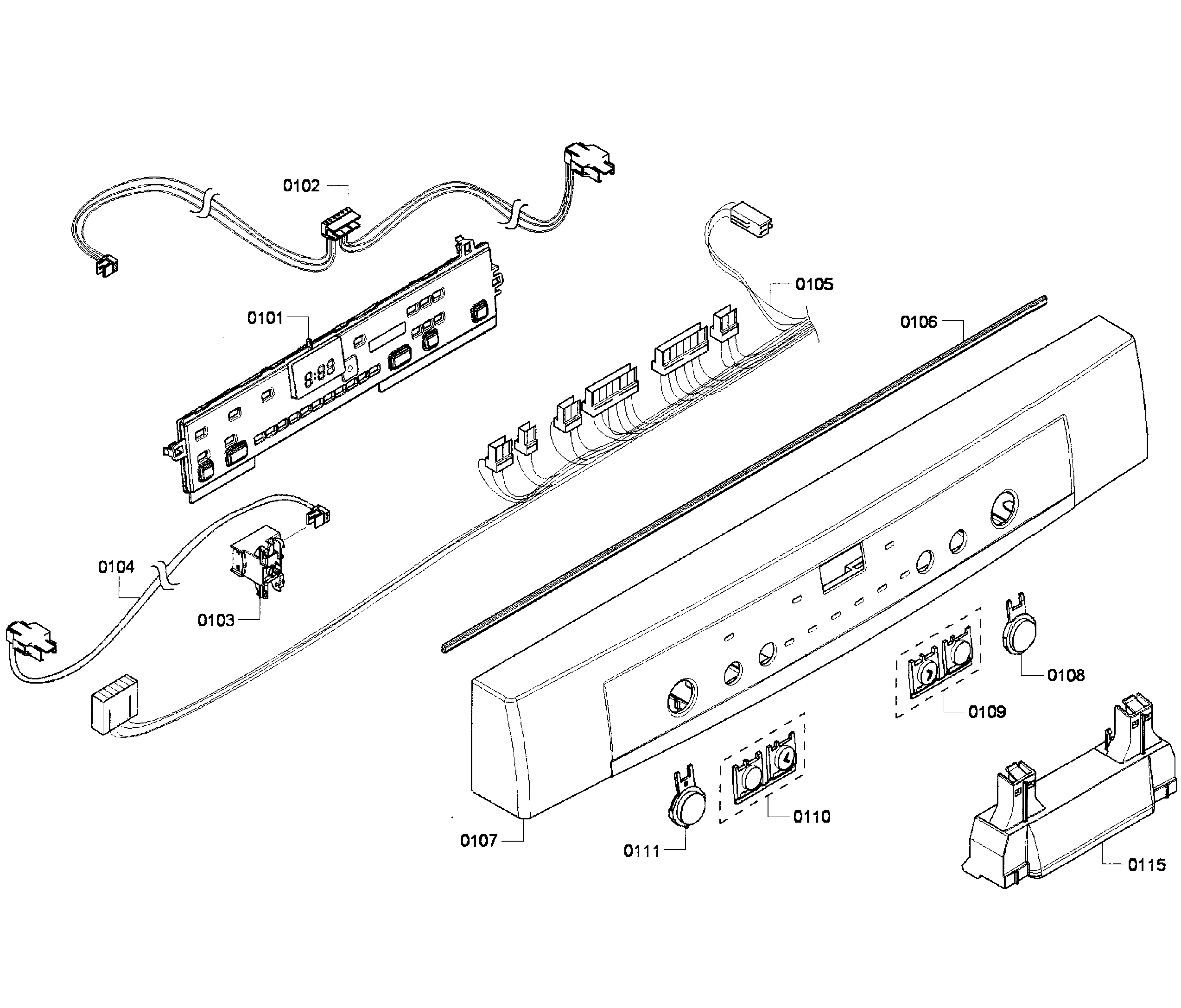

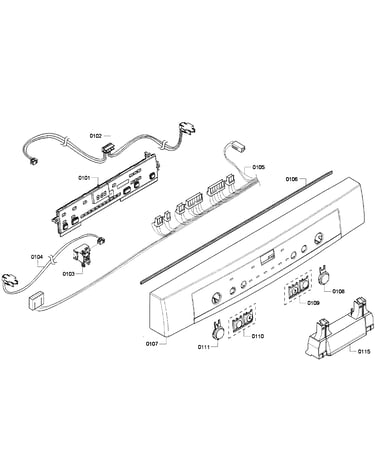

    Control panel Diagram

    Dishwasher wire harness

    Part #00645207
    ?
    Manufacturer substitution
    This part replaces 645207. Substitute parts can look different from the original.
    This part replaces 645207
    $122.24

    In Stock

    Dishwasher Control Panel Seal

    #106

    Control panel Diagram

    Dishwasher control panel seal

    Part #00668073
    ?
    Manufacturer substitution
    This part replaces 668073. Substitute parts can look different from the original.
    This part replaces 668073
    $18.83

    In Stock

    Dishwasher Dishrack Assembly, Lower

    #620

    Baskets Diagram

    Dishwasher dishrack assembly, lower

    Part #00770545
    ?
    Manufacturer substitution
    This part replaces 683547. Substitute parts can look different from the original.
    This part replaces 683547
    $143.45

    In Stock

    Dishwasher Condensation Hose Cap

    #318

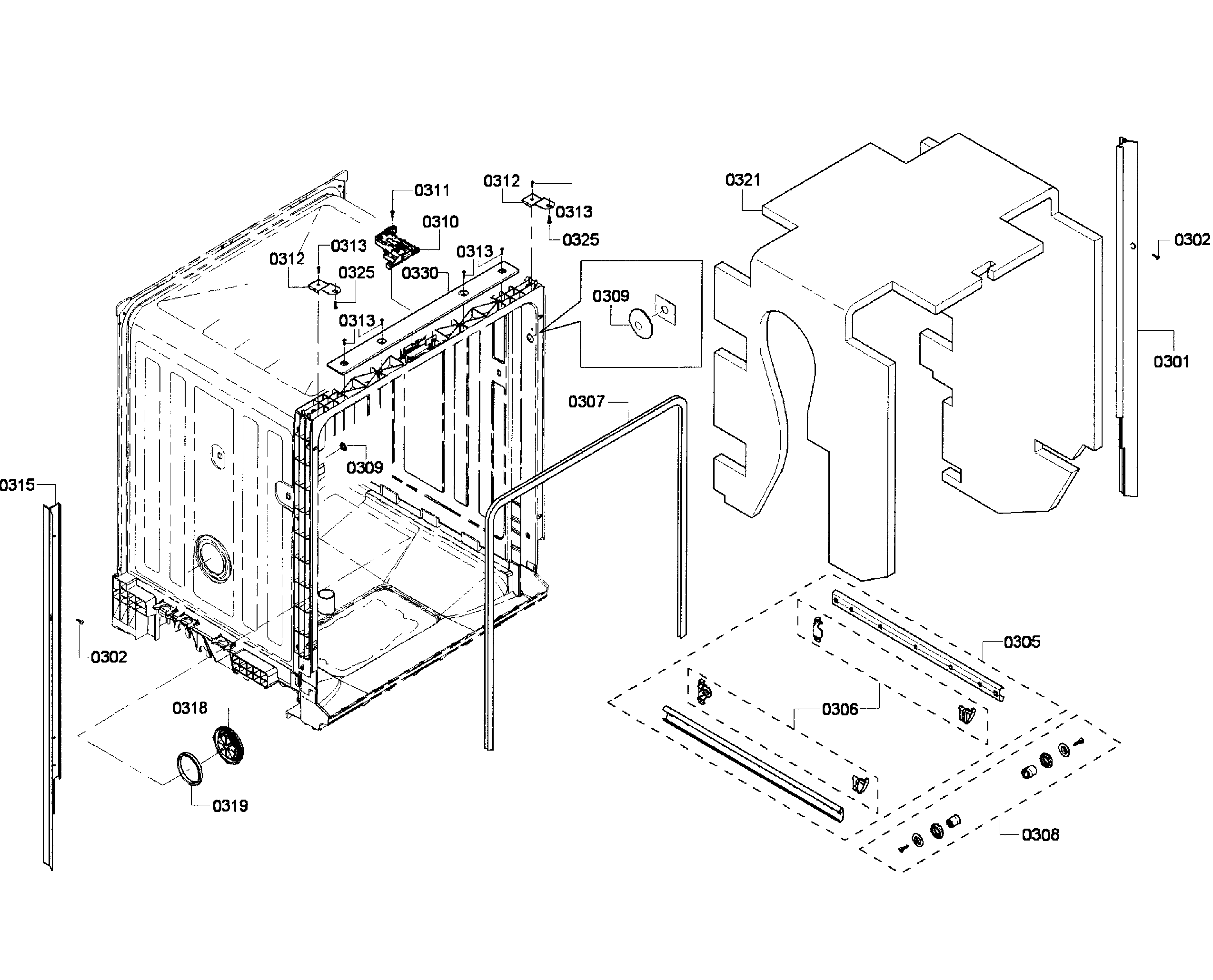

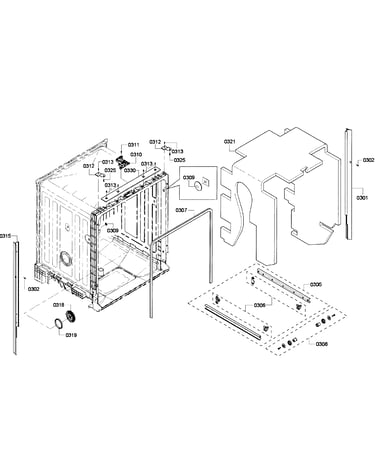

    Cabinet Diagram

    Dishwasher condensation hose cap

    Part #00420585
    ?
    Manufacturer substitution
    This part replaces 420585. Substitute parts can look different from the original.
    This part replaces 420585
    This item is not returnable
    $2.29

    In Stock

    Dishwasher Condensation Hose Cap Seal

    #319

    Cabinet Diagram

    Dishwasher condensation hose cap seal

    Part #00420586
    ?
    Manufacturer substitution
    This part replaces 420586. Substitute parts can look different from the original.
    This part replaces 420586
    This item is not returnable
    $2.29

    In Stock

    Dishwasher Door Hinge

    #502

    Base assy Diagram

    Dishwasher door hinge

    Part #00498927
    ?
    Manufacturer substitution
    This part replaces 494875. Substitute parts can look different from the original.
    This part replaces 494875
    $18.32

    In Stock

    Dishwasher Turbidity Sensor

    #410

    Pump assy Diagram

    Dishwasher turbidity sensor

    Part #00611323
    ?
    Manufacturer substitution
    This part replaces 611567. Substitute parts can look different from the original.
    This part replaces 611567
    $27.04

    In Stock

    Symptoms common to all dishwashers

    Choose a symptom to see related dishwasher repairs.

    Main cause: damaged rack height adjuster
    Main causes: broken door spring, detergent dispenser failure, cabinet mounting brackets loose or broken
    Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
    Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
    Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
    Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
    Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
    Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
    Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan failure
