Model #FRT17G4AW1 Official Frigidaire refrigerator
Here are the diagrams and repair parts for Frigidaire FRT17G4AW1 refrigerator, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

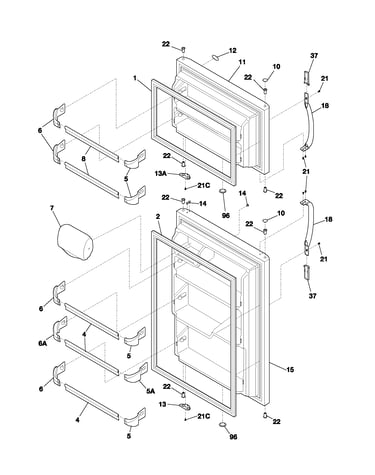

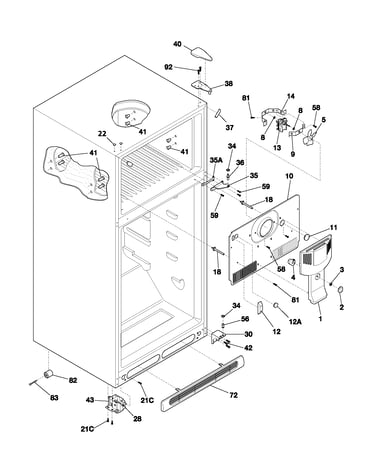

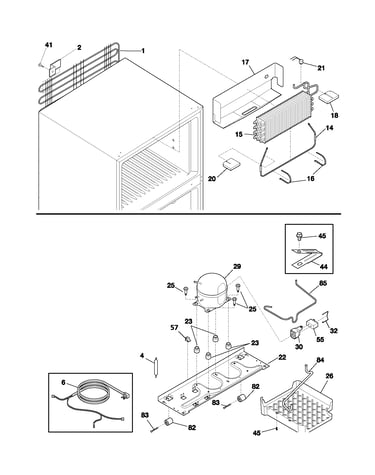

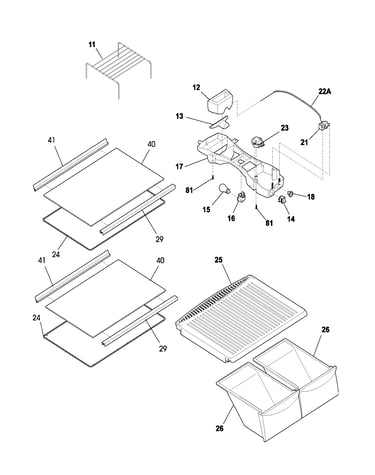

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 137 parts
Refrigerator door rack
Part #240331405
Replaced by #240331401
?
Manufacturer substitution
This part replaces 240331405. Substitute parts can look different from the original.
In Stock
$32.23 |
13% OFF
Phone Price: $37.23
Door shelf rail
Part #240331404
Replaced by #240331401
?
Manufacturer substitution
This part replaces 240331404. Substitute parts can look different from the original.
In Stock
$32.23 |
13% OFF
Phone Price: $37.23
Refrigerator door bin support
Part #240311501
In Stock
$7.93 |
11% OFF
Phone Price: $8.93
In Stock
$3.69 |
21% OFF
Phone Price: $4.69
In Stock
$3.69 |
21% OFF
Phone Price: $4.69
Refrigerator evaporator fan blade
Part #5308000010
In Stock
$39.39 |
11% OFF
Phone Price: $44.39
Refrigerator freezer door handle screw
Part #240383401
Replaced by #5304515677
?
Manufacturer substitution
This part replaces 240383401. Substitute parts can look different from the original.
In Stock
$8.79 |
10% OFF
Phone Price: $9.79
Evaporator motor
Part #240369701
Replaced by #5303918549
?
Manufacturer substitution
This part replaces 240369701. Substitute parts can look different from the original.
In Stock
$90.71 |
5% OFF
Phone Price: $95.71
Chest freezer run capacitor
Part #218909901
Replaced by #5304464438
?
Manufacturer substitution
This part replaces 218909901. Substitute parts can look different from the original.
In Stock
$37.74 |
12% OFF
Phone Price: $42.74
Refrigerator temperature control thermostat
Part #5304421256
Replaced by #241537103
?
Manufacturer substitution
This part replaces 5304421256. Substitute parts can look different from the original.
In Stock
$84.81 |
6% OFF
Phone Price: $89.81
