Universal/Multiflex (Frigidaire)
Chest Freezer

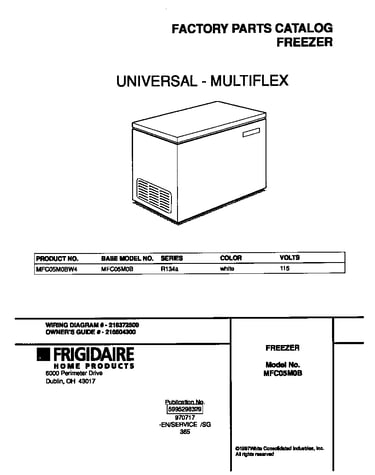

Model #MFC05M0BW4 Official Universal/Multiflex (Frigidaire) freezer - 5995298329

Here are the diagrams and repair parts for Universal/Multiflex (Frigidaire) MFC05M0BW4 freezer - 5995298329, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Showing 10 of 29 parts

Appliance Touch-Up Paint, 0.6-oz (White)

#NI

All parts Diagram

Touch paint

Part #5303305324
Replaced by #5303321319
?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$15.09 |
12% OFF
Phone Price: $17.09
Refrigerator Evaporator Cover Screw#46

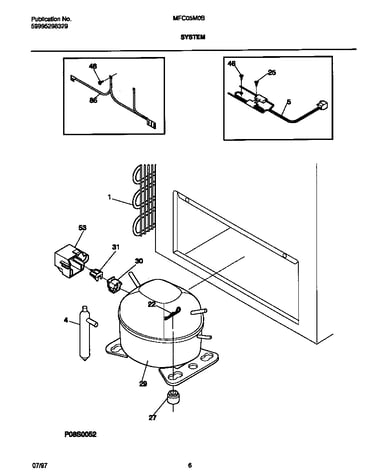

System Diagram

Refrigerator evaporator cover screw

Part #08037851
This item is not returnable
In Stock
$3.51
Freezer Condenser Coil#1

System Diagram

Freezer condenser coil

Part #5300120779
In Stock
$296.67
Freezer Lid Gasket (replaces 216078400, 216078403, 216078405, 216480802, 216480803)#1

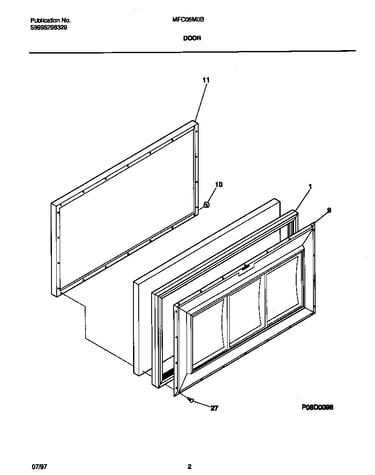

Door Diagram

In Stock
$134.25 |
7% OFF
Phone Price: $144.25
Freezer Inner Door Panel Rivet#27

Door Diagram

In Stock
$19.49 |
9% OFF
Phone Price: $21.49
Freezer Door Hinge (replaces 216478800, 3201160)#28

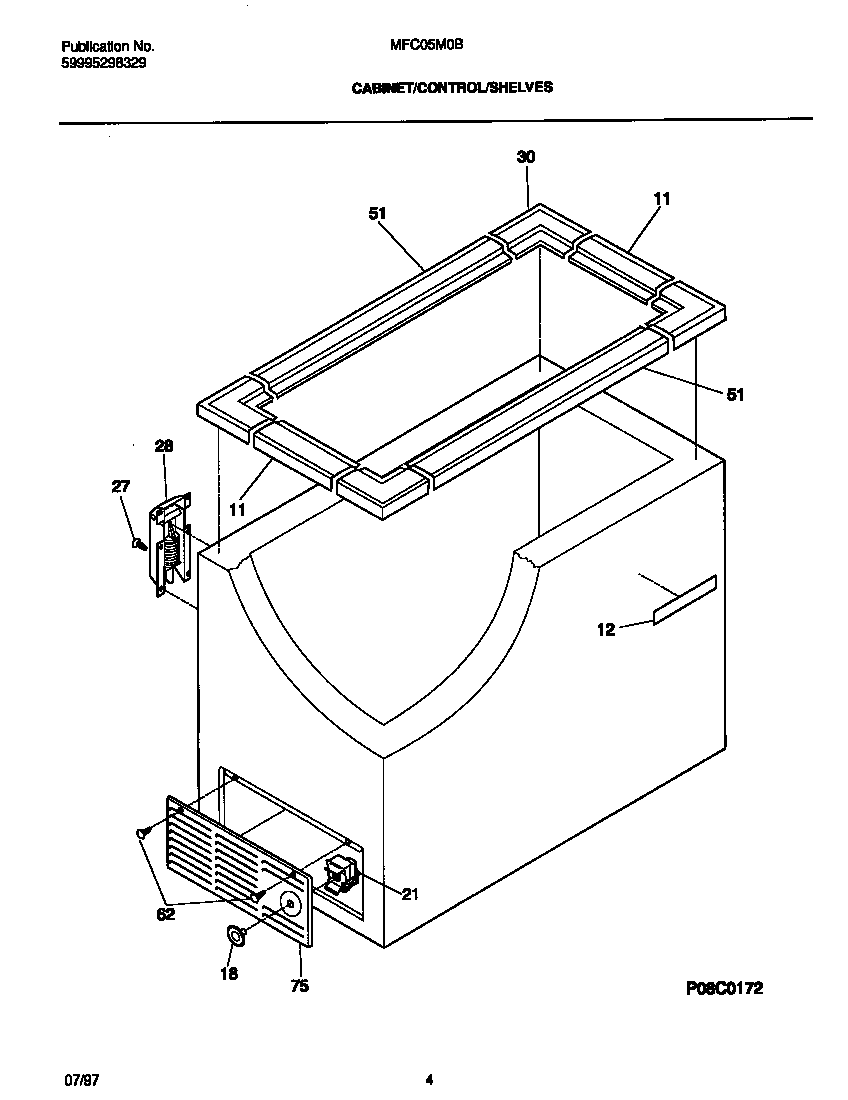

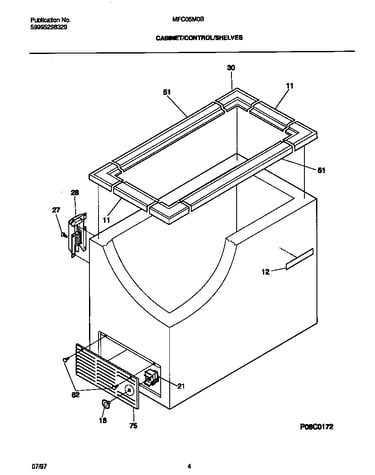

Cabinet/control/shelves Diagram

Hinge assembly

Part #216478800
Replaced by #297313200
?
Manufacturer substitution
This part replaces 216478800. Substitute parts can look different from the original.
In Stock
$51.99 |
9% OFF
Phone Price: $56.99
Refrigeration Appliance Compressor Grommet#27

System Diagram

Grommet

Part #5308002681
Replaced by #216498900
?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
In Stock
$13.39 |
13% OFF
Phone Price: $15.39
Refrigeration Appliance Screw, #10-24 x 1/2-in#27

Cabinet/control/shelves Diagram

Screw hwh #2

Part #216337700
Replaced by #216337701
?
Manufacturer substitution
This part replaces 216337700. Substitute parts can look different from the original.
In Stock
$13.26
Refrigerator Filter Dryer#4

System Diagram

Filter drier

Part #216099900
Replaced by #5303305677
?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
In Stock
$11.44 |
30% OFF
MSRP: $16.34
Laundry Appliance Screw, #8-18 x 31/100-in#62

Cabinet/control/shelves Diagram

Grille screw

Part #131168200
Replaced by #131168200
?
Manufacturer substitution
This part replaces 131168200. Substitute parts can look different from the original.
In Stock
$9.78 |
30% OFF
MSRP: $14.00

Symptoms common to all freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
