Craftsman
Front-Engine Lawn Tractor

Model # 502256190 Official Craftsman 30" 10-hp riding lawn mower with electric start

Here are the diagrams and repair parts for Official Craftsman 502256190 30" 10-hp riding lawn mower with electric start, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

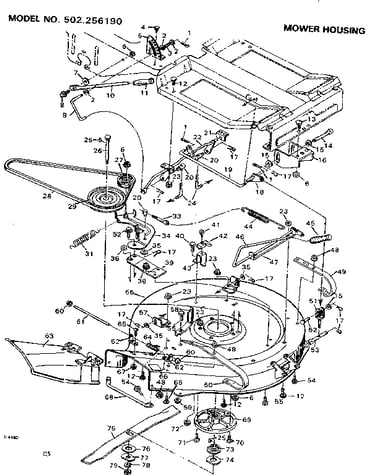

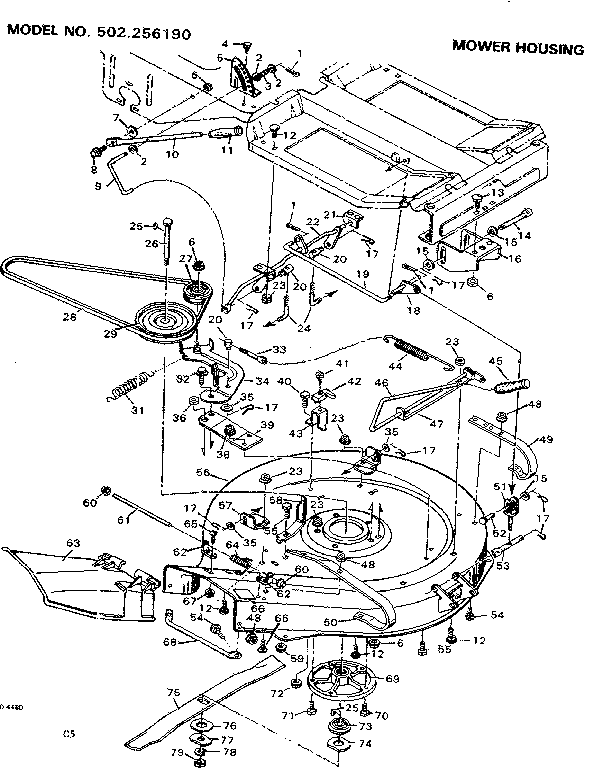

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 256 parts  |
Tire 24396
#63A

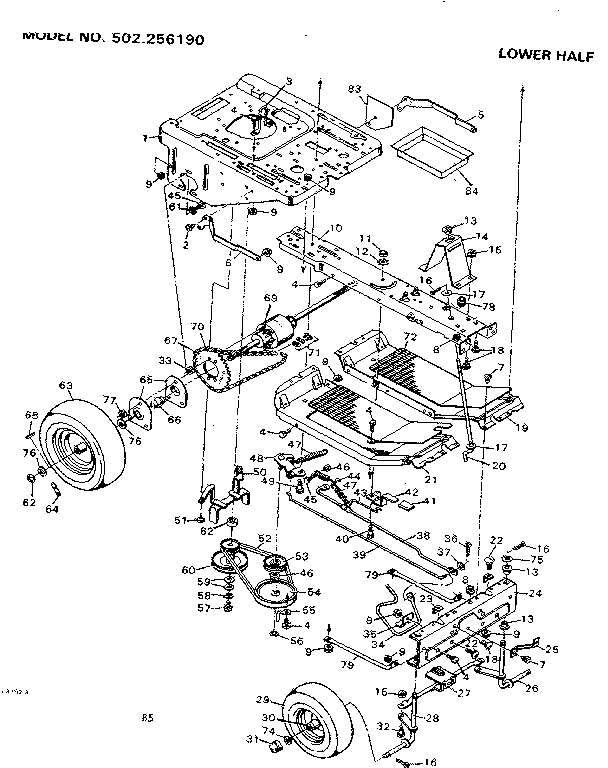

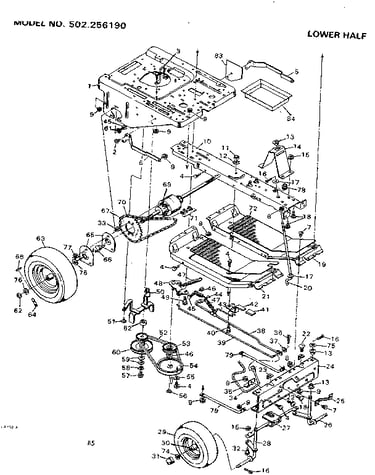

Lower half diagram

Tire

Part #24396

Replaced by #532122073

?
Manufacturer substitution
This part replaces 24396. Substitute parts can look different from the original.
BEST SELLER
$66.73 |
7% OFF Phone Price : $71.73
In Stock
Solenoid 24285
#4

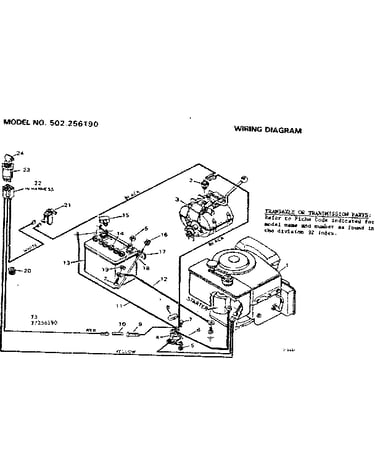

Wir. diagram diagram

Solenoid

Part #24285

Replaced by #7701100MA

?
Manufacturer substitution
This part replaces 24285. Substitute parts can look different from the original.
$29.30 |
15% OFF Phone Price : $34.30
In Stock
Battery 54141
#13

Wir. diagram diagram

Battery

Part #54141

The manufacturer no longer makes this part, and there's no substitute part

Wheel 24399E
#63B

Lower half diagram

Wheel

Part #24399E

Replaced by #532122075

?
Manufacturer substitution
This part replaces 24399E. Substitute parts can look different from the original.
BEST SELLER
$72.47 |
6% OFF Phone Price : $77.47
In Stock
Lock Nut STD541431
Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Idler Pulley 20613
Idler pulley

Part #20613

Replaced by #420613MA

?
Manufacturer substitution
This part replaces 20613. Substitute parts can look different from the original.
This item is not returnable
$25.18 |
17% OFF Phone Price : $30.18
In Stock
Differential Axle 55000
#69

Lower half diagram

Differential axle

Part #55000

Replaced by #794299

?
Manufacturer substitution
This part replaces 55000. Substitute parts can look different from the original.
$154.92
In Stock
Cotter Pin 30X20
#66

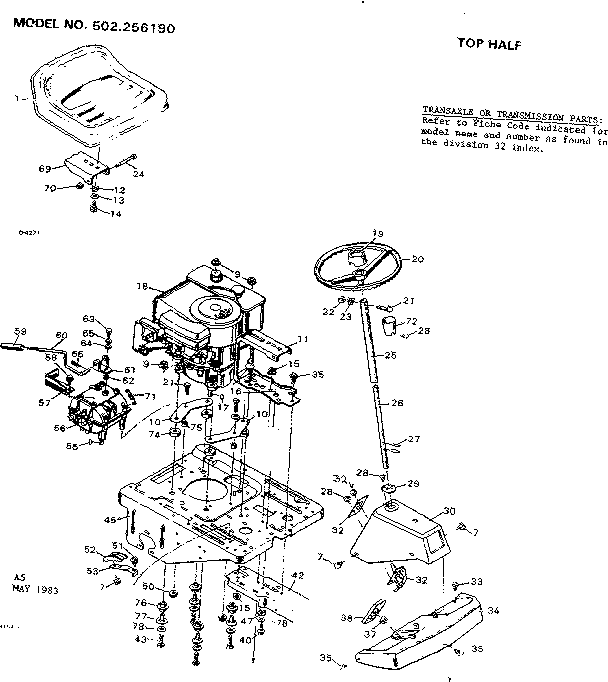

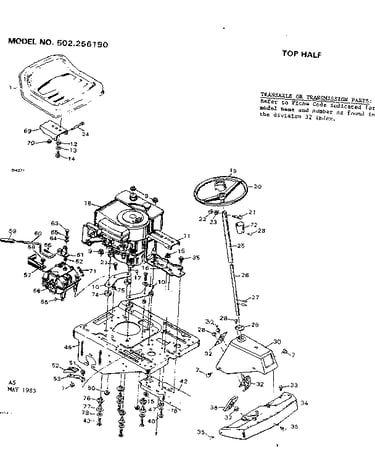

Top half diagram

Cotter pin

Part #30X20

Replaced by #703312

?
Manufacturer substitution
This part replaces 30X20. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
Pin STD624003
#18

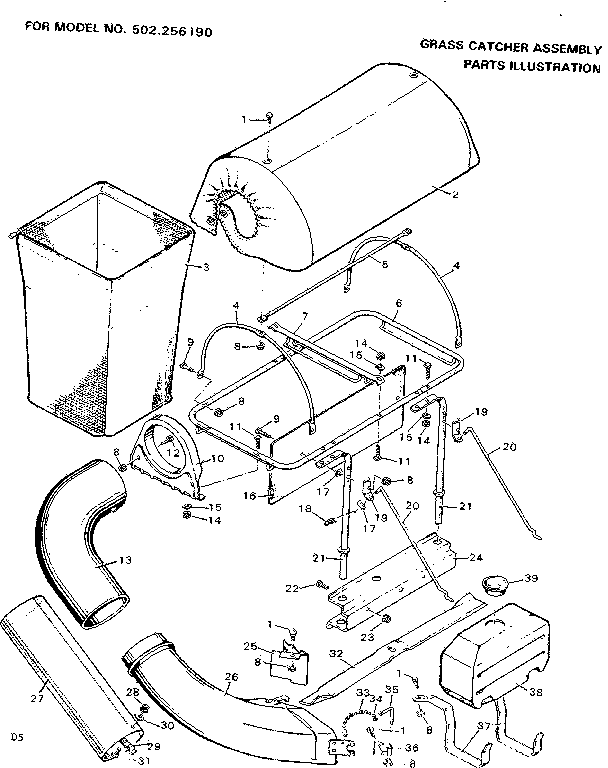

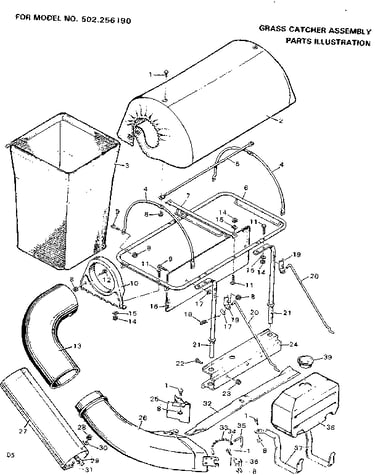

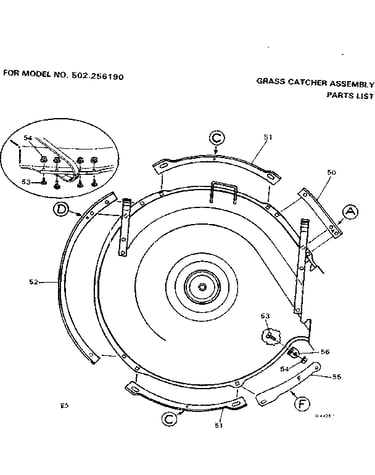

Gras. cat. assm diagram

Pin

Part #STD624003

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part
