Kenmore 10641159210 refrigerator Parts

The Kenmore side-by-side refrigerator model 10641159210 is a full-size unit; the exact total capacity (cubic feet) and the exact exterior dimensions (height, width, depth) are listed in the specifications section of the 10641159210 owner's manual. Use those specs to confirm fit, clearances, and door swing in your kitchen.

What “big” means for this model

When you look up size for model 10641159210, focus on these spec items:

• Total capacity (cu. ft.) for overall storage
• Width for cabinet opening fit
• Height (to top of hinge) for overhead clearance
• Depth (often listed with and without handles) for walkway and counter alignment
• Recommended clearances for airflow and door swing

How we recommend measuring (so the specs match real life)

Measure your space first, then compare to the manual specs:

• Width: wall to wall at the tightest point
• Height: floor to the lowest overhead obstruction
• Depth: back wall to the front edge of counters or cabinets
• Door swing space: room for doors to open fully and bins to clear

Quick checklist table

What you need	Where to get it	Why it matters
Capacity (cu. ft.)	Manual specifications	Confirms storage size
Height, width, depth	Manual specifications	Confirms physical fit
Clearance requirements	Manual installation/spec section	Prevents overheating and rubbing doors
Door swing allowance	Your measurement	Avoids blocked drawers and bins

Why it matters

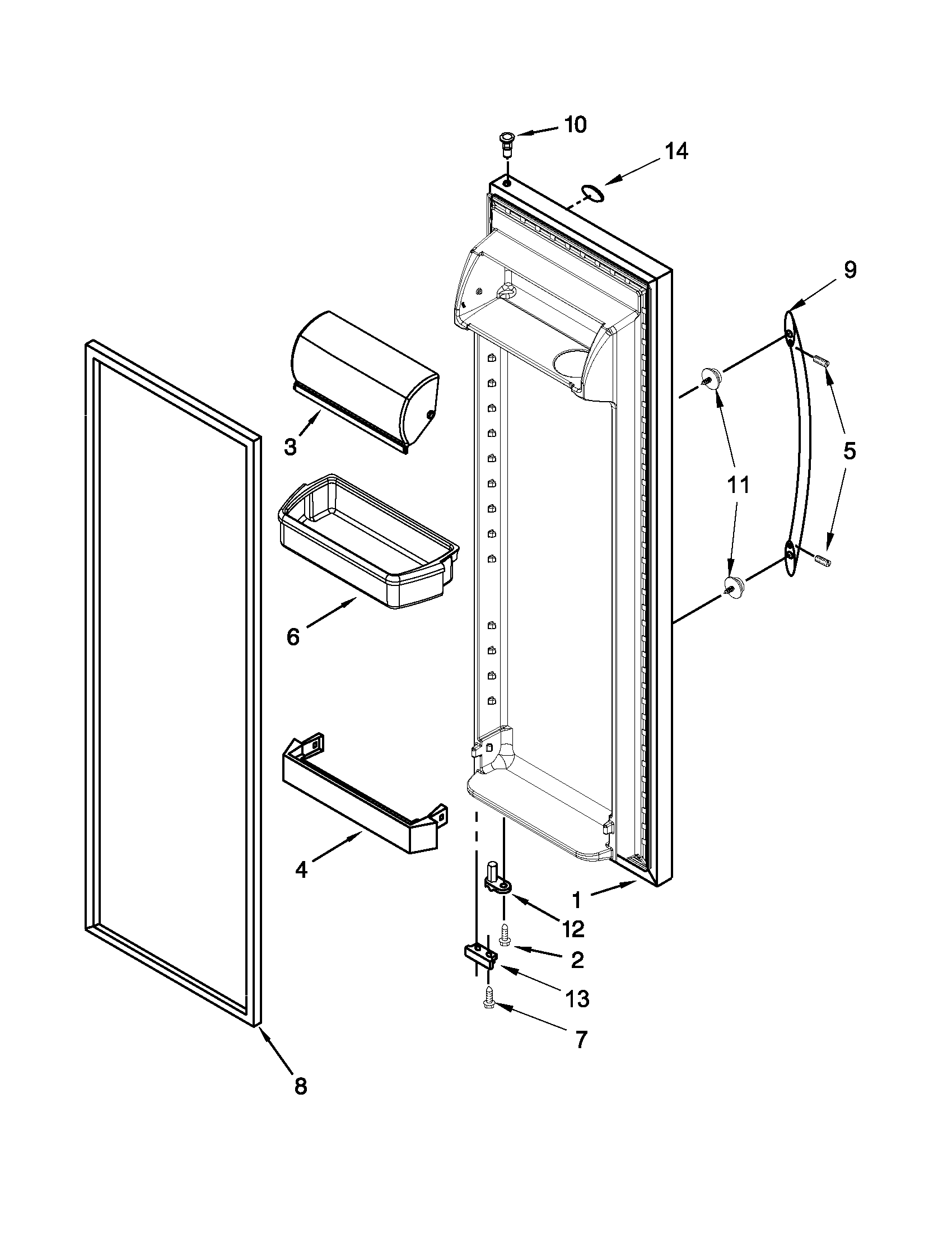

Using the model-specific specs prevents fit problems and helps you choose compatible replacements and accessories, such as a correctly sized refrigerator door bin WPW10710203 if you are restoring storage space.

Last updated: January 2026

The most common issues we see with the Kenmore 10641159210 side-by-side refrigerator are warm temperatures from airflow or defrost problems, ice maker or dispenser troubles, water leaks, and door-seal issues that cause frost or poor cooling. Your owner's manual helps confirm control settings and basic checks.

Common problems and what they usually point to

• Fridge or freezer not cold enough: dirty condenser coil, evaporator fan issue, iced-over evaporator from a defrost failure
• Frost buildup or freezer wall packed with ice: defrost heater or defrost thermostat problem
• Ice maker not making ice: water supply restriction, frozen fill tube, ice maker failure
• Water leaking or puddles: clogged defrost drain, loose water line, dispenser/ice maker water path issue
• Lights not working: door switch or light board problem
• Door not closing well: worn cam/bushing, gasket not sealing

Quick checks we recommend first (no parts yet)

• Set temps to typical targets: 0°F freezer and 37°F fresh food; wait 24 hours after changes.

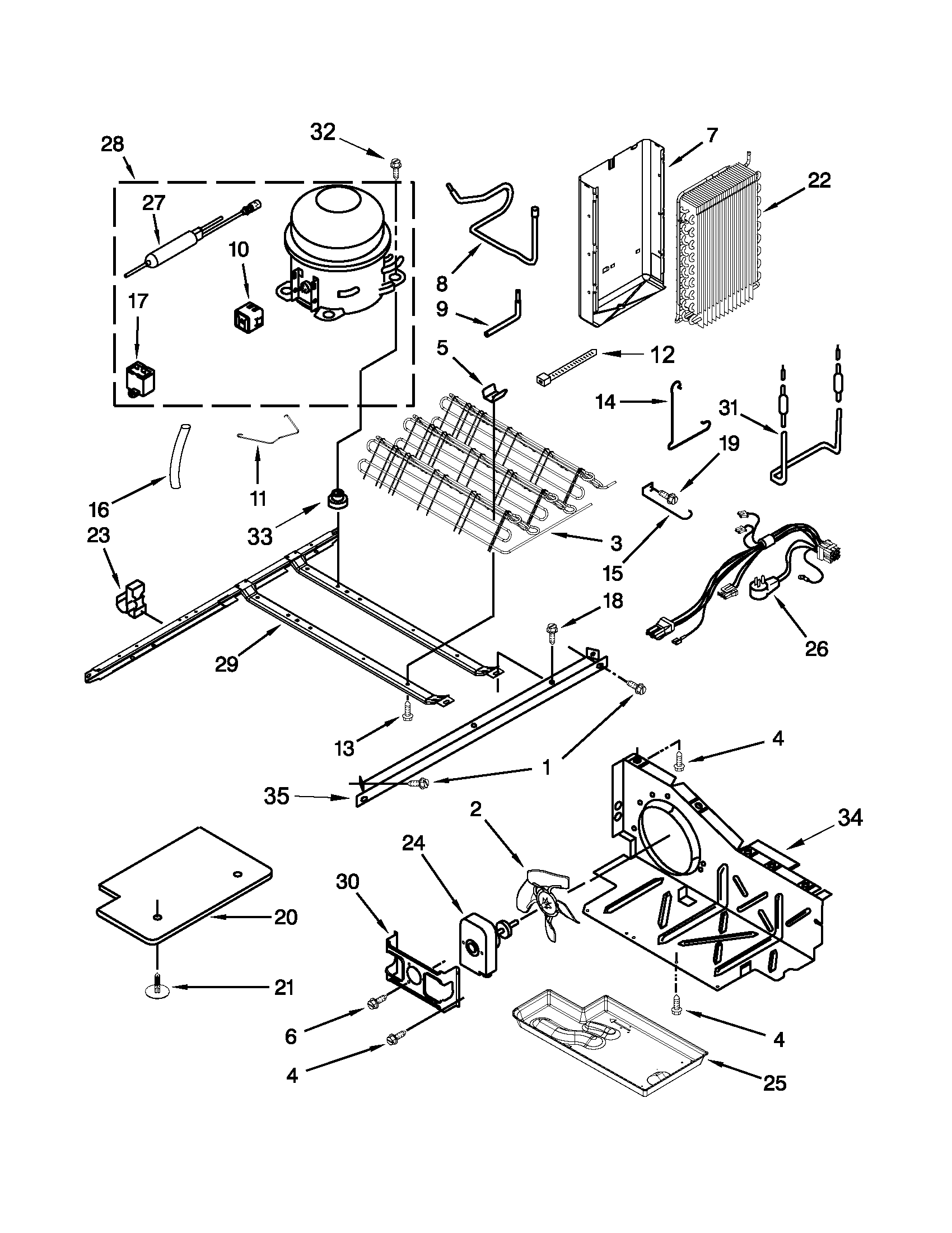

• Clean the condenser coil and make sure the condenser fan area is clear.
• Confirm vents inside both compartments are not blocked by food packages.
• Listen for the evaporator fan; if airflow is weak, inspect the freezer back panel for heavy frost.
• Check door alignment and gasket contact all the way around.

Parts that commonly solve these symptoms

If troubleshooting points to a failed component, these model-matched parts are commonly involved:

Symptom	Likely area	Example model-matched part
Heavy frost, warm temps	Defrost system	Refrigerator heater WP2323198, refrigerator defrost bi-metal thermostat WPW10225581

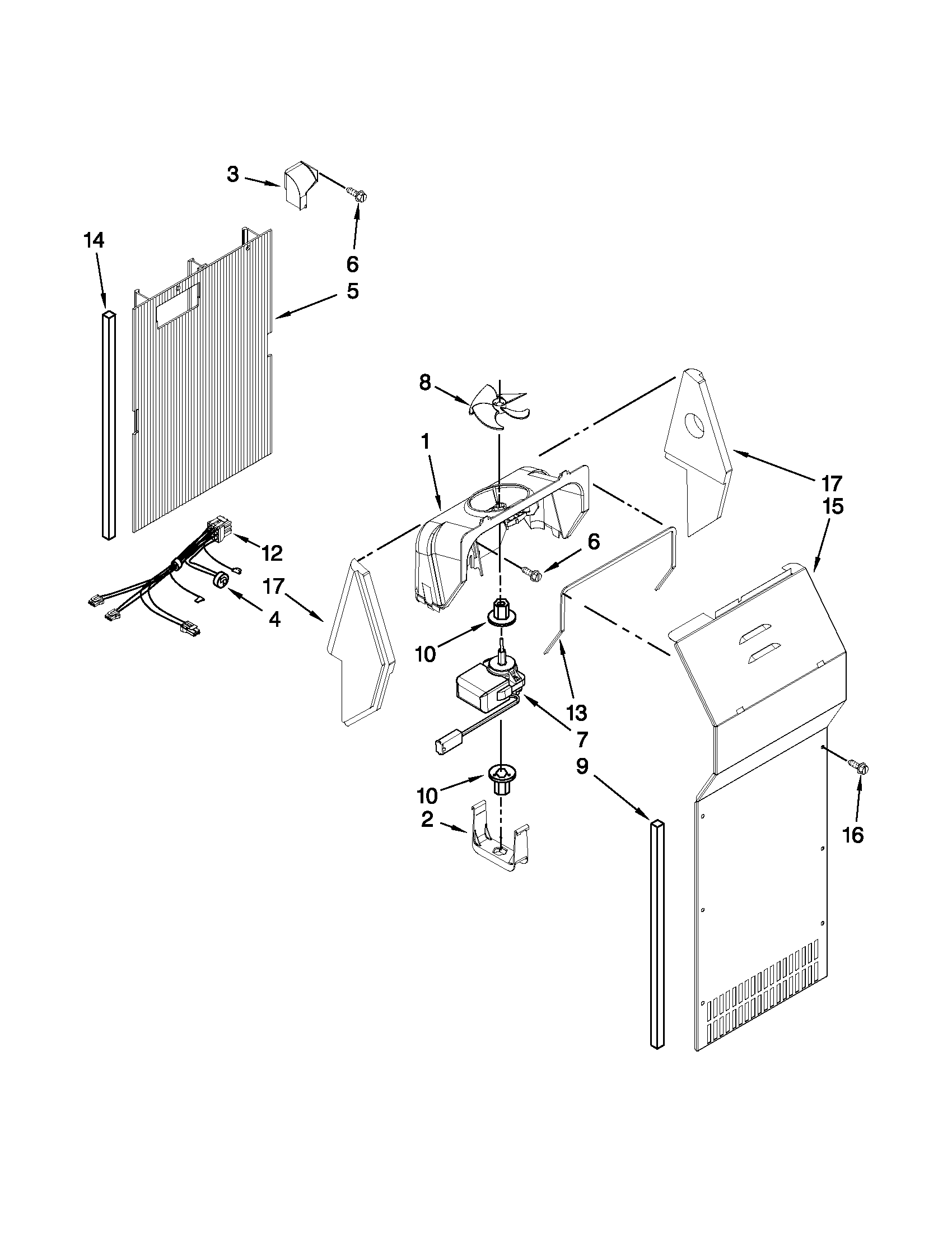

No/weak airflow	Evaporator fan area	Refrigerator evaporator fan blade WP2169142
Lights out	Door/light circuit	Refrigerator light switch W11384469, refrigerator light board WPW10515057

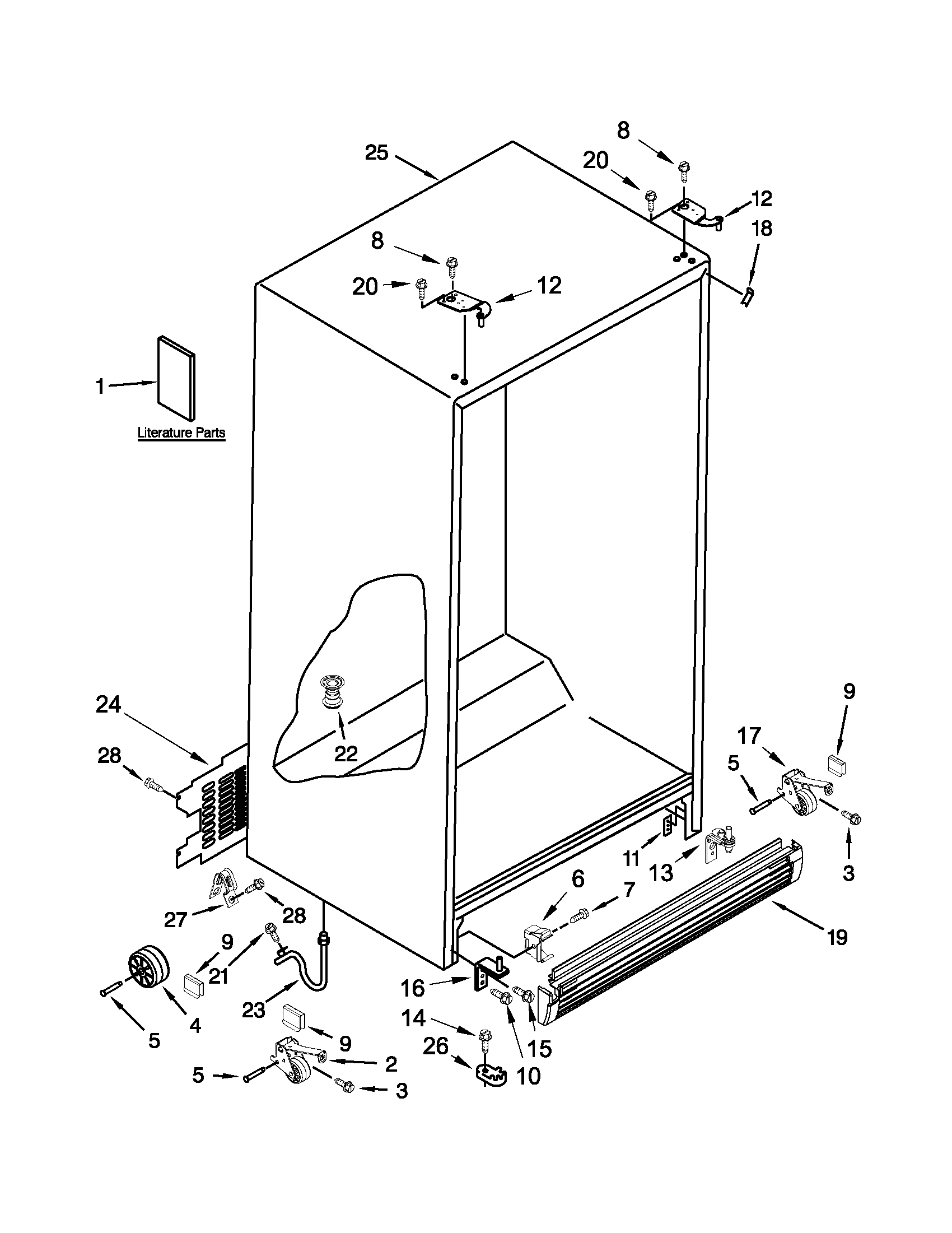

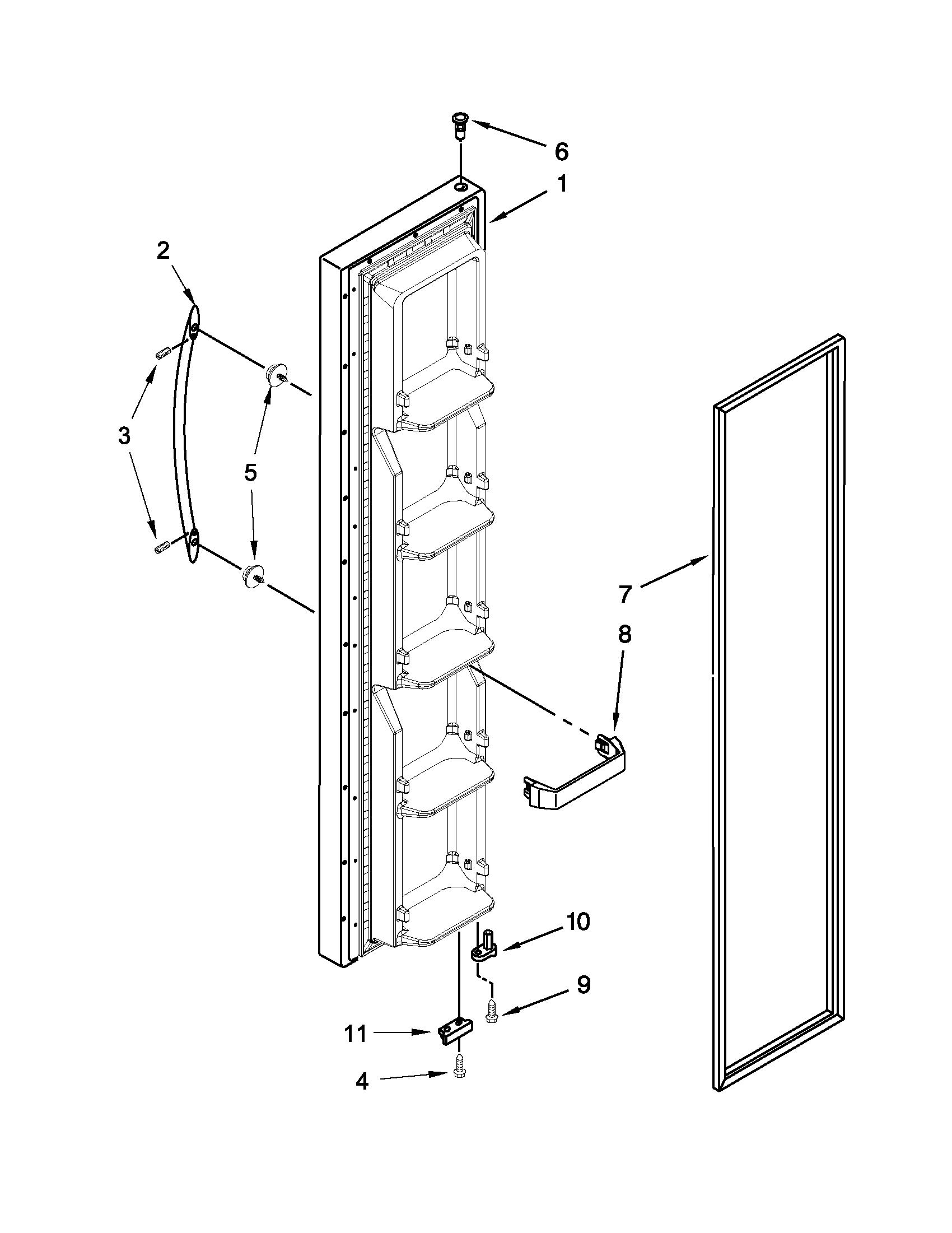

Door not closing smoothly	Hinge/cam	Refrigerator door cam (black) WP2182179, refrigerator door hinge bushing WP2182181
Ice maker not working	Ice maker assembly	Refrigerator ice maker W11762633

Why it matters

Cooling, ice production, and leak issues often share the same root causes: restricted airflow, poor heat exchange at the condenser, or a defrost system that cannot clear frost from the evaporator. Fixing the underlying cause prevents repeat failures and food-temperature problems.

Last updated: March 2026

On Kenmore model 10641159210, “error 15” is an electronic fault code shown by the control. The exact meaning depends on the control version; we confirm the definition and the correct reset procedure using the model’s 10641159210 owner's manual and the Kenmore 106-series code list.

How to identify the code correctly

• Write down the code exactly as shown (for example: E15, ER 15, or a two-letter prefix).
• Note whether the display is on the dispenser panel or inside the fresh food control.
• Power-cycle once to see if the code is persistent (unplug for 5 minutes, then restore power).
• Check for any related symptoms: no ice, warm freezer, lights flickering, beeping.
• If the code returns immediately, treat it as an active fault, not a one-time glitch.

What to check first (safe, high-value checks)

• Confirm the freezer temperature is near 0°F; warm temps can trigger multiple faults.
• Look for ice buildup on the rear freezer panel (possible defrost airflow issue).
• Make sure the door closes and seals fully; air leaks can cause icing and sensor errors.
• If the code appears with ice maker problems, inspect the ice maker area for jams.

Common systems that can trigger control fault codes

System involved	What you may notice	Example part for this model
Ice maker circuit	No ice, intermittent ice, cycling	Refrigerator ice maker W11762633
Main control electronics	Multiple odd behaviors at once	Refrigerator electronic control board WPW10366605
Defrost sensing/heating	Frost buildup, poor airflow	Refrigerator defrost bi-metal thermostat WPW10225581

Why it matters

A persistent fault code usually means the refrigerator is protecting itself or reporting a sensor or control problem. Matching the exact code to the correct subsystem prevents unnecessary parts replacement and gets cooling and ice production back to normal.

Last updated: January 2026
