Is a top or bottom mount fridge better?
For the Kenmore 59673502201 (a bottom-mount, bottom-freezer design), bottom-mount models are usually better for everyday access because fresh-food items sit at eye level and the freezer is in a pull-out drawer. Top-mount models are often a bit more energy-efficient and typically cost less.
| Feature | Bottom-mount (bottom freezer) | Top-mount (top freezer) |
|---|---|---|
| Fresh-food access | Best (most-used items higher up) | Good, but you bend more |
| Freezer access | Drawer style, easy to organize | Shelf style, easy to see |
| Organization | Strong (baskets, dividers common) | Simple, fewer zones |
| Energy use | Often slightly higher | Often slightly lower |
| Price | Often higher | Often lower |
- Choose bottom-mount if you use fresh food daily and want less bending.
- Choose top-mount if you want a simpler layout and typically lower operating cost.
- If you store lots of frozen food, compare drawer capacity and basket layout.
- If you have limited door swing space, measure carefully and confirm clearances.
- If you want the best door sealing and closing, level the refrigerator so doors self-close smoothly.
The “better” style is the one that fits how you cook and how your kitchen is laid out. Bottom-mount designs like the Kenmore 59673502201 prioritize convenience for fresh-food access, while top-mount designs often prioritize efficiency and value.
For model-specific layout and setup details (including installation and leveling guidance), use the 59673502201 use & care guide.
Last updated: January 2026
How to lower wheels on Kenmore refrigerator?

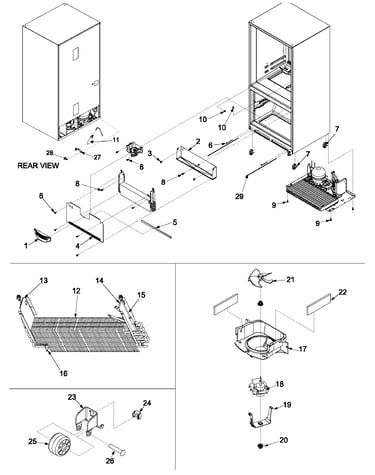

To lower the front wheels (rollers) on your Kenmore refrigerator model 59673502201, turn the front roller adjustment screws counterclockwise. This lowers the front and helps you level the cabinet so the doors close properly; the screws adjust height and do not come out.
Use the leveling steps in the 59673502201 owner's manual. In most installs, you will remove the toe grille first, then adjust the front and rear as needed.
- Unplug the refrigerator before working near wiring or moving parts.
- Remove the toe grille and bottom bracket covers.
- Turn front adjustment screws (A):
- Counterclockwise to lower the front
- Clockwise to raise the front
- If your model has rear adjustment screws (B), adjust them as needed for stability.
- Turn the stabilizing legs (C) down until they are firmly against the floor.
- Back off the front roller screws 2 to 3 turns counterclockwise so the refrigerator’s weight rests on the stabilizing legs.
| What you are adjusting | Turn clockwise | Turn counterclockwise |
|---|---|---|
| Front roller/adjustment screws | Raise front | Lower front |
| Rear adjustment screws (if equipped) | Raise rear | Lower rear |
| Stabilizing legs | Raise legs | Lower legs to floor |
A properly leveled bottom-mount refrigerator typically sits slightly higher in front.
- Set the front about 1/4 inch (6 mm) higher than the back (or about 1/2 bubble on a level).
- Confirm both front corners feel solid (no rocking).
- Reinstall the toe grille and bracket covers when finished.
When the front is slightly higher, gravity helps the doors swing closed and improves gasket sealing. That reduces warm air leaks, frost buildup, and temperature swings in the fresh food and freezer compartments.
Last updated: January 2026
What is the bottom part of a refrigerator called?

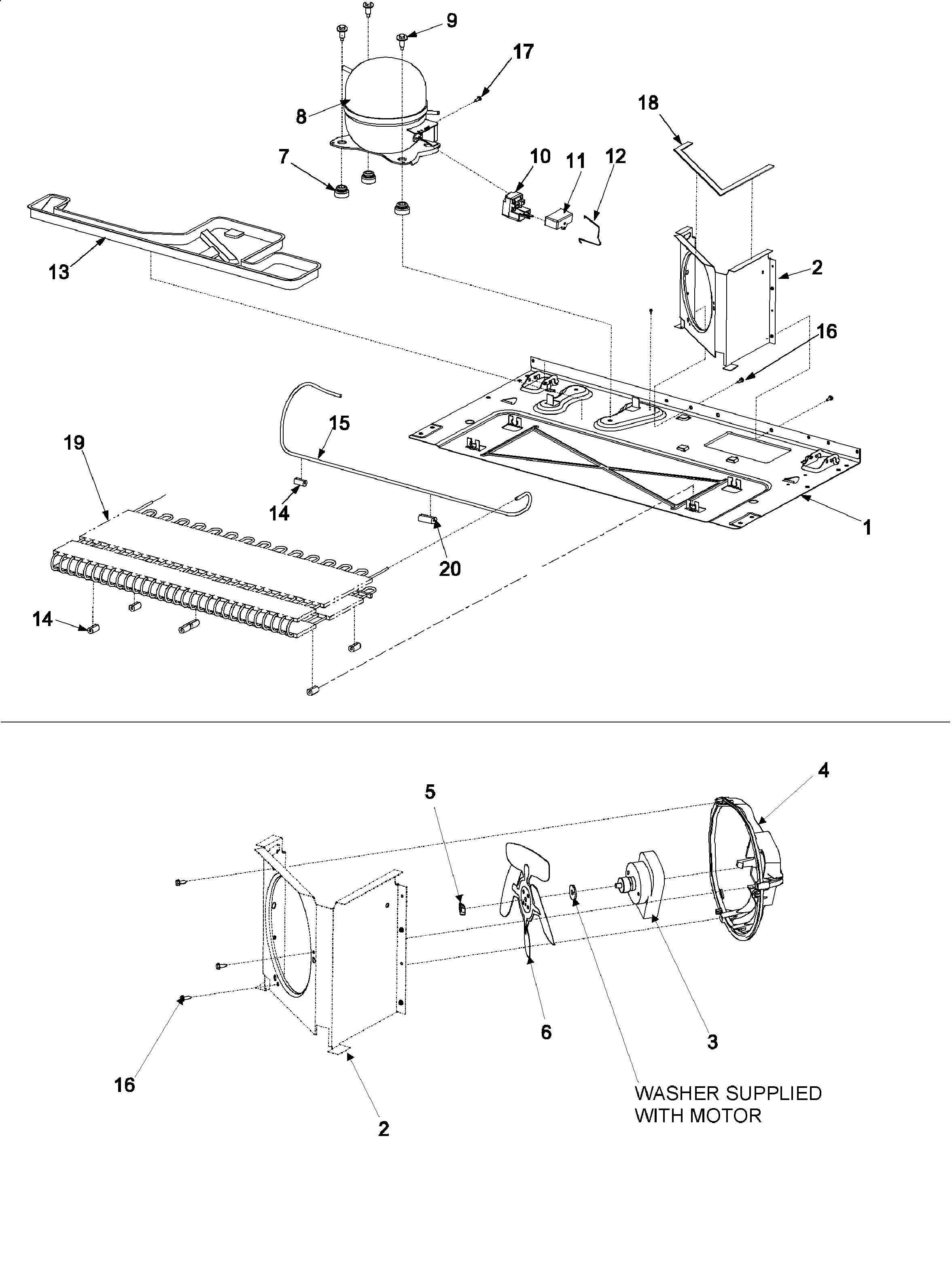

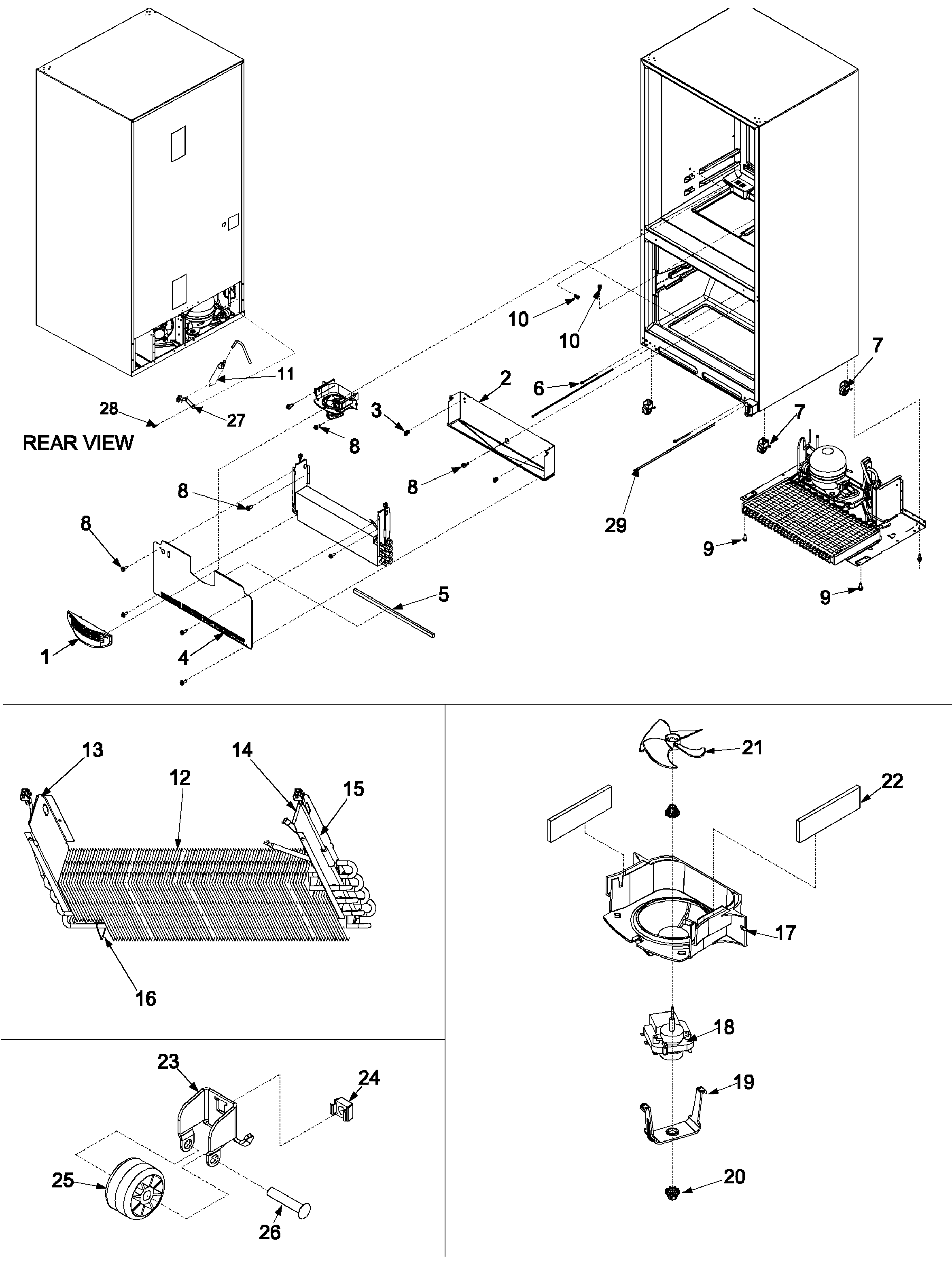

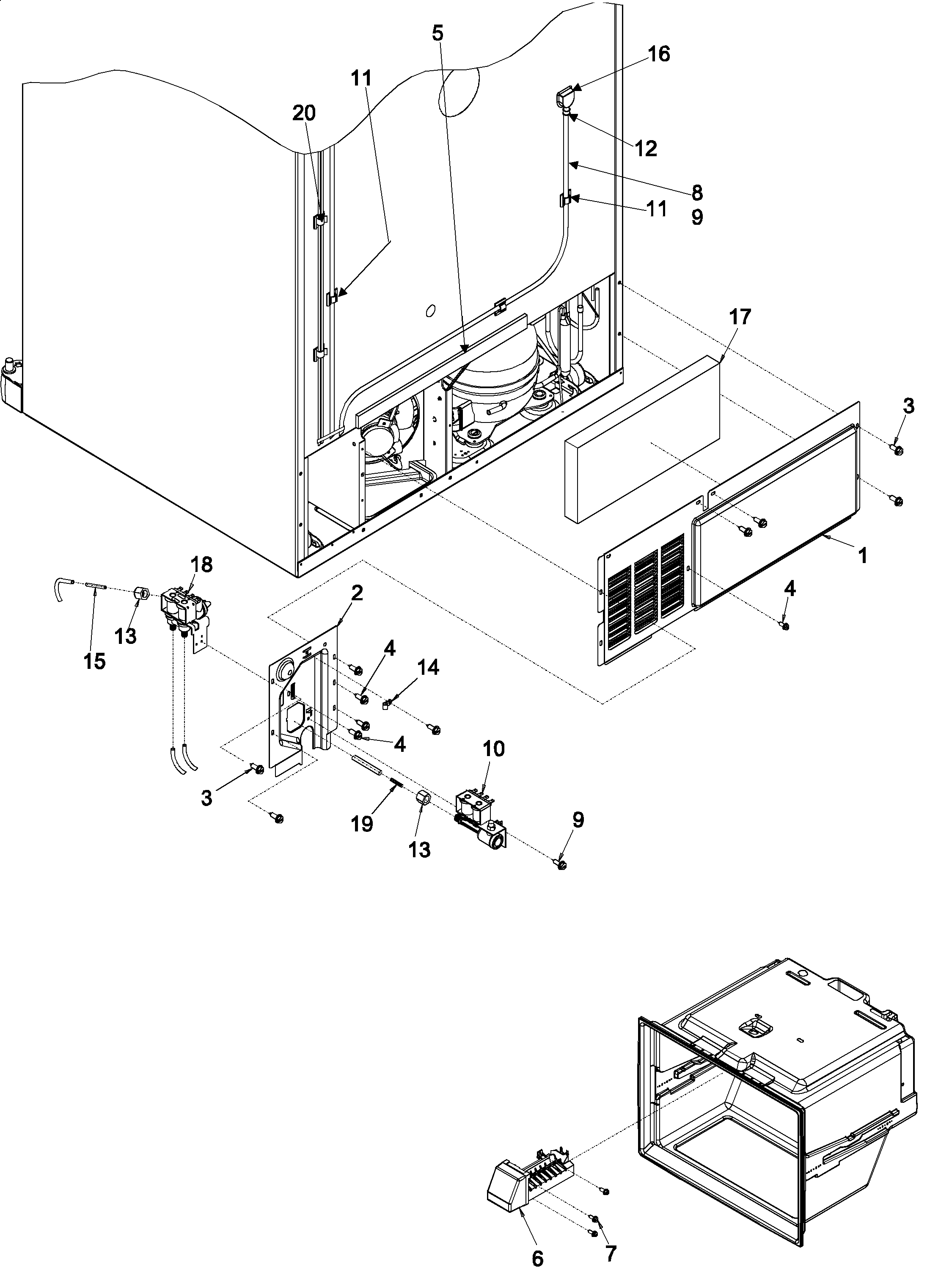

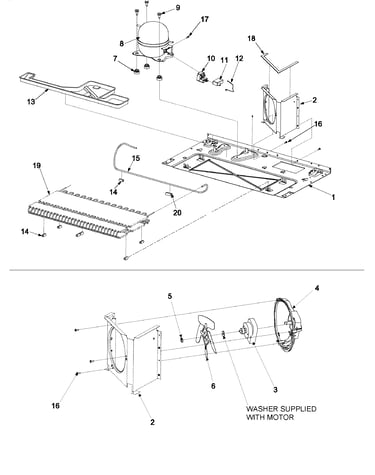

On the Kenmore 59673502201 bottom-mount refrigerator, the “bottom part” is most commonly the toe grille area at the very front (the vented cover near the floor) and, behind/under it, the machine compartment where key cooling components sit (like the compressor and condenser area).
- Toe grille: the front, lower cover you remove for access and cleaning
- Machine compartment: the lower rear area that houses cooling-system components
- Bottom bracket covers: small covers near the toe grille used during service
- Drain pan: a pan underneath that catches defrost water (varies by design)
- Base frame: the structural bottom that supports the cabinet
The bottom area is where heat is rejected and where service access often starts. For example, leveling and some door/drawer removal steps begin by removing the toe grille and bottom bracket covers.
| Term | Where it is | What it does |
|---|---|---|
| Toe grille | Front bottom (near the floor) | Covers the base, allows airflow, provides service access |
| Machine compartment | Lower rear/bottom | Houses compressor and condenser-side components |
| Drain pan | Under the cabinet | Collects and evaporates defrost water |
- Leveling the refrigerator (front and rear adjustments)
- Cleaning dust from lower airflow areas to improve cooling efficiency
- Checking for water puddles under the unit
- Servicing door/drawer hardware that references the toe grille area
- Use the 59673502201 owner’s manual for the exact toe grille removal and leveling steps.
Knowing the correct name helps you find the right instructions and parts faster, especially when you are troubleshooting airflow, noise, leaks, or door alignment.
Last updated: January 2026
