Model # FH40150 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover FH40150 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Foam 440004816
#5

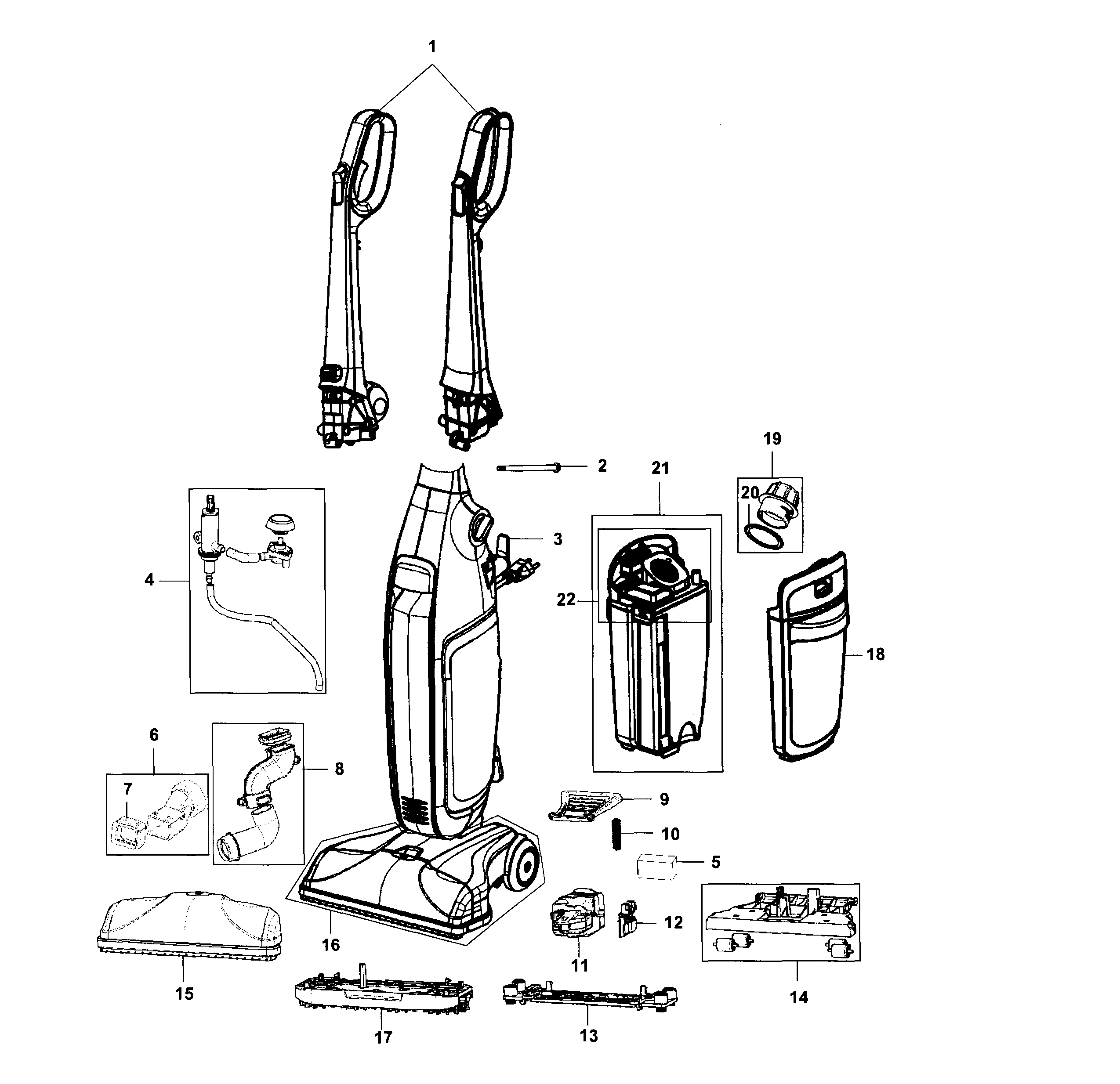

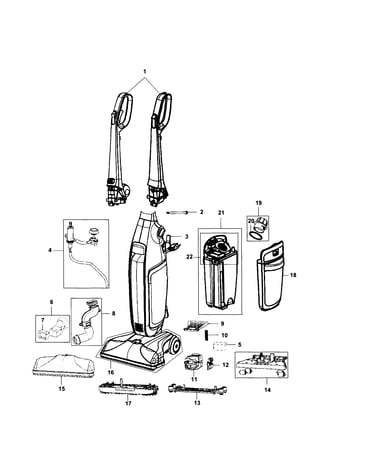

Vacuum assy diagram

Foam

Part #440004816

The manufacturer no longer makes this part, and there's no substitute part

Floor Scrubber Solution Reservoir Tubing Assembly 440004815
#4

Vacuum assy diagram

Floor scrubber solution reservoir tubing assembly

Part #440004815

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Nozzle Housing 440004826
#15

Vacuum assy diagram

Vacuum floor nozzle housing

Part #440004826

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Wood Floor Brush 440004832
#17

Vacuum assy diagram

Carpet cleaner wood floor brush

Part #440004832

The manufacturer no longer makes this part, and there's no substitute part

Wheel 440004825
#14

Vacuum assy diagram

Wheel

Part #440004825

The manufacturer no longer makes this part, and there's no substitute part

Gasket 440004819
#7

Vacuum assy diagram

Gasket

Part #440004819

The manufacturer no longer makes this part, and there's no substitute part

Hanlde 440004806
#1

Vacuum assy diagram

Hanlde

Part #440004806

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Base 440004828
#16

Vacuum assy diagram

Vacuum base

Part #440004828

The manufacturer no longer makes this part, and there's no substitute part

Cord Hook 440004808
#3

Vacuum assy diagram

Cord hook

Part #440004808

The manufacturer no longer makes this part, and there's no substitute part

Motor 440004822
#11

Vacuum assy diagram

Motor

Part #440004822

The manufacturer no longer makes this part, and there's no substitute part
