Craftsman
Front-Engine Lawn Tractor

Model # 917290990 Official Craftsman lawn aerator

Here are the diagrams and repair parts for Official Craftsman 917290990 lawn aerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Nut Washer 590P
#4

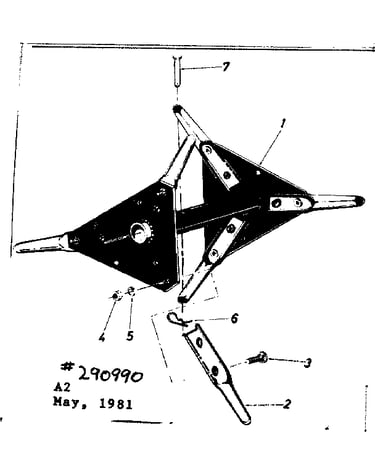

Replacement parts diagram

Nut washer

Part #590P

The manufacturer no longer makes this part, and there's no substitute part

Pin 6202J
#7

Replacement parts diagram

Pin

Part #6202J

Replaced by #4929H

?
Manufacturer substitution
This part replaces 6202J. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
Back Order
Lock Washer, 5/16-in, 8-pack STD551131
#5

Replacement parts diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#3

Replacement parts diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Point 6266J
#2

Replacement parts diagram

Point

Part #6266J

The manufacturer no longer makes this part, and there's no substitute part

Retainer 6197J
#6

Replacement parts diagram

Retainer

Part #6197J

The manufacturer no longer makes this part, and there's no substitute part

Spool Assembly 6267J
#1

Replacement parts diagram

Spool assembly

Part #6267J

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 6208J

#NI

All parts diagram

Owner's manual

Part #6208J

The manufacturer no longer makes this part, and there's no substitute part
