Craftsman
Gas Walk-Behind Mower

Model # 917376672 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376672 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

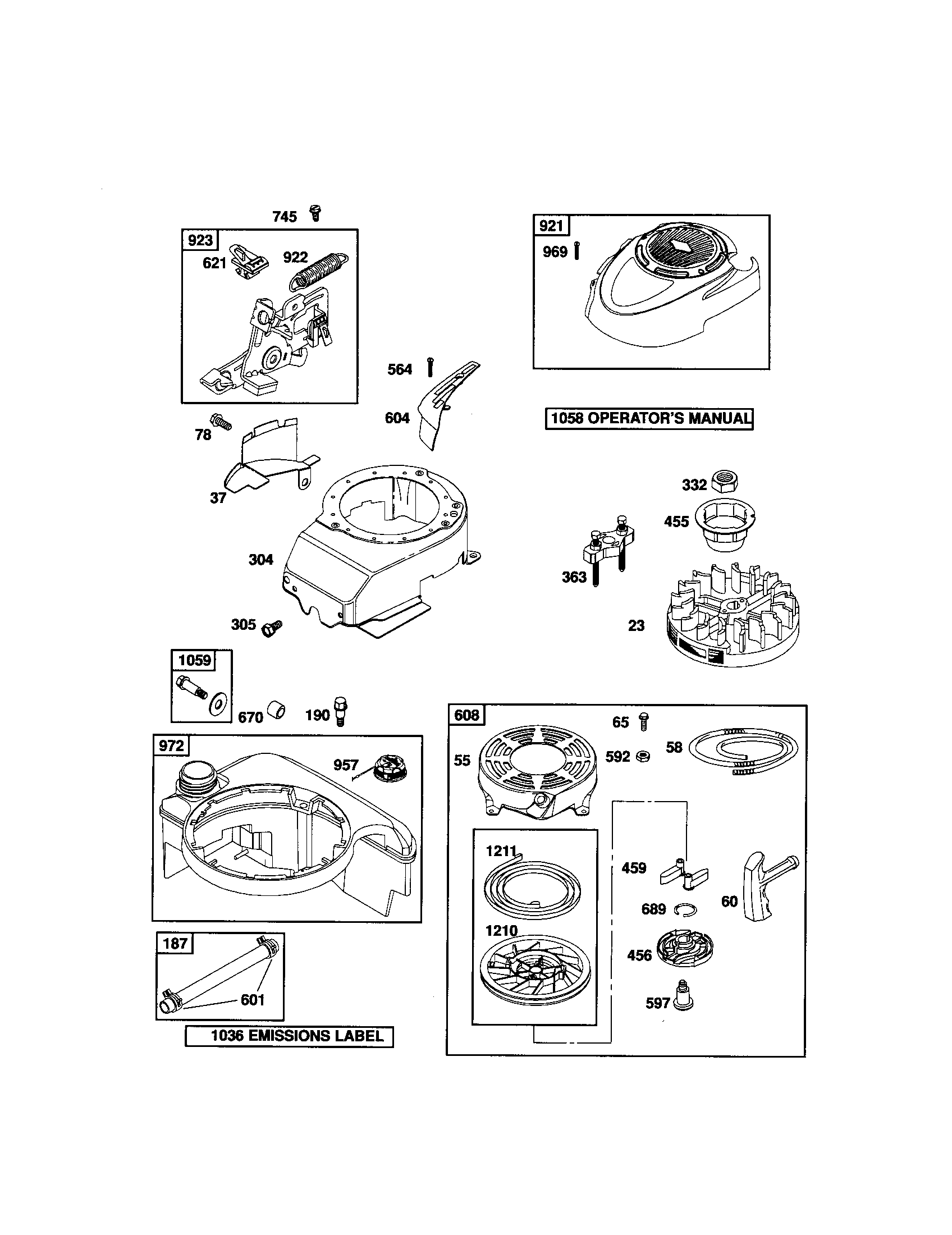

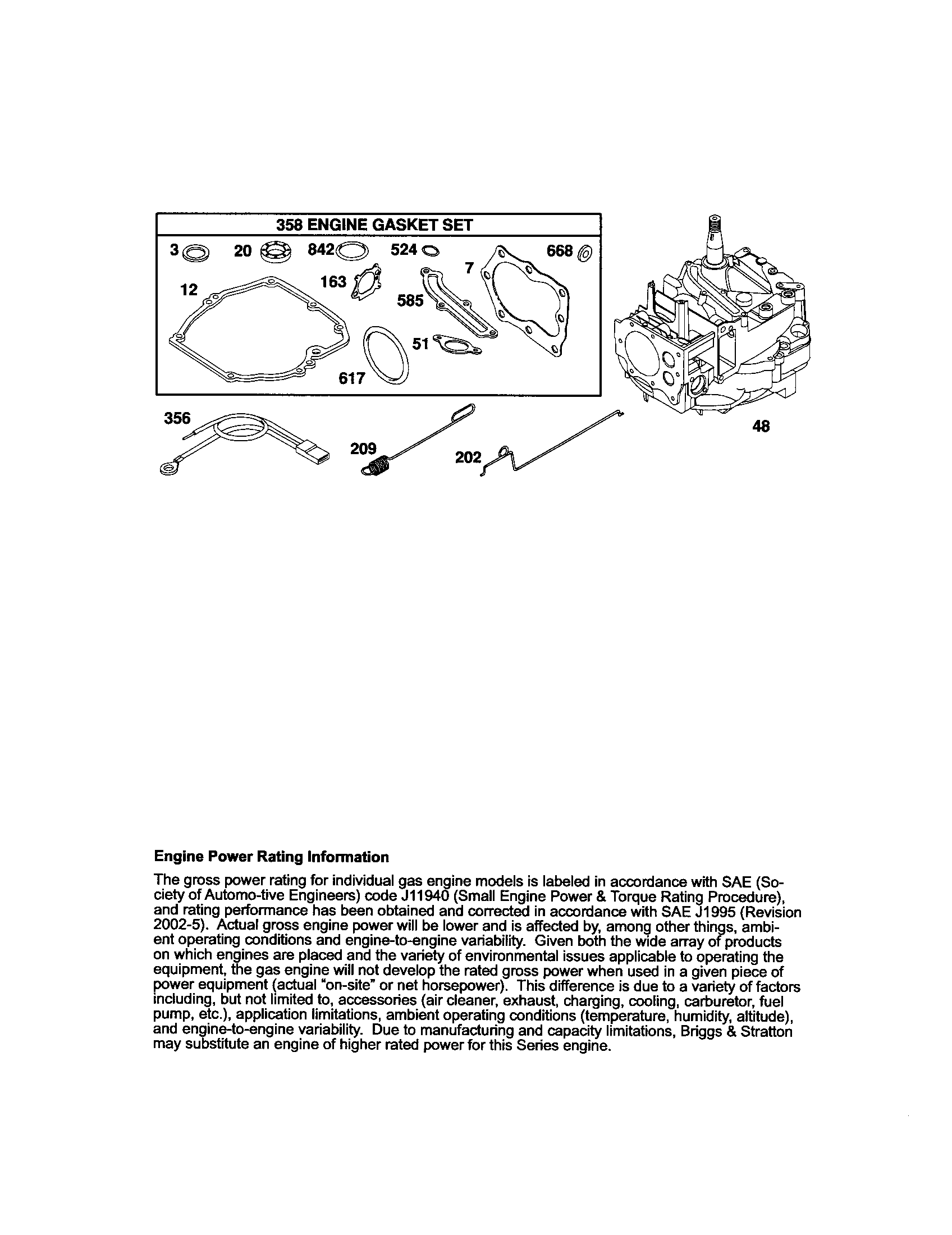

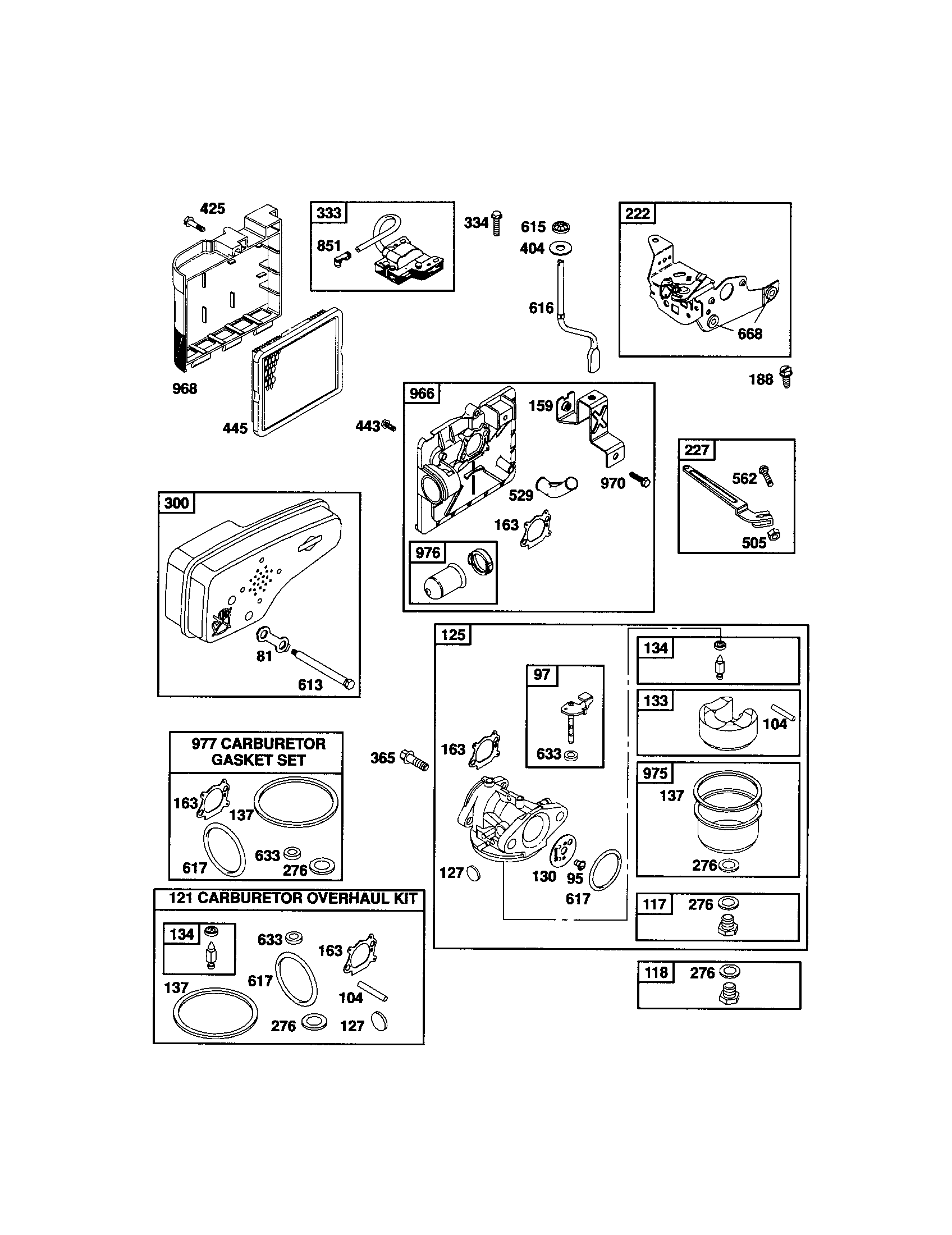

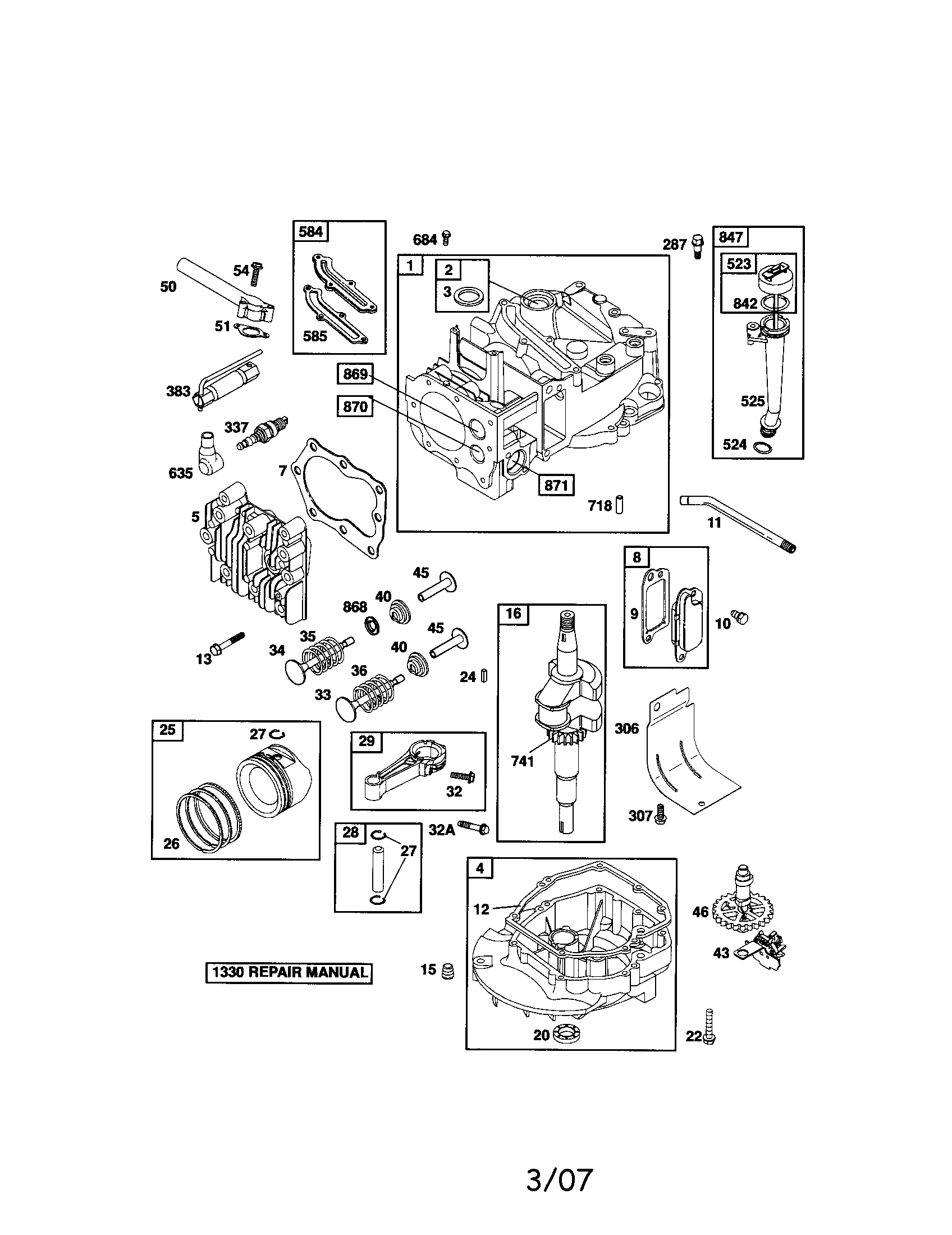

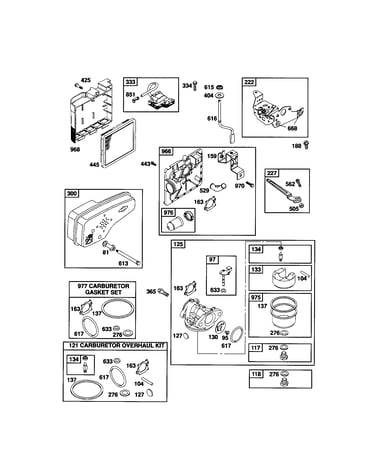

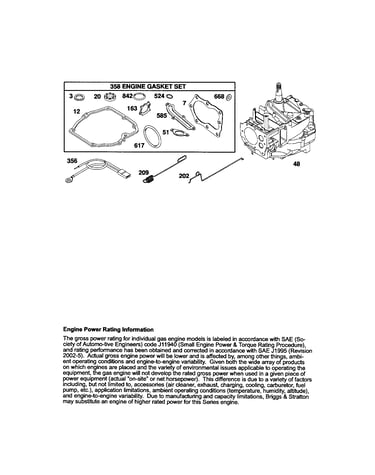

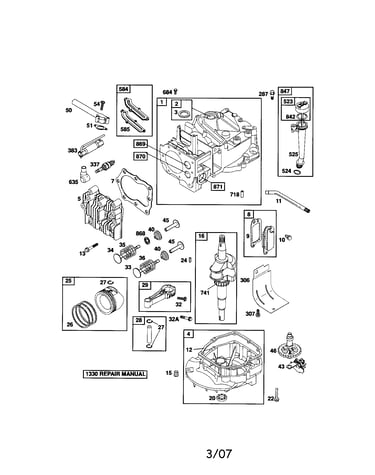

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 247 parts  |

Lawn Mower Drive Wheel 194231X427
#11

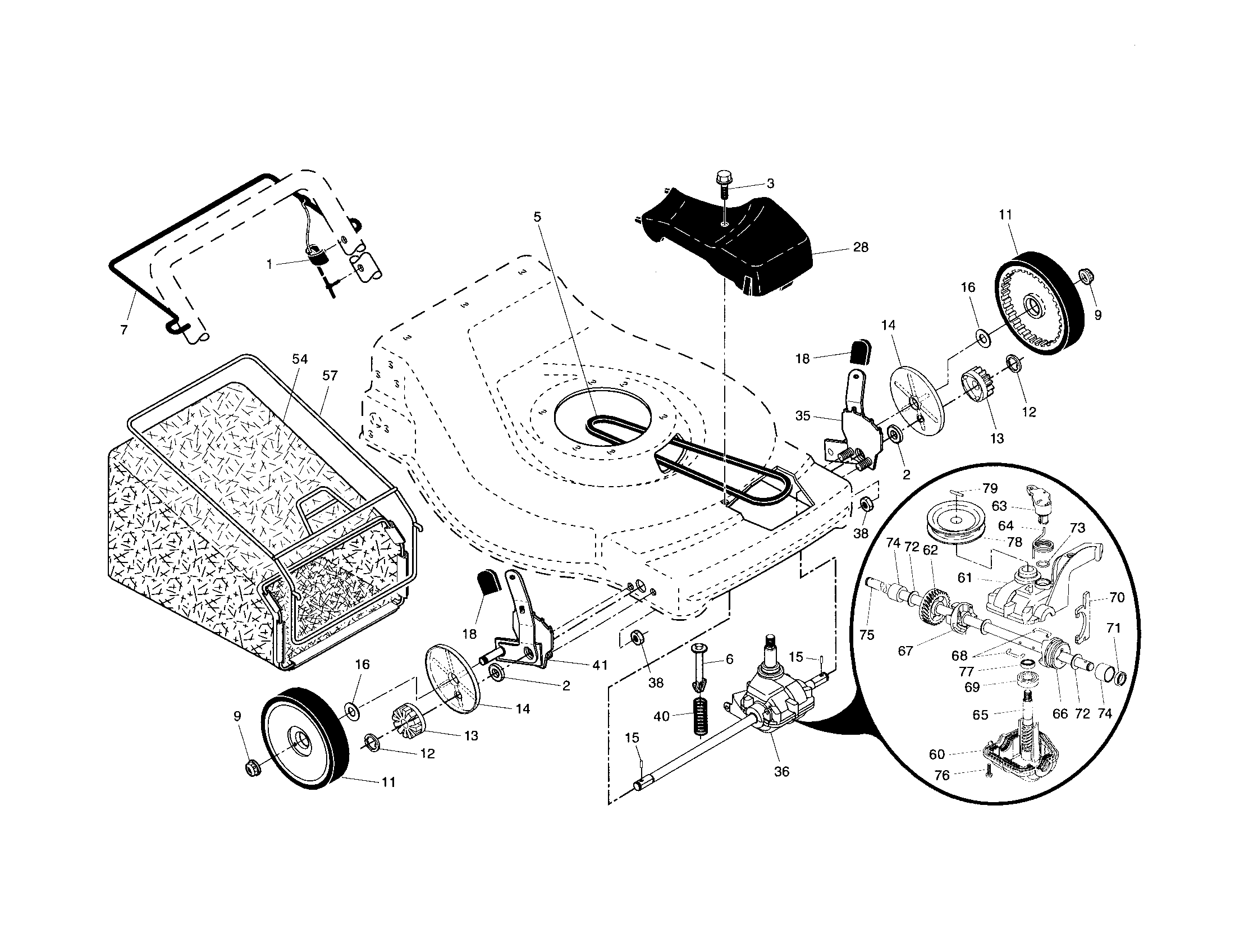

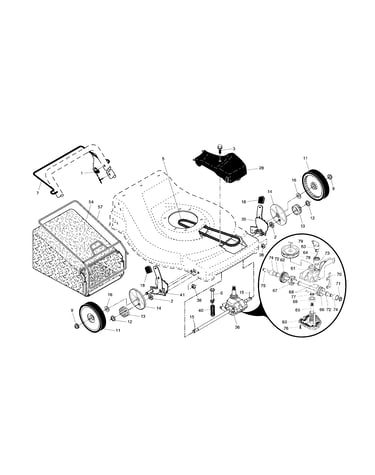

Drive control/gear case/wheels diagram

Lawn mower drive wheel

Part #194231X427

Replaced by #532403111

?
Manufacturer substitution
This part replaces 194231X427. Substitute parts can look different from the original.
BEST SELLER
$12.47
14% OFF Phone Price : $14.47
In Stock
Lawn & Garden Equipment Nut 409148
#9

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88
17% OFF Phone Price : $5.88
In Stock
Hex Flange Lock Nut 145212
#25

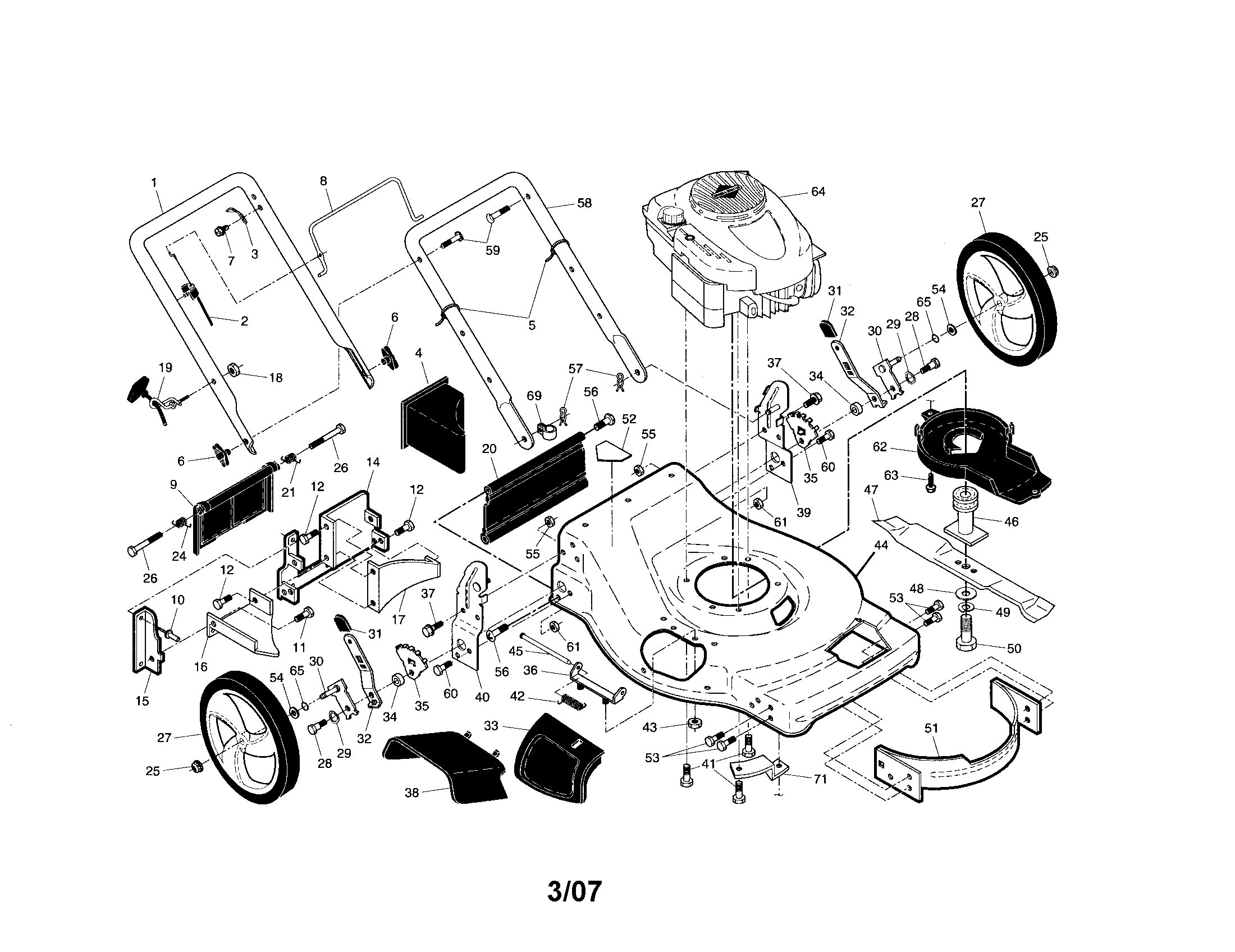

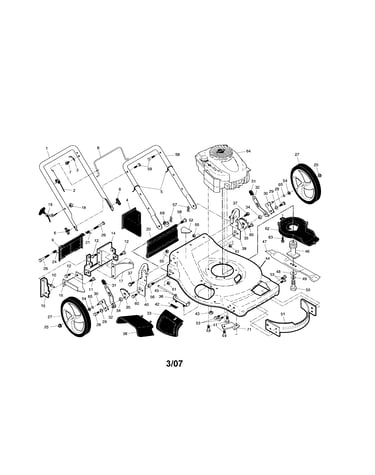

Engine/housing/handles diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88
17% OFF Phone Price : $5.88
In Stock
Skirt 189008
#20

Engine/housing/handles diagram

Skirt

Part #189008

Replaced by #413160

?
Manufacturer substitution
This part replaces 189008. Substitute parts can look different from the original.
BEST SELLER
$10.17
16% OFF Phone Price : $12.17
In Stock
Hndl.knob.bl 189713X428
#6

Engine/housing/handles diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.00
25% OFF Phone Price : $4.00
In Stock
Lawn Mower 22-in Deck Mulching Blade 406713
#47

Engine/housing/handles diagram

Lawn mower 22-in deck mulching blade

Part #406713

Replaced by #532406713

?
Manufacturer substitution
This part replaces 406713. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$12.71
36% OFF MSRP : $20.00
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.78
17% OFF Phone Price : $5.78
In Stock
Belt 146527
#5

Drive control/gear case/wheels diagram

Belt

Part #146527

Replaced by #157769

?
Manufacturer substitution
This part replaces 146527. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$13.31
17% OFF MSRP : $16.00
In Stock
Lawn & Garden Equipment Screw 851084
#50

Engine/housing/handles diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49
22% OFF Phone Price : $4.49
In Stock
Handle Bolt 191574
#59

Engine/housing/handles diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.89
26% OFF Phone Price : $3.89
Back Order
