Craftsman
Gas Walk-Behind Mower

Model # 917379100 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917379100 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

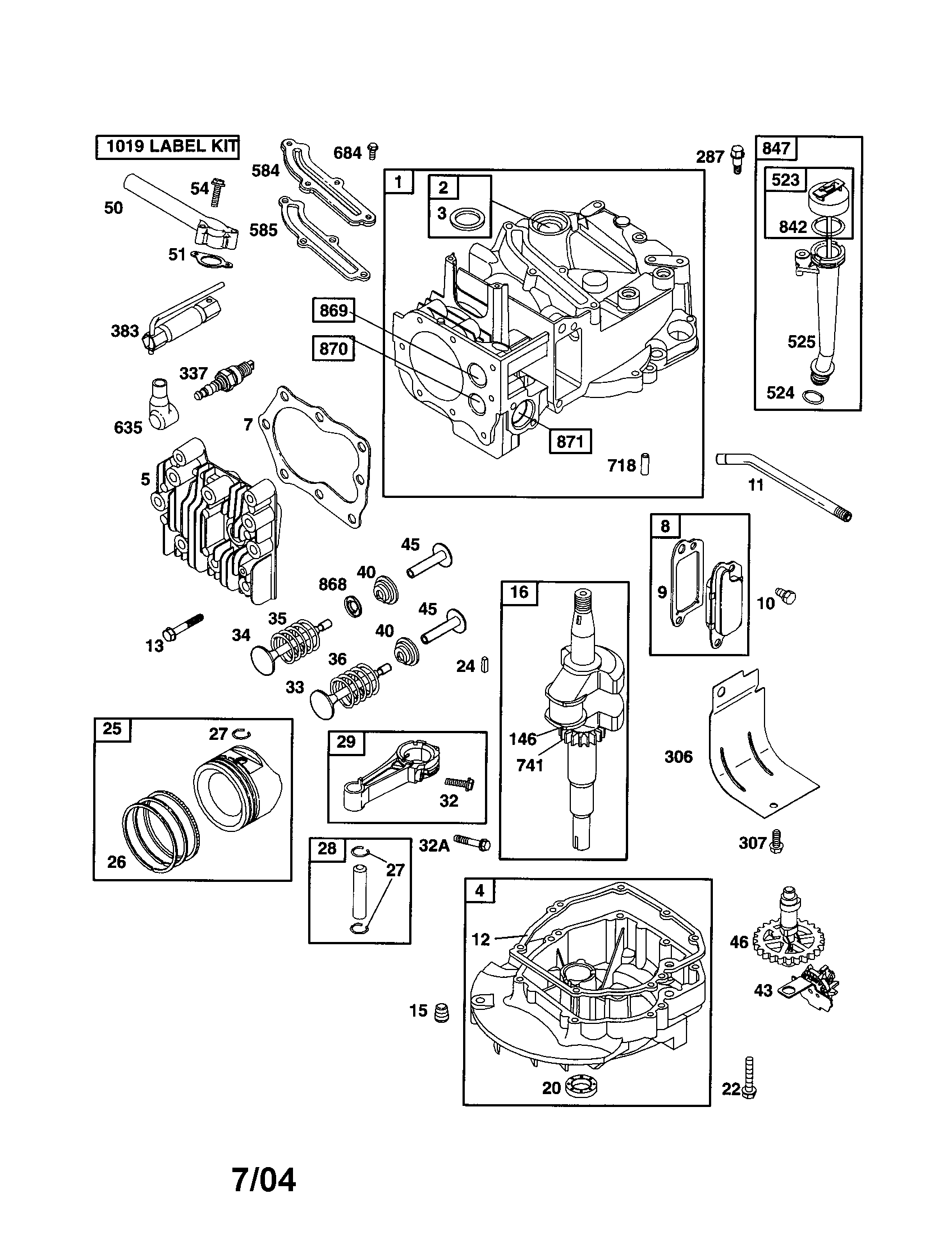

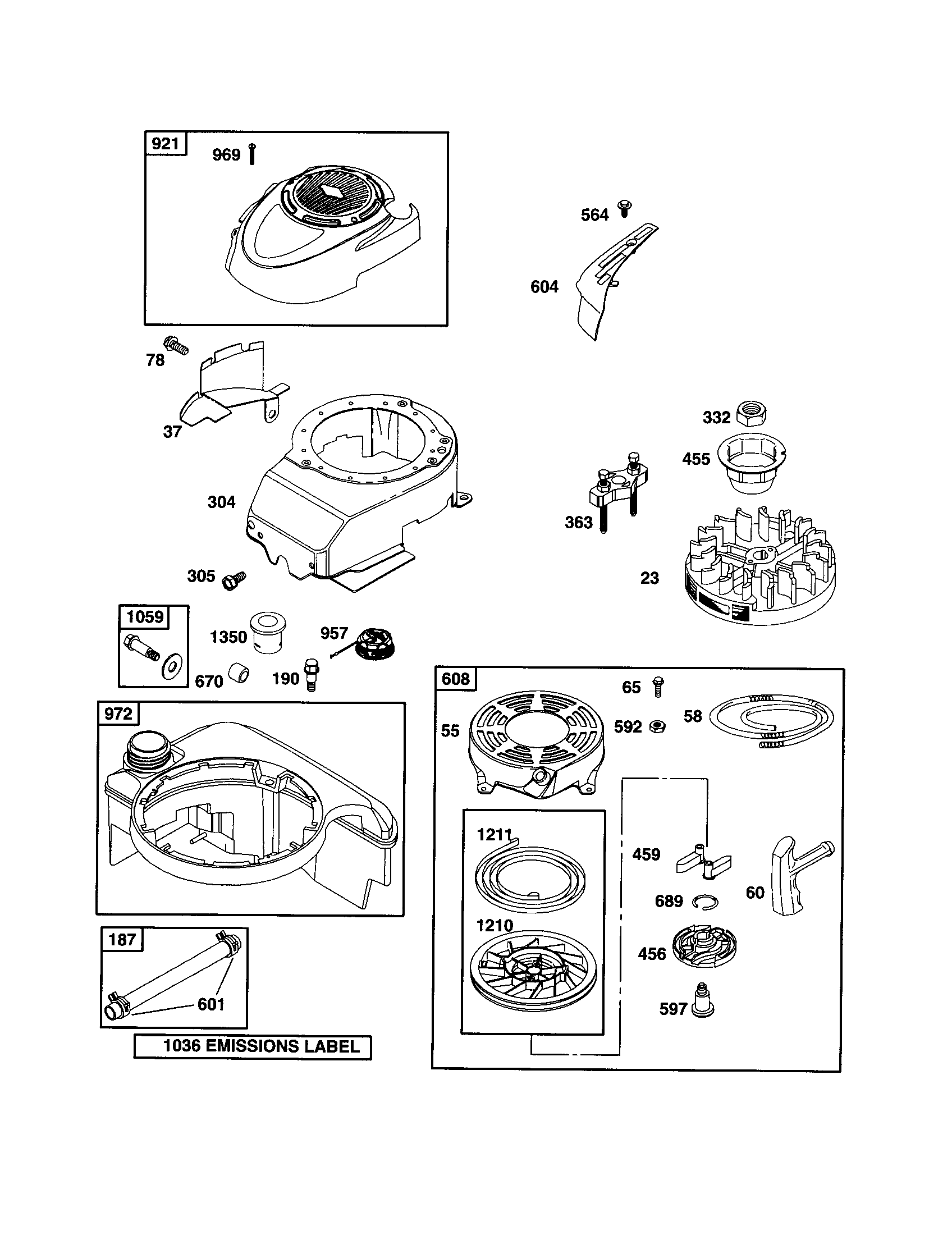

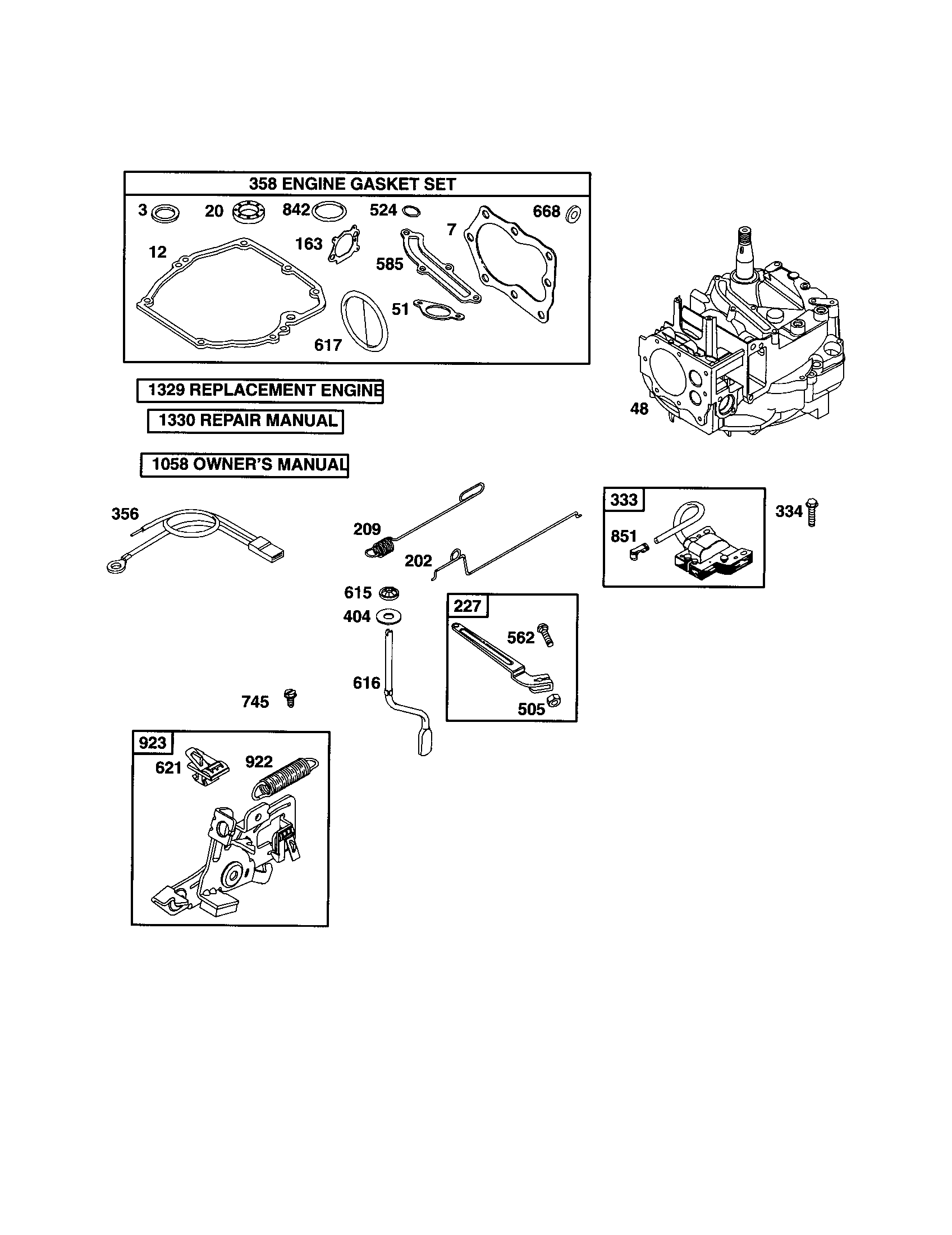

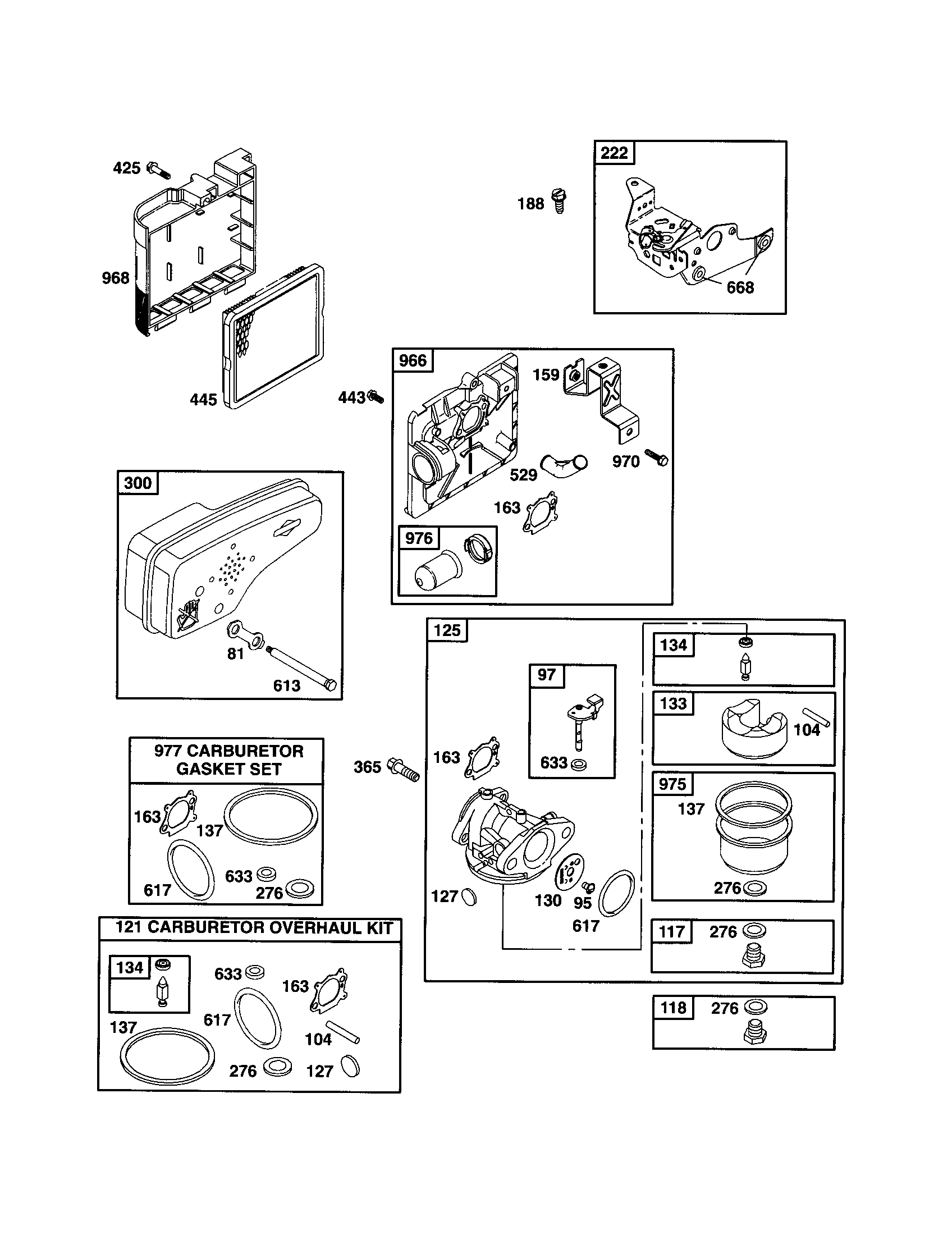

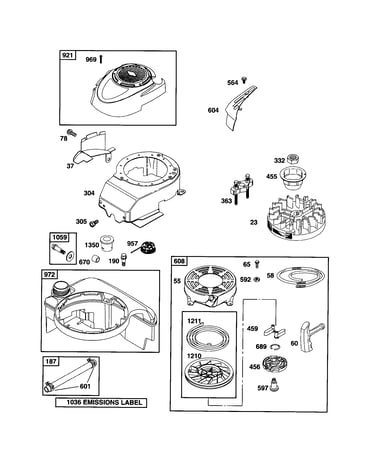

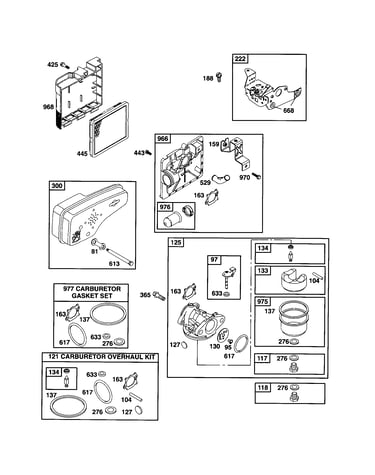

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 243 parts  |

Hex Flange Lock Nut 145212
#9

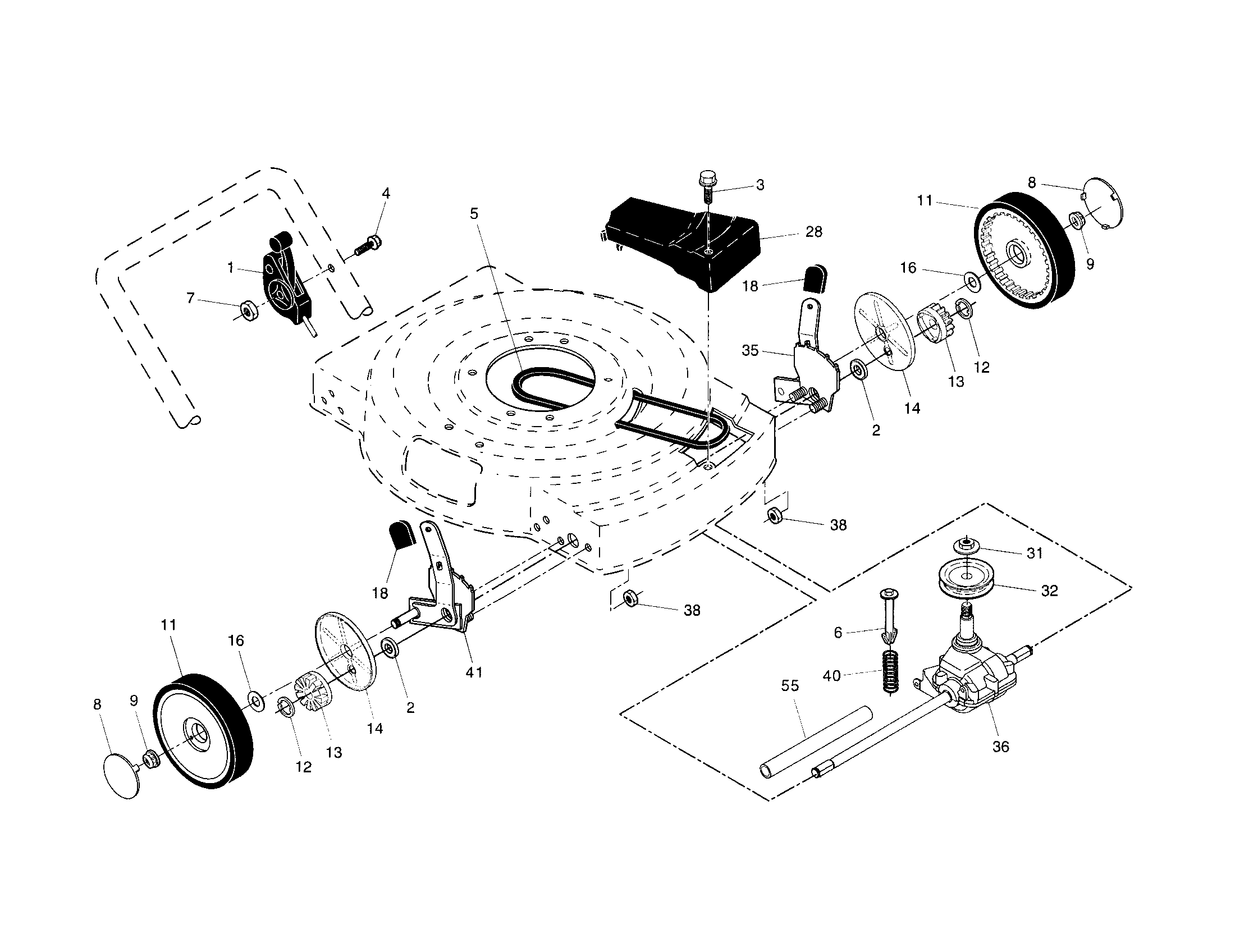

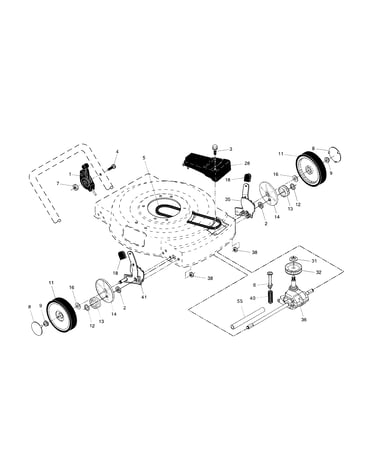

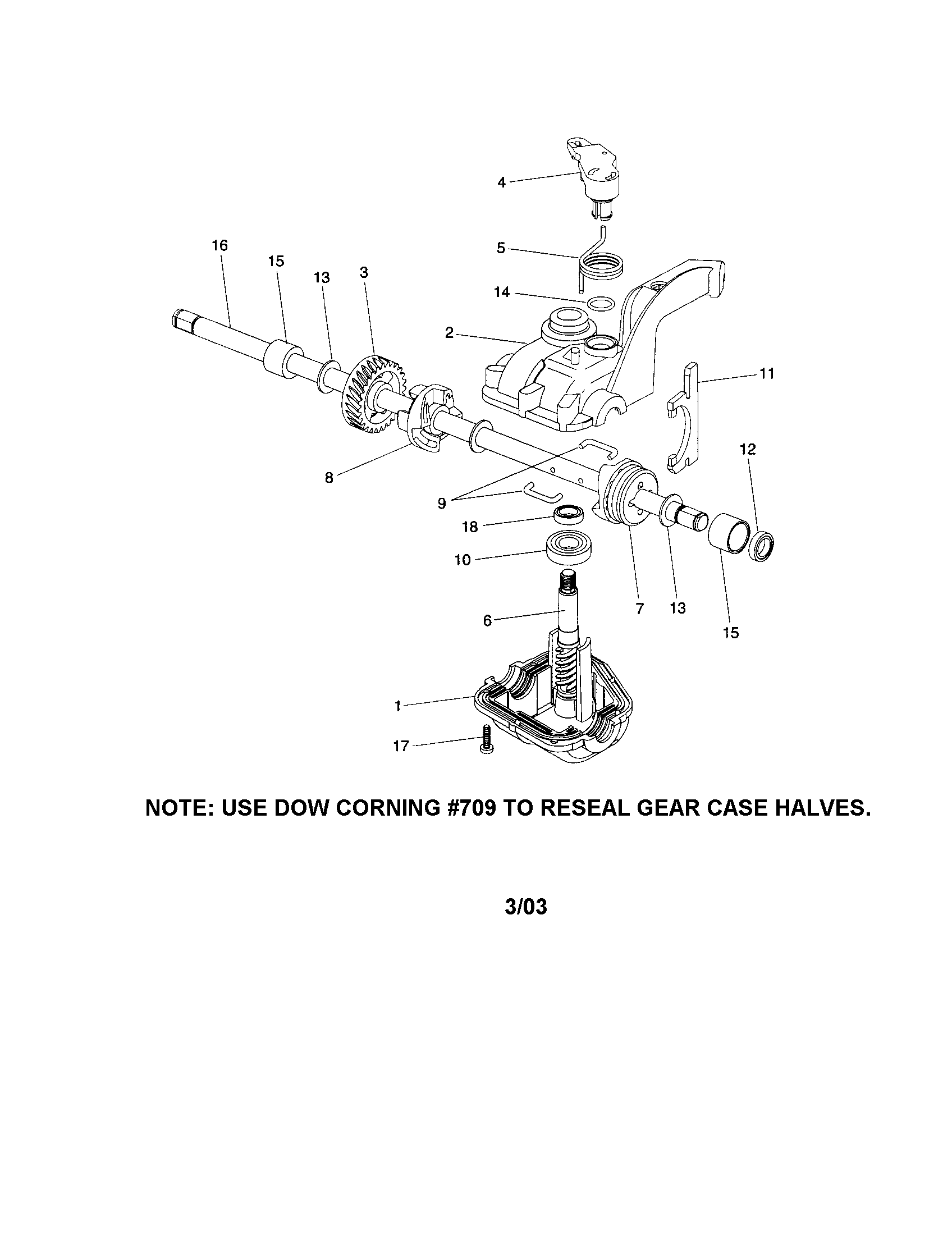

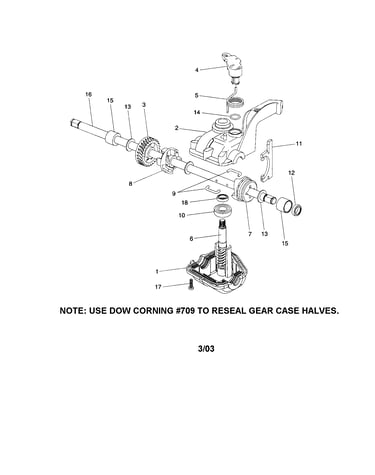

Wheels/tires/gearcase diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lock Nut 83923
#25

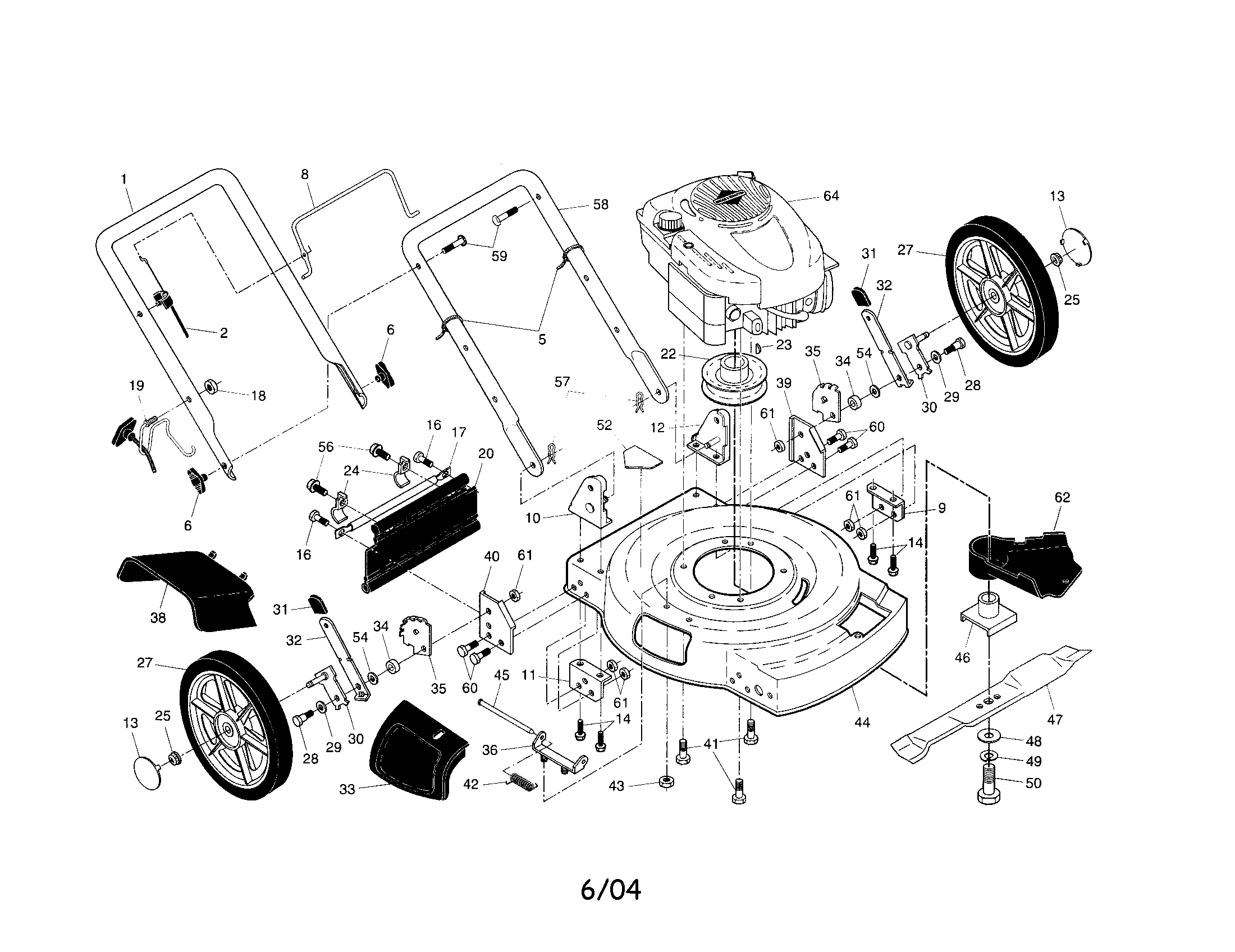

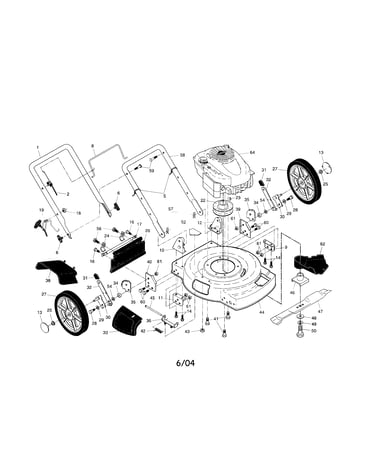

Engine/housing/handle diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Pipe Fitting 132010
#31

Wheels/tires/gearcase diagram

Pipe fitting

Part #132010

Replaced by #532409149

?
Manufacturer substitution
This part replaces 132010. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Blade 152202
#47

Engine/housing/handle diagram

Lawn mower blade

Part #152202

Replaced by #532406713

?
Manufacturer substitution
This part replaces 152202. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29
17% OFF Phone Price : $34.29
In Stock
Handle Knob 136376
#6

Engine/housing/handle diagram

Handle knob

Part #136376

Replaced by #532185577

?
Manufacturer substitution
This part replaces 136376. Substitute parts can look different from the original.
BEST SELLER
$10.64
16% OFF Phone Price : $12.64
In Stock
Dust Cover 180504
#14

Wheels/tires/gearcase diagram

Dust cover

Part #180504

Replaced by #581840401

?
Manufacturer substitution
This part replaces 180504. Substitute parts can look different from the original.
BEST SELLER
$7.98
11% OFF Phone Price : $8.98
In Stock
Lock Nut 751592
#61

Engine/housing/handle diagram

Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
Lawn Mower Engine Zone Control Cable 184588
#1

Wheels/tires/gearcase diagram

Lawn mower engine zone control cable

Part #184588

Replaced by #532184588

?
Manufacturer substitution
This part replaces 184588. Substitute parts can look different from the original.
BEST SELLER
$51.68
10% OFF Phone Price : $57.68
In Stock
Lawn Mower Wheel, Rear 189159
#27

Engine/housing/handle diagram

Lawn mower wheel, rear

Part #189159

Replaced by #532189159

?
Manufacturer substitution
This part replaces 189159. Substitute parts can look different from the original.
BEST SELLER
$40.96
13% OFF Phone Price : $46.96
In Stock
Washer 67725
#16

Wheels/tires/gearcase diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98
11% OFF Phone Price : $8.98
In Stock
