Frigidaire FFGH3051VSB gas range Parts

Yes. Looking up parts by model number is the most accurate way to get compatible replacement parts for your Frigidaire gas range model FFGH3051VSB because it filters results to the exact burner, igniter, control, and hardware variations used on that unit.

For this Frigidaire range, the serial plate is typically on the right-hand surface of the oven front frame at the storage or warmer drawer area; an alternate location may be under the cooktop. Confirm the exact location in the FFGH3051VSB installation guide.

• Full model number: FFGH3051VSB (use every letter and number)
• Serial number (helps match production changes)
• Lot number or letter (often listed on the serial plate)
• Fuel type in your home (natural gas vs LP)

Searching by model number narrows parts to what fits your range’s exact configuration, including oven ignition and temperature sensing components.

Common examples for this model include:

• Bake igniter 316489403 (oven won’t heat or takes too long to ignite)
• Frigidaire range oven temperature sensor 316490000 (temperature inaccurate or fluctuating)
• Range pressure regulator 316091711 (gas supply regulation issues)

Use this checklist after you find a part in your model results.

• Part name matches the symptom and location (bake vs broil vs surface)
• Part ID matches the listing you selected
• Quantity needed matches your repair (some items are sold individually)
• Installation notes and safety steps match your setup

Ranges often have multiple part revisions that look similar but mount differently or have different electrical connectors. Using the model number (and serial/lot when available) prevents ordering an igniter, sensor, or regulator that does not fit.

Last updated: February 2026

Your Frigidaire gas range model number is printed on the appliance’s serial plate. For model FFGH3051VSB, the most common place to find that plate is inside the lower oven drawer or storage drawer; once you have the model number, you can match parts and instructions correctly.

Check these spots in order (use a flashlight and wipe grease off the label so it’s readable):

• Open the lower oven drawer (if your range has one) and look for the serial plate on the frame
• Open the storage drawer and check the frame area around the opening
• Check the front frame area around the oven cavity (visible when the oven door is open)
• Look for a silver or white rating label with both model and serial numbers

Frigidaire model numbers are a mix of letters and numbers. Write it down exactly as shown.

• Watch for look-alikes: 0 (zero) vs O (letter O), 1 vs I
• Include any suffix letters (example: FFGH3051VSB)
• Take a clear photo before ordering parts

Using the correct model number ensures we match the right diagrams, parts, and procedures for your exact gas range configuration.

Confirm the model number and serial number from the serial plate first; then compare the part description to your symptom (for example, no-heat bake issues often point to the igniter on many gas ranges).

Last updated: February 2026

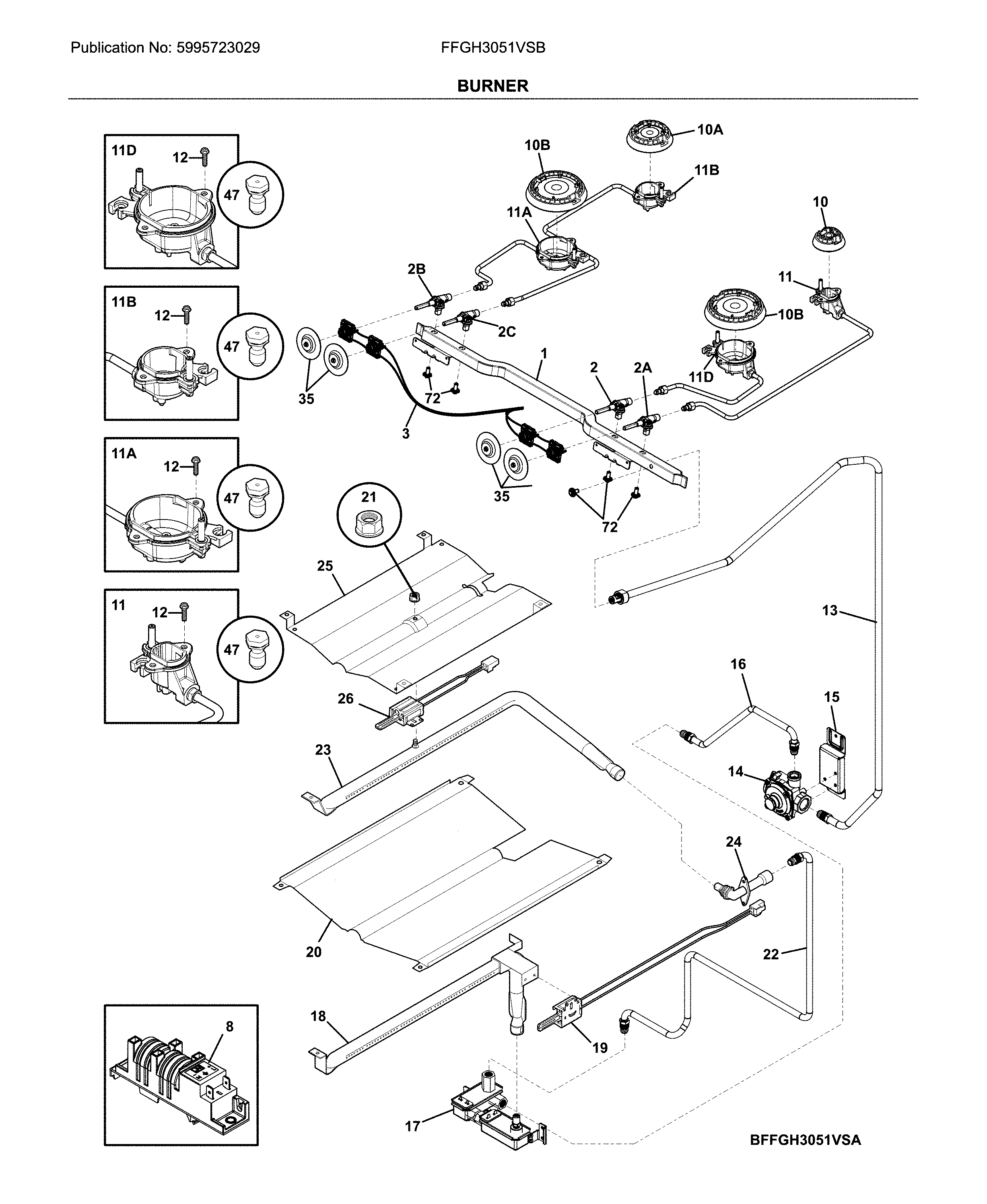

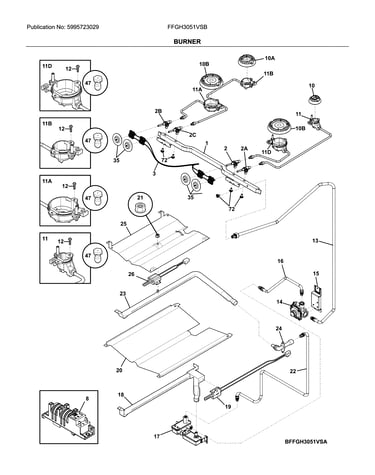

On the Frigidaire FFGH3051VSB gas range, replacing an igniter depends on whether you mean a surface burner electrode (cooktop) or the oven igniter. We follow the steps in the FFGH3051VSB installation guide and FFGH3051VSB owner’s manual to shut off utilities, access the igniter, swap the part, then verify ignition and flame.

• Turn all burner knobs to OFF.
• Shut off the gas supply at the range shutoff valve.
• Unplug the range (or switch off the circuit breaker).
• Let the range cool completely.
• Protect the cooktop with a towel if you will lift grates or burner parts.

Many “burner won’t light” issues are caused by wet/dirty burner parts, not a failed electrode.

• Remove the grate, burner cap, and burner head.
• Clean and dry the burner head and cap; keep debris out of the orifice opening.
• Re-seat the burner head so its mounting legs align correctly, then reinstall the cap.
• Test ignition: turn the knob to LITE; you should hear sparking and the burner should light within about 4 seconds after air is purged.

If the oven will not heat, the hot-surface igniter is a common cause.

Typical steps:

• Remove oven racks and the oven bottom panel.
• Locate the igniter mounted near the burner tube.
• Disconnect the igniter wiring connector.
• Remove mounting screws, transfer the new igniter, and route wires away from heat.
• Reassemble panels and restore power and gas.

A weak or failed igniter can prevent safe, consistent ignition, leading to long preheat times, uneven baking, or an oven that never reaches temperature. Correct burner assembly and proper ignition checks help confirm the right fix before replacing parts.
