Kenmore
Electric Wall Oven

Model # 91141389890 Official Kenmore electric built-in oven

Here are the diagrams and repair parts for Official Kenmore 91141389890 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |

Sensor WB21X5347
Sensor

Part #WB21X5347

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB21X5347. Substitute parts can look different from the original.
BEST SELLER
$150.90
$5.60 OFF Phone Price : $156.50
In Stock
Range Bake Element (replaces 347753, Wb44k5008) WB44K5013
#251

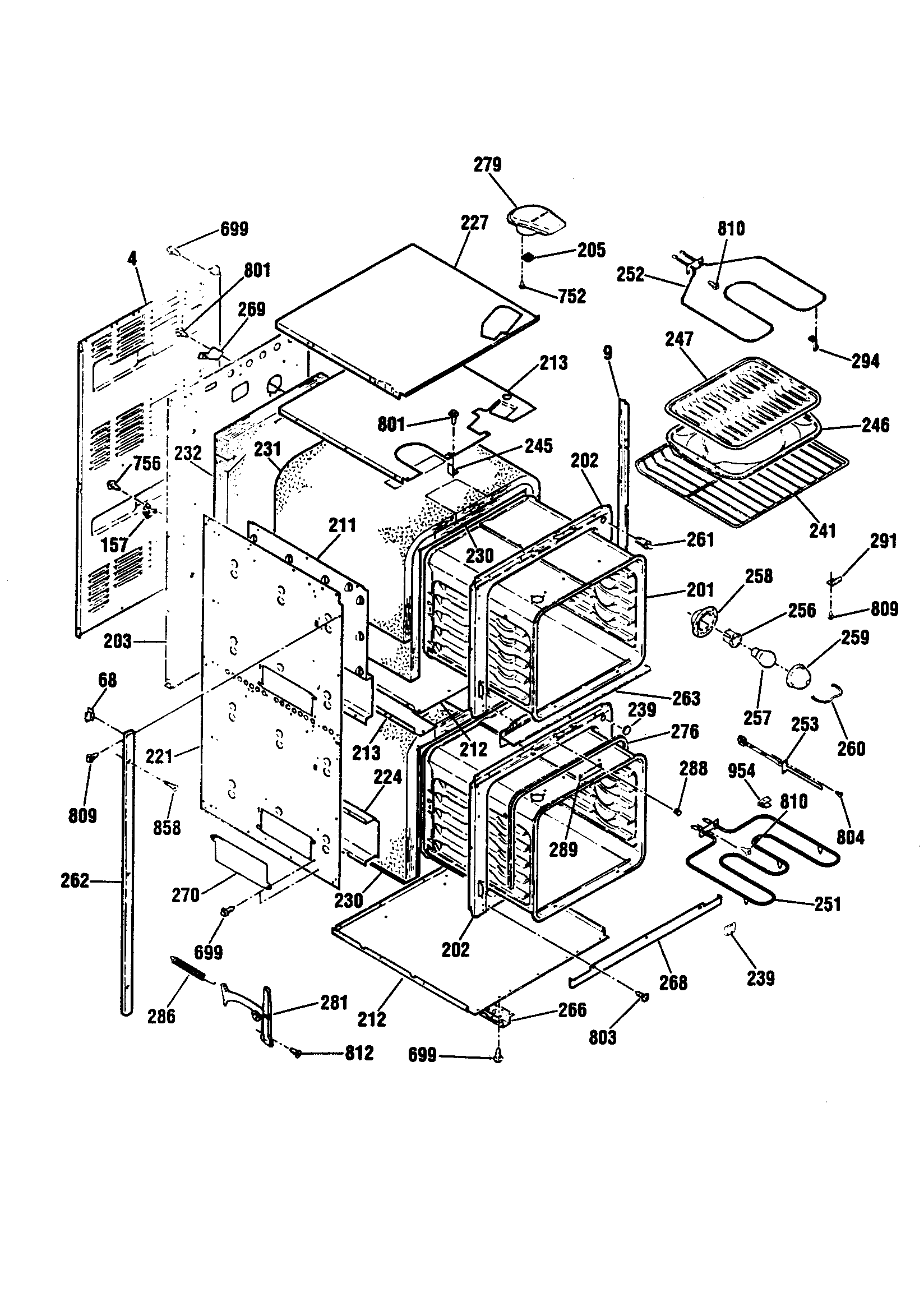

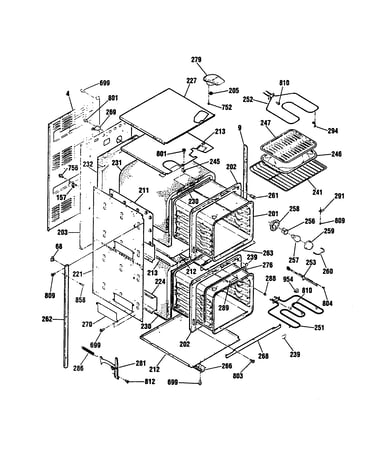

Body diagram

Range bake element (replaces 347753, wb44k5008)

Part #WB44K5013

BEST SELLER
$70.67
11% OFF Phone Price : $79.06
In Stock
Wall Oven Light Lens WB36X0389
#259

Body diagram

Wall oven light lens

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54
9% OFF Phone Price : $10.54
In Stock
Lock Motor WB26K5030
#151

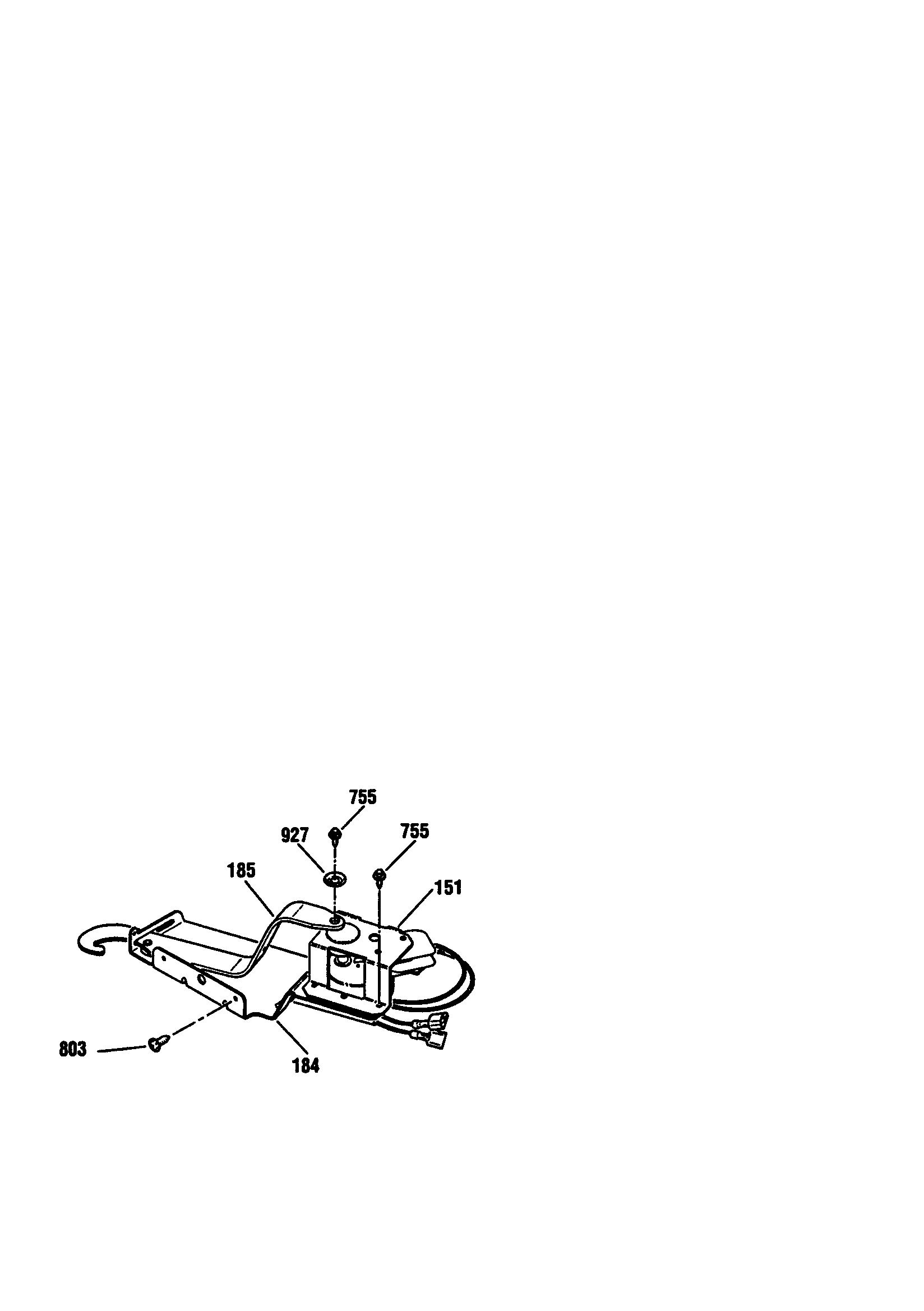

Door lock diagram

Lock motor

Part #WB26K5030

Replaced by #WB49T10020

?
Manufacturer substitution
This part replaces WB26K5030. Substitute parts can look different from the original.
$130.30
7% OFF Phone Price : $140.30
In Stock
Screw WH02X0930
#875

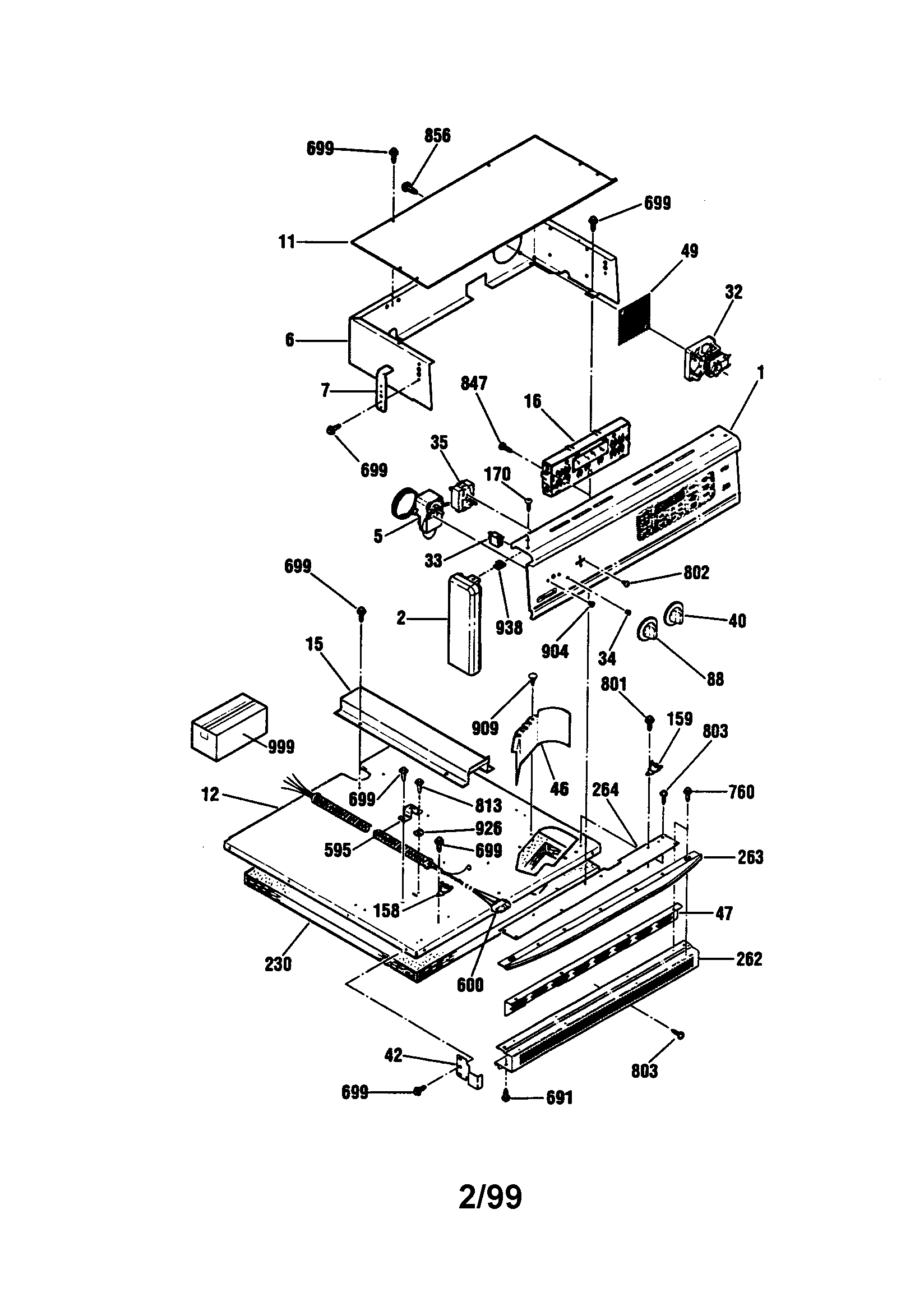

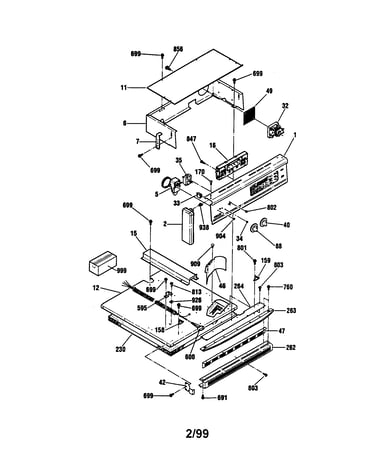

Control diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5150
#699

Control diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Screw WB01M0001
Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Wall Oven Bake Element WB44T10007
#251A

Body diagram

Wall oven bake element

Part #WB44T10007

$63.55
7% OFF Phone Price : $68.55
In Stock
Seal WB02X9168
#131

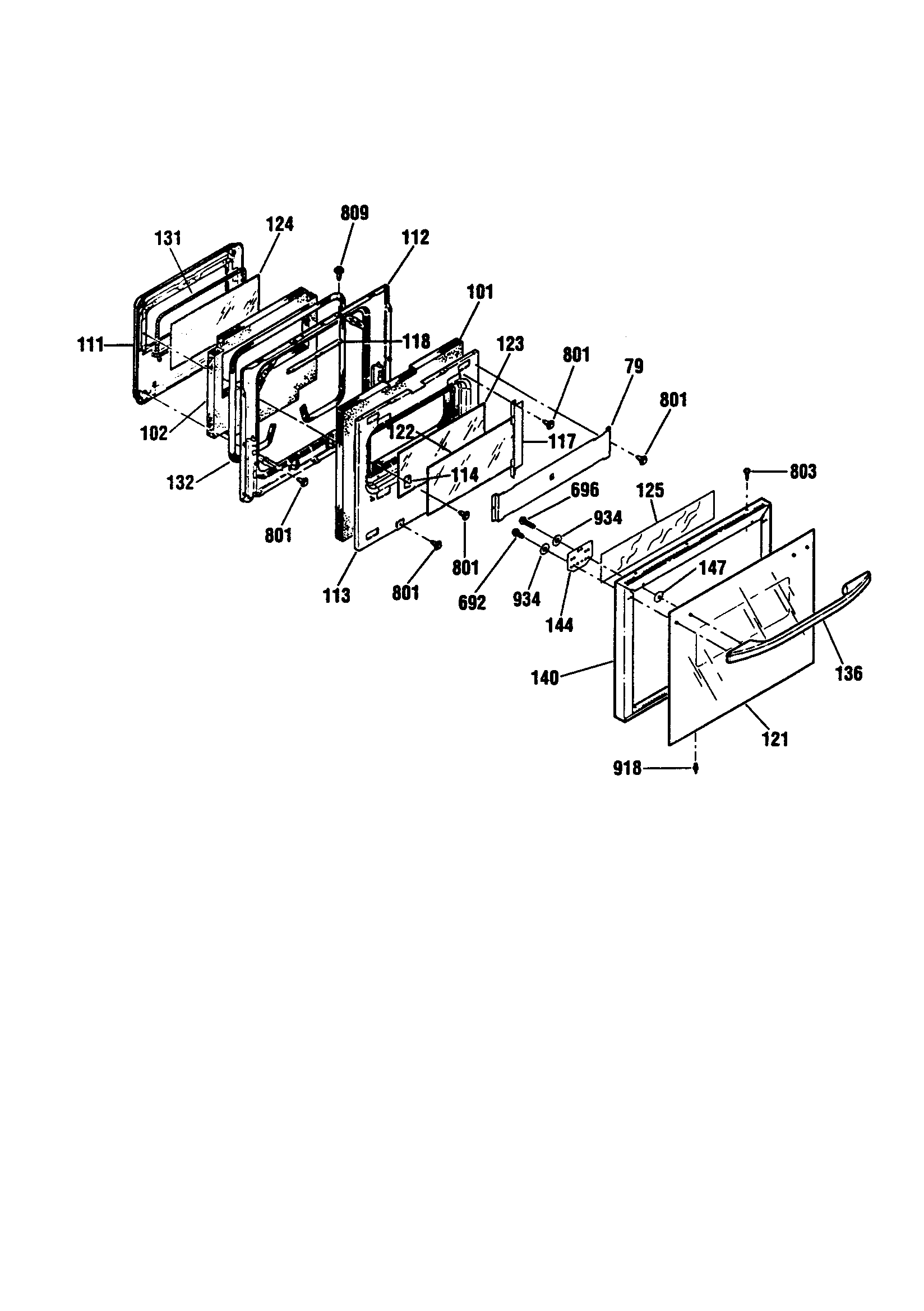

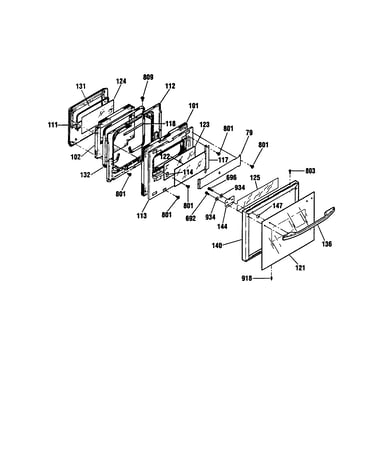

Upper door diagram

Seal

Part #WB02X9168

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces WB02X9168. Substitute parts can look different from the original.
This item is not returnable
$9.62
9% OFF Phone Price : $10.62
In Stock
Lock Lever Assembly WB15K5016
#185

Door lock diagram

Lock lever assembly

Part #WB15K5016

$13.93
13% OFF Phone Price : $15.93
In Stock
