Whirlpool IC5E freestanding ice maker Parts
Here are the diagrams and repair parts for Whirlpool IC5E freestanding ice maker, as well as links to manuals and error code tables, if available.
By Schematic
By Part

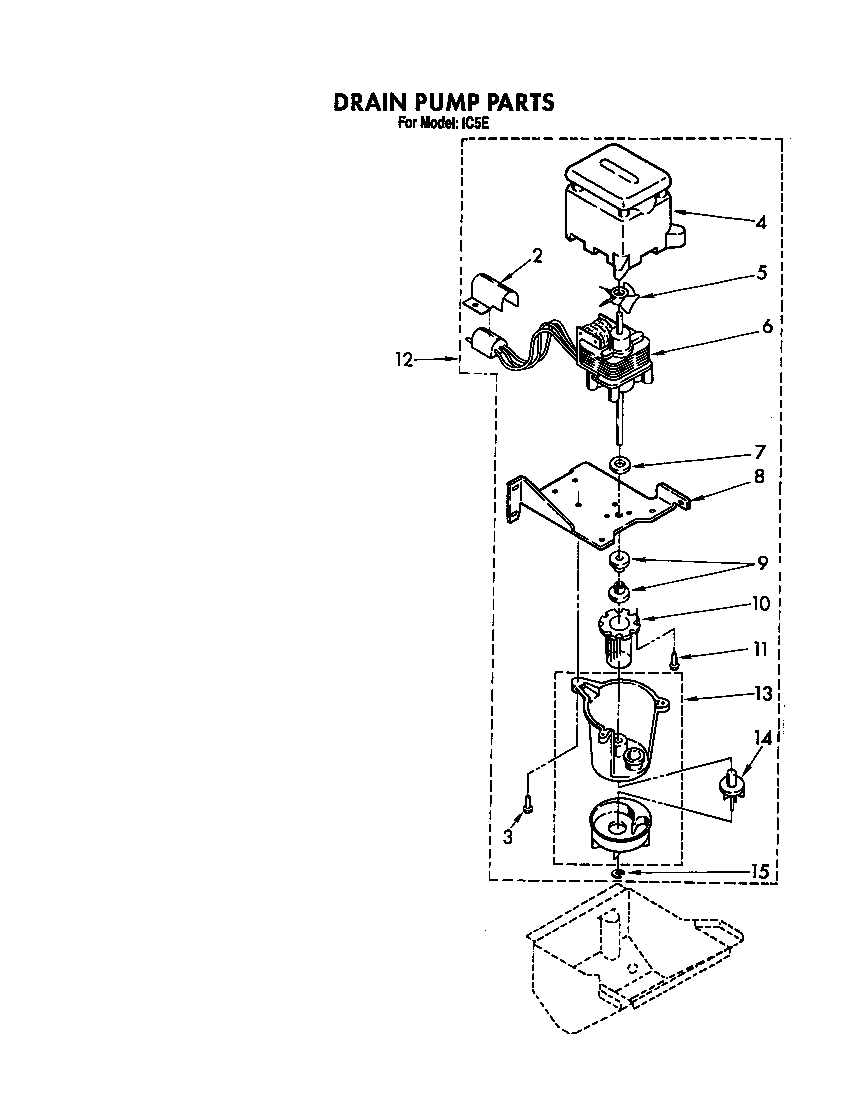

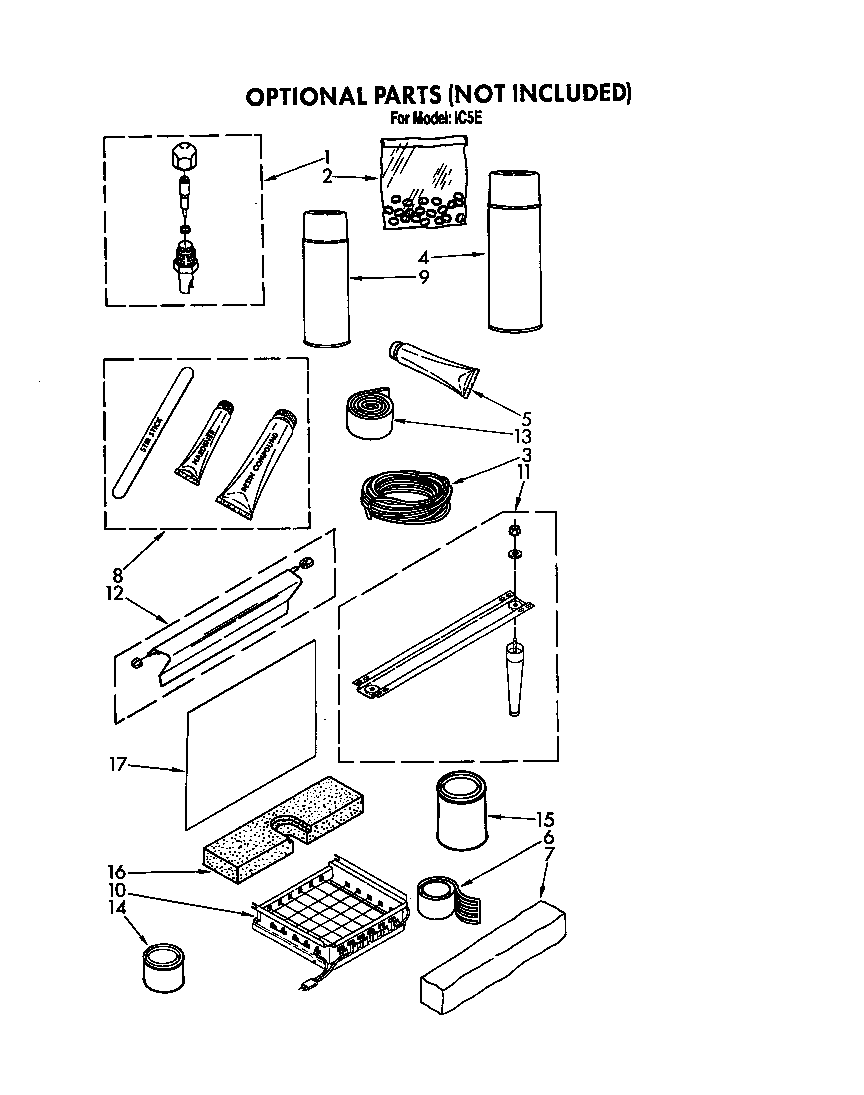

SELECT DIAGRAM
Browse Parts for IC5E Freestanding Ice Maker

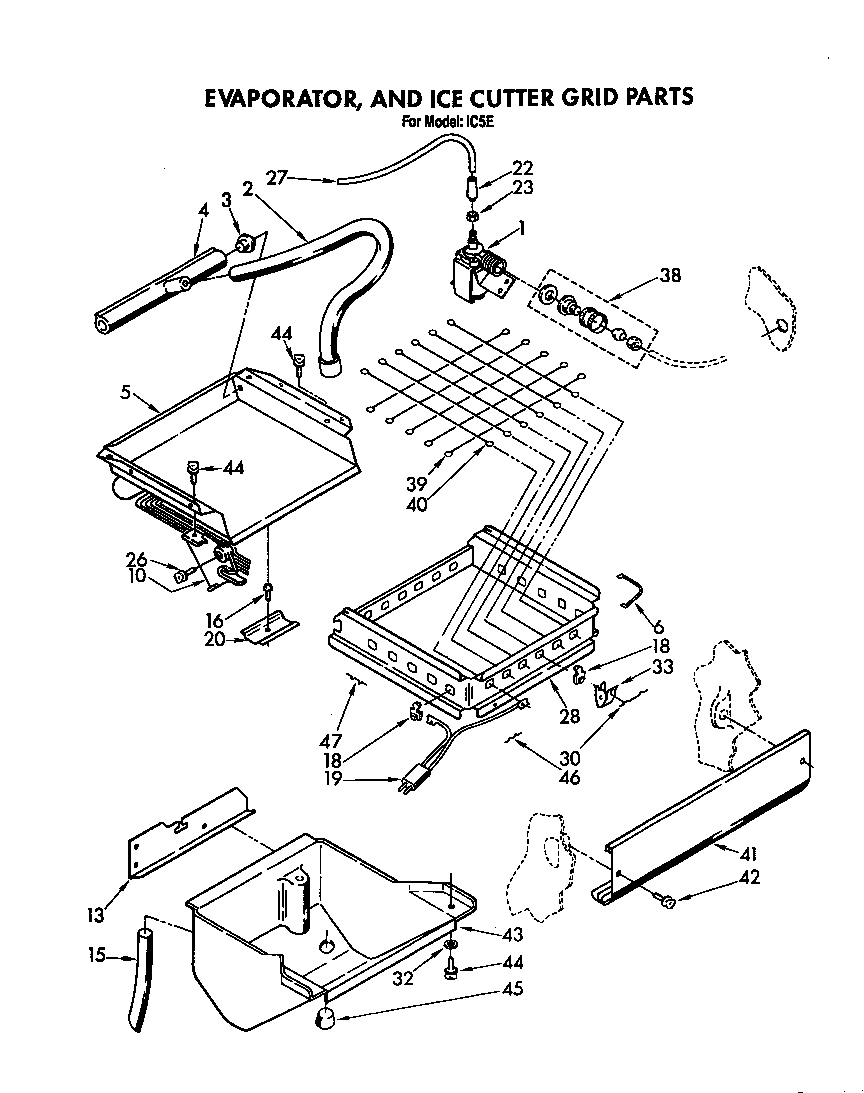

Evaporator, and ice cutter grid diagram
Wire Kit
Part #588109
The manufacturer no longer makes this part, and there's no substitute part

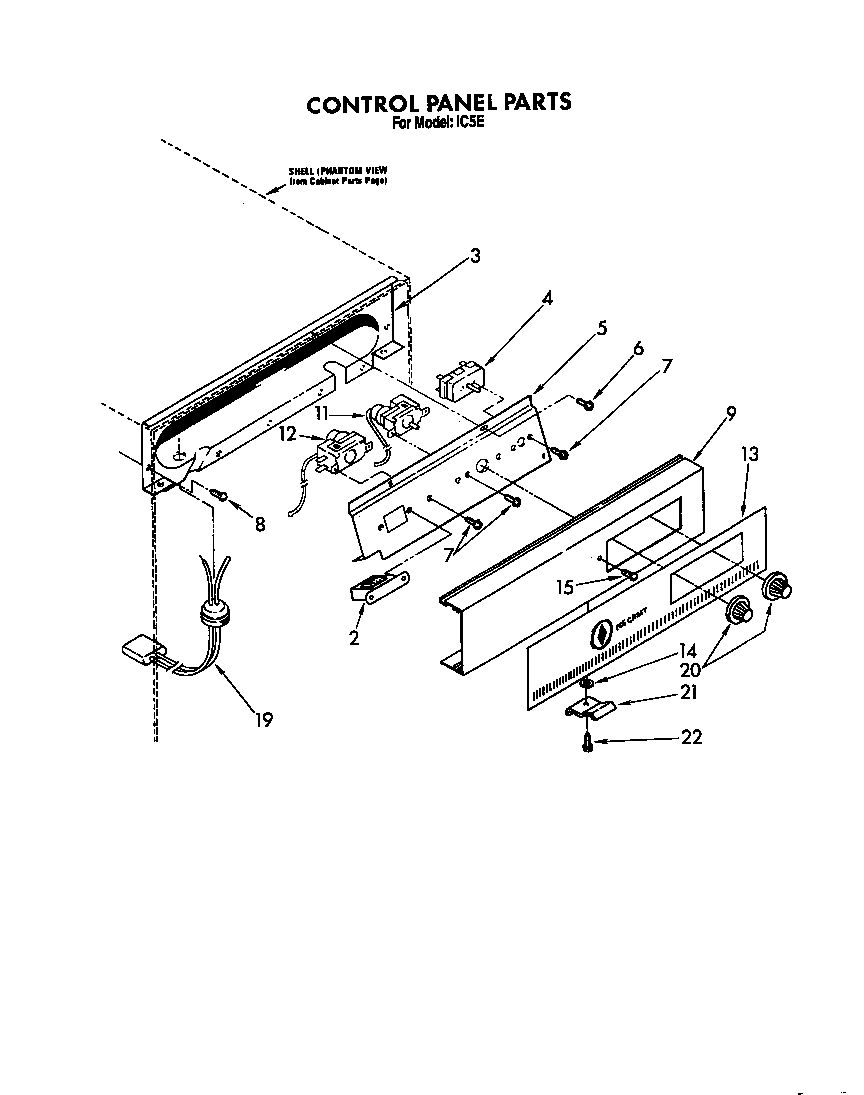

Control panel diagram
Control Knob
Part #758976
The manufacturer no longer makes this part, and there's no substitute part

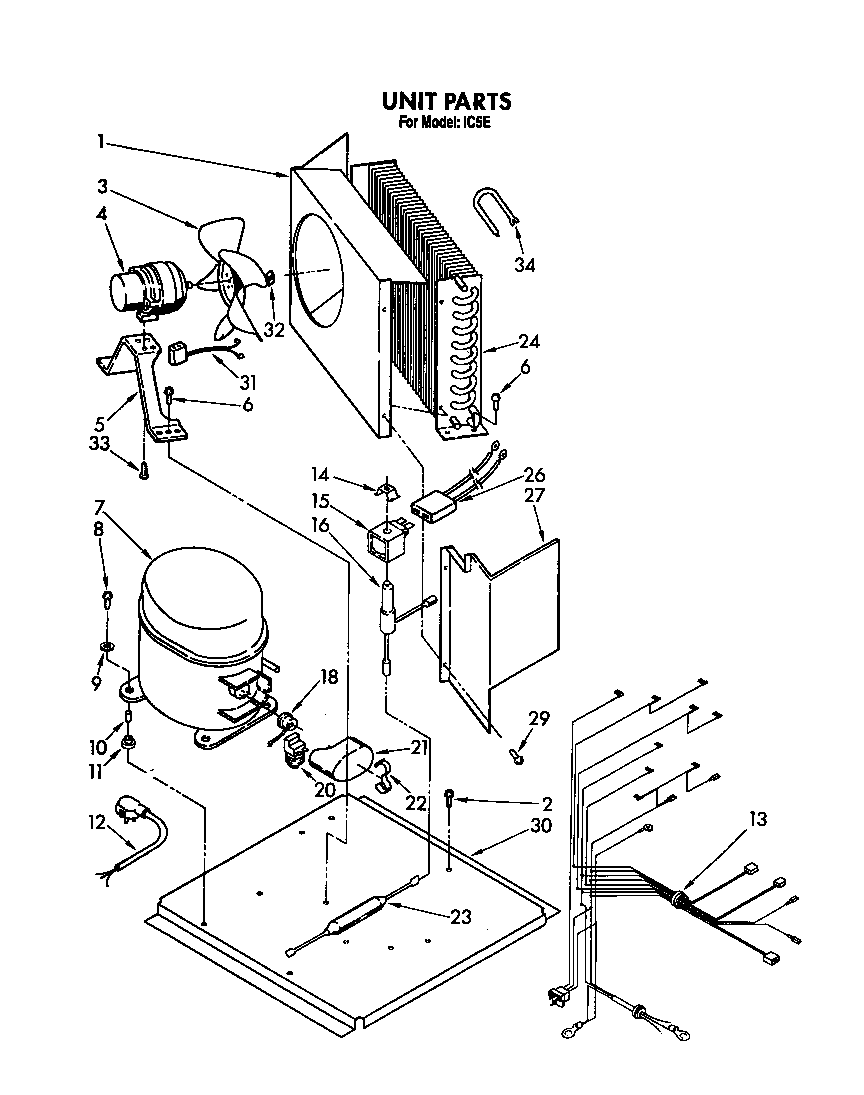

Unit diagram
Screw
Part #681305
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Installation Instructions
Part #LIT756638
The manufacturer no longer makes this part, and there's no substitute part

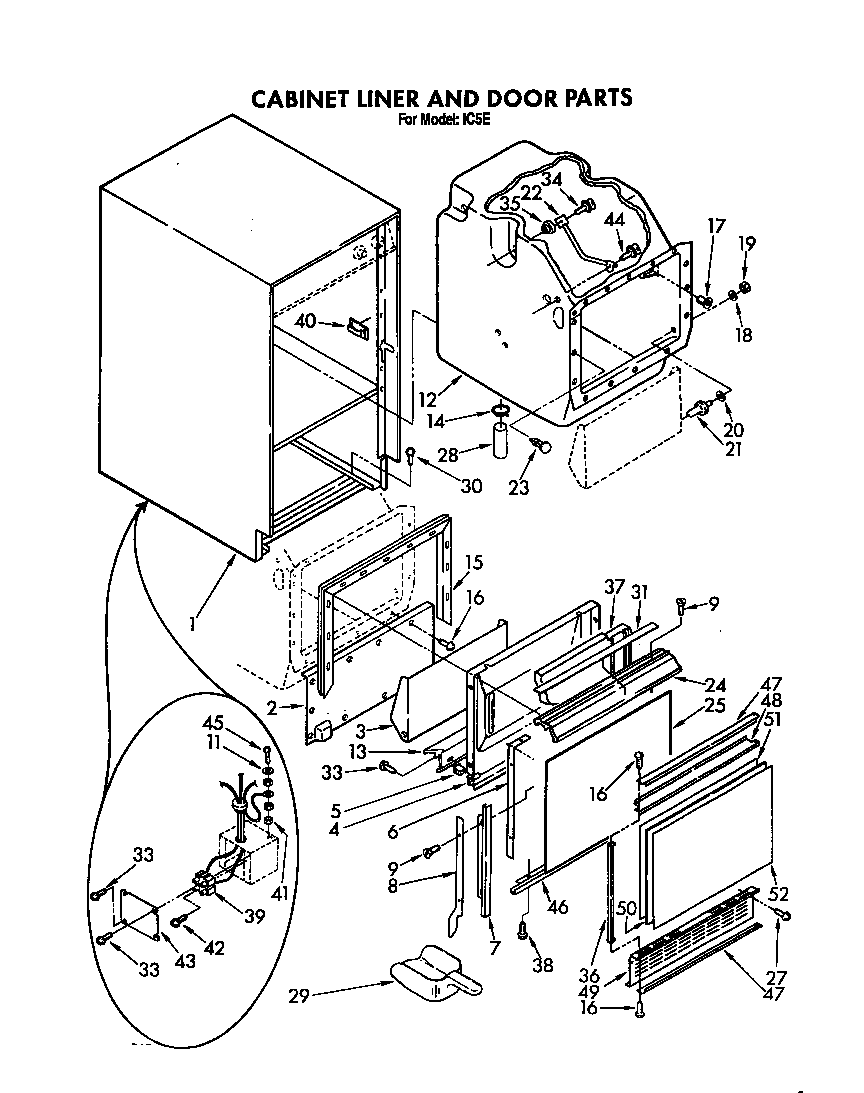

Cabinet liner and door diagram
Hose
Part #593577
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door diagram
Washer
Part #668347
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door diagram
Door
Part #756330
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door diagram
Well
Part #593183
The manufacturer no longer makes this part, and there's no substitute part
Evaporator, and ice cutter grid diagram
Tube
Part #759213
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door diagram
Shell
Part #758848
The manufacturer no longer makes this part, and there's no substitute part
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Sears Refrigerator Permagum Sealer
Part #212643
This item is not returnable
In Stock
$28.03
36% OFF Was : $43.86
Qty
Most common symptoms to help you fix your freestanding ice makers
Choose a symptom to see related ice maker repairs.
Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cu…
Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin…
Main causes: wiring failure, broken cutting grid, faulty electronic control board…
Main causes: bad bin thermistor, condenser fan failure, faulty control board…
Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply proble…
Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin…
Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, brok…
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad eva…
Most common repair guides to help fix your freestanding ice makers
These step-by-step repair guides will help you safely fix what’s broken on your ice maker.
How to replace a freestanding ice maker cutter grid
When the cutting grid is broken, ice cubes don’t drop into the ice bin. Use the steps in this repair guide to replace a…
Repair time and Difficulty
15 minutes or less
How to replace a freestanding ice maker recirculation pump
If your ice maker isn’t making ice, the pump could be the problem. Here’s how to replace it. …
Repair time and Difficulty
45 minutes or less
How to replace a freestanding ice maker electronic control board
When the electronic control board won’t activate the ice maker components, follow these steps to install a new one.…
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your freestanding ice makers
Use the advice and tips in these articles and videos to get the most out of your ice maker.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
See what troubleshooting steps to take with your freestanding ice maker before calling for repair.…
