Whirlpool WMH31017HS1 microwave/hood combo Parts

For the Whirlpool WMH31017HS1 microwave/hood combo, we replace the vent hood filter on a schedule based on filter type: wash the metal grease filter regularly and replace the charcoal (odor) filter about every 6 months (or sooner if airflow drops or odors linger). See the owner's manual for your exact maintenance intervals and cleaning method.

Which filter do you have?

Most microwave/hood combos use one or both of these:

• Grease filter (metal mesh): captures grease from cooking; typically washable and reusable.
• Charcoal filter (carbon): used for recirculating (non-vented) setups to reduce odors; typically not washable and is replaced.
• No charcoal filter installed: common when the unit is ducted to the outside.

Recommended change and cleaning schedule

Use this as a practical baseline for WMH31017HS1 maintenance:

• Grease filter: clean about monthly (more often with frequent frying).
• Charcoal filter: replace about every 6 months.
• Replace sooner if you notice reduced vent fan performance, persistent cooking odors, or visible grease buildup that will not wash off.

Filter type	What to do	Typical interval
Metal grease filter	Clean and reinstall	About monthly
Charcoal filter	Replace	About every 6 months

Parts that commonly apply to this model

If you need the grease filter for this Whirlpool microwave/hood combo, we use the model-matched part listed for WMH31017HS1: filter W10208631A.

Why it matters

A clean vent hood filter helps the fan move air properly, reduces grease buildup on the hood and cabinets, and helps control odors. The manual also emphasizes cleaning ventilating hoods frequently so grease does not accumulate on the hood or filter.

Last updated: February 2026

The Whirlpool WMH31017HS1 microwave/hood combo is used to heat, cook, and defrost food in the microwave while also venting smoke and odors from the cooktop below through its built-in hood fan and light. For safe operation details, follow the owner's manual.

What this model does (everyday uses)

• Reheats leftovers and beverages quickly
• Defrosts frozen foods using timed or weight-based settings (varies by program)
• Cooks common items using preset cycles (varies by control panel options)
• Provides cooktop lighting for better visibility while you cook
• Helps remove steam, smoke, and cooking odors with the vent fan

Installation and placement basics

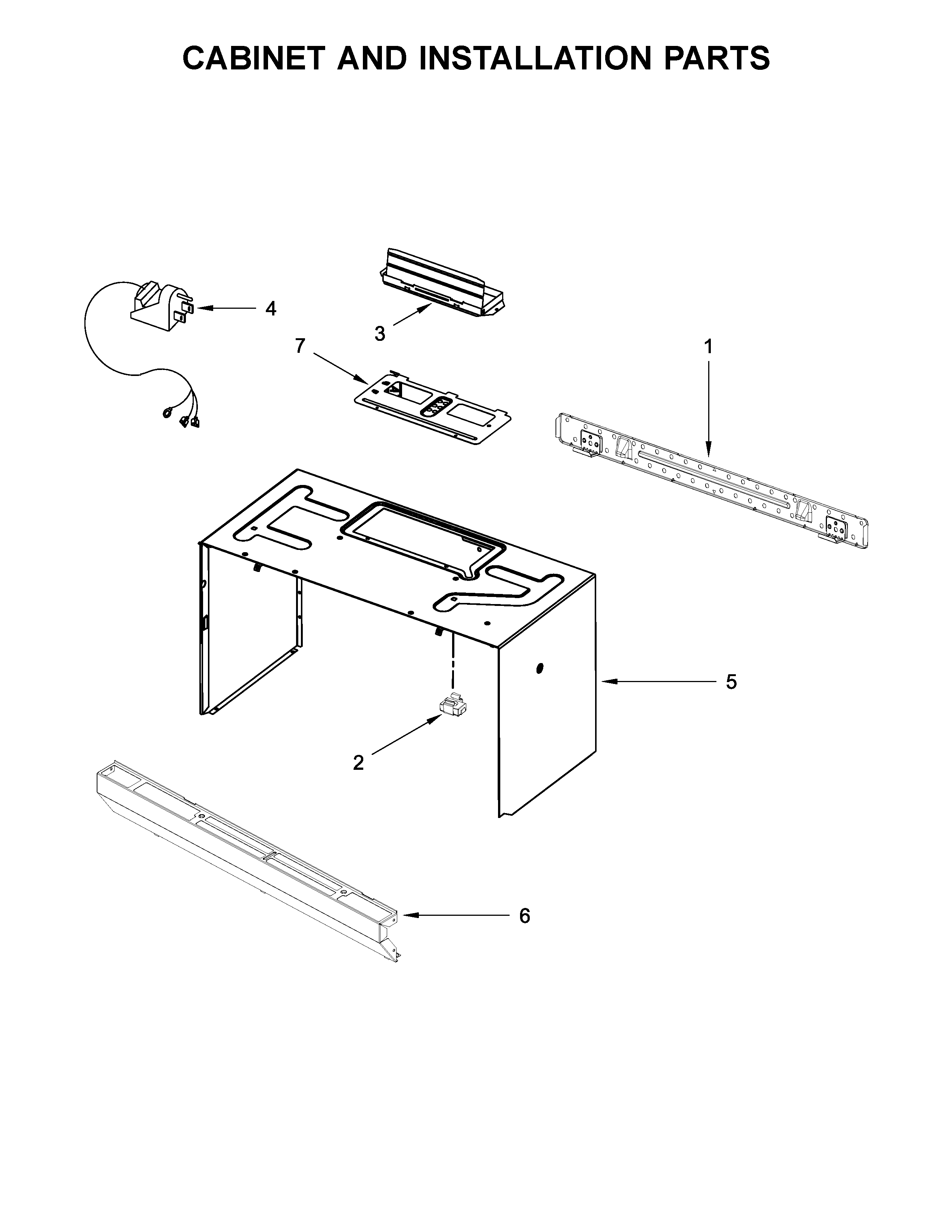

This Whirlpool microwave/hood combo is designed to mount above a range or cooktop. The installation instructions specify it is suitable for use above electric or gas cooking products up to and including 36 inches wide. Use the installation guide to confirm venting direction, mounting plate placement, and cabinet cutouts.

Typical setup options

Setup item	Common options	Why it matters
Venting	Recirculating (charcoal filter) or ducted	Affects odor removal and airflow
Mounting	Wall plate plus upper cabinet bolts	Keeps the unit secure and level
Cooktop width	Up to 36 inches	Ensures proper coverage and fit

Why it matters

Using the WMH31017HS1 for its intended purpose (food heating plus cooktop ventilation) helps prevent damage, improves cooking results, and supports safe operation. The manual also highlights key safety practices such as using the microwave only for cooking-related tasks and following grounding and installation requirements.

Last updated: February 2026

A Whirlpool microwave typically lasts 7 to 10 years. For your Whirlpool WMH31017HS1 microwave/hood combo, lifespan depends most on daily run time, keeping the venting and filters clean, and avoiding overheating events that stress the magnetron and electronic control.

Typical lifespan and what affects it

Most over-the-range microwave/hood combos wear out from heat, grease, and door-use cycles more than from “age.” These factors have the biggest impact:

• Heavy daily use (multiple long cook cycles) shortens life
• Poor airflow (blocked grease filter or recirculation filter) overheats internal components
• Slamming or misaligned door stresses interlock switches
• Grease buildup on the vent area and control panel increases heat retention
• Power issues (frequent breaker trips) can damage the control board

For model-specific care and cleaning guidance, follow the WMH31017HS1 owner's manual.

Signs your microwave is nearing end of life

These symptoms usually mean a key component is failing and repair may be needed:

• Runs but does not heat food or water
• Intermittent operation when closing or opening the door
• Dead display or unresponsive keypad
• Loud humming, buzzing, or burning smell during heating
• Repeatedly blows a fuse or trips the breaker

If it runs but will not heat, our troubleshooting steps in why is my microwave not heating help narrow down common causes.

Common parts that fail first (and why)

Here is what we most often see on over-the-range Whirlpool units like the WMH31017HS1:

Symptom	Common suspect	Why it matters
No heat, but everything else works	High-voltage components	Heating stops even though the fan, light, and turntable may still run
Dead unit or intermittent power	Fuse or door interlock circuit	Safety circuit opens to prevent unsafe operation
Won’t start when door closes	Door switches/interlock	Microwave will not run unless the door circuit proves “closed”

If you are diagnosing a no-power condition, the microwave fuse W11707984 is a common service part for this model.

Why it matters

Replacing a wearable part (like a door switch, grease filter, or fuse) can restore safe operation and extend the useful life of the microwave. Keeping filters clean also protects the magnetron and electronic control from excess heat.

Last updated: February 2026

Common problems we see with the Whirlpool WMH31017HS1 microwave/hood combo include a dead unit (no lights or display), a microwave that runs but does not heat, door and latch issues that prevent starting, sparking or arcing, and vent fan or light problems. Your WMH31017HS1 owner's manual troubleshooting section helps narrow the cause quickly.

Most common symptoms (and what they usually point to)

• Microwave will not operate at all: tripped breaker, blown fuse, door not fully latched, or an interlock problem.
• Runs but does not heat: high-voltage components (magnetron, diode, capacitor) or a safety thermostat.
• Starts then stops, or blows the breaker: shorted high-voltage part, failing door switch, or wiring issue.

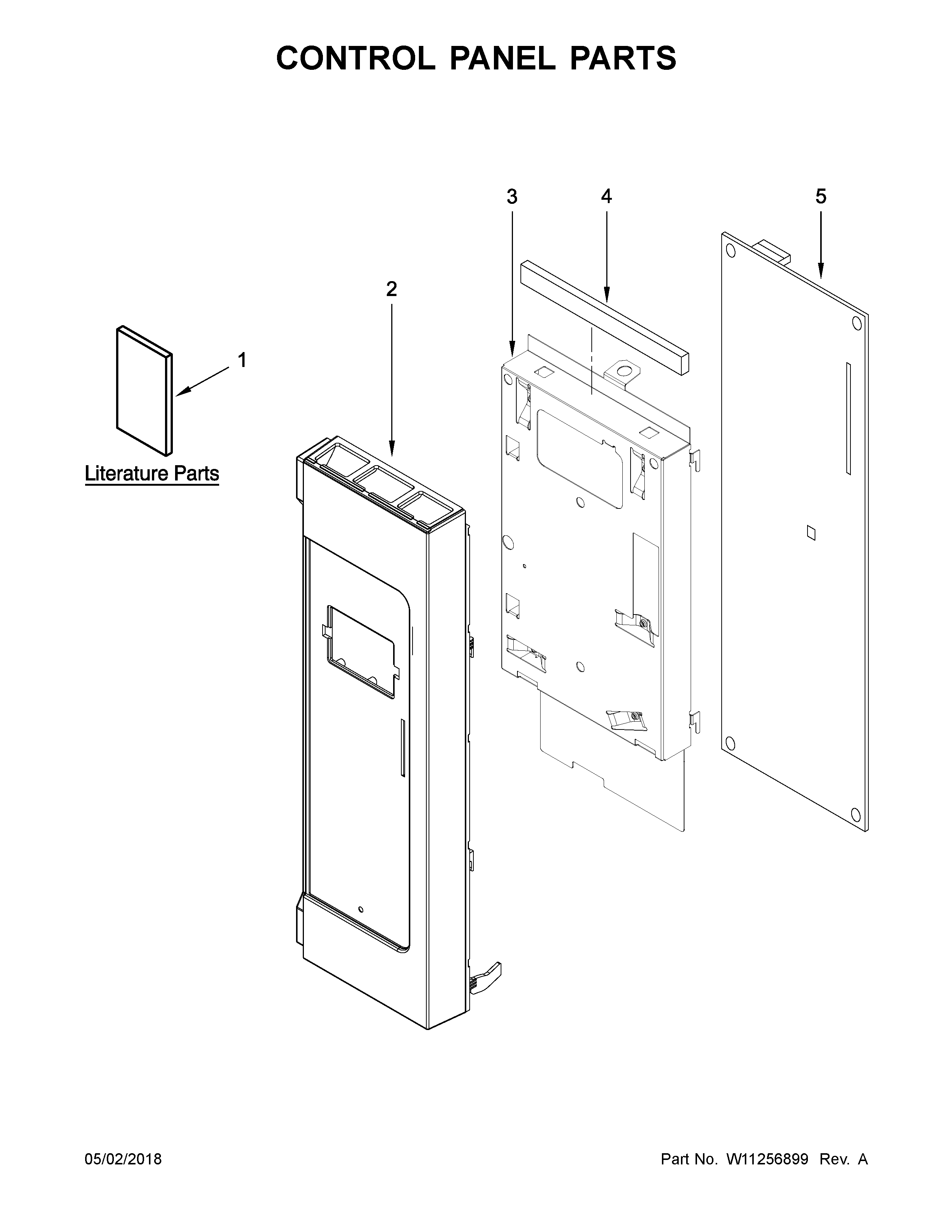

• Buttons or display act up: control board or control panel issue.

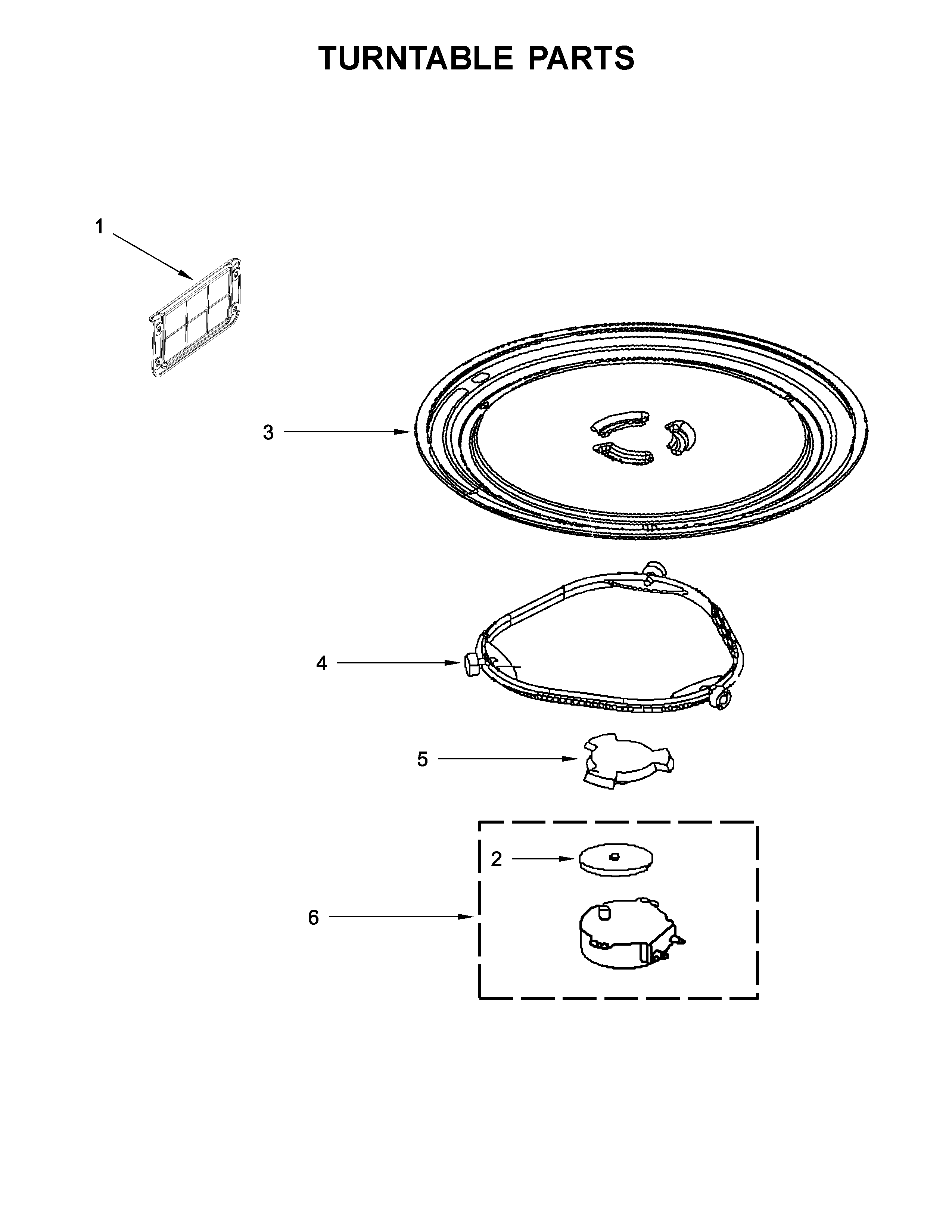

• Turntable not rotating: turntable motor or coupler/roller support issue.

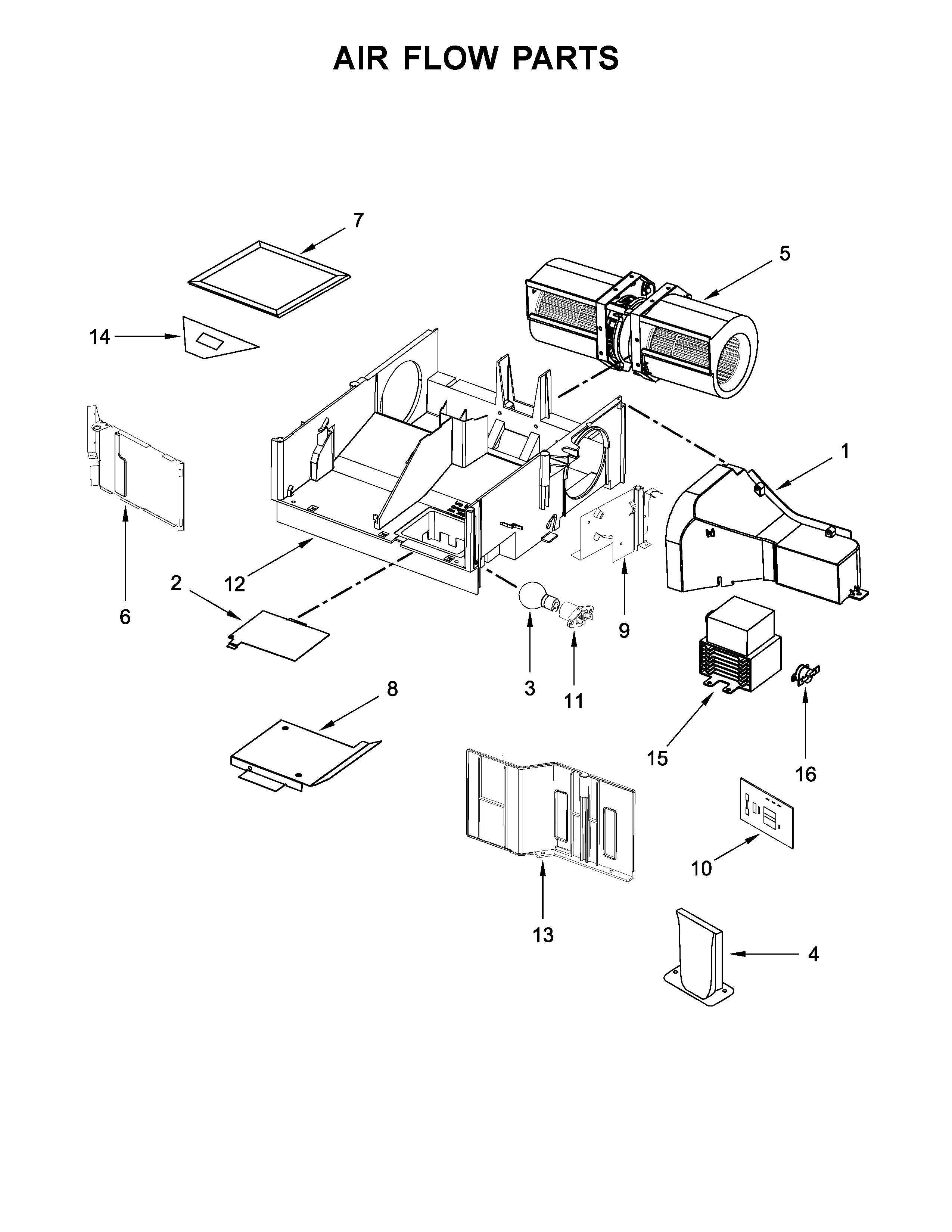

• Vent fan weak or noisy: grease buildup, blocked venting, or a worn fan motor.

Quick checks we recommend before replacing parts

1. Confirm power: verify the outlet works and reset the household breaker.
2. Check the door close: open and close firmly; a misaligned latch can keep the unit from starting.
3. Look for simple airflow issues: clean the grease filter and confirm the vent path is not blocked.
4. Test heating with water: heat 1 cup of cold water for 2 minutes on High; if it does not heat, focus on the heating circuit.
5. Stop if you smell burning or see arcing: arcing can damage the waveguide cover and interior surfaces.

Parts that commonly fix these problems on WMH31017HS1

Symptom	Common suspect part	Example part on this model
Dead microwave (no display)	Fuse or interlock circuit	Microwave fuse W11707984
Won’t start or stops when door moves	Door interlock switch	Microwave door interlock switch W10269458
Runs but does not heat	High-voltage diode	Diode W11256462
Dim or out cooktop light	Lamp assembly	Lamp assembly 8206232A
Poor venting, greasy air	Grease filter	Filter W10208631A

Why it matters

Microwave “no heat” and “blows fuse/breaker” complaints often involve the high-voltage system. Those circuits can store dangerous energy even when unplugged, so we treat heating-circuit diagnosis as a safety-first repair.

Last updated: February 2026

The Whirlpool WMH31017HS1 microwave/hood combo is a 1,000-watt microwave (cooking power). For the most accurate model-specific specs and feature details, we recommend confirming the rating information in the WMH31017HS1 owner's manual.

How to confirm the wattage on your exact unit

You can verify the cooking wattage for your specific microwave by checking:

• The model and serial tag (typically behind the door on the front frame)
• The specifications section in the WMH31017HS1 owner's manual
• The product rating label information listed for the unit

Why “microwave watts” matters

Microwave wattage affects how fast food heats and how closely your results match packaged cooking directions.

• Higher wattage usually means shorter cook times
• Lower wattage often requires adding time or reducing power to prevent overcooking edges
• Consistent wattage helps when using sensor cook or preset programs

Quick cooking-time adjustment guide (common rule of thumb)

If a recipe is written for a different wattage, use this as a practical adjustment.

If directions are for	Your WMH31017HS1 (1000W)	What to do
1100W	1000W	Add about 10% time
1000W	1000W	Use listed time
900W	1000W	Reduce about 10% time

Related issues that can look like “low wattage”

If your microwave runs but heats weakly or inconsistently, the issue is usually a heating circuit component, not the published watt rating. Common suspects include:

• Diode W11256462 (high-voltage diode)
• Capacitor W10850446 (high-voltage capacitor)
• Microwave magnetron W10754299 (primary heating component)
• Door interlock system problems (switches and interlock alignment)

For symptom-based troubleshooting steps, use our DIY article why is my microwave not heating.

Last updated: February 2026
