Kenmore Elite 66513923K014 undercounter dishwasher Parts

For Kenmore Elite dishwasher model 66513923K014, the installation guide lists the product as about 24 1/2 inches deep and 33 7/8 inches tall minimum (measured to the underside of the countertop); height can be reduced to about 33 3/4 inches by removing the wheels and a perforated insulation section. See the 66513923K014 installation guide for the exact cutout and measurement notes.

Product dimensions vs. cabinet opening (cutout)

Dishwasher product dimensions describe the unit itself; cutout dimensions describe the cabinet space needed so the dishwasher fits and can be leveled.

• Depth (unit): about 24 1/2 inches
• Height (unit): 33 7/8 inches minimum (can be about 33 3/4 inches with wheels removed)
• Cutout depth (opening): 24 inches minimum
• Cutout height (opening): 33 7/8 inches minimum (measured from the lowest point under the countertop)
• Cutout width (opening): 23 7/8 inches minimum (measured at the narrowest point)

Quick reference table

Measurement	What it applies to	Spec for 66513923K014
Width	Cabinet opening (minimum)	23 7/8 in
Depth	Cabinet opening (minimum)	24 in
Depth	Dishwasher (approx.)	24 1/2 in
Height	Cabinet opening (minimum)	33 7/8 in
Height	Dishwasher (minimum)	33 7/8 in
Height	Dishwasher (reduced)	33 3/4 in

Why it matters

Correct opening dimensions help prevent installation problems like the tub rubbing the cabinet, the door contacting mounting screws, or the dishwasher sitting out of level. Proper leveling also supports good draining and quieter operation.

Installation tips that prevent fit issues

• Measure the opening at the narrowest width and shallowest depth.
• Confirm the height is measured to the lowest point on the underside of the countertop.
• Plan routing so water, drain, and wiring do not contact the motor or legs.
• Do not install over carpet; the motor needs clearance above the floor.
• If the door hits brackets or screws, lower and re-level the dishwasher.

For operating clearances and feature layout (racks, filtration, cycles), we also recommend checking the 66513923K014 owner's manual.

Last updated: February 2026

A Kenmore Elite undercounter dishwasher like model 66513923K014 typically lasts 10 years with normal use and basic maintenance. Keeping filters clean, fixing leaks quickly, and replacing wear items (like rack rollers and seals) on time helps you reach that expected service life.

Typical lifespan and what affects it

Most dishwashers land in a similar range, but these factors move the needle the most:

• Water quality (hard water speeds up scale buildup)
• How often you run it (daily use wears pumps, seals, and racks faster)
• Loading habits (overloading can stress racks and spray performance)
• Routine cleaning (filter and spray path clogs shorten component life)
• Small repairs done early (a minor leak can become a major failure)

What to maintain to get the full 10 years

Use the maintenance steps in the 66513923K014 owner’s manual and focus on the items below.

• Clean the filter and sump area regularly; remove debris before it reaches the drain pump
• Check the door sealing surfaces and wipe them clean to prevent slow leaks
• Inspect rack wheels and rails for binding or flat spots
• Use the right detergent amount; too much can cause residue and poor washing
• Run hot water at the sink before starting a cycle to improve wash performance

Common wear parts that can extend life

Symptom	Likely wear area	Example part for this model

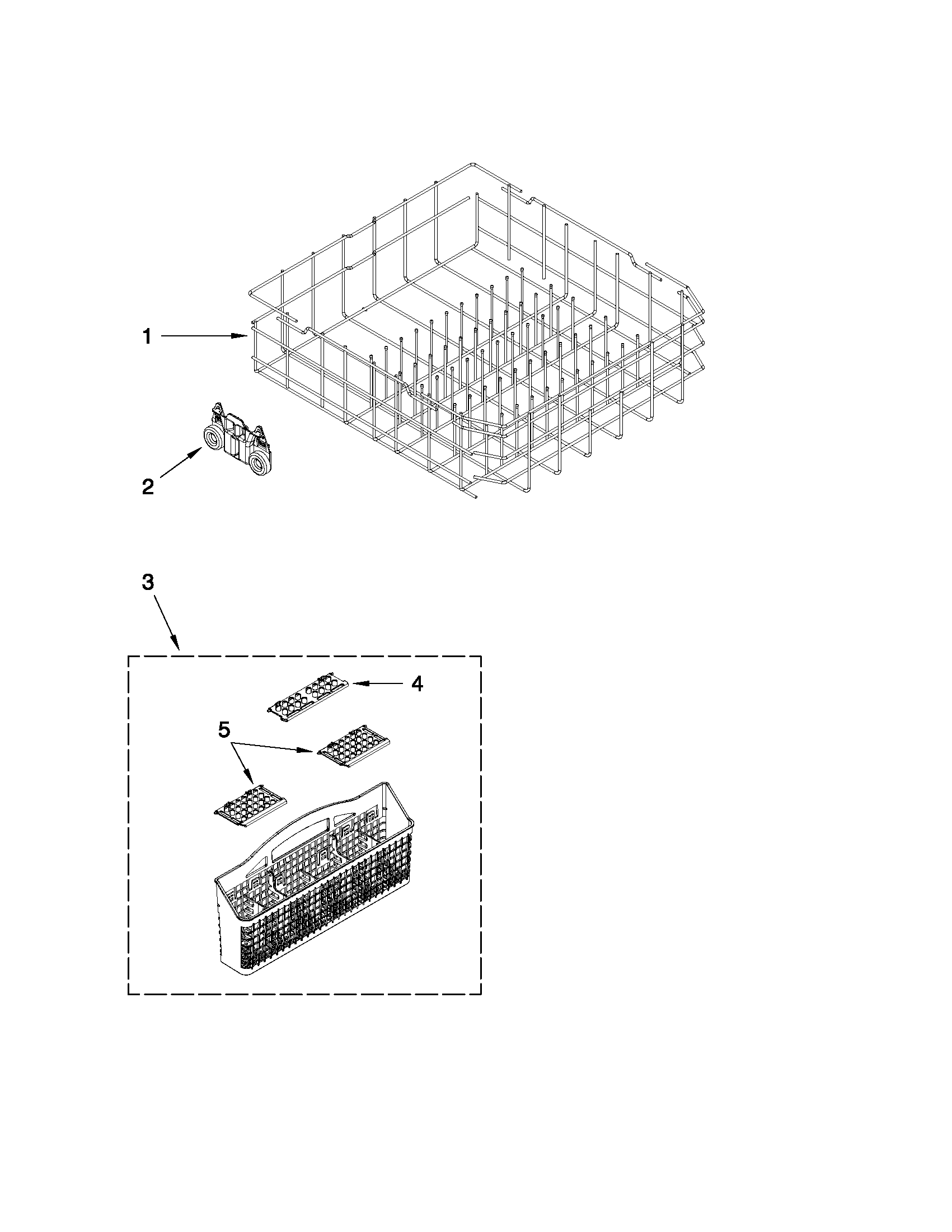

Lower rack won’t roll smoothly	Rack rollers	Dishwasher dishrack roller assembly, lower WPW10195417

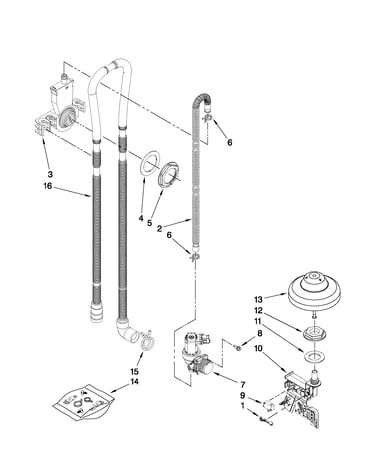

Slow drain or standing water	Drain system	Drain hose, drain pump, filter
Drips at the bottom of the door	Door sealing	Lower door seal

Why it matters

A dishwasher that is draining well, sealing correctly, and spraying freely runs cooler and with less strain on the motor and pump. That reduces breakdowns and helps your Kenmore Elite 66513923K014 reach its normal lifespan.

Last updated: February 2026

The model number for your Kenmore Elite undercounter dishwasher is printed on the model and serial number label located on the tub frame area; you can see its exact placement in the owner's manual. Match every character on that label to ensure you get the correct parts.

Where to look on the dishwasher

Open the door and check these common label locations used on Kenmore Elite dishwashers like model 66513923K014:

• Along the inner door edge (left or right side)
• On the tub frame just inside the door opening
• Near the top or side of the door opening where the gasket meets the tub
• Occasionally on the side wall of the tub opening

How to read the number correctly

Write the model number exactly as shown, including any letters and suffixes.

• Use the full model number (example format: 665.1392xx or 665.1394xx family shown in the guide)
• Include the full suffix on your unit (for you, it is 66513923K014)
• If the label is worn, take a clear photo and zoom in to confirm characters

What you see	What it means	What to do
Model number	Identifies the exact dishwasher design	Use it to select diagrams and parts
Serial number	Production code and build sequence	Keep it for service records

Why it matters

Kenmore 665-prefix dishwashers can look similar but use different racks, pumps, seals, and controls. Using the exact model number helps ensure parts like a drain pump, water inlet valve, or rack hardware fit and function correctly.

Last updated: March 2026
