Universal/Multiflex (Frigidaire) V16C upright freezer - lx30889110

Universal/Multiflex (Frigidaire) V16C upright freezer - lx30889110 Parts

Here are the diagrams and repair parts for Universal/Multiflex (Frigidaire) V16C upright freezer - lx30889110, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for V16C Freestanding Freezers

  • Latch for Universal/Multiflex (Frigidaire) V16C - Part 5309949966

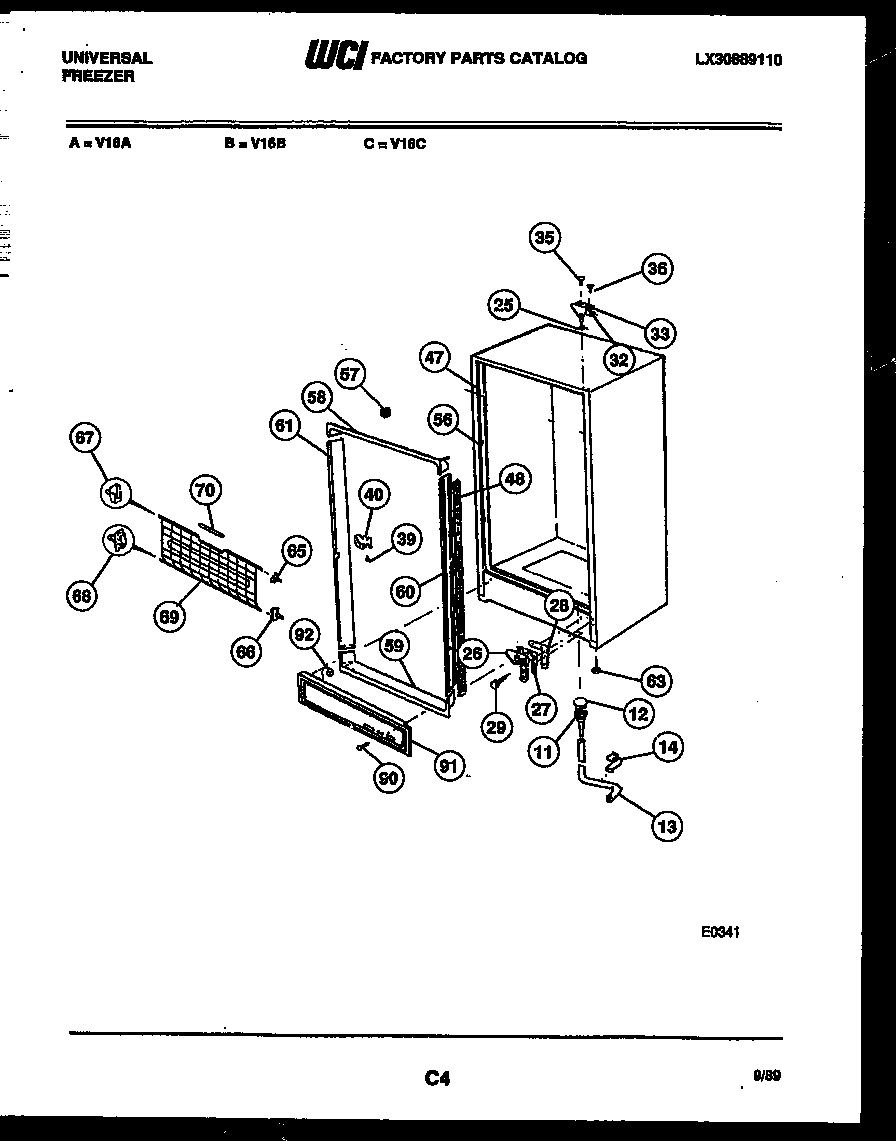

    Cabinet parts diagram

    Latch

    Part #F117634

    Replaced by #5309949966

    Info Icon
    Manufacturer substitution
    This part replaces F117634. Substitute parts can look different from the original.
    In Stock
    $28.97
    Minus Item
    Qty
    Plus Item
  • Clip for Universal/Multiflex (Frigidaire) V16C - Part 5303017762

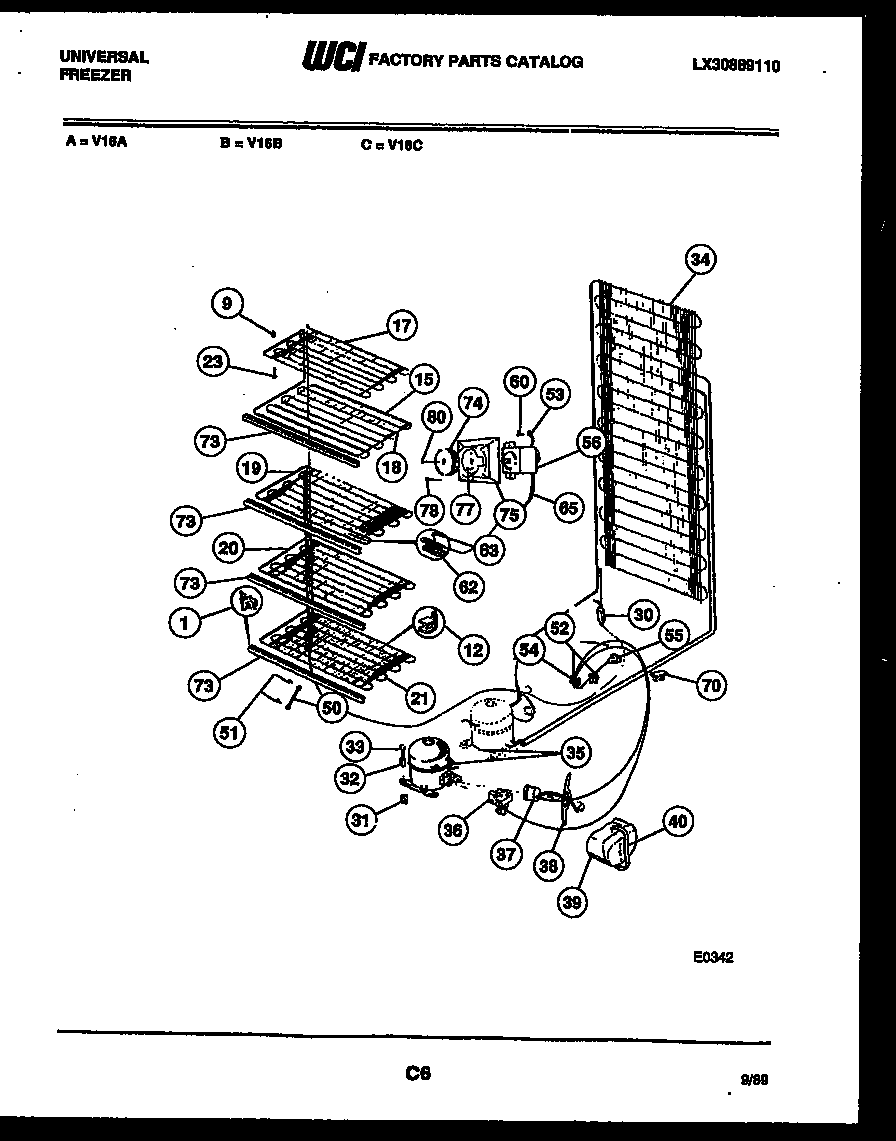

    System and electrical parts diagram

    Overload Clip

    Part #F117104

    Replaced by #5303017762

    Info Icon
    Manufacturer substitution
    This part replaces F117104. Substitute parts can look different from the original.
    In Stock
    $33.79
    Minus Item
    Qty
    Plus Item
  • Plate for Universal/Multiflex (Frigidaire) V16C - Part 3200515

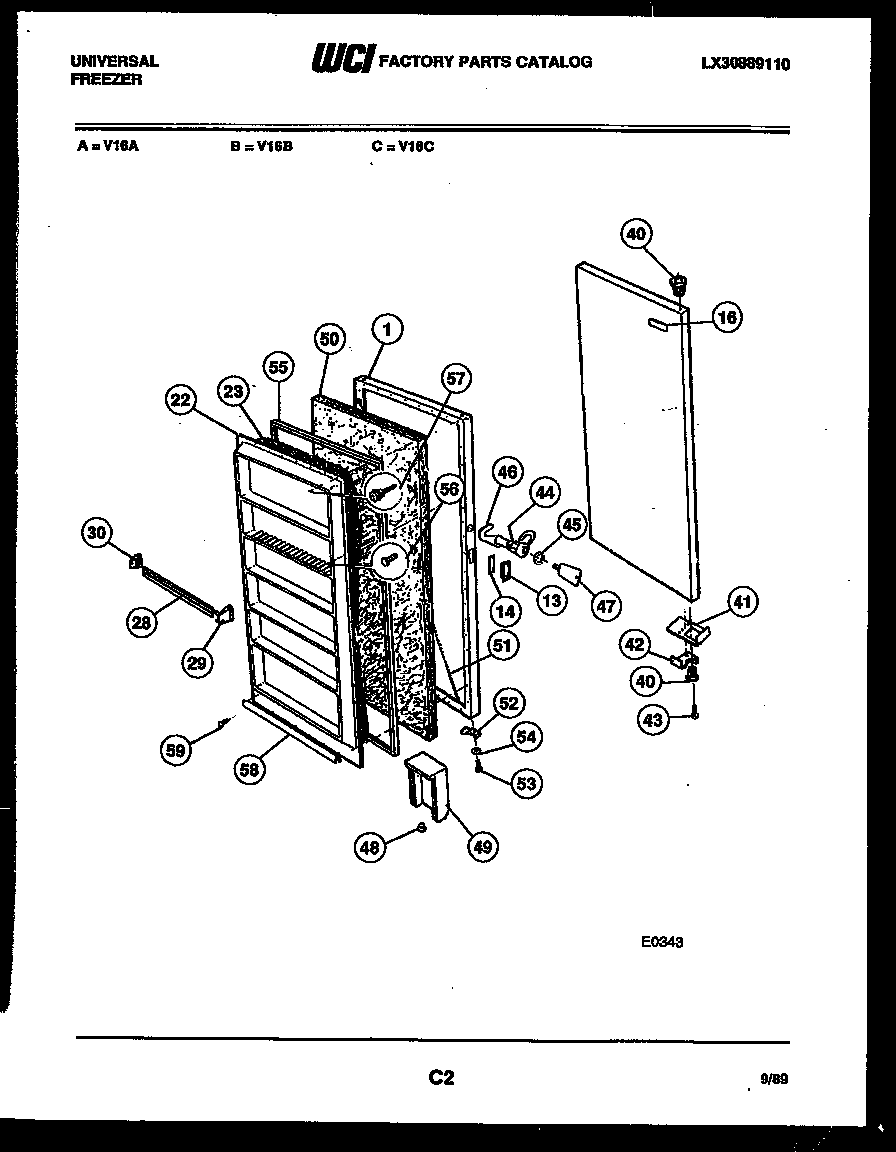

    Door parts diagram

    Plate

    Part #F118808

    Replaced by #3200515

    Info Icon
    Manufacturer substitution
    This part replaces F118808. Substitute parts can look different from the original.
    In Stock
    $32.03
    Minus Item
    Qty
    Plus Item
  • Support for Universal/Multiflex (Frigidaire) V16C - Part 06599974

    Cabinet parts diagram

    Support

    Part #F81201

    Replaced by #06599974

    Info Icon
    Manufacturer substitution
    This part replaces F81201. Substitute parts can look different from the original.
    In Stock
    $26.88
    Minus Item
    Qty
    Plus Item
  • Hinge for Universal/Multiflex (Frigidaire) V16C - Part 3017656

    Cabinet parts diagram

    Hinge

    Part #F300270

    Replaced by #3017656

    Info Icon
    Manufacturer substitution
    This part replaces F300270. Substitute parts can look different from the original.
    In Stock
    $109.05
    Minus Item
    Qty
    Plus Item
  • Apron for Universal/Multiflex (Frigidaire) V16C - Part 09950591

    Cabinet parts diagram

    Apron

    Part #F124786

    Replaced by #09950591

    Info Icon
    Manufacturer substitution
    This part replaces F124786. Substitute parts can look different from the original.
    In Stock
    $111.67
    Minus Item
    Qty
    Plus Item
  • Freezer Door Inner Liner Screw for Universal/Multiflex (Frigidaire) V16C - Part 216022800

    Door parts diagram

    Screw

    Part #F124860

    Replaced by #216022800

    Info Icon
    Manufacturer substitution
    This part replaces F124860. Substitute parts can look different from the original.
    In Stock
    $28.55
    Minus Item
    Qty
    Plus Item
  • Spacer for Universal/Multiflex (Frigidaire) V16C - Part 08037929

    System and electrical parts diagram

    Spacer

    Part #F56640

    Replaced by #08037929

    Info Icon
    Manufacturer substitution
    This part replaces F56640. Substitute parts can look different from the original.
    In Stock
    $25.22
    Minus Item
    Qty
    Plus Item
  • Wire for Universal/Multiflex (Frigidaire) V16C - Part 08037953

    Door parts diagram

    Wire-door Ad

    Part #F129667

    Replaced by #08037953

    Info Icon
    Manufacturer substitution
    This part replaces F129667. Substitute parts can look different from the original.
    In Stock
    $26.86
    Minus Item
    Qty
    Plus Item
  • Screw for Universal/Multiflex (Frigidaire) V16C - Part 08003539

    System and electrical parts diagram

    Screw

    Part #F55160

    Replaced by #08003539

    Info Icon
    Manufacturer substitution
    This part replaces F55160. Substitute parts can look different from the original.
    In Stock
    $29.19
    Minus Item
    Qty
    Plus Item
