Universal/Multiflex (Frigidaire) V16C upright freezer - lx30889110 Parts
Here are the diagrams and repair parts for Universal/Multiflex (Frigidaire) V16C upright freezer - lx30889110, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for V16C Freestanding Freezers

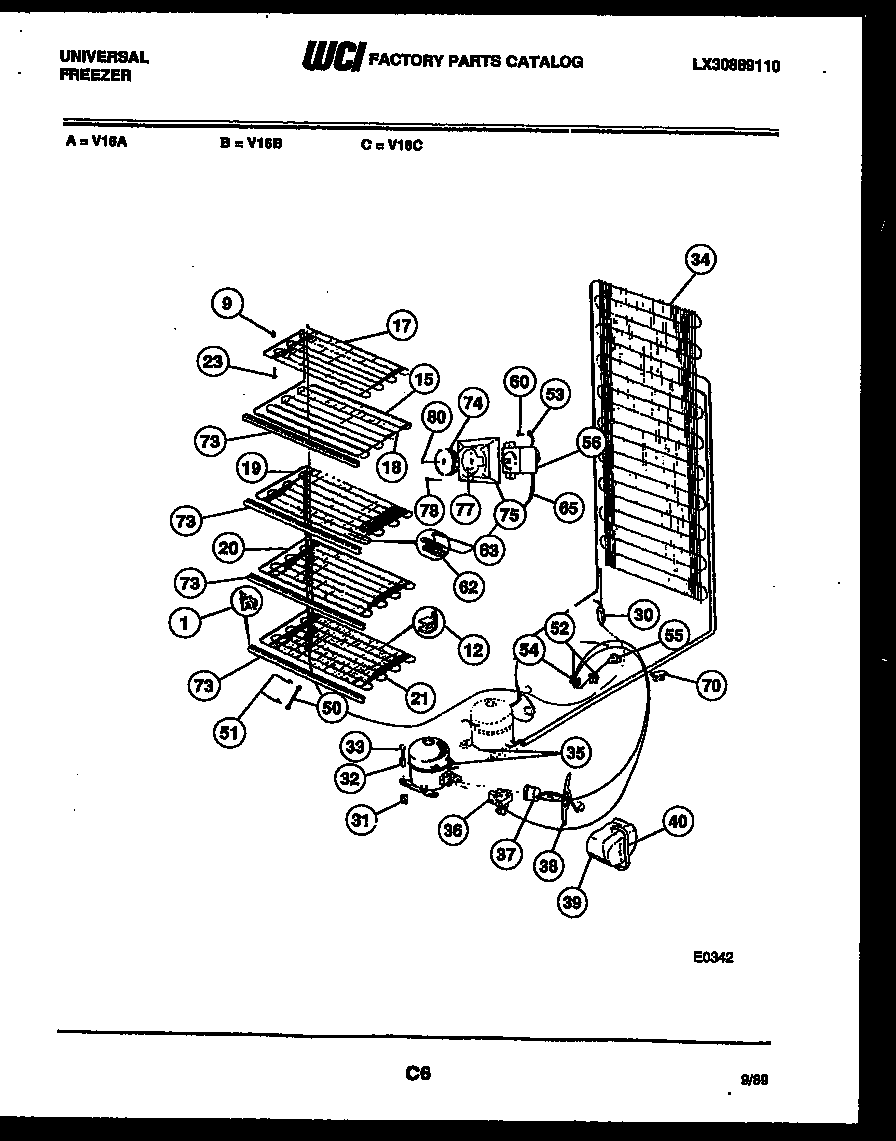

System and electrical parts diagram
Filter Drier
Part #F114259Replaced by #5303305677
Manufacturer substitutionThis part replaces F114259. Substitute parts can look different from the original.In Stock$26.9018% OFF Phone Price : $32.90
Qty
System and electrical parts diagram
Shelf Support
Part #F300590Replaced by #297001500

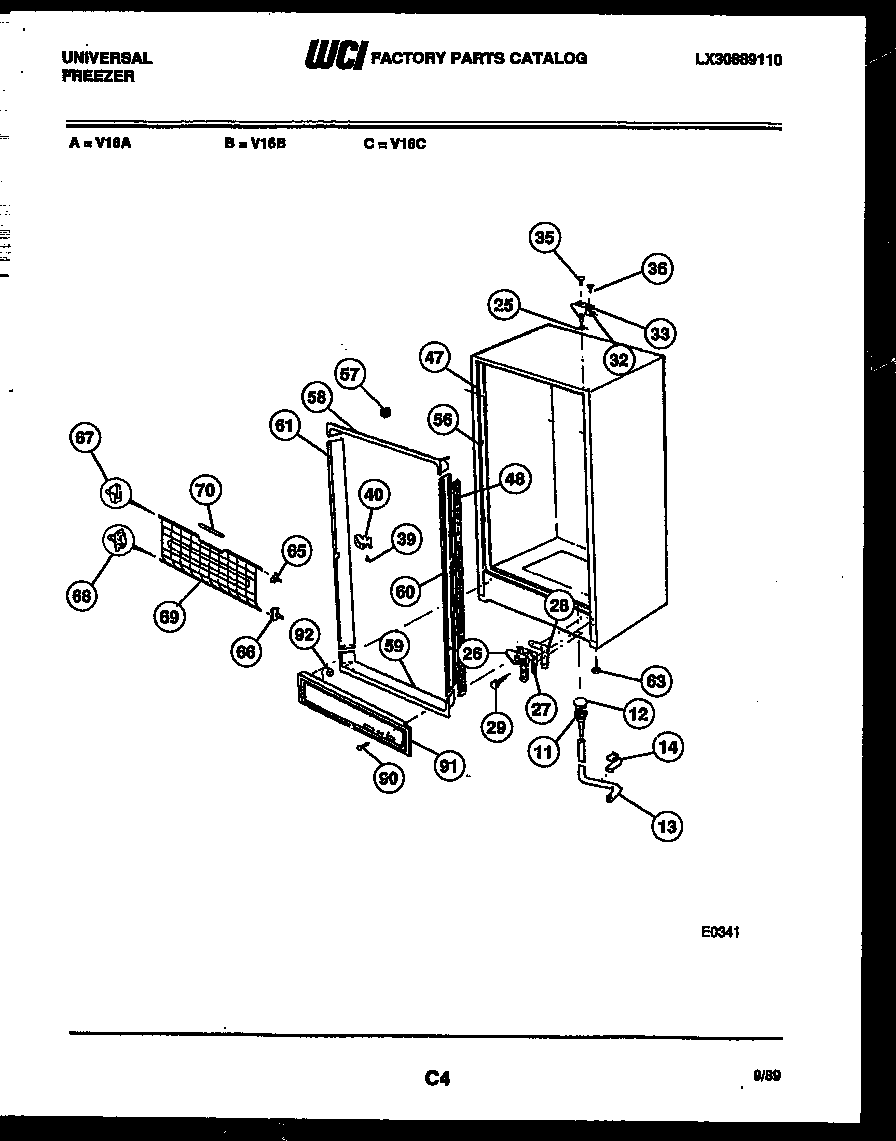

Manufacturer substitutionThis part replaces F300590. Substitute parts can look different from the original.This item is not returnableIn Stock$20.1323% OFF Phone Price : $26.13QtyCabinet parts diagram
Drain
Part #F121290Replaced by #5304511843
Manufacturer substitutionThis part replaces F121290. Substitute parts can look different from the original.This item is not returnableIn Stock$14.7812% OFF Phone Price : $16.78QtySystem and electrical parts diagram
Shelf Support
Part #F300592Replaced by #297001600

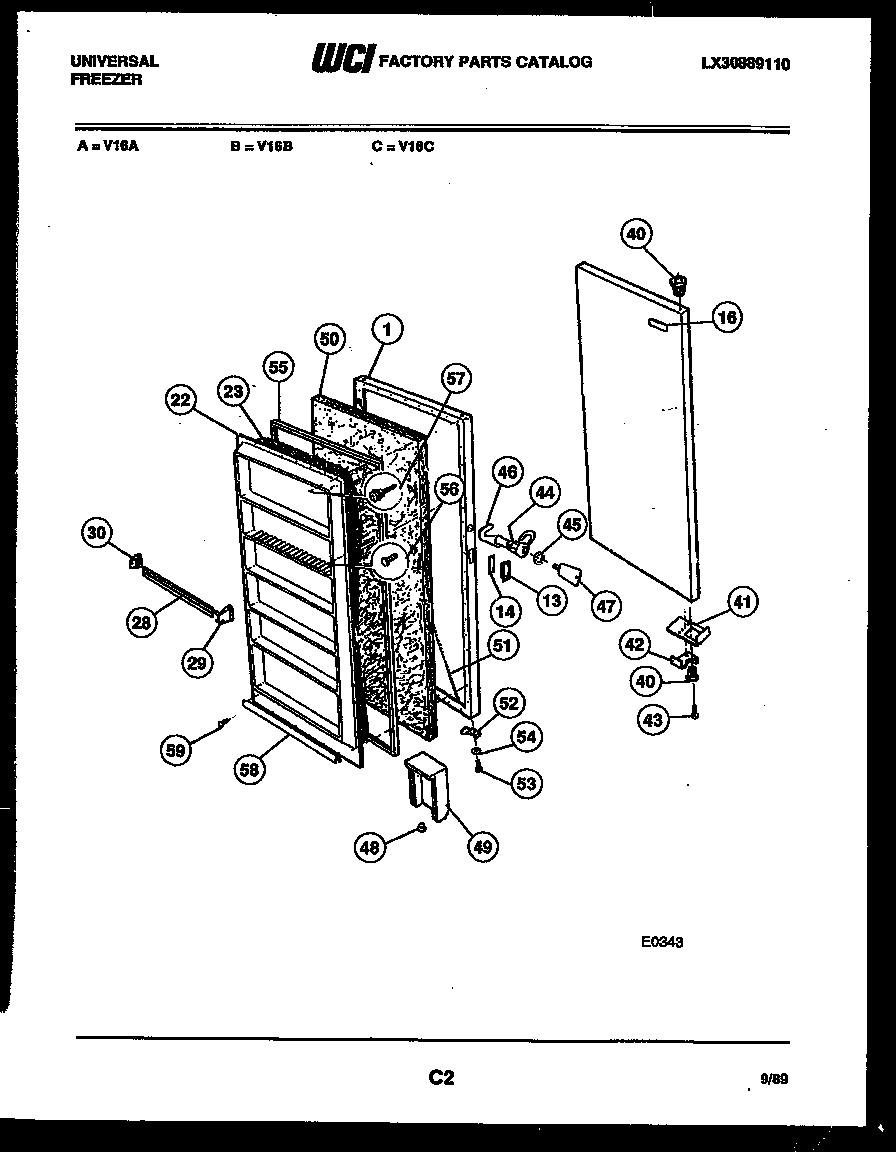

Manufacturer substitutionThis part replaces F300592. Substitute parts can look different from the original.This item is not returnableIn Stock$18.2410% OFF Phone Price : $20.24QtyDoor parts diagram
Hook
Part #F124455Replaced by #3202005
Manufacturer substitutionThis part replaces F124455. Substitute parts can look different from the original.In Stock$61.54QtyDoor parts diagram
Reinforcement
Part #F91170Replaced by #5300091170
Manufacturer substitutionThis part replaces F91170. Substitute parts can look different from the original.In Stock$97.86QtyDoor parts diagram
Wire-door Ad
Part #F129667Replaced by #08037953
Manufacturer substitutionThis part replaces F129667. Substitute parts can look different from the original.In Stock$26.86QtySystem and electrical parts diagram
Shelf
Part #F129807Replaced by #08037940
Manufacturer substitutionThis part replaces F129807. Substitute parts can look different from the original.In Stock$152.20QtyCabinet parts diagram
Hinge Screw
Part #F85863Replaced by #154518001
Manufacturer substitutionThis part replaces F85863. Substitute parts can look different from the original.In Stock$34.03QtyDoor parts diagram
End Cap Set
Part #F124978Replaced by #5303925377
Manufacturer substitutionThis part replaces F124978. Substitute parts can look different from the original.In Stock$41.3213% OFF Phone Price : $47.32Qty
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for upright freezers
How to replace a freezer electronic control board
The electronic control board manages the compressor to control freezer temperature. Replace the control board using the…
Repair time and Difficulty
45 minutes or less
How to replace a freezer thermistor
When the thermistor can’t sense the freezer temperature, the freezer is colder or warmer than the set temperature. Follo…
Repair time and Difficulty
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
