Kenmore Elite 79048083001 wall oven Parts

To unlock a Kenmore Elite wall oven like model 79048083001, first cancel any active cooking cycle, then turn off the control lock (often labeled Control Lock or shown as a lock icon) by pressing and holding the lock key for about 3 seconds until the lock indicator turns off. Check the owner's manual for the exact key sequence for your control panel.

Common ways the oven gets “locked”

Most lock complaints come from one of these features:

• Control lock: disables the keypad so settings cannot be changed
• Door lock: locks the oven door during self-clean (and sometimes stays locked if the cycle is interrupted)
• Stuck lock mechanism: the latch motor does not return to the unlocked position

Quick unlock steps to try (in order)

1. Press CANCEL/OFF once to stop any active mode.
2. Press and hold Control Lock (or the lock icon key) for 3 seconds.
3. If the door is physically locked, wait for the oven to cool; the door lock releases only after temperatures drop.
4. Power reset: turn the breaker off for 1 minute, then back on; retry the lock key.
5. If the display shows a lock but the door will not open, inspect the door lock system.

Parts that commonly cause a door that will not unlock

If the oven is out of self-clean but the door stays locked, these parts are the most common suspects:

Symptom	Most likely cause	What to check
Door stays locked after clean	Door lock motor not returning	Listen for motor movement; check linkage
Lock light on, keypad odd behavior	Temperature sensing issue	Verify sensor resistance and wiring
Oven overheats, then locks out	High-limit thermostat tripped/failing	Check for overheating and airflow issues

Model 79048083001 has these related parts available:

• Oven door lock motor 318261229
• Range oven temperature sensor 5304504897
• Frigidaire range high-limit thermostat 318578506

Why it matters

A locked oven is often normal during self-clean, but a lock that will not release can point to a failing lock motor, a temperature sensor problem, or an overheat condition. Fixing the root cause prevents repeat lockups and protects the control and wiring.

You can order replacement parts for model 79048083001 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

On the Kenmore Elite wall oven model 79048083001, error code F95 points to a door lock system problem (the oven is not sensing the lock mechanism moving or the lock switches changing state). This most often shows up during or after Self Clean when the door will not lock or unlock.

What to do first (quick reset and safety)

• Turn the oven off.
• Shut off power at the breaker (wall ovens are hardwired; do not rely on the control panel).
• Wait 30 seconds, then restore power.
• If the door is locked, allow the oven cavity to cool completely before trying Self Clean again.
• If the code returns immediately, stop using Self Clean until the lock issue is corrected.

Common causes of F95 on this model

F95 is usually triggered by one of these conditions:

• A failing door lock motor that cannot drive the latch fully
• A door lock switch that is stuck, misaligned, or not being actuated
• Wiring or connector problems in the lock circuit (heat can damage terminals)
• Excessive heat or airflow issues that affect the lock area during Self Clean

Parts that commonly relate to this symptom

If troubleshooting points to the lock mechanism itself, these model-compatible parts are the usual suspects:

Symptom you see	Most likely area	Example part on this model page
Won’t lock for Self Clean	Lock motor or linkage	Oven door lock motor 318261229
Says locked when it is not	Door lock switch circuit	Oven door switch 808136601
Intermittent lock errors	Harness/connection issue	Terminal block 5304409888

Why it matters

The control must confirm the door is locked before Self Clean can run safely. If the lock motor, switch, or wiring is unreliable, the oven may cancel Self Clean, stay locked, or keep throwing F95 until the lock circuit reads correctly.

Helpful model-specific references

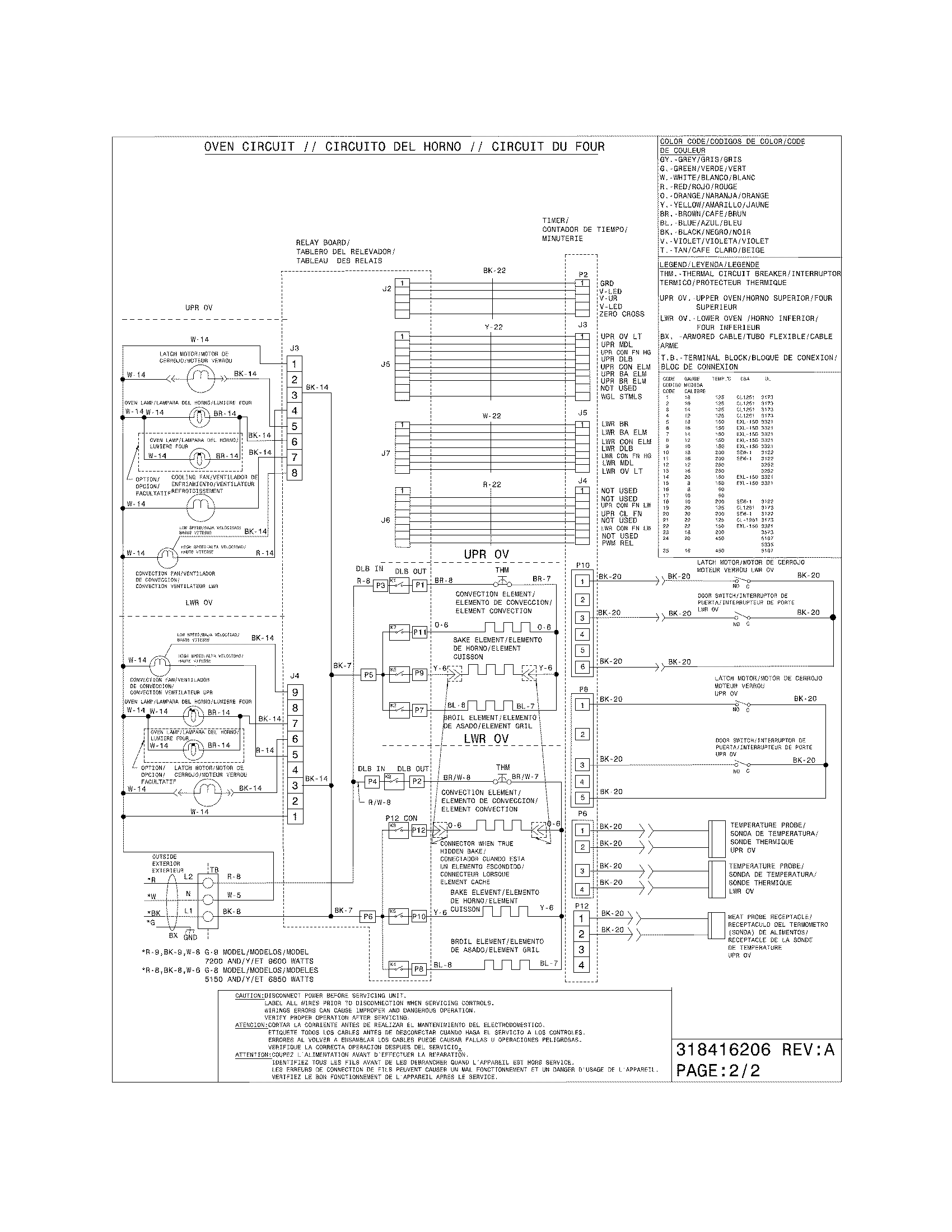

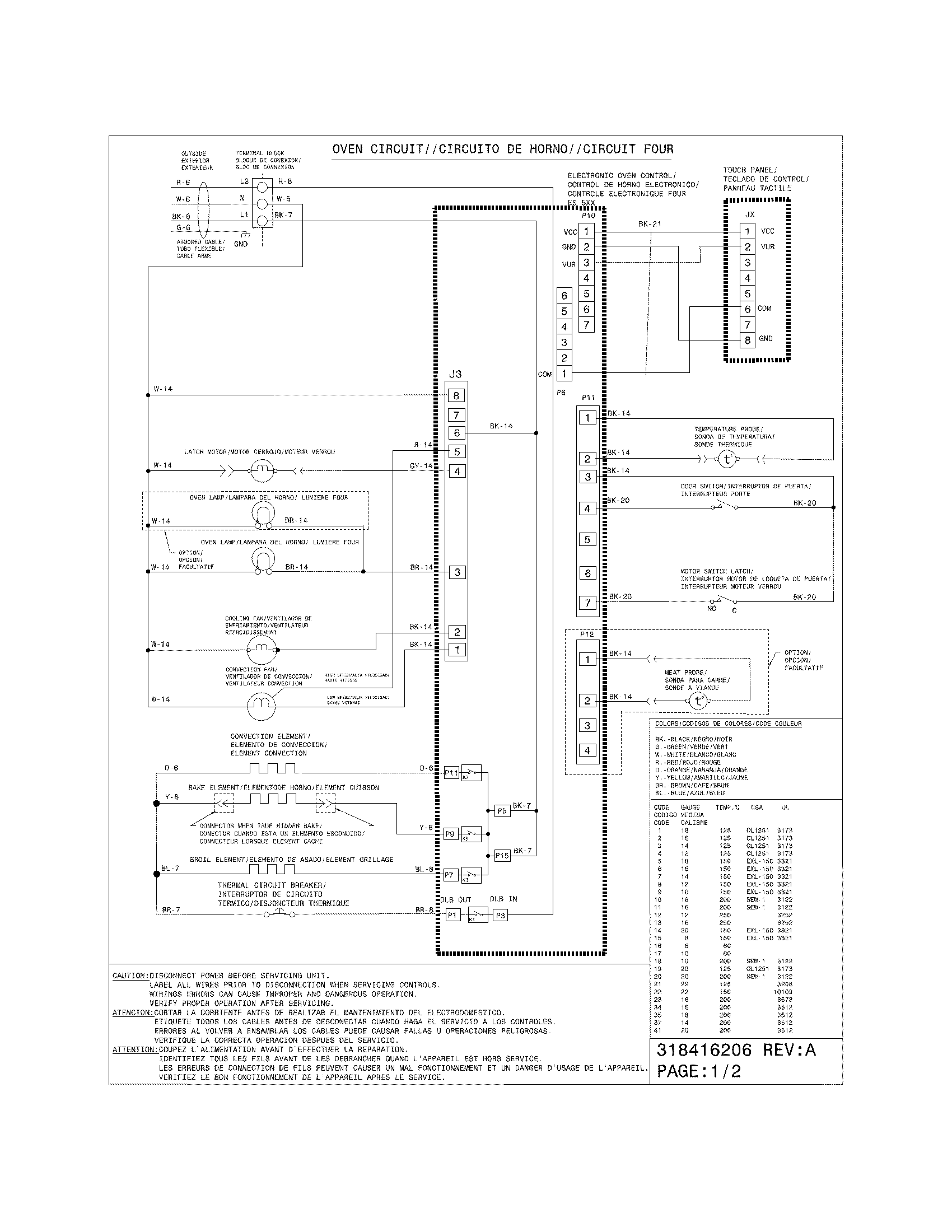

• Use the wiring and installation notes in the installation guide to understand safe power shutoff and access considerations for a built-in wall oven.
• To order replacement parts for model 79048083001, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

On Kenmore Elite cooking appliances, the model number is usually on a rating label you can see after opening the oven door; common spots include the door jamb (frame area) or the lower frame behind the storage or warming drawer. For your Kenmore Elite wall oven model 79048083001, we recommend confirming the exact label location using the 79048083001 installation guide.

Most common places to check

• Open the oven door and look along the left and right door jambs.
• Check the front frame lip around the oven cavity (near the gasket area).
• If your unit has a lower drawer, pull it out and look on the frame behind it.
• For some installations, the label can be on the side trim area, visible when the door is open.
• If the oven is installed in a cabinet, check any accessible side panel areas near the front edge.

Quick tips to find it faster

• Use a flashlight and look for a silver or white sticker or metal plate.
• Wipe grease or dust off the frame edge; labels can blend in.
• Write down the full model number and any serial number; both help match wall oven parts.

What the label typically looks like

What you will see	Why it helps
Model number (example: 79048083001)	Matches the correct parts diagram and part list
Serial number	Helps identify production run details
Electrical ratings (volts/amps)	Useful for installation and troubleshooting

Why it matters

Using the exact model number prevents ordering the wrong Kenmore wall oven parts (like an oven temperature sensor, door gasket, or halogen light bulb) and helps you follow the correct installation and wiring requirements.

If you need to order parts after you find the model number, use the parts list for model 79048083001 or search by model on Sears PartsDirect.

Last updated: February 2026

If your Kenmore Elite electric wall oven model 79048083001 powers on (display, lights, fan) but will not heat, the problem is usually loss of 240V power, a failed bake or broil heating circuit, a bad oven temperature sensor, or a door lock or switch signal that prevents heating. Use the installation guide for safe power-disconnect guidance before any testing.

Quick checks (fastest way to narrow it down)

• Try Bake and then Broil; note whether one works and the other does not.
• Confirm the oven is not in Delay Start or Sabbath mode (if equipped).
• Check for an error code or a flashing Lock indicator.
• Reset power at the double-pole breaker for 1 minute, then retest.
• If the oven was recently installed or moved, recheck junction box connections.

Most common causes and what to test

Missing one leg of 240V

An electric wall oven can “run” on 120V but not heat without full 240V.

• Inspect for a tripped breaker half.
• Look for overheated connections; the terminal block 5304409888 is a common fix when terminals burn.

Bad temperature sensor

If the sensor reads wrong, the control may never energize the elements.

• Typical sensor reading is about 1,080 ohms at room temperature.
• If it tests out of range, replace the range oven temperature sensor 5304504897.

Door lock or door switch issue

Some models limit heating if the control thinks the door is locked or not closed.

• If the lock motor runs repeatedly or the lock light stays on, check the Kenmore range oven door lock motor 318261229 and the Kenmore pro range oven door switch 808136601.

Symptom guide

What you see	Most likely area
No heat on Bake and Broil, fan runs	240V supply, wiring, terminal connections
Broil works, Bake does not	Bake circuit or wiring to bake element
Temps swing or never reach set temp	Temperature sensor
Lock light on, abnormal lock behavior	Door lock motor or door switch

Why it matters

Pinpointing whether the issue is power, sensing, or an interlock (door lock or switch) prevents replacing the wrong Kenmore parts and restores normal preheat and temperature control.

You can order replacement parts for model 79048083001 from the parts list for this oven, or search by model number on Sears PartsDirect.

Last updated: February 2026
