Kenmore 66513002N511 dishwasher Parts

Your Kenmore dishwasher’s model number is printed on the rating label inside the door. On model 66513002N511, you’ll find it on the inner door edge (commonly along the left side) along with the serial number; match that model number exactly when ordering parts or using the 66513002N511 owner’s manual.

Where to look (fast checklist)

• Open the dishwasher door fully.
• Look along the inner door frame/edge (often the left side).
• Find the rating label with MODEL and SERIAL fields.
• Write the model number exactly as shown (letters and numbers).
• Use that exact model number when searching diagrams and parts.

What the label information is used for

The model number and serial number help us identify the correct configuration for your dishwasher, including the right version of common repair parts.

Label item	What it tells us	Why you need it
Model number	Exact dishwasher design and parts list	Ensures correct part fit
Serial number	Production run details	Helps confirm compatible revisions

Why it matters

Kenmore dishwashers can look similar across multiple series, but internal components (like the heating circuit, pump setup, or rack hardware) can differ. Using the exact model number prevents ordering the wrong part and saves time on troubleshooting.

Common examples of parts that depend on the exact model

• Heating system components (for example, element assembly W10518394)
• Water fill components (for example, dishwasher water inlet valve W11175771)
• Drain components (for example, dishwasher drain pump W10876537)
• Filtration components (for example, dishwasher filter WPW10463906)

Last updated: February 2026

To reset an F2 E2 error on your Kenmore dishwasher model 66513002N511, cancel the cycle and reboot the control by pressing and holding Start and Cancel together for about 3 to 5 seconds, then restart a wash cycle. See the keypad and cycle-cancel steps in the 66513002N511 owner's manual.

What F2 E2 means on Kenmore dishwashers

F2 E2 typically points to a user interface (keypad) communication problem. In many cases, a reset clears a temporary glitch; if it returns, the issue is usually a stuck key, moisture in the console, or a wiring/connection problem between the control and the keypad.

Reset steps we recommend (safe, no tools)

• Press Cancel to stop the current cycle.
• Press and hold Start + Cancel for 3 to 5 seconds.
• Wait about 1 minute with the door closed.
• Select a normal cycle and press Start.
• If the dishwasher is unresponsive, turn off power at the breaker for 1 minute, then restore power.

If the error comes back: quick checks

• Wipe the control panel dry; moisture can trigger false key presses.
• Press each key once to confirm none feel stuck.
• Power-cycle at the breaker again and retry.
• If the dishwasher won’t drain or stops mid-cycle, check for standing water and listen for the drain pump.
• Review model-specific fault guidance in Kenmore 665 model dishwasher error codes.

Parts that are commonly involved (when symptoms match)

These are not automatic replacements, but they are common suspects when the dishwasher won’t cancel, won’t respond to keys, or won’t complete a cycle:

Symptom you see	Most likely area	What to do next
Keys don’t respond or act “stuck”	Console/keypad	Dry panel; retry reset; inspect console connections
Cancels but won’t drain	Drain system	Check drain path; consider dishwasher drain pump W10876537 if pump is noisy or not running
Random stopping, intermittent behavior	Wiring/control	Inspect harness connections; check for loose plugs

Why it matters

F2 E2 can prevent proper cycle control, which leads to incomplete washing, poor drying, or water left in the tub. Resetting first avoids unnecessary part replacement and helps confirm whether the problem is a one-time control glitch or a repeatable keypad/control issue.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher like model 66513002N511 is usually worth it when the problem is isolated (drain, fill, heat, or rack hardware) and the tub is sound; a targeted repair often restores performance for far less than replacement.

Quick decision checklist

• The dishwasher is cleaning well when it runs (issue is starting, draining, or filling).
• The unit is not leaking from the tub itself.
• The failure points to a single part (valve, drain pump, heater, hose).
• You want to avoid the time and cost of uninstalling and reinstalling a new dishwasher.
• You can confirm basic setup items (water on, cycle set, proper installation clearances).

Common repairs that are typically cost-effective

Many “won’t wash” or “won’t drain” complaints come down to a few serviceable parts.

Symptom	What we check first	Example part for 66513002N511
Not draining, standing water	Drain path and drain pump	Dishwasher drain pump W10876537
Not filling or fills slowly	Water supply and inlet valve	Dishwasher water inlet valve W11175771
Poor drying, water not heating	Heating circuit and heater	Element assembly W10518394

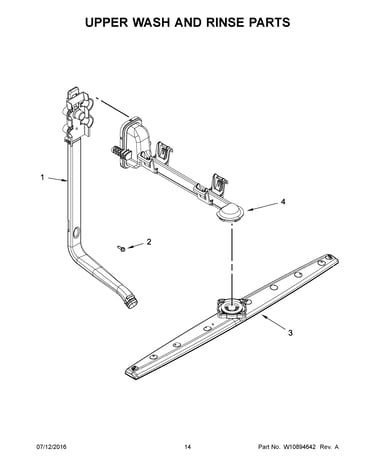

Weak spray, debris recirculating	Filters and spray arm	Dishwasher spray arm WPW10491331

When replacement makes more sense

Replacement is the better call when the dishwasher has repeated major failures (multiple pumps, control issues, wiring problems) or when you have persistent leaks that are not coming from a hose, clamp, or seal. If the tub is damaged or the repair requires multiple high-cost assemblies, replacement usually wins on long-term value.

Why installation condition matters

A dishwasher that is not installed correctly can shift, rub, leak, or operate poorly. The installation instructions for this platform call out key requirements such as a grounded electrical supply, keeping lines and wiring away from the motor/legs, not installing over carpet, and securing the dishwasher to the countertop or cabinet so it does not move when the door opens. Use the installation guide to confirm these basics before replacing parts.

Helpful references for troubleshooting

• If you’re seeing a flashing pattern or error, use Kenmore 665 model dishwasher error codes to narrow the failure.
• For model-specific operating and care guidance, use the 66513002N511 owner's manual.

Last updated: February 2026

On the Kenmore dishwasher model 66513002N511, an E15 error means the anti-flood protection has detected water in the base pan (under the tub) and the dishwasher may stop or run the drain pump to prevent overflow.

What to do first (safe reset steps)

• Turn off power at the breaker (or unplug if accessible).
• Shut off the water supply to the dishwasher.
• Remove the toe-kick or lower access panel and check for standing water in the base.
• If water is present, dry the base pan (towels or a fan) so the float switch can reset.
• Restore power and run a short cycle to see if E15 returns.

Common causes we see behind E15

• Loose or leaking water inlet connection or inlet valve seepage
• Split, loose, or misrouted drain hose (including at the sink/disposer connection)
• Leaks at the pump area, sump seals, or internal hoses
• Over-sudsing from the wrong detergent (hand soap) causing overflow
• Door not sealing well due to loading issues or a warped seal

Quick leak-check checklist

What to inspect	What you are looking for	What to do
Inlet area	Drips during fill	Tighten fittings; re-test
Drain hose path	Kinks, rubbing, loose clamps	Re-route and secure
Pump-out	Drips while draining	Check pump and hose joints
Door area	Water trails at corners	Re-load; clean sealing surfaces

Parts that are often involved

If you find the leak source, these model-matched parts are commonly related:

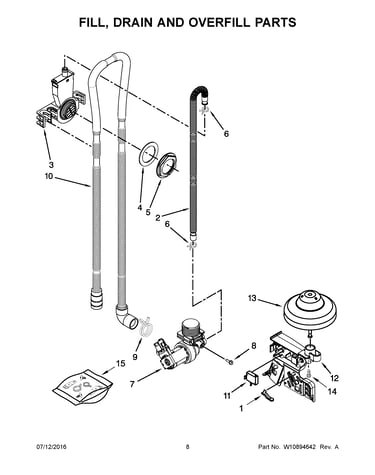

• Dishwasher water inlet valve W11175771 (leaks during fill or won’t shut fully)
• Dishwasher drain hose 8269144A (cracks, pinholes, or loose connections)
• Dishwasher pump grommet WPW10538166 (seepage at pump mounting)

Why it matters

E15 is a protection feature; clearing the water resets the float switch, but finding the leak prevents repeat shutdowns, cabinet damage, and poor wash performance.

For wiring, access-panel removal, and safe power guidance, follow the 66513002N511 installation guide.

Last updated: February 2026

On Kenmore dishwasher model 66513002N511, error code F2E2 means the keypad or user interface is not communicating correctly with the main control; it is typically caused by a stuck key, a wet/dirty console, or a loose wiring connection between the console and control.

What to do first (quick checks)

• Press Cancel/Drain once, then wait about 1 minute to see if the code clears.
• Power reset: turn the dishwasher off at the breaker for 5 minutes, then restore power.
• Wipe the console dry; moisture or cleaner residue can make keys act “pressed.”
• Press each key one at a time; if one feels stuck or doesn’t “click,” that points to the keypad.
• If the code returns immediately, stop the cycle and move to the inspection steps below.

Inspect the most common causes

Before opening panels, shut off power at the breaker.

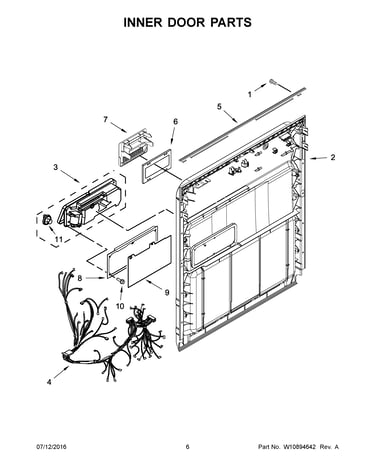

1. Console and keypad: Look for signs of liquid intrusion, swelling, or a key that stays engaged.
2. Wiring connections: Check that the console ribbon/connector and harness plugs are fully seated and not corroded.
3. Door closing and latch alignment: A door that flexes or doesn’t close consistently can stress the console wiring.

If you need to access wiring safely

Use the safety and access steps in the 66513002N511 installation guide. It covers electrical grounding and safe routing so wiring does not contact the motor or tub.

What usually fixes it (symptom-to-fix)

What you notice	Most likely cause	Typical fix

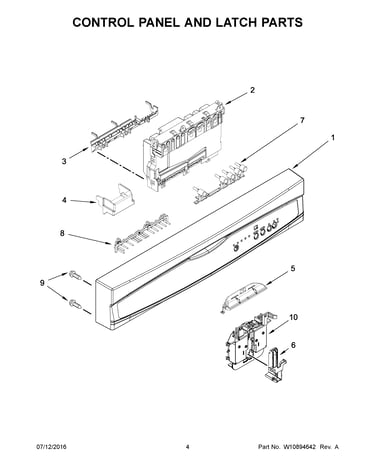

Code appears as soon as you power on	Stuck key or failed keypad	Replace console/keypad assembly (model-specific)
Code appears after cleaning the panel	Moisture or cleaner residue	Dry console; avoid spraying directly on controls
Code is intermittent when opening/closing door	Loose connector or harness strain	Reseat connectors; inspect harness routing
Multiple keys act erratic	User interface failure	Replace user interface/control panel assembly

Why it matters

F2E2 can prevent cycle selection and can also cause the dishwasher to stop mid-cycle. Addressing it early helps avoid no-start problems and reduces the chance of repeated drain interruptions.

Last updated: February 2026

Error 25 (often shown as E25) on a Kenmore dishwasher typically points to a drain problem: the drain pump area is blocked, or the drain pump cover is loose or missing. On model 66513002N511, start by checking for a clog and confirming the dishwasher can drain normally per the 66513002N511 installation guide.

What to check first (fast, no parts)

• Cancel the cycle and let the unit attempt to drain.
• Remove the lower rack and look for standing water in the tub.
• Check the sump area for debris (glass, labels, food) that can jam the drain pump.
• Verify the drain hose is not kinked, crushed, or routed in a way that traps water.
• Confirm the sink/disposer inlet where the dishwasher drains is clear.

When a part is likely needed

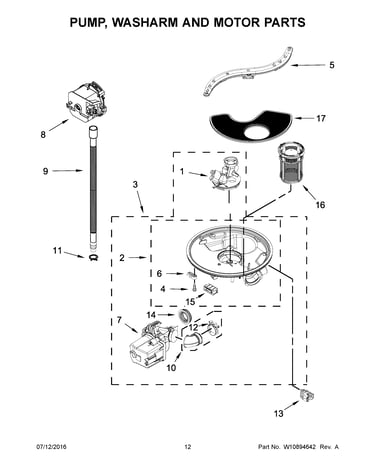

If the tub will not drain after clearing debris and checking the hose routing, the drain pump itself is a common failure point. For this model, the correct replacement is the dishwasher drain pump W10876537.

Quick symptom-to-cause guide

What you notice	Most likely cause	What to do
Humming during drain, little or no water movement	Pump jammed or blocked	Clear debris in sump/pump area
No drain sound at all	Pump not running or no power to pump	Check door latch, cycle start, power; then test pump
Drains slowly	Partial clog in hose or air gap	Clear hose/air gap and check routing
Drains but error returns	Intermittent blockage or weak pump	Recheck for debris; replace pump if needed

Why it matters

A drain fault can leave dirty water in the tub, trigger repeated error codes, and cause poor wash results. Restoring proper draining protects the circulation system and helps the dishwasher complete cycles normally.

Helpful reference

For code meanings and related drain errors on Kenmore units, use our Kenmore 665 model dishwasher error codes guide.

Last updated: February 2026
